Marshall Amplification V-R44P User manual

Marshall Electronics

• Four channels of conversion in each MC-0201-4.

This is a perfect fit for use of S-Video signals with the Marshall Electronics 4 screen monitor set model V-R44P.

• S-Video signal loops out for use with downstream equipment like switcher, vision mixer, or VCR

• Compact design can be installed on the tabletop, wall mounted or placed into a standard 19” EIA rack using the optional V-CRM2 rack kit.

• Full bandwidth conversion of S-Video (Y/C) chrominance and luminance components to composite video.

• Low Power consumption less than 10 watt

• Operates from 6 Volt DC

The MC-0201-4 S-Video to composite conversion module fills a void that has long existed in Professional and Multimedia applica-

tions. Until now, the only way to convert S-Video to composite was by using a very low quality passive device or expensive boxes

that lacked in capability. The MC-0201-4 is the only product of its type available, providing simultaneous conversion of 4 separate

S-Video (Y/C) channels to composite video. The S-Video is processed and amplified for output to another device like a vision mixer

or VCR. Compare the features and price of the MC-0201-4 to similar devices and you will be pleasantly surprised. In most cases

the MC-0201-4 provides 4 channels of conversion compared to other products providing only 1 channel at a similar price point.

V-CB1 Desktop Stand

MC-0201-4 Distribution Amplifier Users Guide

Signal Input Y/C Video 4 pin Mini- din x 4 channels

Signal Output Composite Video BNC Plus Y/C Video 4 pin Mini- din x 4 channels

Bandwidth >7mhz

K factor <1%

Signal to Noise >60 db

Differential Gain <0.4%

Differential Phase 0.40

Input Cable length Up to 100ft

Dimensions 7.625”W x 4.125”D x 1.0”H

MC-0201-4 Weight 1.15 lbs (.52kg)

V-PS6-1.2A Power Supply Weight 0.20 lbs (0.10kg)

1910 East Maple Ave. El Segundo, CA 90245 • Tel.: 800-800-6608 • Fax:310-333-0688 • www.LCDRacks.com • Email: [email protected]om

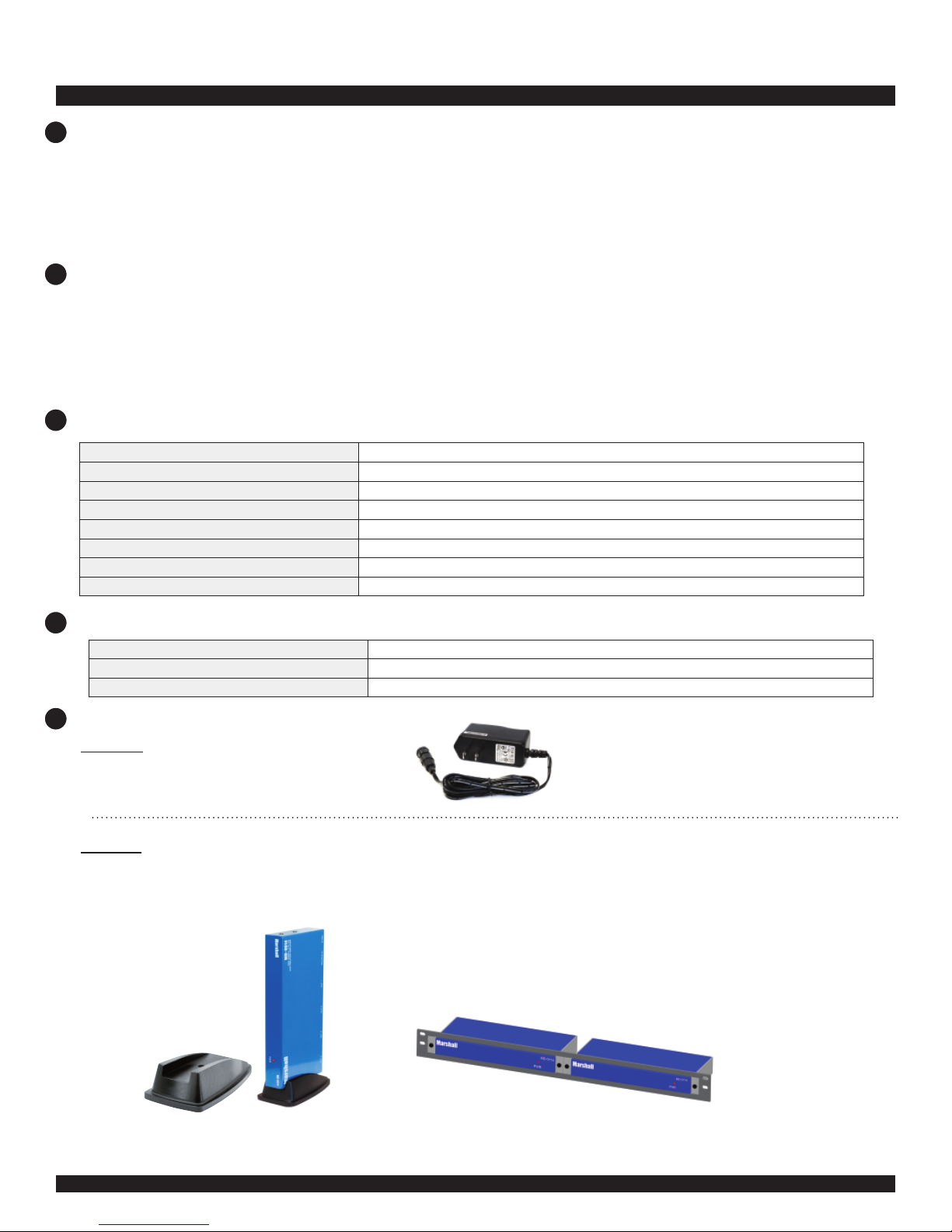

1Product Overview

Features

Electrical Specifications

Mechanical Specifications

Accessories

Included: 1. Power Supply (Class 2)

2. Users Guide

3. Wall Mount Brackets

Optional: 1. Desktop Stand (Model V-CB1)

2. 2 Module Rack Mount Kit (Model V-CRM2)

3. S-Video Cable (Model TCS5139-x)(x=length in feet 1,6,12,20,30,50,75,100)

4. BNC Cable (Model 9406M 6ft)

2 Module Rack Mount Kit (Model V-CRM2)

Power Supply (Class 2)

1. Unpack the MC-0201-4, and accompanying V-PS6-1.2A power supply and physically inspect for any damage that may have occurred

during shipping. Also verify there is a small package with mounting accessories. Should there be any damage, immediately contact

Marshall Electronics at 800-800-6608. If you are not located within the continental united states call +1 310-333-0606.

2. Install in your desired location. If wall mounting is required, attach the mounting brackets by removing the Phillips head screws on

the sides, closest to the rear of the unit. (See below) Only one screw per side should be removed. Use the same screw to attach the

bracket with the flange facing away from the side and parallel to the front of the MC-0201-4 metal case. The flange has two holes. For

desktop use, apply the supplied rubber pads.

1910 East Maple Ave. El Segundo, CA 90245 • Tel.: 800-800-6608 • Fax:310-333-0688 • www.LCDRacks.com • Email: [email protected]om

Bracket Installation

Feet Installation

Operational Setup

3. Connect required cables for signal input and output.

Plug the power supply into the A.C. source

4. Attach power connection to the back of the unit to

turn on power. Verify power on indicator active on the

front of the MC-0201-4

Connectors

8Warranty

Composite Video

Out 1 Composite Video

Out 2 Composite Video

Out 3 Composite Video

Out 4 6 VDC from

V-PS6-1.2A

power supply

Left Pin - Pos

Right Pin- Neg

S-Video In &

Loop Out 1

S-Video In &

Loop Out 2

S-Video In &

Loop Out 3

S-Video In &

Loop Out 4

S-Video Out

4 Pin Din (Female)

Pin1 - GND

Pin2 - GND

Pin3 - Yout

Pin4 - Cout

S-Video In

4 Pin Din (Female)

Pin1 - GND

Pin2 - GND

Pin3 - Yin

Pin4 - Cin

Marshall Electronics warranties to the first consumer, that this MC-0201-4 Distribution Amplifier will, under normal use, be free from

defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date.

This warranty is extended to the first consumer only and proof of purchase is necessary to honor the warranty. If there is no proof

of purchase provided with a warranty claim, Marshall Electronics reserves the right, not to honor the warranty set forth above.

Therefore, labor and parts may be charged to you.

This warranty does not apply to product exterior and cosmetics. Misuse, abnormal service or handling, improper alterations or mod-

ifications in design or construction, voids this warranty. No sales personnel of the seller, nor any other person is authorized to make

any warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics,

beyond the time period described above.

Due to constant effort to improve products and product features, specifications may change without notice.

1910 East Maple Ave. El Segundo, CA 90245 • Tel.: 800-800-6608 • Fax:310-333-0688 • www.LCDRacks.com • Email: [email protected]om
