Mark MK 1600 LED User manual
Rev. 150601
MK 1600 LED
User Manual/Manual de Uso
Thank you very much of choosing MK 1600 LED (LED MOVING HED FOG MACHINE)
Foreword
Before start operating,we strongly suggest you to read the user manual carefully. Following the
instructions here w ill ensure your safety while operating the machine,eas ily achieve the best
effect,as well as understand the right way to care for and maintain the machine,hence to prolong
the product life cycle.
Safety information
1. Keep the fixture dry. For indoor and outdoor used.
2. Use grounded electrical outlet. Prior to use,make sure that unit is installed at the rated voltage.
3. Turn off or unplug when not using it.
4. This machine is not water-proof. Please keep it
away from
moisture and water. If
moisture,water,or fluid gets inside the housing, stop using it.
5. No user serviceable and modifiable pa rts inside. Do not disassemble the housing and do any
modification, otherwise it
might cause damage to the unit or danger of burning.
6. For adult use only. Fixture must be installed out of the reach of children.Never leave the un it
running unattended. Keep it away from fire,combustible
and flammable materials.
7. Position the machine in well-ventilated area. Please leave about 50cm spaces su rrounding the
unit.
8. Please do not use the fixture under high temperature.
9. Never add flammable liquids of any kind (oil,gas,perfume) to the fog liquid.
10. If something wrong happen while using, please stop the fixture immediately,
cut off the power,and check the fog liquid amount, fuse, power cable and power plug. If problem
could not be resolved, please contact with your dealer.
11. Use only MARK ® high-quality fog liquid.
12. Never dr ink liquid. If it
is ingested, call a doctor immediately for any discomfort. If
liquid
comes in contact with skin or eyes, rinse thoroughly with water.
Unpackage and inspection
1x MK 1600 LED
What is included:
1×power cord
1×wireless remote
1×user manual
MK 1600 LED - 1 - User Manual/Manual de Uso
EN
1. Connect the DMX controlling line, open the base of the fixture, and remove the oil tank to add
fluid,carefully not to exceed the mark on the tank to prevent oil
from spilling out, and then press
the cap down and check tightly, finally place the oil tank back carefully and cover it.
2. If you need to use fixture upside down, just put machine upside down and remove the tank, put
the tank upside down and then re-inserted into the base.
3. Plug in the power cord, turn on the power switch, then oil bottles displaying in red is in heating,
set address code, waiting for about seven minutes, when the machine is well heated, oil bottles
will be displayed in blue, the LCD display can also be observed to understand the heating state of
the machine.
Promote push rod of the console, the machine will begin to spray, the pump may emit shaking
Operating Instructions
4.
sound in the first smoke slowly, which is a normal phenomenon.

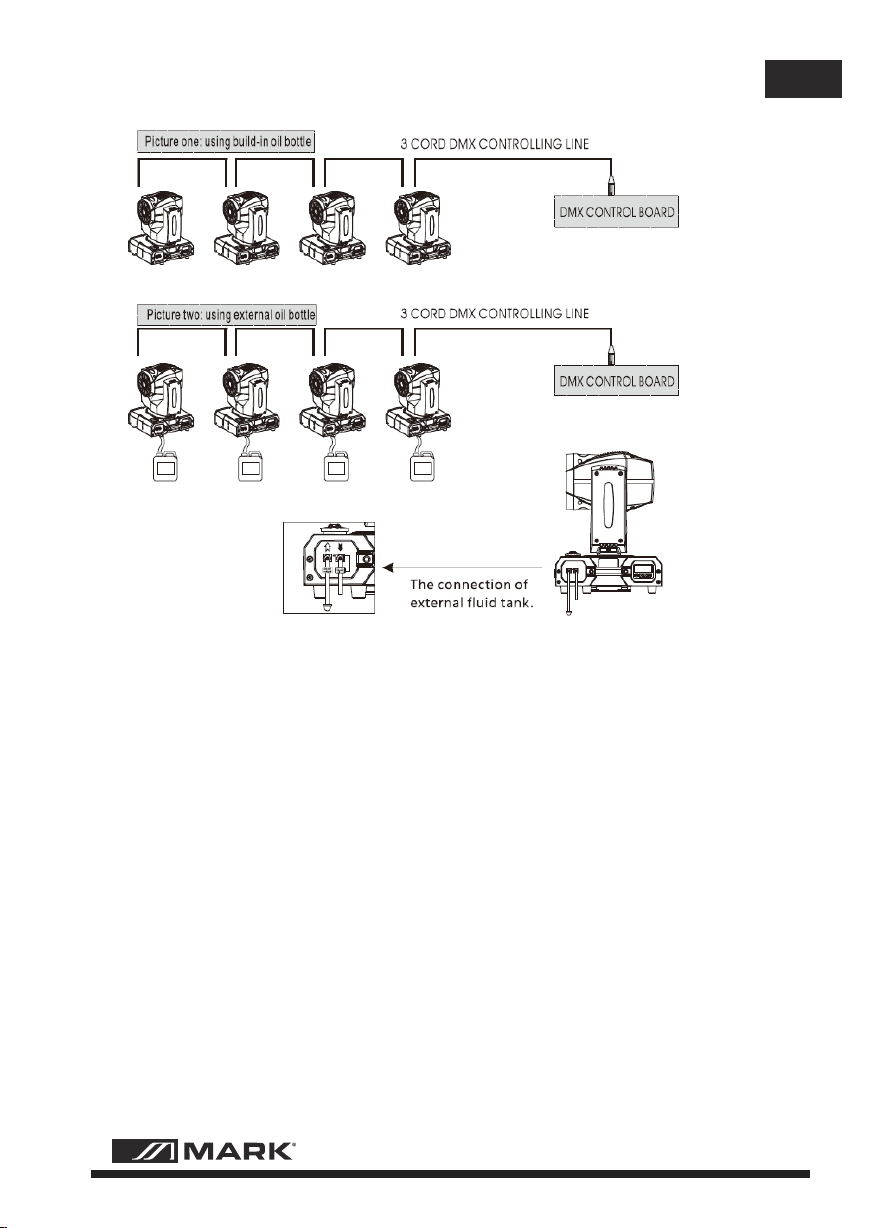

5. Different ways of using several pieces together. picture one: using build/in bottle; Picture
MK 1600 LED - 2 - User Manual/Manual de Uso
EN
two: connect the machine with any outside oil bottle, no need to fill the fluid in the height, suitable
for being used in the high place and long-term using.
1. Tubing connection diagram
2. The connection of external fluid tank
3. The diagram of removing the oil bottle-A
4. The diagram of removing the oil bottle-B
5. Adding fluid must be careful to prevent fluid from flowing into the machine.
The fluid should be poured out and keep the o il bottle dry when the machine in shipment.
Buttons Menu Instruction:
MK 1600 LED - 3 - User Manual/Manual de Uso
EN
"MENU" ：Menu pages choose;
"UP"
"DOWN"
：Decrease, also “volume” button f or fog output;
"ENTER" ：In/out, also for “stop” button.
Press the “Menu”button to switch the display page, a total of 5 pages, as follows:
First page.
“Ready To Fog"
The content displaying on the screen means the machine can start to work
The second page.
“DMX512 Address."
This page Displays Se ttings page for the DMX address by "UP" and "DOWN" button to set the
DMX address code, ranging from 1 to 512;
The third page.
“Wireless Set"
This page displays settings for the wireless control function, in this page by pressing the "UP" or
"DOWN" button to set ON or OFF (open or closed wireless control function);
The fourth page.
Increase
“Pan Inverse"
This page allows to change the PAN axis sense by pressing the "UP" or "DOWN”
MK 1600 LED - 4 - User Manual/Manual de Uso
EN
"Tilt Inverse"
Manual control function
By the "TIMER", "VOLUME" and "STOP" button to manually operate the machine spraying
work. When the machine is heated well, the "Ready To Fog" is in the display page, press the
button "VOLUME", the machine w ill
begin to work; press the bu tton "STOP", the machine will
stop work.
Note: Only the page displays "Ready To Fog", the button will
work. Otherwise, bu ttons do not
work, and turn into conventional functions.
Wireless control function
ON Spray, OFF Stop
1. Identify the wireless transmitter
When the machine is powered and the remote control function se ttings page was set ON in
last use, the LCD controller will
display "Wireless Set up", then the wireless transmitter can be
identified in this state. When you press the button on the wireless transmitter (need to stay at least
1 second), if the LCD controller back light flashes twice, then explained that it
had identified a
wireless transmitter. A machine can only identify 5 transmitter, if the five have been identified to a
wireless transmitter, and when identify the six, the initial identification should be cleared.
If the wireless controller has identified 5 wireless transmitter in last power, the identified
previously transmitters will
be cleared, if at least
one wireless transmitter is identified when
powered again.
For example:
A machine needs to identify 3 wireless transmitters. "Wireless Setup" displays on the LCD
screen within 15 seconds, please press any button of 3 wireless transmitters respectively. When the
LCD back light flashes twice, it identify a wireless transmitter, if the back light does not flash, you
will need to re-identify.
A wireless transmitter to control two or more machines. Two machines should be powered
simultaneously, when "Wireless Setup"displays on the LCD screen of the two machines, press any
The fifth page
This page allows to change the TILT axis sense by pressing the "UP" or "DOWN”
MK 1600 LED - 5 - User Manual/Manual de Uso
EN
button of wireless transmitter, when LCD back light of the two machines flashes twice, then
release button.
2. Machine works under wireless control
After the machine finished heating, press any key of wireless transmitter, machines can start to
work, release the button, the machine stopped will stop work.
Note:
If the wireless control function is set off ( "Wireless Set OFF" on the LCD screen), when
powered again, it will not display"Wireless Set up" page.
When the machine identifies a wireless transmitter, you must wait until
the back light of LCD
screen flashes twice, then release the bu tton, because only in this state, it recognizes the wireless
transmitter.
DMX control
After the machine connect the DMX signal, the LCD screen can only display DMX-512 address
settings page, you can modify DMX-512 address codes by pressing the "UP" or "DOWN" bu tton
at this time. DMX control channels as follows:
DMX channel
Channel 1: Fog
(
0-9 OFF, 10-255 ON, the output volume of smoke gradually become larger)
Channel 2: Red
( 0-9 OFF, 10-255 ON, red become ligther)
Channel 3: Green ( 0-9 OFF, 10-255 ON, green become ligther)
Channel 4: Blue
( 0-9 OFF, 10-255 ON, blue become ligther)
Channel 5: Yellow
( 0-9 OFF, 10-255 ON, yellow become ligther)
Channel 6: Color mixing( 0-9 OFF, 10-255 ON, color mixing)
Channel 7: Strobe ( 0-9 OFF, 10-255 ON, LED strobe become faster)
Channel 8: Dimmer ( 0-9 OFF, 10-255 ON, LED dimmer become lighter)
Channel 9: X-axis control (0-255 corresponds to 0-540 degree)
Channel 10: Y-axis control (0-255 corresponds to 0-270 degree )
Routine maintenance and solutions to faults
1.Can not pollute the fluid in order to keep the fluid clean, the cap should be tighten immediately
after adding oil , and regularly clean the filter inside of the oil bottle .
2. After 40 hours of con tinuous use, please use 80% dist illed water and 20% white vinegar mixed
into a detergent to clean the impurities inside the heater.
3. Unscrew the oil cap, remove the suction pipe, and plug in the power, making it spray
continuously 3-4 times in the open area, and then put suction pipe back into the oil bottle to spray
once again until the smoke can be normal.
4. All moving head machines are likely to be blocked, due to frequent oil filter unclean or
long-term use, so regular maintenance can be more long-term use. When you hear the vibration of
the pump more than two minutes but no smoke out, the reasons should be a heater sealed problem.
MK 1600 LED - 6 - User Manual/Manual de Uso
EN
Technical parameters :
Voltage used: AC100~120V,AC220~240V/50Hz-60Hz
Current-limited safety device: 15A/250V
Total power:
1600W
LED power:
8 W*10
Pre-heating time: 4MIN
Smoke output:
20 000cuft/min
Capacity of oil tank:1.3L
Net weight:
1 7.5kg
Gross weight: 21.2kg
Package size:485×440×555mm
2. Spray nozzle
1. LED
3. Oil tank
4. Fluid inlet connector
5. Fluid outlet connector
6. LCD display
7. 3-pin DMX
8. 5-pin DMX
9. Power socket
10.Power switch
11. Antenna
Diagram
MK 1600 LED - 7 - User Manual/Manual de Uso
EN
MK 1600 LED - 8 - User Manual/Manual de Uso
●Introducción
Gracias por la adquisición de la cabeza móvil LED con máquina de humo MK 1600
Antes de poner en marcha la unidad, le recomendamos que lea el manual de uso
cuidadosamente. Siguiendo las instrucciones que contiene, se asegurará una manejo
óptimo y seguro del dispositivo, así como entender el correcto funcionamiento y
mantenimiento para prolongar la vida útil del producto.
ES
Instrucciones de seguridad
1. Mantenga seca la unidad. Puede ser usado sólo en interior.
2. Use una base con terminal de toma de tierra. Antes de ponerla en marcha,
asegúrese que la base dispone del voltaje correcto.
3. Apague la unidad y des conéctela cuando no la use.
4. La unidad no es resistente al agua por lo que debe estar apartada de la humedad
o el agua. Si humedad, agua u otros líquidos entran en la unidad, deje de usarla
de inmediato.
5. No hay elementos de control para el usuario en el interior de la unidad. No la
abra ni realice ningún tipo de modificación, de otra manera podría causar daños
en la unidad o riesgo de incendio.
6. La unidad debe ser utilizada por adultos y debe instalarse lejos del alcance de
los niños. Nunca deje la unidad en marcha sin supervisión. Manténgala apartada
de fuego, combustibles o materiales inflamables.
7. Coloque la unidad en una zona bien ventilada. Deje al menos 50 cm de espacio
alrededor.
8. Por favor, no utilice la unidad en ambientes de alta temperatura.
9. No utilice ningún líquido inflamable, gas o perfume como líquido en el depósito
10. S la unidad no se comporta de manera normal, deje de utilizarla de inmediato,
desconéctela y compruebe el cable de alimentación. Si no puede resolver el
problema contacte con su distribuidor.
11. Utilice únicamente liquido de humo de MARK ®
12. Nunca beba el líquido utilizado en este dispositivo.
●Los siguientes elementos deben estar incluidos dentro del embalaje
1. una unidad MK 1600
2. Un cable de alimentación
3. Un manual de uso
4. Sistema de control inalámbrico (emisor+mando remoto)
Instrucciones de funcionamiento

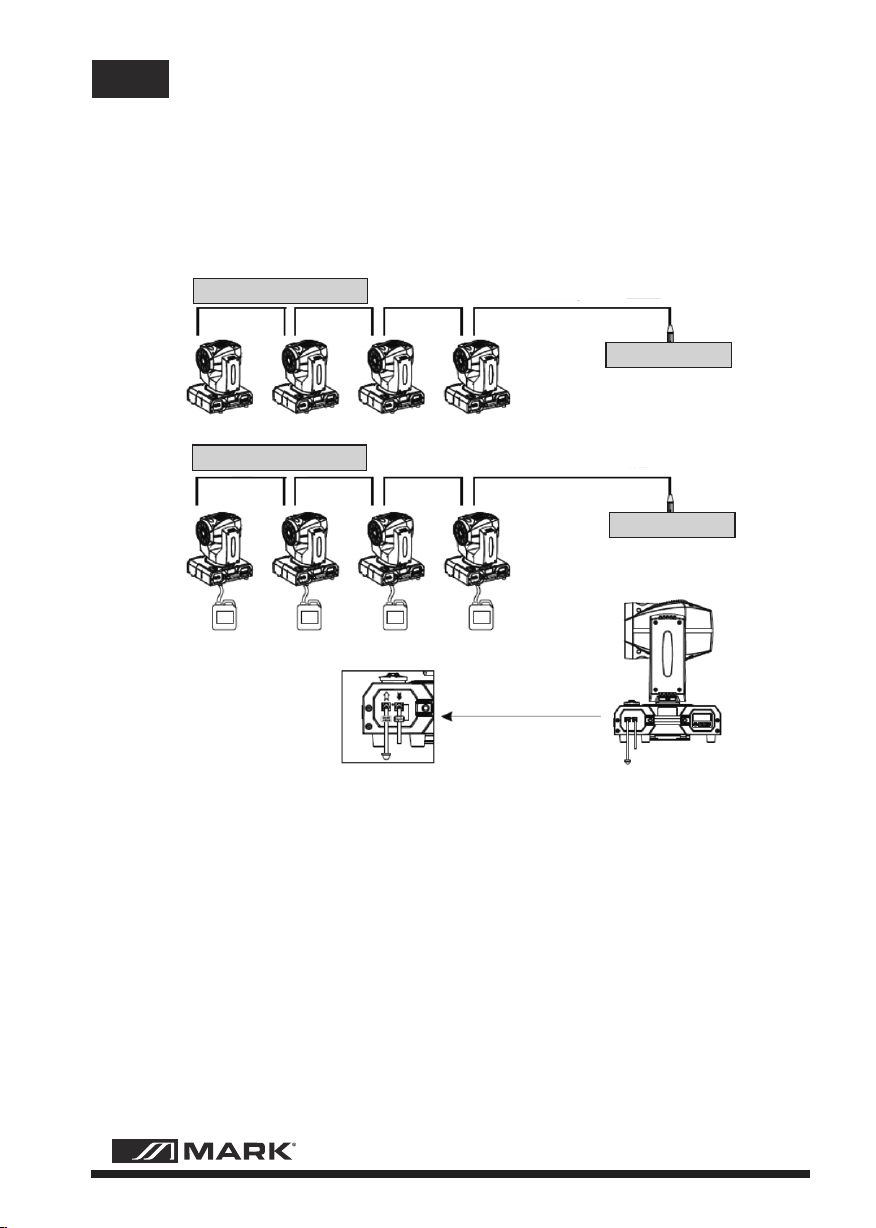

Dibujo 1: usar el depósito incluido
CONTROLADOR DMX
CONTROLADOR DMX
Dibujo 1: usar el depósito incluido
Conexión del depósito
externo
1. Conecte la línea de control DMX, abra la base de la unidad y retire el depósito para añadir líquido. Tenga
cuidado de no exceder el marca en el depósito para prevenir que el líquido se derrame y presione la tapa.
Finalmente, vuelva a colocar el depósito en su sitio.
2. si necesita usar la unidad boca abajo, colóquela en esta posición y saque el depósito, colocando el depósito
boca arriba y vuélvalo a colocar en su sitio.
3. Conecte la alimentación y pulse el interruptor, el LED junto al depósito pasará a rojo como que está
calentando, configure la dirección DMX y espera unos 7 minutos. Cuando la unidad ya está caliente, el
LED pasará a azul. Asimismo puede ir comprobando la pantalla LCD para el ver el estado del calentamiento.
4. Actúe sobre el canal dedicado en la consola, la máquina comenzará a disparar humo, la bomba emitirá
primero un sonido que se irá reduciendo conforme vaya pasando el líquido.
5. Diferentes modos de utilización: Dibujo 1 usando el depósito incluido.
MK 1600 LED - 9 - User Manual/Manual de Uso
EN
ES
Table of contents
Languages:
Other Mark Light Fixture manuals
Popular Light Fixture manuals by other brands
Emos
Emos CLASSIC ZY1431T manual
Westinghouse
Westinghouse Outdoor Lighting Fixture owner's manual
Hedler
Hedler C 12 silent Operation manual
Blizzard Lighting
Blizzard Lighting Puck: CSI manual
Energetic Lighting
Energetic Lighting ELYSL-5004 Series installation instructions
Lightmaxx
Lightmaxx Shaft 5R user manual
Cooper Lighting
Cooper Lighting Halo L3232E Specification sheet
Stageline
Stageline ODW-2410RGBW instruction manual
Light Sky
Light Sky Tornado Series user manual
Lightolier
Lightolier Paralyte 2424 PLA2G9LS26U specification
Lightolier
Lightolier Lytespan 83ED17S specification
Lightolier
Lightolier Calculite CS8226 specification
