Manitowoc K00346 User manual

K00346 DISPENSER BAFFLE KIT

Installation Instructions

The K00346, dispenser baffle kit, must be used with the S-0300, S-450, S-0500, S-0600, S-0850, and S-1000 ice

machines, when the ice machine is used on any ice/beverage dispenser.

1. Remove both front panels.

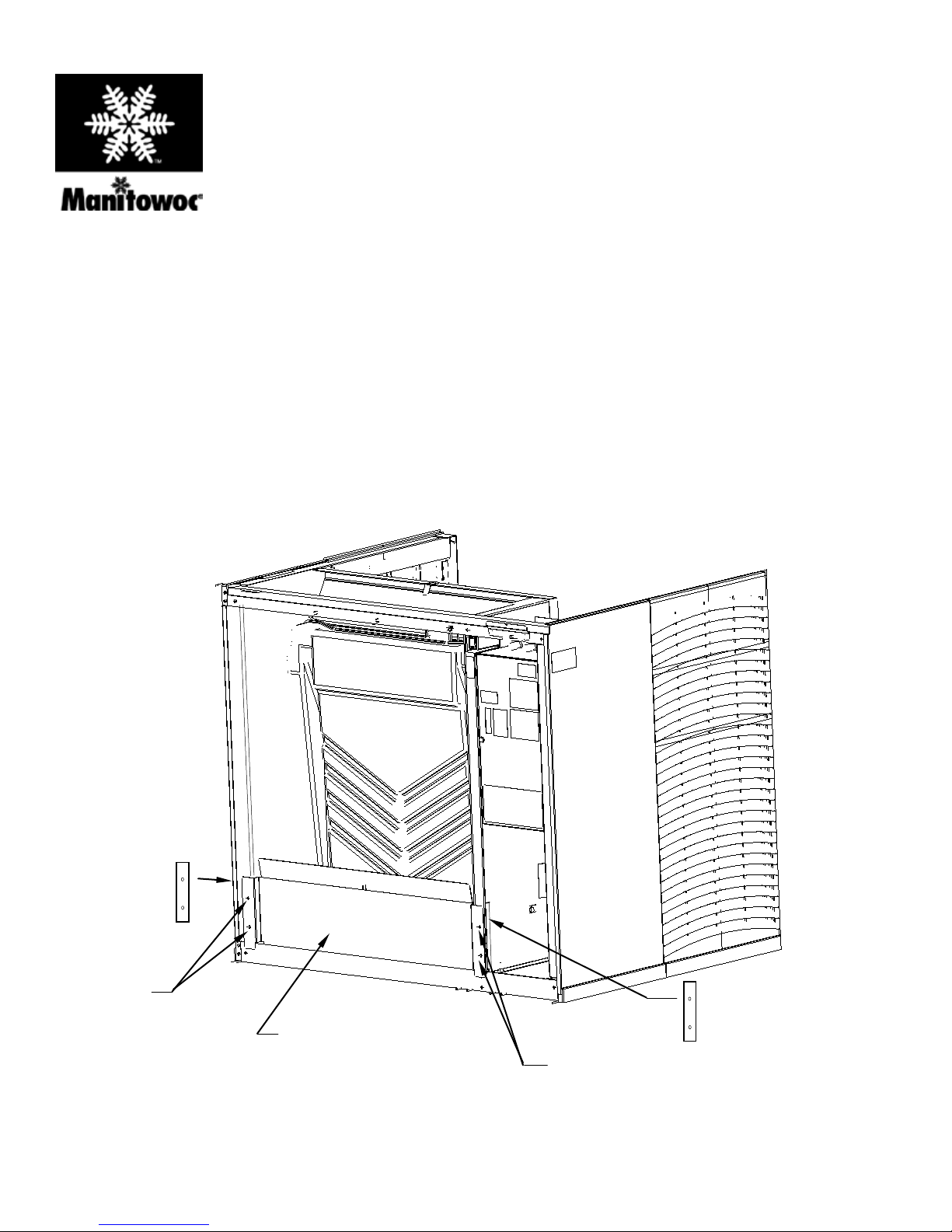

2. Examine the ice machine to see if the machine has four screws on the lower front plastic panels (see drawing).

3. If there are screws, remove them from the countersunk holes on the front surface of the machine. Save the screws.

4. Install the deflector, using the four screws that were removed in step 3.

5. Four screws and two backing plates are in the kit.

6. If there are no screws on the ice machine (step 2), pierce the thin plastic countersunk holes, install the backing

plates, and install the deflector, using the screws from the kit.

7. Replace the front panels.

New Ice Baffle

Screws

Screws

Backing Plate to

be Inserted into

Side Pocket of

Bulkhead

Backing Plate to be

Inserted into Side

Pocket of Bulkhead

Manitowoc Ice, Inc.

2110 South 26th Street, P.O. Box 1720, Manitowoc, WI 54221-1720 USA

Telephone 920-682-0161, Fax - Sales: 920-683-7589, Service/Parts: 920-683-7585, Other: 920-683-7879 8015113

Web Site - www.manitowocice.com Rev. 07/06/04
