Manhattan 77221 User manual

MXD

WIRELESS

OPTICAL

DESKTOP

MOUSE

USER

MANUAL

Model 177221

MAN-177221-UM-0708-01

Thank you for purchasing the MANHATTAN

MXD Wireless Optical

Desktop Mouse, Model 177221.

With 256 IDs and a compact USB cradle receiver/recharger, this mouse

provides secure, stable connections in busy environments. Plus, the

convenient six-button conguration (with scroll wheel) provides direct

access to essential commands with minimal wrist movement.

The easy-to-follow instructions in this guide* help make installation of the

mouse quick and simple, so you’ll also soon be enjoying the benets of

these additional features:

• 27 MHz technology offers wireless freedom with effective range up to

1.5 m (5 ft.)

• Auto power management and receiver/recharger help maintain proper

battery levels

• Fully customizable and programmable buttons access frequently used

applications and tasks

• Full-sized, ergonomic design offers comfortable grip with less fatigue

• Wide, low-friction base smoothly glides over work surfaces

• Plug and Play installation — Windows compatible

• Lifetime Warranty

* Some software screen images have been modied to t the format of

this guide.

Package Contents

• MXD Wireless Optical Desktop Mouse with Cradle Receiver/Recharger

• 2 AA batteries and non-retractable cable

• Quick install guide and software CD

FCC Statement

This equipment has been tested and found to comply with the limits for

a class B digital device, pursuant to part 15 of the FCC rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception — which can be

determined by turning the equipment off and then back on — the user

is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult your MANHATTAN dealer or an experienced radio/TV technician

for help.

HARDWARE INSTALLATION

Batteries

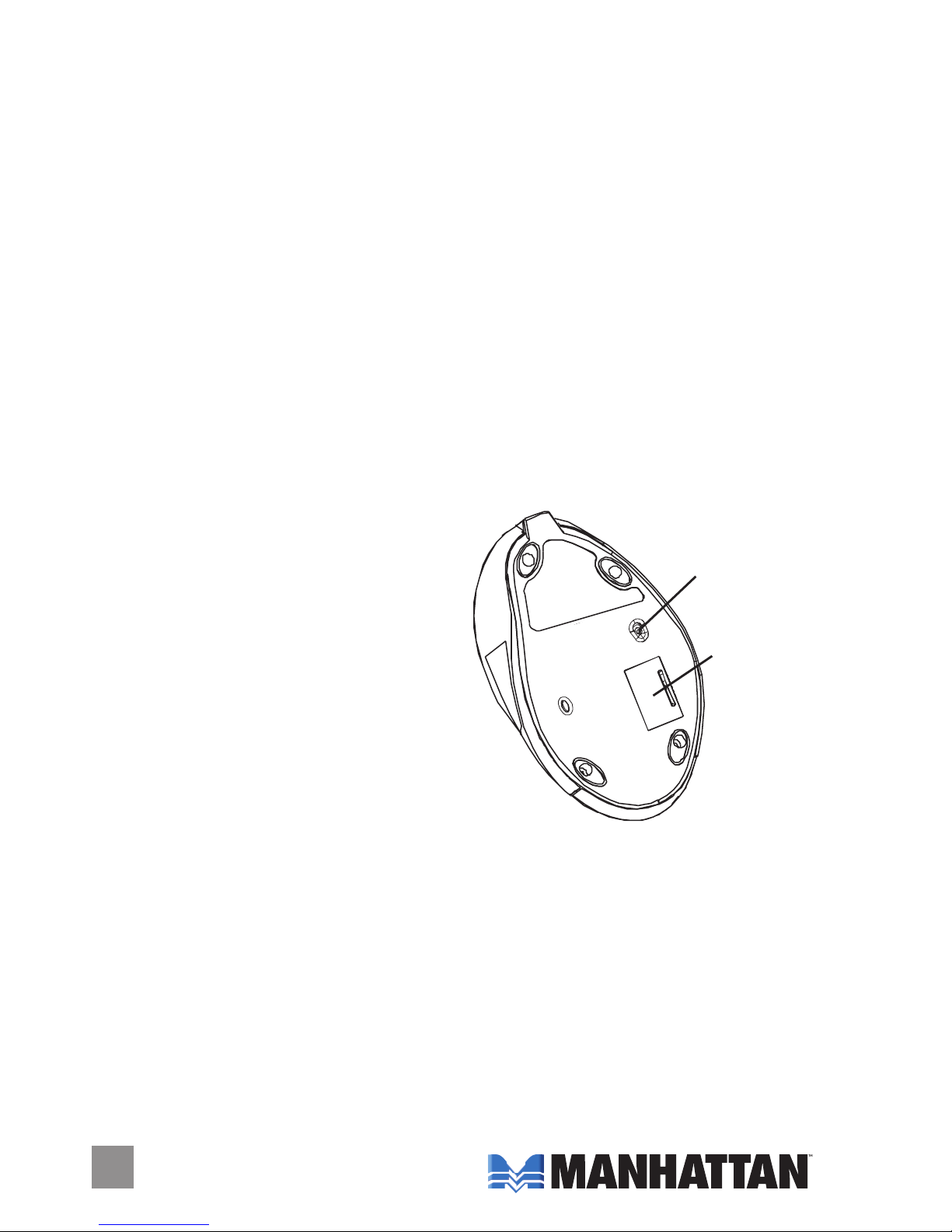

On the underside of the mouse,

set the On/Off switch to Off. Lift the

battery compartment cover to

access the compartment, and insert

the two AA rechargeable batteries

(included), matching the polarity

indicators on the inside of the

compartment. Replace the cover,

pressing gently till it clicks in place.

Receiver

Connect the cradle receiver/recharger to a USB port on the computer.

NOTE: If using a PS/2 connector (with a USB–PS/2 adapter), some

functions may not work.

For optimal operational reliability (including laptop use with this mouse),

it’s recommended that the cradle receiver/recharger and mouse be

placed on the same surface of your workstation during operation.

Battery

compartment

cover

On/Off

Switch

SOFTWARE INSTALLATION

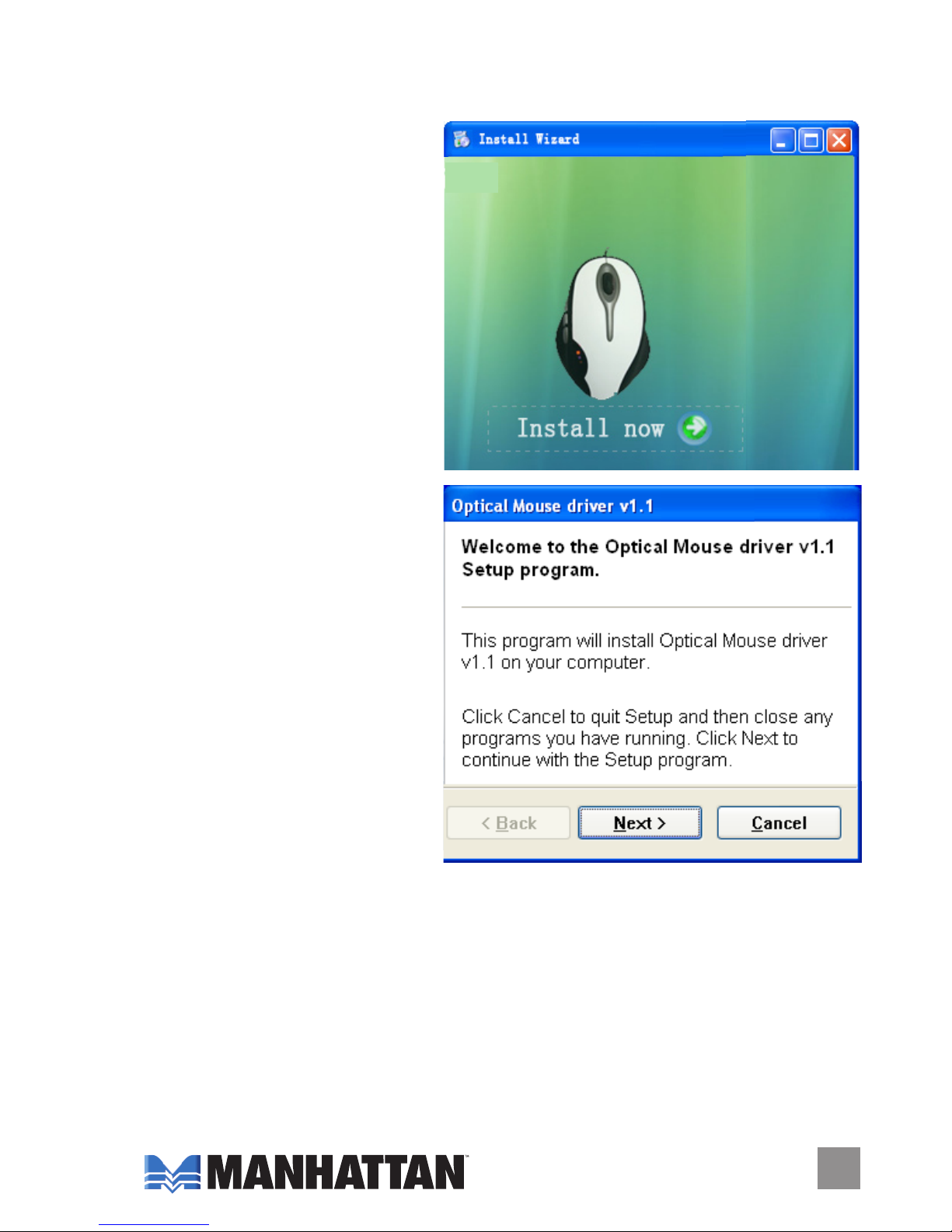

1. Insert the enclosed driver

CD in the CD-ROM drive

of the computer. AutoRun

will launch the application.

Ensure that the mouse’s

receiver is connected,

then click “Install now.”

2. The program will search

for the mouse and display

the welcome screen once

it’s found. Click “Next” to

begin the installation,

which will present a

subsequent screen

featuring a status bar to

indicate the progress of

the operation.

Mouse Driver

3. Once installation is

complete, you will see a

“Do you want to reboot

now?” prompt. Click “Yes,

reboot now.”

4. Once the reboot is

complete, the Ofce

Mice Center icon

will appear in the system tray, or dock. This application allows you to

reprogram your mouse buttons and congure the Magic Jump button.

Double-click on this icon to launch the conguration utility.

CONFIGURATION

As mentioned above, double-clicking on the Ofce Mice Center icon

launches the conguration utility. Each of the four conguration tabs

that appear — Buttons, Speed, Scrolling and Magic Jump — presents

a screen that displays distinct programming options.

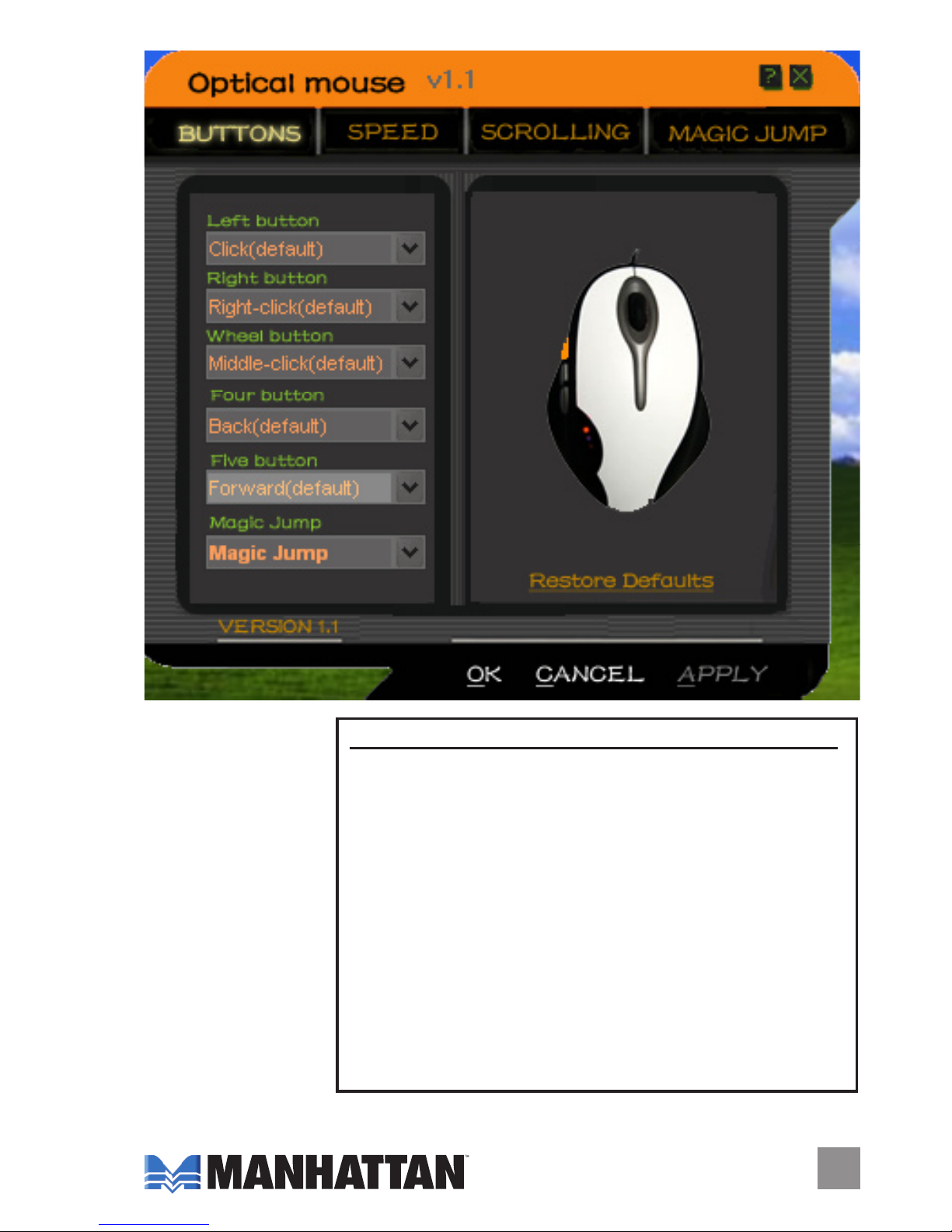

Buttons

The Buttons screen lets you congure the function of each button on

the mouse: to launch applications or perform different functions with an

easy-to-use drop-down menu.

Each drop-down

menu programs

the buttons with

one of the

selections listed

in the table

at right.

Left-Click Right-Click Middle-Click

Back Forward Scroll Left

Scroll Right Button Off Alt

Ctrl Delete Enter

Shift Copy (Ctrl + C) Cut (Ctrl + X)

Paste (Ctrl + V) Redo (Ctrl + Y) Undo (Ctrl + Z)

Show/Hide Desktop New Open

Save Refresh Mail Webpage (IE)

Mail Link (Outlook) Find MS Word

MS Excel MS Power Point MS Front Page

MS Access MSN Messenger Media Player

MS Paint Calculator Note Pad

Word Pad Recorder Volume

Run Date/Time Control Magic Jump

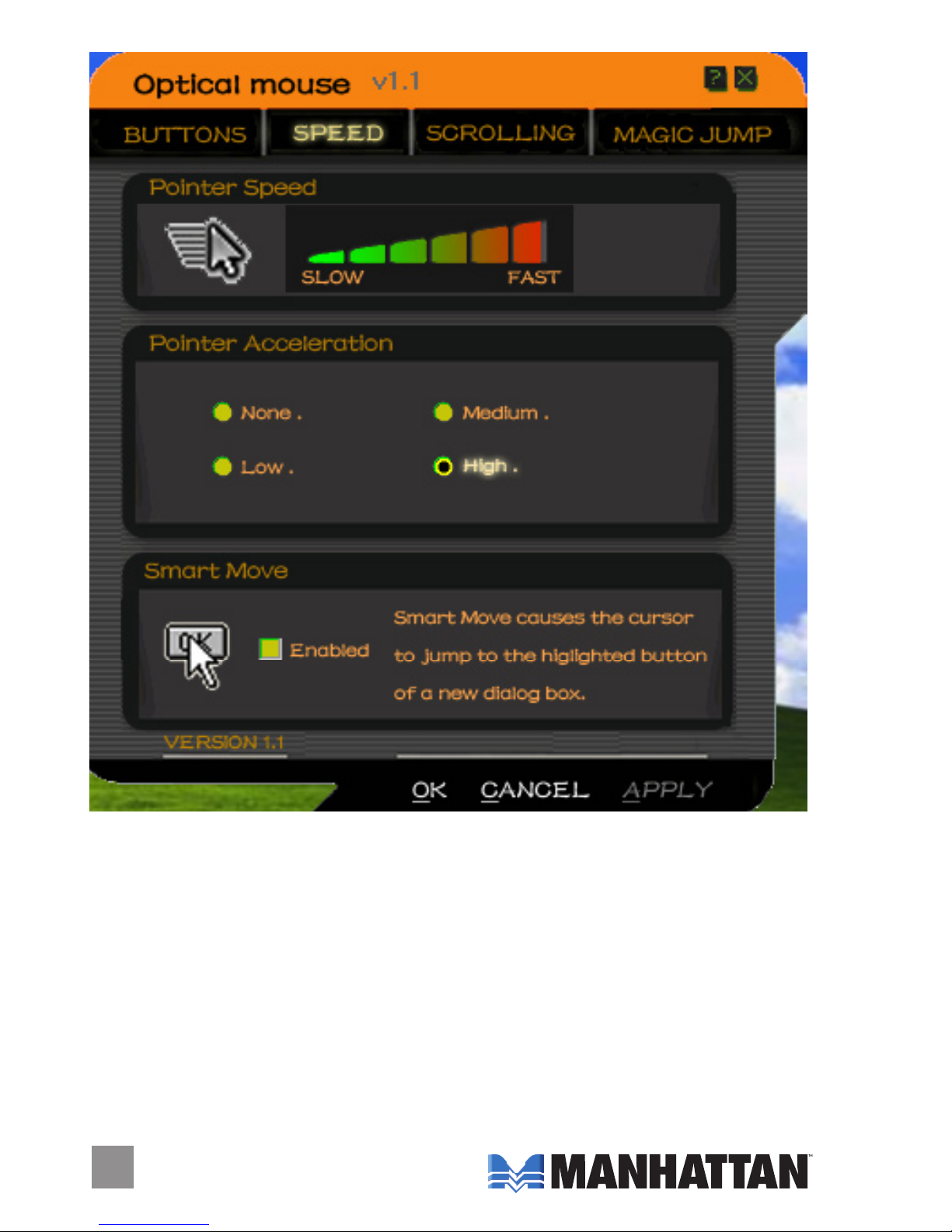

Speed

The Speed screen lets you manage pointer control and movement.

Speed, Acceleration and Smart Move are available to make using your

mouse easier.

Scrolling

The Scrolling screen lets you enable/disable the scrolling function and

set the speed and direction of the scrolling. Also, you can adjust the

clicking speed to act as a double-click.

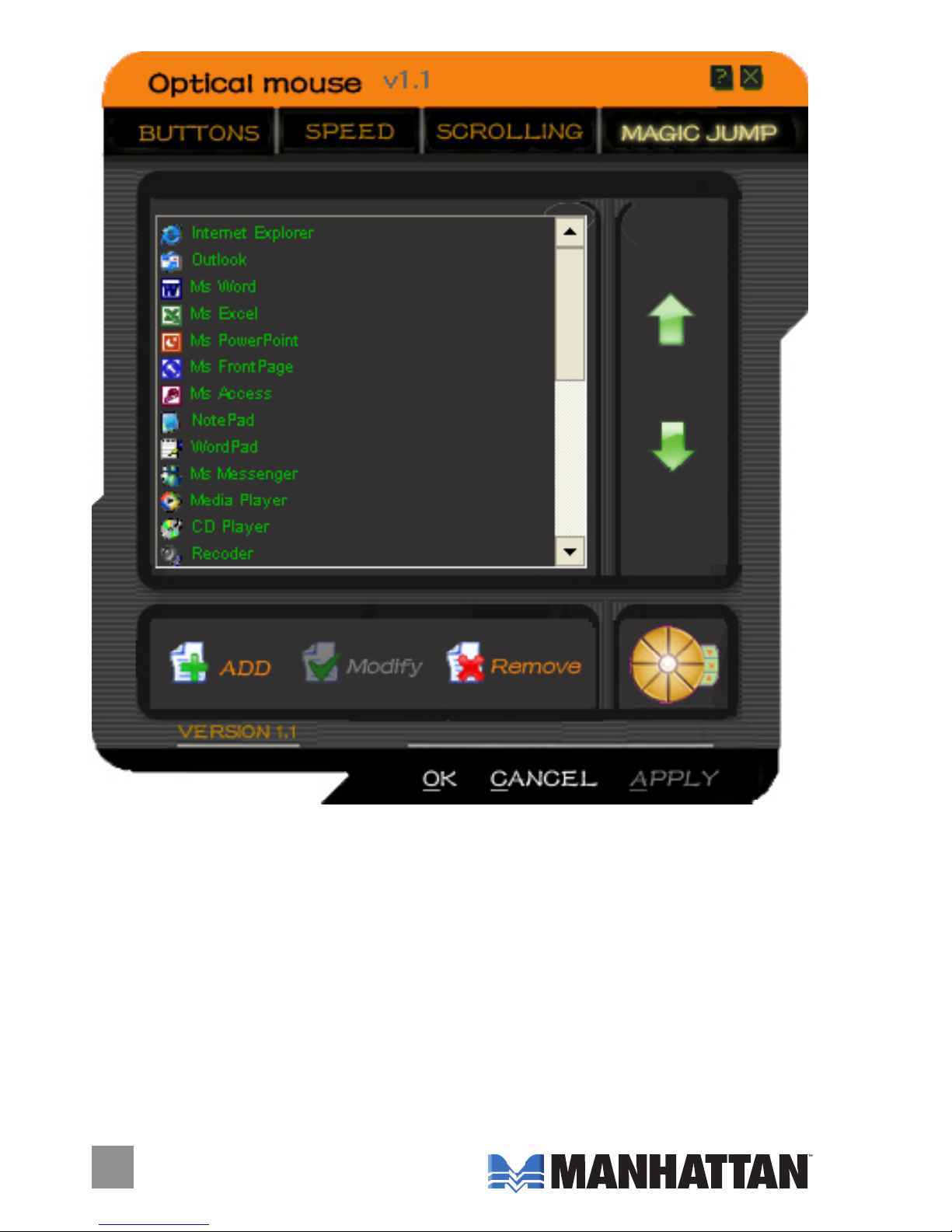

Magic Jump

The Magic Jump screen lets you map multiple shortcuts with the click

of a single button. A list of the default applications displays on the left-

hand side of the screen.

To add an application or le to your Magic Jump application, click “Add.”

When the list of available applications displays, simply check the box

to the left of the application. Uncheck the box if you don’t want the

application to show.

101010
