Manhattan 176569 User manual

WIRELESS

PRESENTATION

MOUSE

USER

MANUAL

Model 176569

MAN-176569-UM-0507-03

INTRODUCTION

Thank you for purchasing the MANHATTAN

Wireless Presentation

Mouse, Model 176569.

The ideal tool for the perfect presentation, this wireless mouse puts

multi-tasking, mouse capability, presentation controls and a built-in

laser pointer in the palm of your hand with an effective range of 15 m

(50 ft.). Secure 2.4 GHz wireless technology offers eight channels with

more than 4,000 IDs per channel to help ensure a reliable connection

without interference from other wireless devices.

The dual-function design — allowing the mouse to be transformed from

a presentation laser pointer to a desktop optical trackball mouse —

includes no-slip feet that keep it steady on a desktop.

The easy-to-follow instructions in this user manual help make setup

and operation quick and simple, so you’ll also soon be enjoying the

benets of these additional features:

• Ergonomic, ve-button format designed for comfortable use with

either hand

• USB receiver with Plug and Play installation; Windows and Mac

compatible

• Lifetime Warranty

CE and FCC Approved

This device complies with Part 15 of the FCC rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference; and (2) This device must accept any interference received,

including interference that may cause undesired operation.

This device complies with DHHS Radiation Performance Standard 21 CFR,

Subchapter J.

CAUTION: Laser radiation when opened. Never point a laser beam into

a person’s eyes or view a laser beam directly, as prolonged exposure

can be hazardous to the eyes.

INSTALLATION & SETUP

1. Push and slide open the cover of the battery

compartment (Fig. 1); install the batteries;

replace the cover.

2. Plug the USB receiver into the USB port

on the computer. The LED (Fig. 2) turns

on to indicate that the computer has

detected the connected device.

3. Slide the Power/Mode switch (Fig. 3)

from the Off position to either the

Presentation mode or the Mouse mode

position.

4. Press and release the Connect button

on the USB receiver (Fig. 2). The LED

will turn off.

5. Hold the mouse near the receiver and press

the Connect button on the underside of the

mouse (Fig. 1). The LED on the receiver will

turn on again, indicating that the setup is

complete and the mouse is ready for use.

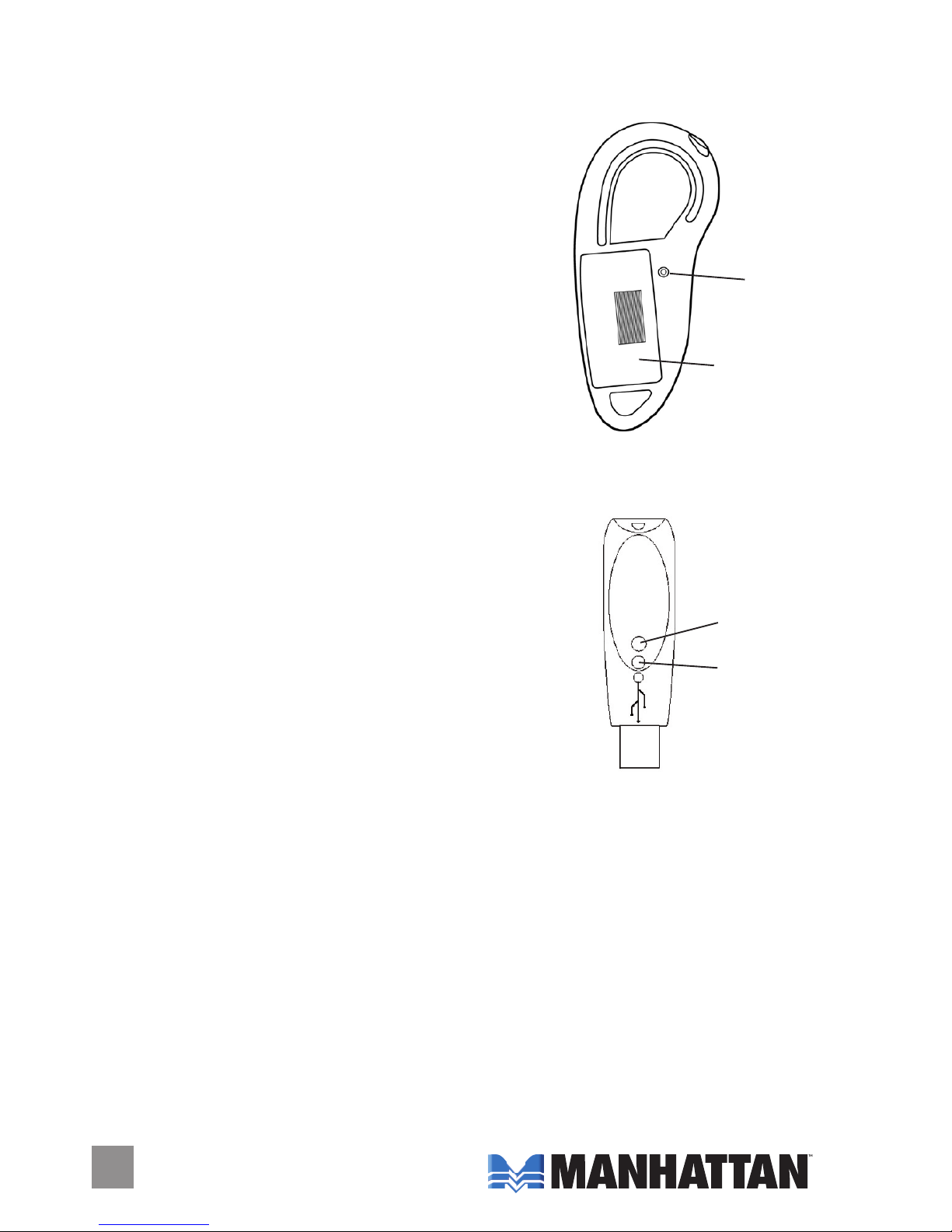

Connect

button

Battery

compartment

Fig. 1

Connect

button

LED

Fig. 2

FUNCTIONS/OPERATION

The MANHATTAN Wireless Presentation

Mouse can be used as both a handheld

presenter and a desktop trackball mouse.

Its three function modes — Presentation,

Mouse and Off — are selected by using

the Power/Mode switch (Fig. 3).

NOTE: The effective range of the mouse

is 15 m (50 ft.). Operating beyond this

distance can adversely affect its performance.

Presentation (Handheld) Mode

Slide the Power/Mode switch to the

Presentation mode position and hold

the mouse in your hand to operate.

Press and hold the Laser key (Fig. 4)

to activate the laser pointer; release the

Laser key to deactivate the laser pointer.

Mouse (Desktop Trackball) Mode

To convert the presenter to a mouse, slide

the Power/Mode switch to the Mouse

mode position and place the mouse

on any solid and sturdy surface. For

proper scroll and mouse-button function,

position the device with the trackball on the left (Fig. 5).

NOTE: After inactivity, the unit will enter

the Auto Power Save mode. To return

to normal function, touch the trackball

or any of the keys.

NOTE: A ashing trackball indicates

a proper connection, with the mouse

receiving/transmitting data.

Off

Slide the Power/Mode switch to Off when not in use to save the battery.

Presentation

mode

Mouse mode

(middle

position)

Off

Optical

trackball

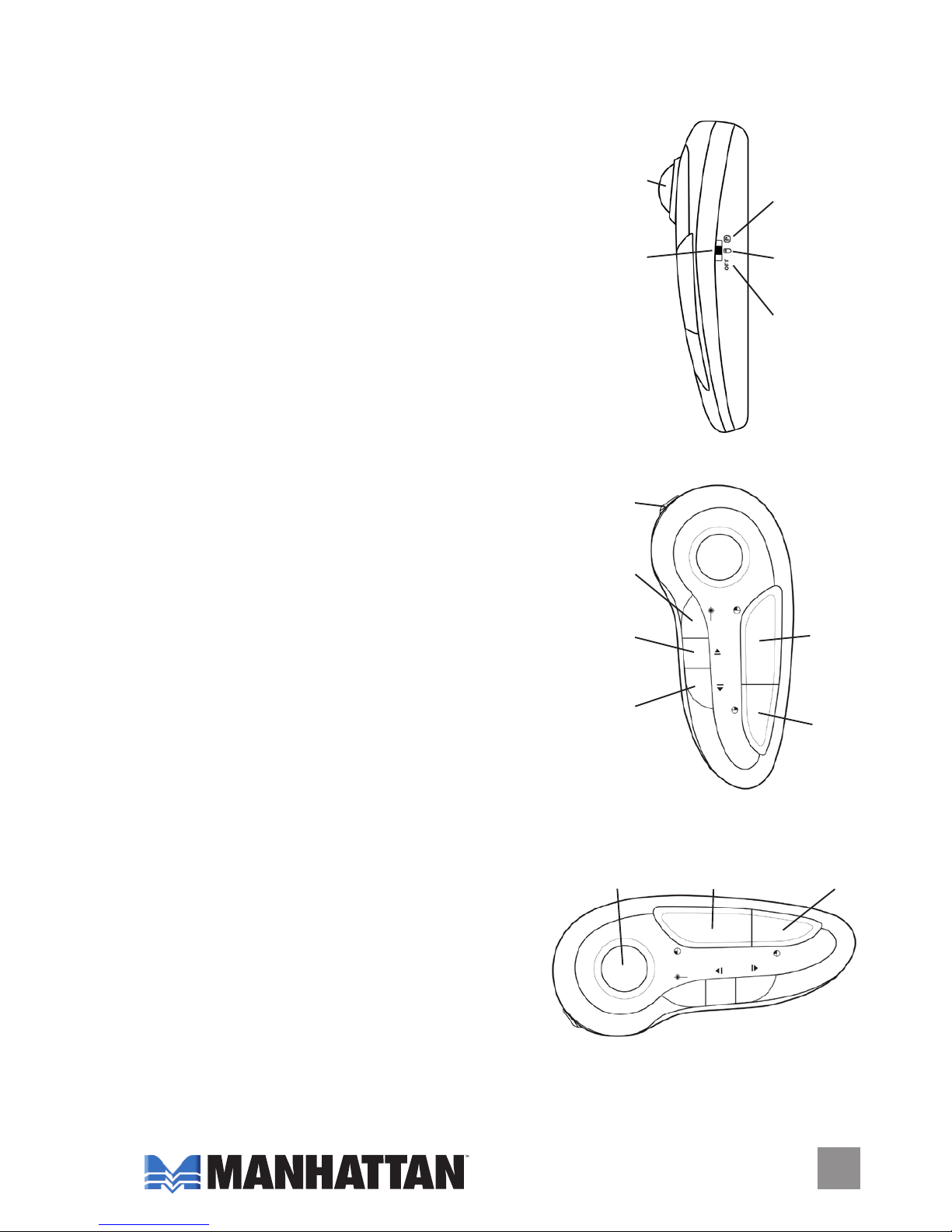

Fig. 3

Power/

Mode

switch

Fig. 5

Optical

trackball Mouse

Left key

Mouse

Right key

Mouse

Left

key

Mouse

Right

key

Laser

pointer

Laser

key

Page

key

Page

Down

key

Fig. 4

SPECIFICATIONS

Standards and Certications

• USB 1.1 receiver; CE and FCC approvals

• Class 1 Laser product; deep red laser diode (650 nm; 1 mW output)

General

• 2.4 GHz ISM Band RF with 8 channels (4,096 IDs per channel)

• Effective operating distance: up to 15 m (50 ft.)

• 2-button optical mouse, 500 dpi resolution

• Auto power save and error detection ability

• Power/Mode switch

• Compatible with Windows 98SE/Me/2000/XP/Vista; Mac OS X 10.2

and above

• Presentation mouse: 144 x 51 x 25.5 mm (4.5 x 2 x 1 in.); 56 g (2 oz.)

• Receiver: 82.5 x 25.5 x 12.5 mm (3.25 x 1 x 0.5 in.); 11.5 g (0.4 oz.)

Presentation Mouse

• 5-button format: Right Mouse, Left Mouse, Page Up (next slide),

Page Down (previous slide) and Laser

• Trackball: optical

• Power/Mode Switch: Presentation, Desktop and Power Off settings

• Power: (2) AAA batteries, included

Package Contents

• Wireless Presentation Mouse with USB Receiver

• Carrying pouch and wrist strap with quick-release clasp

• Extension cable, 8 cm (3 in.) and 2 AAA batteries

• User manual

Are you completely satised with this product?

Please contact your MANHATTAN®dealer

with comments or questions.

All products mentioned are trademarks or registered trademarks of their respective owners.

www.manhattan-products.com
