Quick release plate

safety lock

Fixed Plate

1/4 inch Thread Hole

Joystick

Vertical Arm Lock Screw

1/4 inch Thread Hole

Cross arm

lock screw

Overview

Pan axis

positioning lock

Shortcut

button

Function button

Control camera to shoot

video, need to connect to

camera

Control camera to take photo,

need to connect to camera

Switch between multiple

working modes

Power button

Recording button

Handle

Multifunction knob

Screw

Versatile arm

Roll axis positioning lock

Tilt axis

positioning

lock

Tilt axis

Vertical arm

Roll axis

Anti-drop colum of quick

release plate

Secondary quick release plate safety lock

Secondary quick

release plate

Touch screen

Made button

Capturing

button

Quick release

plate

Anti-drop column

Sliding arm

lock screw

Sliding arm

Lens supporting frame

Camera mode

Bluetooth

Multifunction Knob Control

Battery Level

Lock Mode

Panning Mode

Follow Mode

All Follow Mode

Touch Screen

Max. Tilting Range 230° Operation Time 12 Hours

Max. Rolling Range 360° Weight About 1656g (Not including the batteries)

Max. Panning Range 360° Payload 4600g (in center of gravity balanced state)

Tilting Speed 2°/s ~ 75°/s Adapter Cameras* Canon, SONY, Panasonic and others.

Panning Speed 3°/s ~ 150°/s

Specifications

Professional 3-axis gimbal designed for DSLR and mirrorless cameras, designed with

function buttons and LCD touch screen.

* Please download the detailed manual for the specific compatible camera and lens.

This product does not include the camera.

Accessories

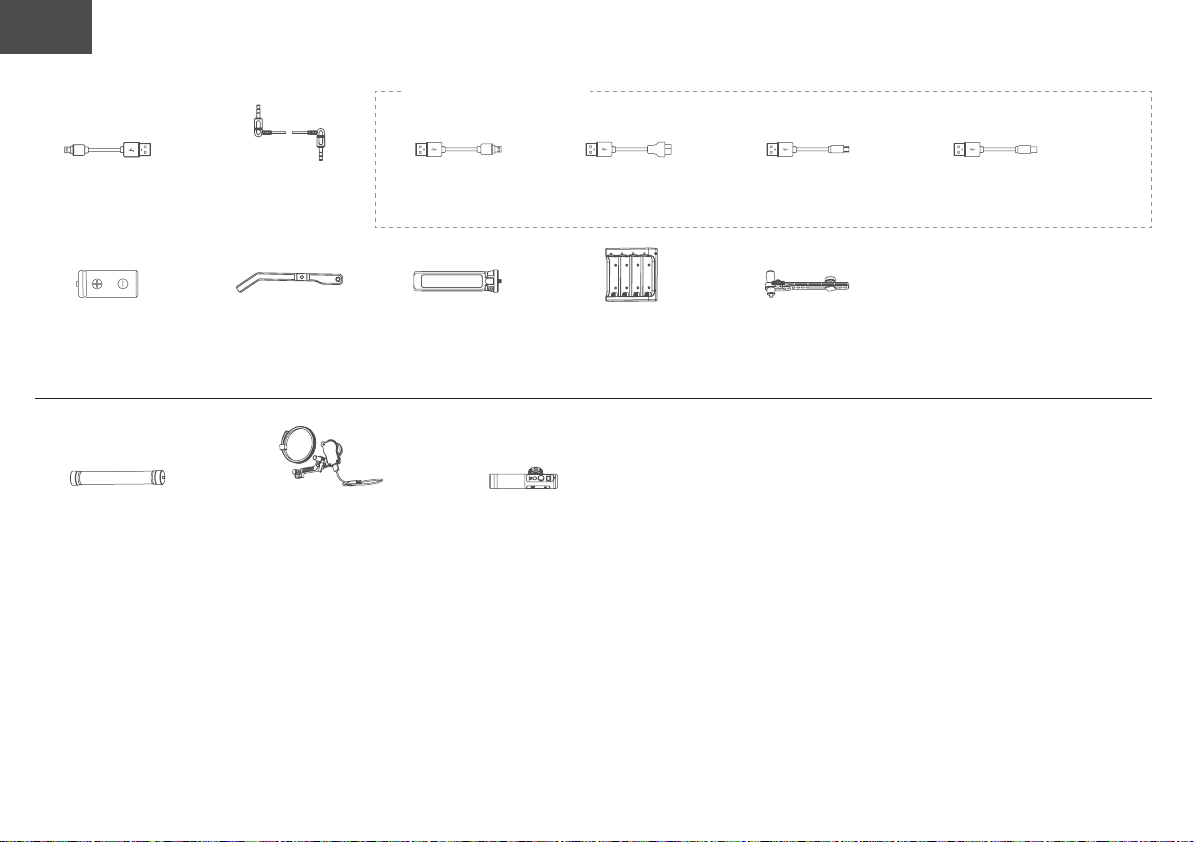

Pro kit accessories

Camera Control Cable

USB 2.0 to Micro

Micro USB Cable

Panasonic Lumix

Shutter Cable

Tripod

Charger

18650 Li-ion Battery

Versatile Arm

Brushless Follow Focus (FF)

Gimbal Remote Controller (MVGRC)

Extension Rod

Multifunctional Bracket

USB 2.0 to Mini

USB 2.0 to Type C

USB 3.0 to Micro 3.0

User Guide

Balanced lock Stored lock

⚠

Read the detailed manual before

using this products.

󱫀Battery Installation

Remove the tail cap, open the batteries compartment, and install the batteries

correctly.

Align the handle positioning screw with the corresponding positioning holes under the

pan axis machine and then tighten the fixing ring.

(1) Please install the camera before powering on the gimbal.

(2) When the battery is low, please charge the gimbal.

(3) When not in use, turn off the gimbal and then remove the batteries.

(4) For quick start, utilising MVG640 basic features follow the steps below.

TIPS

󱫂Handle Installation

⚠

Please fully charge the

batteries before powering on

the gimbal for the first time.

⚠

The four positioning screws must be aligned with the corresponding positioning

holes and then tighten the fixing ring.

Alignment

Tight

Alignment

A. Stylus

B. Positioning hole

C. Positioning screw

Loose

Each of the three rotating axis has one positioning lock for convenient positioning and

storage purposes. Be sure to unlock them before using the gimbal.

󱫄Positioning Lock

Secondary quick release plate

⚠

Make sure the battery and memory

card are loaded before installation.

⚠

Please follow the direction

of the icon on the

back of the secondary

quick release plate to

install.

(2) Fix the secondary quick release

plate to the bottom of the camera.

(1) Install the quick release plate to the

ﬁxed plate and take out the secondary

quick release plate.

󱫆Camera Installation

(3) Insert the secondary quick release plate

and press down. The secondary quick re-

lease plate safety lock automatically locks

and locks the secondary quick release

plate safety lock.

(4) Install the lens support frame to

ensure that the lens holder can hold

the lens ﬁrmly.

󱫈Gimbal Balancing

(1) Before balancing the gimbal, the lens cover should be removed from the camera

and the memory card needs to be inserted to the camera to complete all the

connections to ensure that the camera is ready for shooting.

(2) During balancing the gimbal, make sure the camera is powered off and the

gimbal is turned off.

(3) If you add accessories after the balancing is completed, Gimbal will need to be

re-balanced.

TIPS

Insert the secondary quick release plate.

⚠

Before balancing the gimbal, lock the gimbal to the balance lock state at first,

unlock each axis positioning lock in stages during the balancing process.

(1) a. Unlock the tilt axis positioning lock 󰴤, place the camera lens vertically upwards,

determine the camera's center of gravity.

b. Loosen the sliding arm lock screw 󰴥, slide the sliding arm 󰴦to balance the camera

position.

c. Tighten the sliding arm lock screw 󰴥, if the camera lens can stay vertically upwards

that means balanced.

(2) a. Place the camera lens vertically upwards, determine the camera's center of

gravity.

b. Unlock the quick release plate safety lock 󰴤, balance the camera position.

c. Tighten the quick release plate safety lock 󰴤and tilt the camera up or down, if it

stays stable, it means balanced.

5.1 Balance Adjustment of the Tilting Axis

5.2 Balance Adjustment of the Rolling Axis

a. Tighten the tilt axis positioning lock 󰴤, release the roll axis positioning lock 󰴥, and

observe the camera tilt state.

b. Loosen the cross arm lock screw 󰴦, slide the cross arm 󰴧to balance the camera

position.

c. Tighten the cross arm lock screw 󰴦and tilt the camera to the left or right, if it stays

stable, it means balanced.

a. Tighten the pan axis positioning lock 󰴤, loosen the pan axis positioning lock 󰴥,

keep the handle part of the gimbal parallel to the ground and the vertical arm parallel to

the ground, and observe the camera rotation after the releasing.

b. Loosen the vertical arm lock screw 󰴦, slide the vertical arm 󰴧to balance the

camera position.

c. Tighten the vertical arm lock screw 󰴦to rotate the pan axis to any angle, if it stays

stable, it means balanced.

⚠

Before powering on the gimbal, need to unlock

all the axis positioning lock.

󱫊Power ON/OFF

󱫌Download the Manfrotto gimbal app.

󱫎Connecting App

Long press the power button, release it when the

display shows

Detailed Manual

Download the detailed user manual from official website manfrotto.com

5.3 Balance Adjustment of the Panning Axis

Download Manfrotto gimbal app.

(1) Turn on the mobile phone Bluetooth and start the gimbal.

(2) Open the App, and connect to MVG460 according to the App prompts. After the

connection is successful, you can control MVG460 on the App.

Power

button

Detailed Manual

Power

button

Leva di bloccaggio piastra

a rilascio rapido

Piastra fissa

Attacco femmina da 1/4"

Joystick

Vite di bloccaggio del

braccio verticale

Attacco femmina da 1/4"

Braccio

Leva di bloccaggio del braccio

Panoramica

Asse movimento Pan

Bloccaggio

movimento Pan

Pulsante di

scelta rapida

Tasto multfunzione

Controllo della camera per

riprese video: la camera

deve essere collegata

Controllo della camera per

foto: la camera deve essere

collegata

Passa tra più modalità di

lavoro

Pulsante accensione

Pulsante per registrazione

Impugnatura

Tasto multfunzione

Vite

Braccio versatile

Bloccaggio movimento Roll

Leva di

bloccaggio

movimento Tilt

Asse movimento Tilt

Braccio verticale

Asse Roll

Blocco anti-caduta quick

release plate

Leva di sicurezza

secondaria della piastra

Piastra a

rilascio rapido

secondaria

Schermo Touch

Pulsante

modalità

Pulsante

di scatto

Piastra a

rilascio rapido

Blocco

anti-caduta

Vite

bloccaggio

braccio

scorrevole

Braccio

scorrevole

Supporto lente

Connessione camera

Bluetooth

Manopola di controllo

multifunzione

Livello batteria

Bloccaggio di tutti gli assi

Modalità panoramica

Modalità Follow

Modalità Follow su tutti

gli assi

Schermo Touch

Movimento Tilt 230°

Tempo di funzionamento

12 ore

Campo di rotazione verticale

360° Peso Circa 1656g (batterie escluse)

Campo di rotazione panoramico

360° Portata

4600g (con centro di gravità bilanciato)

Velocità Tilt 2°/s ~ 75°/s Compatibilità camere*

Canon, SONY, Panasonic e altre

Velocità Pan 3°/s ~ 150°/s

Specifiche tecniche

Gimbal professionale a 3 assi per camere mirrorless e DSLR, con pulsanti di

comando e schermo LCD touch.

* Per favore scaricate il manuale dettagliato per la compatibilità delle camere e delle lenti

Questo prodotto non include la camera

Accessori

Accessori kit professionale

Cavo controllo camera

Cavo USB 2.0 - Micro

Cavo Micro USB

Cavo Panasonic Lumix

per scatto

Treppiede

Caricabatterie

Batteria Litio 18650

Braccio versatile

Follow Focus

Asta

Braccio multifunzione

Cavo USB 2.0 - Mini

Cavo USB - Tipo C

Cavo USB 3.0 - Micro 3.0

Controllo Remoto Gimbal (MVGRC)
