Mamiya 645 AFD III User manual
Contents
Congratulations on your purchase of the Mamiya 645 AFDCamera
Combining 35mm handling ease and speed with the advantages of an almost 3x larger image size,
it is a full-featured camera utilizing many digital controls, LCD displays and is ready for the age of
digital photography.
Its high-tech, focal-place shutter, with speeds up to 1/4000 sec., permits flash sync up to 1/125 sec. and
has an exclusive "Safety Retraction" feature, which protects it against accidental damage.
The AE Prism Finder, with its many features, is protected by a sturdy magnesium housing, as is
the Power Drive Grip. These components are integral to the diecast aluminum camera body which
is designed for heavy professional use.
All of the many features, safety locks, and other important information, are covered in detail in these
instructions. It is imperative that you read them thoroughly before you put your camera to work to in
sure proper operation and maximum results.
Note:
In order to acquaint yourself with the functions of your camera, you should first practice without film. Please
refer to the Section "Camera Operation Test" for information about testing the camera without film.
Mamiya pioneered the 645 SLR camera nearly three decades ago, and the 645 AFD, with its TTL
auto focus, auto exposure, auto flash, and auto film winding,reflects Mamiya's long tradition in
medium format expertise.
1
Special Advice to Professional Photographers
Your Mamiya 645 AFDis designed for heavy professional use and will give you a long
service life if properly maintained.
Your camera and lenses have many moving parts which require periodic lubrication.
Its electronic components are also subject to wear and tear and are affected by ambient
conditions like dust, sand, sea air, hear and moisture.
If cameras had odometers like automobiles, it would be easier to specify servicing
schedules. May we suggest that if you shoot thousands of rolls of film a year, you
have your equipment serviced annually by the Mamiya distributor in your country.
Mamiya 645 AFDcorresponds with digital backs compatible with the MSCE (Mamiya
Serial Communication of External) System.
2
Names of Parts
Exposure Compensation Dial
Lock Release Button
Exposure Compensation Dial
Eyepiece Shutter Lever
Main Liquid Crystal
Display (LCD)
Rear Dial
Strap Lug
Front Dial
Shutter Release Button
with Cable Release
Socket
Hotshoe
Exposure Mode Dial Lock
Release Button
Exposure Mode Setting Dial
Auto Focus Supplemental
Infrared Light Emission
Window
Mirror
Electrical Contacts
Lens Mount Alignment Mark
Depth-of-Field Preview Button
Shutter Release Mode Selector Lever
3
Exposure Mode Selector Lever
Exposure Mode Selector Lever
Lock release Button
Strap Lug
Dark Slide
Focus Mode selector Lever
Lens Release Button
Electronic Shutter
Release Socket
Mirror-up Lever
Synchro Terminal
Magazine Lock Button
Magazine Cover
Lock Button
Magazine Cover
Release Button
Magazine Release
Button
Diopter Adjustment
Dial
Rubber Eyepiece
4
Diopter Adjustment Lens (accessory)
Dark Slide Storage Pocket
Film Tab Box Pocket
Magazine Battery Cover Screw Cap
External Power Socket
Battery Case Lock Lever
Battery Case
Tripod Socket
Magazine LCD Panel
Down Button
Up Button
Mid-roll Film Advance
Button
Auto Exposure Lock Button
Flash Auto
Adjustment
Select Button
SET Button
F1 Key
F2 Key
Main LCD Backlight Button
5
Main Liquid Crystal Display (LCD)
Magazine LCD
Shutter Time (seconds)
Superimpose Mode
Shooting Data
Superimpose Mode
Calendar and Index Number
Index Mode
Manual Focus Mode
Program Mode
Self-time Mode Mark
Multiple Exposure Mode Mark
Auto Bracketing Mode
Battery Power Indicator
Aperture
Program Shift Indicator
Dial Lock Indicator
Film Sensitivity (ISO 25-6400)
Film Type (120 or 220)
Number of Photos Display
6

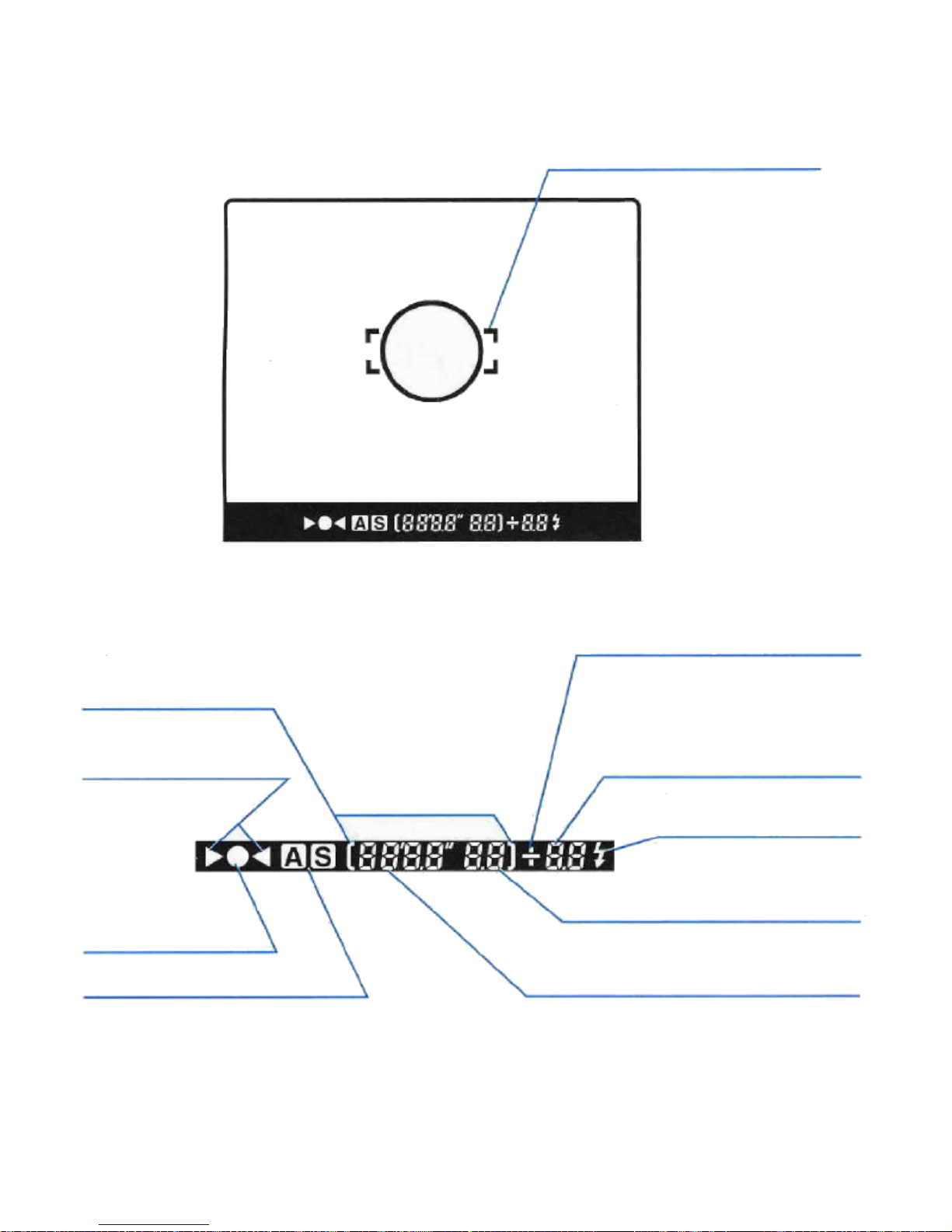

Viewfinder with LCD Readouts
Auto Focus Area Frame
AE Lock Display
Out of Focus Direction Marks
Focus Marks
Exposure Compensation Mark
Exposure Compensation Vale Display
Flash Charge indicator
Aperture
Shutter Speed
Exposure Metering Mode Display
7
