Makita 9741 User manual
Wheel
Slincien
Wheel size
(Diameter
x
Width)
100
mm
x
120
mm
(4”
x
4.314”)
Equipped with Electric Brake
MODEL
9741
Net weight
4,2
kg
(9,2
lbsl
No
load
speed Dimensions
(L
x
W
x
H)
310
mm
x
185
mm
x
182
mm
112-1/4”
x
7-1/4”
x
7-118”)
(RPM)
3,500
INSTRUCTION MANUAL
SPECIFICATIONS
Manufacturer reserves the right to change specifications without notice.
Note: Specifications may differ from country to country.
IMPORTANT
SAFETY INSTRUCTIONS
(For
All
Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK
OF
FIRE, ELECTRIC SHOCK,
AND
PER-
TY PRECAUTIONS SHOULD ALWAYS
BE
FOLLOWED
TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL
INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in
damp
or wet locations. Keep work area well
lit.
Don't expose power tools to rain.
Don't use tool
in
presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool
or
extension cord.
STORE IDLETOOLS. When not
in
use, tools should be stored
in
dry, andhigh
or locked-up place
-
out
of
reach of children.
DON'T FORCETOOL.
It
willdothejob better and safer atthe ratefor which
it
was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do thejob of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing orjewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Nevercarry tool by cord
or
yank
it
todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it
frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspecttool cords periodicallyand ifdamaged, haverepairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in
use, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

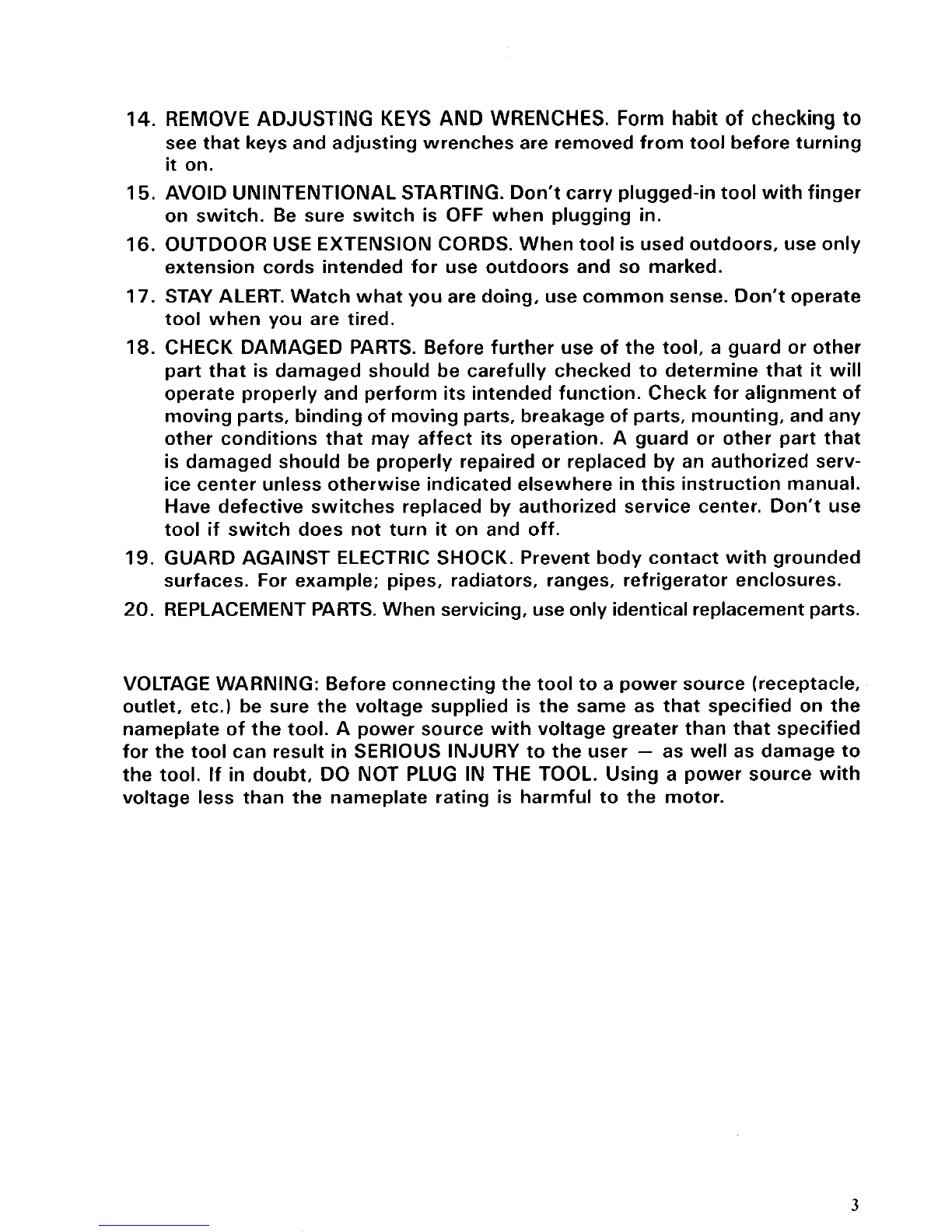

14.
REMOVE ADJUSTING
KEYS
AND
WRENCHES.
Form
habit
of
checking to
see that keysand adjusting wrenches are removedfrom tool before turning
it
on.
15.
AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool
with
finger
on switch. Be sure switch is OFF when plugging
in.
16.
OUTDOOR USE EXTENSION CORDS. When toolis usedoutdoors, use only
extension cords intended for use outdoors and
so
marked.
17.
STAY ALERT. Watch what youare doing, use commonsense. Don't operate
tool when you are tired.
18.
CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it
will
operate properly and perform its intended function. Check for alignment of
movingparts, bindingof movingparts, breakage of parts, mounting, and any
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere inthis instruction manual.
Have defective switches replaced by authorized service center. Don't use
tool if switch does not turn
it
on and off.
19.
GUARD AGAINST ELECTRIC SHOCK. Prevent body contact
with
grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20.
REPLACEMENTPARTS. When servicing, use only identicalreplacement parts.
VOLTAGE WARNING: Before connectingthe tool to a power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source
with
voltage greater than that specified
for the tool can result
in
SERIOUS INJURY to the user
-
as well as damage to
the tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source
with
voltage less than the nameplate rating is harmful to the motor.
3
ADDITIONAL SAFETY RULES
1.
Inspect for and remove foreign matter such as nails, screws, etc. from the
workpiece surface before operation.
2.
Do
not wear gloves during operation.
3.
Hold the tool firmly with both hands.
4.
Keep hands away from rotating parts.
5.
Do
not leave the tool running. Operate the tool only when hand-held.
6.
Never attempt to use with the tool held upside down in
a
vise, etc.
SAVE THESE INSTRUCTIONS.
4
Removing
or
installingwheel
CAUTION
:
Always be sure that the tool
is
switched off and unplugged beforeremovingor installing
the wheel.
To remove the wheel, insert one hex
wrench into the end of the spindle and
another hex wrench into the end of the
output shaft. Turn the hex wrench in the
output shaftclockwisewhile securely hold-
ing the hex wrench in the spindle
so
that
the wheel cannot revolve. Pull the output
shaft out from the wheel. Move the wheel
slightly away from the spindle and remove
the wheel from the tool.
CAUTION: The outputshaft has
a
left hand thread.
To install the wheel, follow the removal
procedures in reverse. When installing
it,
be sure to align the notches in the wheel
with the pins on the spindle.
Adjustingfront roller
The front roller allows you to apply uni-
form pressure to the workpiece. To adjust
the front roller,
set
the tool on
a
flat sur-
face and loosen the wing nut. Adjust the
front roller up or down until the clearance
distance
(D)
is
about
2
mm(5/64”).Tighten
the wing nutsecurely.
\
Front
roller
5
Connecting todust collector
(Optional
accessory)
The use of
a
dust collector makes sanding
operationsclean and dust collectioneasy.
To
connect
a
dust collector, open the dust
port by sliding the cover plate up and in
a
clockwise direction. Attach the joint onto
the dust port. Now
a
dust collector can be
connected tothis
tool.
CAUTION
:
When notusing
a
dust collector, close the dust port opening with the cover plate.
Switch action
To start the tool, simply
pull
the trigger.
Release
the trigger to stop. For continuous
operation, pull the trigger and then push in
the lock button. To stop the tool from the
locked position, pull the trigger fully, then
release
it.
.
Trigger
switch
I
CAUTION
:
Before plugging in the tool, always check to
see
that the trigger swith actuates properly
and returnstothe
"OFF"
position when released.
.
6
Operation
Hold the tool firmly with both hands on
the handle and the grip in front. Place the
tool on the workpiece surface and move
the tool gently forward and backward
while applyingslight downward pressure.
CAUTION
:
*The tool should not be in contact with the workpiece surface when you turn the tool
on or off. Damage to the tool or the workpiece surface and injury to the operator may
resu
I
t.
Apply slight downward pressure only. Excessive pressure may decrease tool efficiency,
shorten wheel service lifeand possibly gouge the workpiece surface.
7
MAINTENANCE
CAUTION:
Always be sure that the tool
is
switched off and unpluggedbefore attempting to perform
inspection or maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limitmark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced
at
the
same time. Use only Makita carbonbrushes.
Limit
mark
Use
a
screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure the
brush holder caps.
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed
by
Makita Authorized or Factory Service Centers,
always using Makita replacement parts.
8
ACCESSORIES
CAUTION
:
These accessories or attachments are recommended for
use
with your Makita tool specified
in
this
manual. The use
of
any other accessories
or
attachments might present
a
risk
of
injury
to
persons.
The accessories or attachments should be used only in the proper and intended manner.
Joint
Part
No.
410899-9
Nylon
brush wheel
Hex wrench
Part
No.
783204-6
Part
No.
Grit Width
794384-3 120mm (4-3/4")
If
the sanding action
of
the nylon brush wheel begins to diminish, dress the wheel by sanding
soft
wood for several minutes.
Cotton
buff wheel 120
Part No. 794381-9
Wheel 120-40
Part
No.
794380-
1
.
0
Wire brush wheel 120
Part
No.
794382-7
9
WHEEL
SANDER
Model
9741
Q
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
