Makita GV5000 Quick start guide

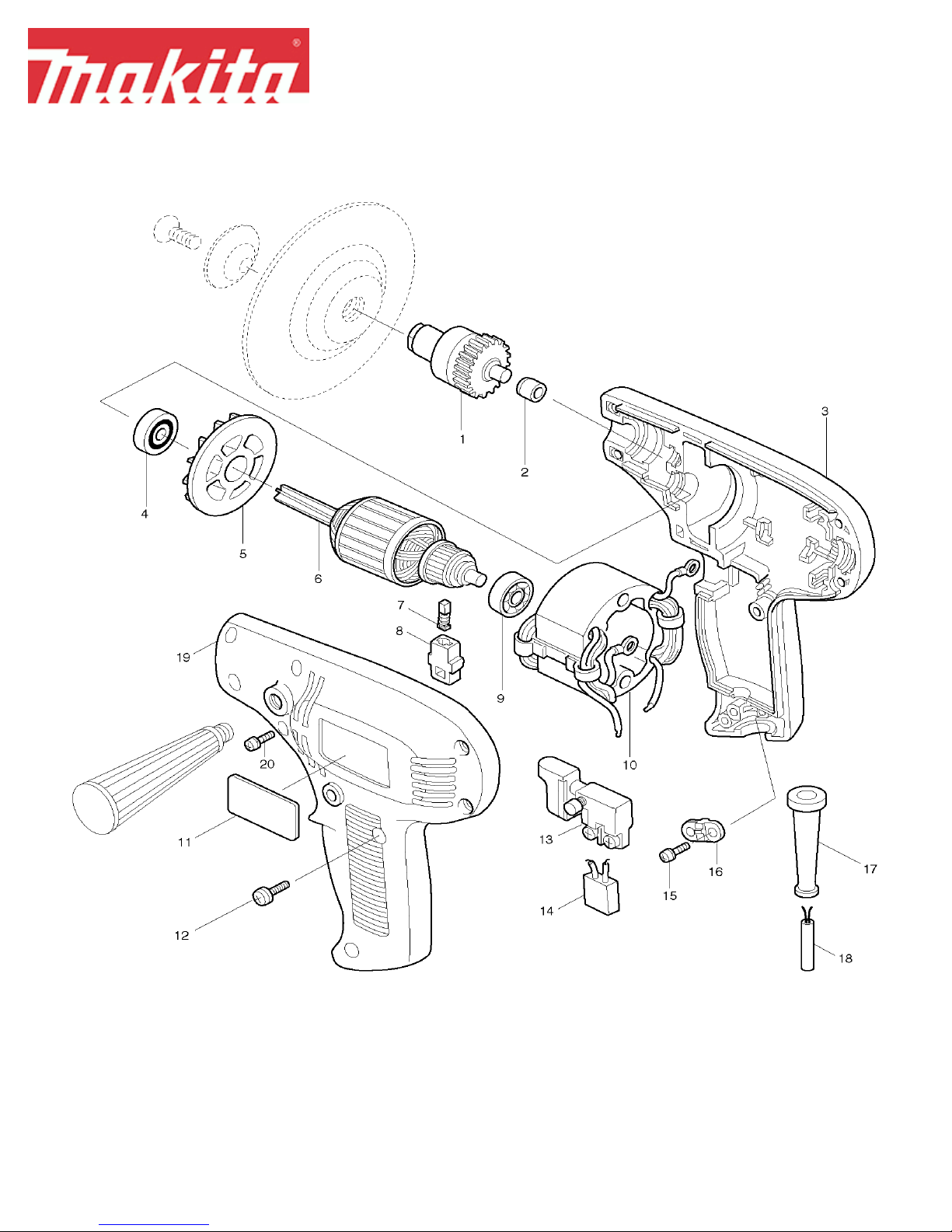

Parts Breakdown GV5000
Page 1 of 2 2/8/2008
Parts Breakdown GV5000
Fig # Part ID Part Name Quantity
1 153119-5 GEAR, GV5000 1
2 214004-8 P. BEARING 6, 6510LVR 1
3 182319-0 HOUSING SET, GV5000 1
3 182319-0 HOUSING SET, GV5000 1
3 188368-5 N/A 1
4 211033-2 B. BEARING 608LB, 5091D 1
5 241803-5 FAN, 6801DBV 1
6 515116-3 ARMATURE, GV5000 1
7 191956-9 CARBON BRUSH 75, JR3000V 1
8 643552-4 BRUSH HOLDER, BO5012K 2
9 211028-5 B. BEARING 627LB, 6510LVR 1
10 520054-6 N/A 1
10 525101-8 FIELD, GV5000 1
11 854639-9 NAME PLATE, GV5000 1
12 911138-5 P.H. SCREW M4X20, 9218SB 6
13 651232-8 SWITCH, 9218SB 1
15 911133-5 P.H. SCREW M4X18, N9501B 2
16 687001-1 STRAIN RELIEF, 6013BR 1
17 682502-4 CORD GUARD 8-85, HP1621F 1
18 664013-1 CORD (2X18X8 SJT), N9501B 1
19 188368-5 N/A 1
19 182319-0 HOUSING SET, GV5000 1
19 182319-0 HOUSING SET, GV5000 1
20 911138-5 P.H. SCREW M4X20, 9218SB 2
20 911148-2 P.H. SCREW M4X25, 5057KB 2
400 152491-2 GRIP, GV5000 1
401 794320-9 ABRASIVE DISC 125#80, GV5000 1
402 193098-5 N/A 1
403 265812-0 H.S.H. SCREW M8X20, GV5000 1
404 253951-8 WASHER 10, GV5000 1
405 783203-8 HEX WRENCH 5, 2708 1
406 410047-0 WRENCH HOLDER, GV5000 1
902 810146-2 N/A 1
