Makita DGA411 User manual

DGA411, DGA412,

DGA413, DGA414

DGA461, DGA462,

DGA463, DGA464

DGA511, DGA512,

DGA513, DGA514

EN Cordless Angle Grinder INSTRUCTION MANUAL 8

FR Meuleuse d’Angle sans Fil MANUEL D’INSTRUCTIONS 25

DE Akku-Winkelschleifer BETRIEBSANLEITUNG 43

IT Smerigliatrice angolare a

batteria ISTRUZIONI PER L’USO 62

NL Haakse accuslijpmachine GEBRUIKSAANWIJZING 81

ES Esmeriladora Angular

Inalámbrica

MANUAL DE

INSTRUCCIONES 99

PT Esmerilhadeira Angular a

Bateria MANUAL DE INSTRUÇÕES 117

DA Ledningsfri vinkelsliber BRUGSANVISNING 135

EL Φορητός γωνιακός

λειαντήρας ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ 152

TR Akülü Avuç Taşlama Makinesi KULLANMA KILAVUZU 171

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Makita DGA513ZJ o

cerca il tuo prodotto tra le migliori offerte di Elettroutensili

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

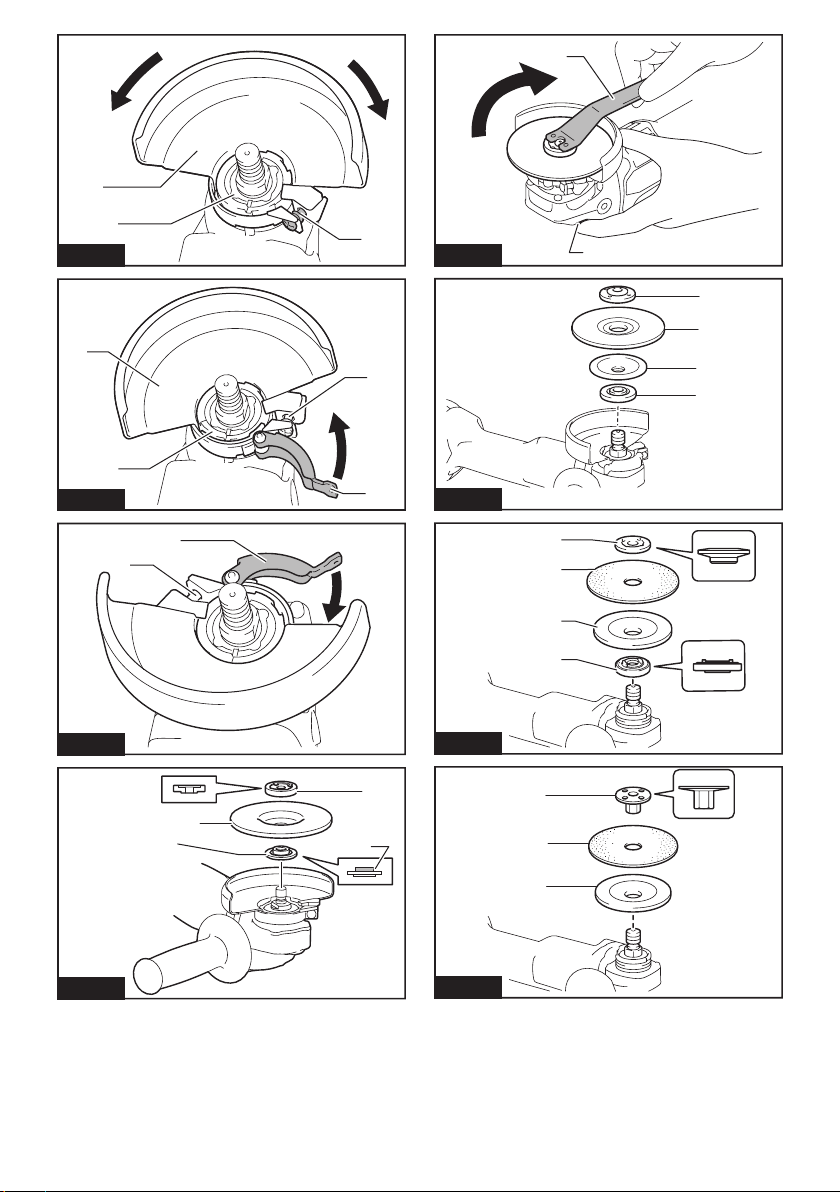

Fig.9

Fig.10

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

Fig.16

Fig.17

15°

Fig.18

Fig.19

16 mm (5/8″) 16 mm (5/8″)

Fig.20

Fig.21

Fig.22

Fig.23

Fig.24

Fig.25

Fig.26

Fig.27

Fig.28

Fig.29

Fig.30

Fig.31

Fig.32

Fig.33

Fig.34

Fig.35

Fig.36

Fig.37

Fig.38

Fig.39

13 15

Fig.40

8ENGLISH

ENGLISH (Original instructions)

SPECIFICATIONS

Model: DGA411 DGA412 DGA413 DGA414

Wheel diameter 100 mm (4″)

Max. wheel thickness 6.4 mm

Spindle thread M10

Rated speed (n) 8,500 min-1

Overall length 382 mm

Rated voltage D.C. 18 V

Net weight 2.2 - 2.8 kg

Electric brake -

Wireless activation function - -

Model: DGA461 DGA462 DGA463 DGA464

Wheel diameter 115 mm (4-1/2″)

Max. wheel thickness 7.2 mm

Spindle thread M14 or 5/8″ (country specic)

Rated speed (n) 8,500 min-1

Overall length 382 mm

Rated voltage D.C. 18 V

Net weight 2.3 - 3.0 kg

Electric brake -

Wireless activation function - -

Model: DGA511 DGA512 DGA513 DGA514

Wheel diameter 125 mm (5″)

Max. wheel thickness 7.2 mm

Spindle thread M14 or 5/8″ (country specic)

Rated speed (n) 8,500 min-1

Overall length 382 mm

Rated voltage D.C. 18 V

Net weight 2.3 - 3.0 kg 2.4 - 3.0 kg

Electric brake -

Wireless activation function - -

• Due to our continuing program of research and development, the specications herein are subject to change

without notice.

• Specications may differ from country to country.

• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heavi-

est combination, according to EPTA-Procedure 01/2014, are shown in the table.

Applicable battery cartridge

BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 / BL1840B / BL1850 / BL1850B / BL1860B

• Some of the battery cartridges listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges listed above. Use of any other battery cartridges may cause

injury and/or re.

Intended use

The tool is intended for grinding, sanding and cutting of

metal and stone materials without the use of water.

9ENGLISH

Noise

The typical A-weighted noise level determined according to EN60745:

Model Sound pressure

level (LpA) : (dB(A))

Sound power level

(LWA) : (dB(A))

Uncertainty (K) :

(dB(A))

DGA411 80 - 3

DGA412 80 - 3

DGA413 80 - 3

DGA414 80 - 3

DGA461 79 - 3

DGA462 79 - 3

DGA463 79 - 3

DGA464 79 - 3

DGA511 79 - 3

DGA512 79 - 3

DGA513 79 - 3

DGA514 79 - 3

The noise level under working may exceed 80 dB (A).

WARNING: Wear ear protection.

Vibration

The vibration total value (tri-axial vector sum) determined according to EN60745:

Work mode: surface grinding with normal side grip

Model

Vibration emission (ah, AG) : (m/s2)

Uncertainty (K) : (m/s2)

DGA411 4.5 1.5

DGA412 4.5 1.5

DGA413 4.5 1.5

DGA414 4.5 1.5

DGA461 6.5 1.5

DGA462 6.5 1.5

DGA463 6.5 1.5

DGA464 6.5 1.5

DGA511 6.5 1.5

DGA512 6.5 1.5

DGA513 6.5 1.5

DGA514 6.5 1.5

10 ENGLISH

Work mode: surface grinding with anti vibration side grip

Model

Vibration emission (ah, AG) : (m/s2)

Uncertainty (K) : (m/s2)

DGA411 4.0 1.5

DGA412 4.0 1.5

DGA413 4.0 1.5

DGA414 4.0 1.5

DGA461 6.0 1.5

DGA462 6.0 1.5

DGA463 6.0 1.5

DGA464 6.0 1.5

DGA511 6.0 1.5

DGA512 6.0 1.5

DGA513 6.0 1.5

DGA514 6.0 1.5

Work mode: disc sanding with normal side grip

Model

Vibration emission (ah, DS) : (m/s2)

Uncertainty (K) : (m/s2)

DGA411 2.5 m/s2or less 1.5

DGA412 2.5 m/s2or less 1.5

DGA413 2.5 m/s2or less 1.5

DGA414 2.5 m/s2or less 1.5

DGA461 2.5 m/s2or less 1.5

DGA462 2.5 m/s2or less 1.5

DGA463 2.5 m/s2or less 1.5

DGA464 2.5 m/s2or less 1.5

DGA511 2.5 m/s2or less 1.5

DGA512 2.5 m/s2or less 1.5

DGA513 2.5 m/s2or less 1.5

DGA514 2.5 m/s2or less 1.5

Work mode: disc sanding with anti vibration side grip

Model

Vibration emission (ah, DS) : (m/s2)

Uncertainty (K) : (m/s2)

DGA411 2.5 m/s2or less 1.5

DGA412 2.5 m/s2or less 1.5

DGA413 2.5 m/s2or less 1.5

DGA414 2.5 m/s2or less 1.5

DGA461 2.5 m/s2or less 1.5

DGA462 2.5 m/s2or less 1.5

DGA463 2.5 m/s2or less 1.5

DGA464 2.5 m/s2or less 1.5

DGA511 2.5 m/s2or less 1.5

DGA512 2.5 m/s2or less 1.5

DGA513 2.5 m/s2or less 1.5

DGA514 2.5 m/s2or less 1.5

NOTE: The declared vibration emission value has been measured in accordance with the standard test method

and may be used for comparing one tool with another.

NOTE: The declared vibration emission value may also be used in a preliminary assessment of exposure.
