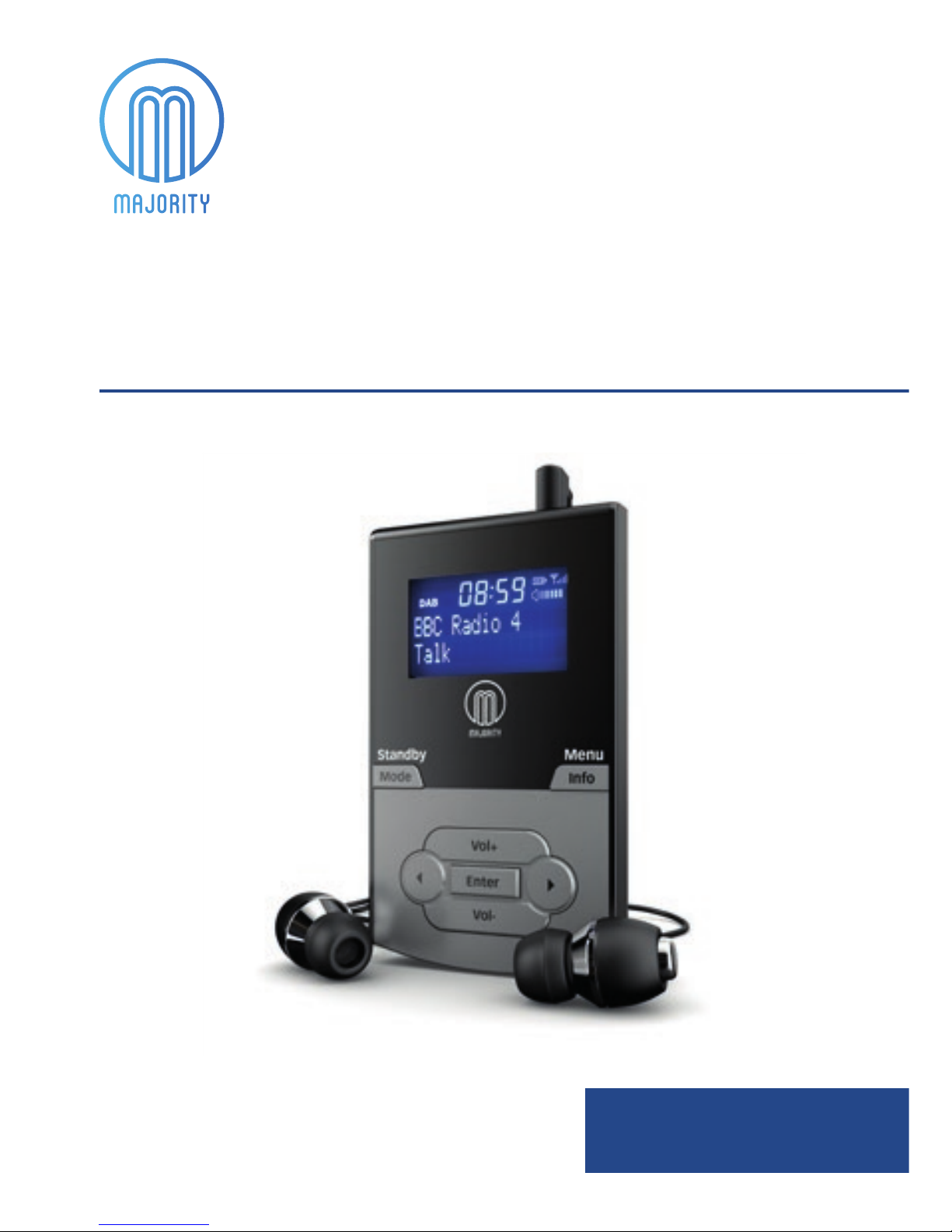

MAJORITY CB1A-DAB-BLK Petersfield User manual

Majority Petersfield

Pocket DAB/DAB+ / FM Radio

CB1A-DAB-BLK

User Guide

Contents

Watch video tutorials and register

your product for a FREE 3-year

warranty atwww.majorityradios.co.uk

Controls and Functions.............................. 1

What’s in the Box? .................................. 2

Instruction Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Basic Operation...........................................3

DAB Radio and Set up Preset for DAB Radio................4

FM Radio and Set up Preset for FM Radio ..................6

Station Information for DAB and FM Radio.................8

Other Functions ...................................10

Technical Specication .............................12

Warranty ..........................................12

Important Safety Information ......................13

Controls and Functions

1 2

5 8

1. Power (On/O)

2. Earphone jack

3. Standby/Mode

4. Volume +

5. Previous

6. Volume -

7. Enter

8. Next

9. Menu/Info

10. Display screen

11. DC IN jack

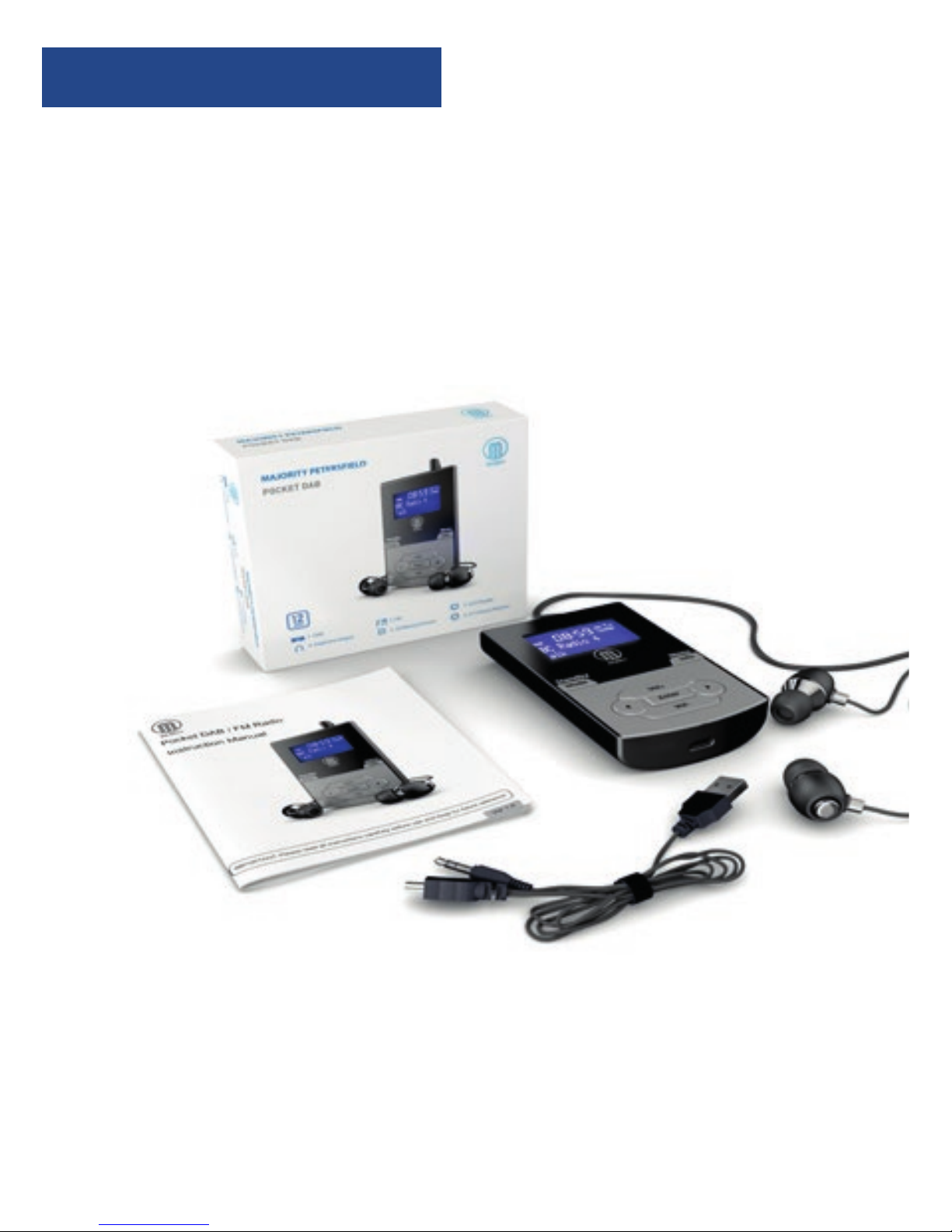

What's in the Box?

●Majority Petersfield Pocket DAB/DAB+ Radio

●USB Cable

●Earphones

●User Guide

Instructions Guide

Please note all (Ref.) refer to the Controls and Functions

mapping guide on Page 1.

Basic Operation

Switch the ‘ON/OFF’ (Ref.1) button on top of the system to ‘ON’.

“Welcome to Digital Radio” will show on the display. Then it will

show the clock.

Ensure the system has been charged, the battery life will show on

the display when you turn on. If the battery icon shows all of the

bars illuminated then the system is fully charged.

To charge the device, use the USB cable provided and plug it into a

computer or a plug (not supplied) that accepts USB connectors.

Press the ‘Standby/Mode’ button to turn on the unit (Ref.3). The

system should go straight to DAB Radio and automatically start

scanning for stations. The display will show “Searching” and can

take a few minutes to scan.

Press the ‘Standby/Mode’ button (Ref.3) to switch to FM or again to

switch back to DAB.

Ensure that the earphones are connected into the top of the

system correctly (Ref.2) as they are also the antenna of your radio.

Without them, no DAB/FM signal will be received.

Instructions Guide

Standby

To change the music system back into standby, press and hold the

‘Standby/Mode’ button (Ref.3). To turn o fully, switch the button

on top of the unit (Ref.1) to Off.

DAB/DAB+ Radio

Press the ‘Standby/Mode’ button (Ref.3). On rst use DAB Radio will

automatically start scanning all stations and save them.

To auto scan (if the unit hasn’t automatically done so, or shows no

signal) press and hold the ‘Info/Menu’ button (Ref.9) and when the

display shows “FULL SCAN”, press the‘Enter’ button (Ref.7).

The unit will start scanning up the frequency band and store all

stations that have a good signal. Please note: if you are not in a

good DAB signal area then you won’t get a strong signal, if any.

The radio will automatically save all those stations that have a

strong signal. After searching has nished it will automatically play

the rst station stored.

To listen to any of the stations that have been stored, use the‘Next’

(Ref.8) and ‘Prev’ (Ref.5) buttons to navigate through the stations.

The radio will display station information when you press the ‘Info/

Menu’ button (Ref.9). Press multiple times to view all information

available (See page 8).

When you turn the radio on again after switching it o, it will

automatically tune to the same station (DAB or FM) that was last

selected.

Instructions Guide

How to preset a radio station

Up to 10 preset stations can be set. To store a station that you are

currently playing:

Press and hold ‘Enter’ button (Ref.7).

“Preset Empty ‘1’”will show on the display, the number ashing.

Press ‘Prev’ (Ref.5) or ‘Next’ (Ref.8) button to change the '1' to the

number you want to store the station as.

Then press and hold ‘Enter’ button (Ref.7) to save.

The display will then show “Preset (1) stored”.

How to play a preset radio station

Press and hold ‘Enter’ (Ref.7).

Press ‘Prev’ (Ref.5) or ‘Next’ (Ref.8) button to scroll through your

preset stations, up to 10.

Press ‘Enter’ button (Ref.7) to select your choice.

Watch video tutorials and register

your product for a FREE 3-year

warranty atwww.majorityradios.co.uk

Instructions Guide

FM Radio

Press the ‘Standby/Mode’ button (Ref.3).

Then press the ‘Standby/Mode’ button (Ref.3) to switch to FM.

The rst time you do this FM frequency “87.5 MHz” will be

displayed on the screen.

To auto scan, press and hold the ‘Previous’ button (Ref.5) and then

release.

After searching has nished the unit will automatically play the rst

station stored with a good signal.

How to tune a specic frequency manually

To listen to a specic frequency, you can search quickly by pressing

and holding the ‘Next’ button (Ref.8) to search up and ‘Prev’ button

(Ref.5) to search down the bandwidth. It will stop searching when

you press the button again. To search slowly, press the ‘Next’ (Ref.8)

and ‘Prev’ (Ref.5) button multiple times instead of holding.

Mono and Auto

In working mode press and hold the ‘Info/Menu’ button (Ref.9).

Use the ‘Prev’ button (Ref.5) to highlight your selection.

Choose “SET TO MONO/SET TO AUTO”and press the ‘Enter’ button

(Ref.7).

The display will show “Audio Mode: Mono/Auto”.

The default audio setting for all stations is stereo mode. If you want

to improve the quality use the above instructions to change it to

Mono mode.

Instructions Guide

How to preset a radio station

Up to 10 preset stations can be set. To store a station that you are

currently playing:

Press and hold ‘Enter’ button (Ref.7).

“Preset Empty ‘1’”will show on the display, the number ashing.

Press the ‘Prev’ (Ref.5) or ‘Next’ (Ref.8) button to change the “1”

to the number you want to store the station as. Then press and

hold ‘Enter’ button (Ref.7) to save.

The display will then show “Preset (1) stored”.

How to play a preset radio station

Press and hold ‘Enter’ button (Ref.7).

Press ‘Prev’ (Ref.5) or ‘Next’ (Ref.8) button to scroll through your

preset stations, up to 10.

Press ‘Enter’ button (Ref.7) to select your choice.

Watch video tutorials and register

your product for a FREE 3-year

warranty atwww.majorityradios.co.uk

Instructions Guide

Station Information for DAB and FM Radio

DAB/DAB+ Radio

Press the ‘Info/Menu’ button (Ref.9) repeatedly to show the

programme information.

Bit Rate: Shows the data rate at which the signal is being

transmitted.

Bit Error Rate (BER): Provides details of the signal error rate.

Channel and Frequency: Displays the station’s transmission

channel number and frequency.

PTY (Programme Type): Shows the type and description of the

programme provided by the DAB station.

Time and Date: Displays the time and date information provided

by the broadcaster.

DAB indication: Indicates DAB mode.

Dynamic Label Segment (DLS): Displays scrolling text information

supplied by the broadcaster.

Watch video tutorials and register

your product for a FREE 3-year

warranty atwww.majorityradios.co.uk
