Majestic Ruby User manual

RUBY SERIES

DirectVentGasFireplaceInserts

RUBY SERIES DIRECT VENT

GAS FIREPLACE INSERTS

Ruby series gas inserts make relaxing simple. Convert your

high-maintenance wood ﬁreplace into a source of warmth

and enjoyment.

Realistic split logs and ﬂames give the Ruby series the ambiance

and look you expect, while removing the effort wood ﬁreplaces require.

Ruby 30 shown with Contemporary rectangular door

and surround in Bronze, and optional Cottage Red interior

CONVERT YOUR HIGH-MAINTENANCE

WOOD FIREPLACE TO SIMPLIFY YOUR LIFE

Cover photo: Ruby 35 with Clean Face Contemporary rectangular door and surround in Black, and Tavern Brown interior

Ruby Quick Look

• Strikingly realistic split logs and ﬂames

• Simple start-up and use for continual

enjoyment

• Adjust ﬂame, heat and ambiance

• Heat with more than 70% efﬁciency

• Available in 30" or 35" models

• Up to 35,000 BTUs

FOUR EASY STEPS TO UPGRADE YOUR

EXISTING WOOD-BURNING FIREPLACE

1. Measure your existing ﬁreplace 3. Choose your surround

2. Select your insert 4. Customize your insert

Distance from firebox to mantel

Back width

Depth from front

to back

Front width

Height from

hearth to top

of the opening

STEP 1 Measure Your Existing Fireplace –

The height, width and depth of the existing ﬁreplace opening

is needed to ensure an appropriately sized insert is selected.

STEP 2 Choose Your Insert

• Consider how your insert will be used. Room size, heating needs and usage frequency all come into play.

MDVI30

• 30" viewing area

• Up to 30,500 BTUs

• Fan and remote

standard

MDVI35

• 35" viewing area

• Up to 35,000 BTUs

• Fan and remote

standard

STEP 3 Choose Your Surround – Surrounds ﬁll the gap between the ﬁreplace insert and existing ﬁreplace

opening. Choose from three sizes and two ﬁnishes for a unique look.

SURROUND MDVI35 MDVI30

Small 42" x 29" 40" x 27"

Medium 44" x 32" 42" x 30"

Large 48" x 32" 44" x 32"

Small Surround

Medium Surround

Large Surround

Tavern Brown

STEP 4 Customize Your Insert – Select options to complete your look.

Contemporary Rectangular Door

(Clean Face)

Black

Bronze

Front Finishes

Cottage Red

Optional Interior Brick Panels

Termination Caps

A termination cap ﬁnishes your gas insert with

a clean, upscale look. These durable caps also

protect venting components and ensure safe

exhaust ﬂow.

Round Termination Cap Square Termination Cap

(available in Black or Copper ﬁnish)

The RC200 remote and

wall dock come standard

with the Ruby insert. The

remote allows for adjustable

ﬂame height, standing pilot

mode, child safety lock,

and memory settings.

Contemporary Rectangular Door

Your Majestic Dealer:

1: For full warranty details go to majesticproducts.com. The information provided in this literature is for planning purposes only and subject to change. Please consult the

installation manual for actual installation. Actual product appearance may differ from product images. Fireplace, stove and insert surfaces get extremely HOT and can cause

For more information about Majestic

efﬁcient and environmentally friendly

products, please visit

www.majesticproducts.com

MAJ-1011U-0117

IntelliFire™ Plus Ignition System

The Intelliﬁre Plus Ignition System (IPI Plus) takes this

technology to the next level with more safety and memory

settings, and a programmable wireless remote control.

The wireless remote is required to control standing pilot

mode, child safety lock, and memory settings.

Direct Vent Technology

Direct Vent ﬁreplaces remove 100% of combustion

exhaust and odors from your space. These sealed

ﬁreplaces provide optimal heat, conserve energy and

ensure clean, safe indoor air quality.

TECHNICAL SPECIFICATIONS

Top View Front View Right Side ViewLeft Side View

Note: Order a conversion kit when using LP.

Note: Refer to installation manual for zero clearance install guidelines.

RATING MDVI30IN MDVI35IN

Steady State 70% (NG) / 73% (LP) 74% (NG) / 75% (LP)

AFUE 68% (NG) / 71% (LP) 71% (NG) / 73% (LP)

RATING MDVI30IN MDVI35IN

EnerGuide

(CSA P4.1-02) 70% (NG) / 71% (LP) 72% (NG) / 73% (LP)

U.S. Efficiencies

Steady State

Since most homeowners use their ﬁreplaces for an extended time while they are in the

room, Steady State measures how efﬁciently your ﬁreplace

converts fuel to heat once it is warmed up and running in a “steady state”.

AFUE

AFUE rating is more typically used with appliances, like your furnace, that continually

cycle on and off to maintain a constant temperature.

Canada Efficiencies

EnerGuide (CSA P.4.1-02)

EnerGuide is the ofﬁcial Government of Canada mark associated with the labelling

and rating of the energy consumption or energy efﬁciency of speciﬁc products.

Limited Lifetime Warranty1

The strongest in the industry, Majestic

provides a limited lifetime warranty on gas-

burning products of the most important

aspects: firebox and heat exchanger.

MODEL FRONT WIDTH BACK WIDTH HEIGHT DEPTH VIEWING AREA

(E X F)

BTU/HR

INPUT

UNIT (A) MINIMUM OPENING UNIT (B) MIN. OPEN UNIT (D) MINIMUM OPENING UNIT (C) MINIMUM OPENING

MDVI30IN

MDVI30IL

30-5/8"

(778mm)

31-1/8" (791mm) (std. surround)

29-1/2" (749mm) (deep surround)

20-3/16"

(513mm)

20-3/4"

(527mm)

20-7/16"

(519mm)

20-3/4" (527mm) (std. surround)

19-3/8" (492mm) (deep surround)

14-5/8"

(371mm)

14-7/8" (378mm) (std. surround)

14" (356mm) (deep surround)

27-1/2" x 12-3/16"

(699mm x 310mm)

30,500(NG)

28,000(LP)

MDVI35IN

MDVI35IL

34-5/8"

(879mm)

35-1/8" (892mm) (std. surround)

33-1/2" (851mm) (deep surround)

23-7/16"

(595mm)

24"

(610mm)

24-1/16"

(611mm)

24-3/8" (619mm) (std.surround)

23" (584mm) (deep surround)

15-11/16"

(398mm)

16" (406mm) (std. surround)

15-1/8" (384mm) (deep surround)

31-5/8" x 15-11/16"

(803mm x 398mm)

35,000(NG)

31,500(LP)

Table of contents

Other Majestic Indoor Fireplace manuals

Majestic

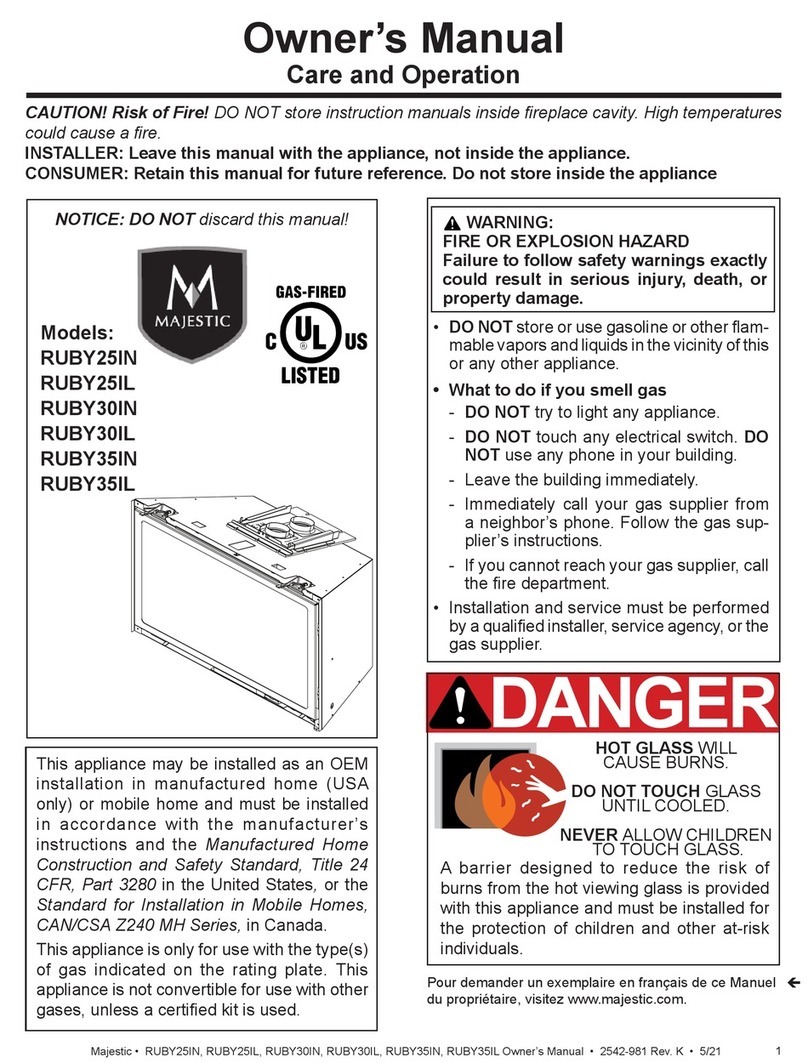

Majestic RUBY25IN User manual
