M-Elec PULSE ML-PUL600-5K-S User manual

PULSE

ILLUMINATE VICTORY

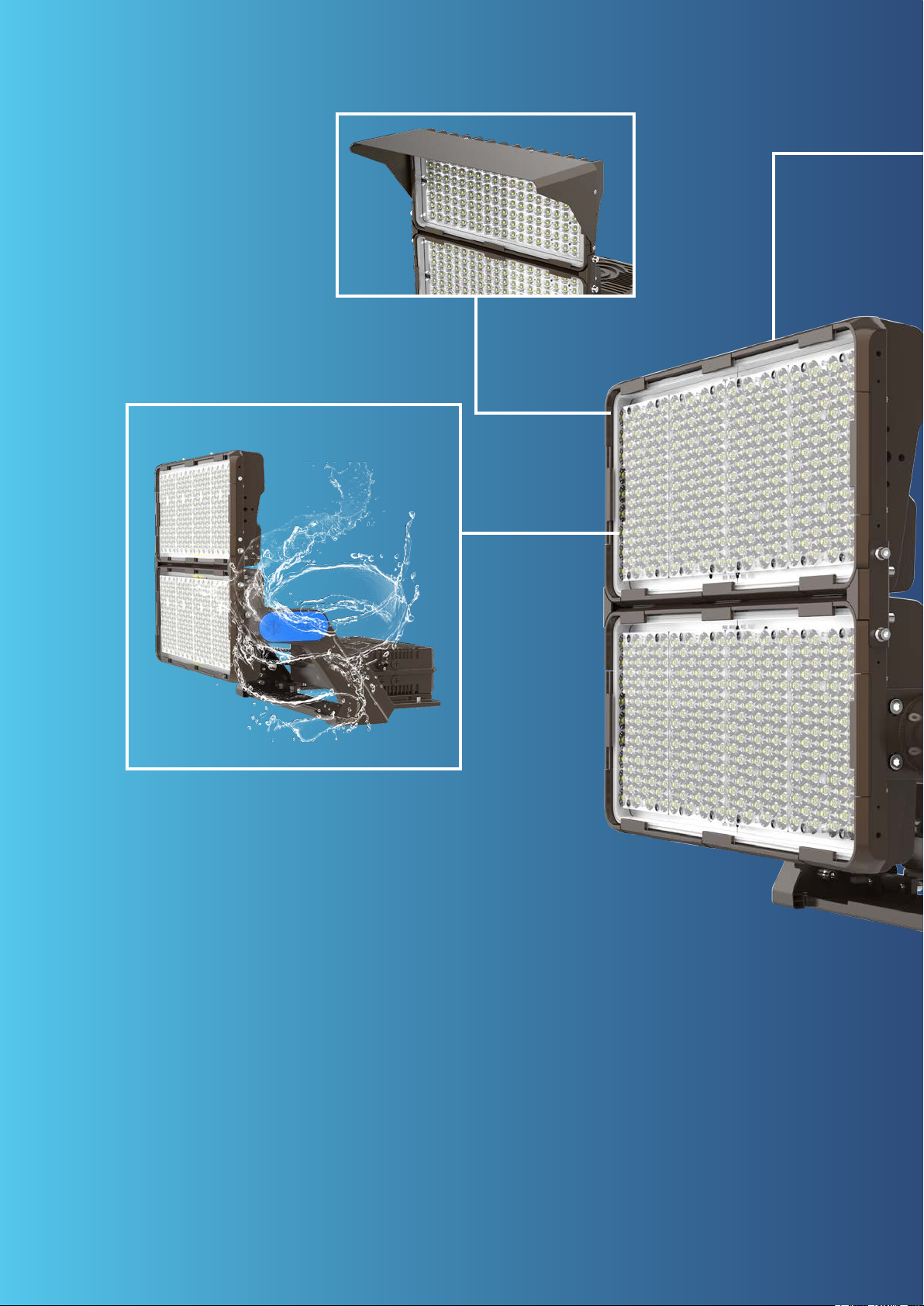

AVAILABLE WITH GLARE GUARD

FULLY GASKETED & SECURE LENS

Full screen design with secure locking

tabs and IP66 sealing to protect against

the elements

PULSE

ILLUMINATE VICTORY

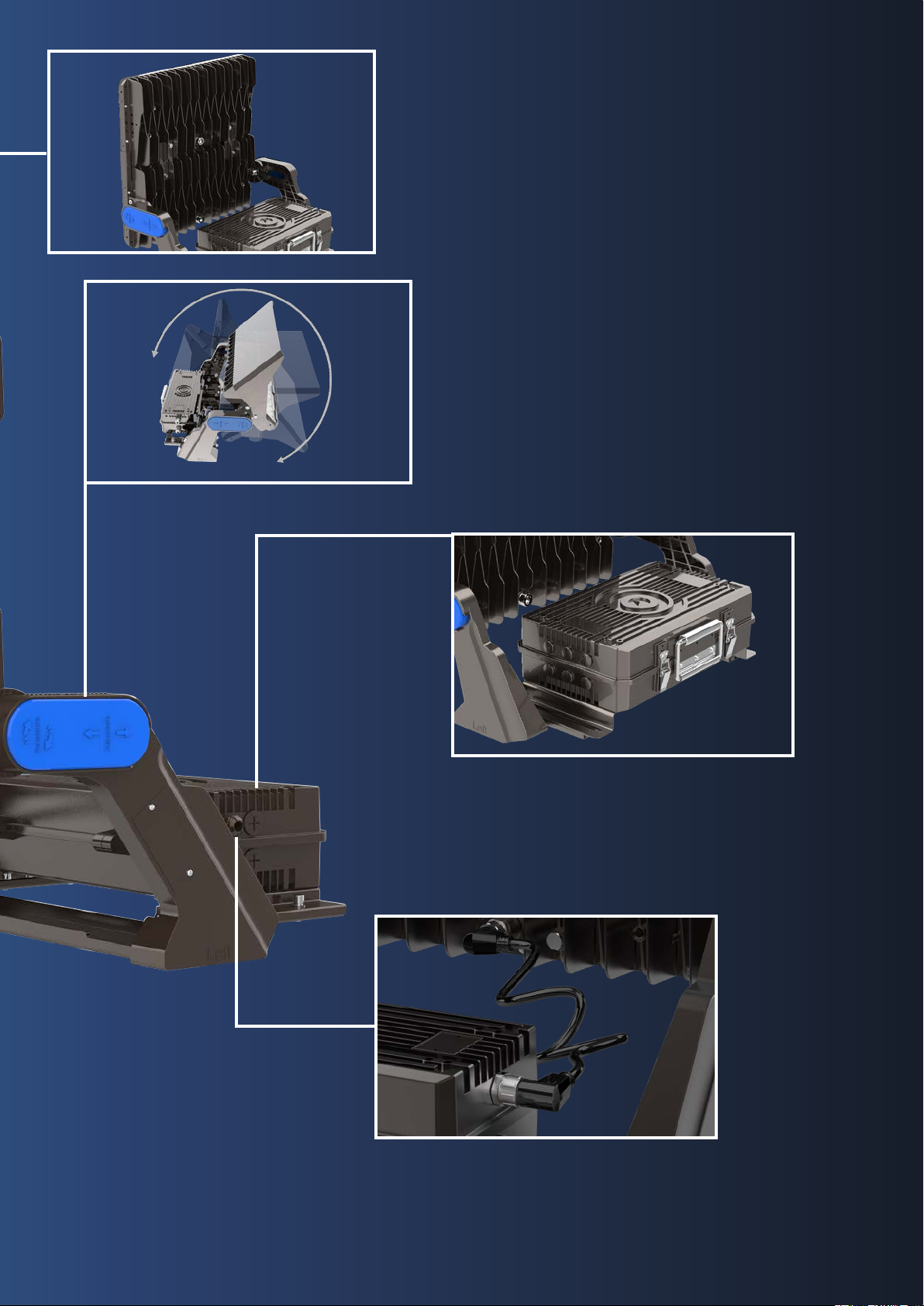

INDEPENDENT CONTROL GEAR

IP66 independent driver box, can be

remotely installed or attached to the

(optional) on board brackets for excellent

heat dissipation.

FULL ADJUSTABLE BRACKET

Vertical rotation 0-270°

Horizontal expansion 0-100mm

IP66 RAPID CABLE CONNECTION

Easy and quick wiring of power

supply with fully protected 4-pin

male and female connectors

OPTIMISED HEAT DISSIPATION

Fully integrated die cast aluminium

heat sinks for improved thermal

management

SAA, IP66, IK08, C-TICK

 

Total Power: 

MAX Lumen Output: 65000

IP Rating: IP66

 130lm/W

 50/60Hz

 10mA

Current inrush 2.8A 13.8A

Beam Angle: 60° (30°/90°/120° options)

Temp Range: 

Dimmable: 0-10V dimming

  

Average Life: 50,000 hrs**

  

 

IK Rating 

LM Rating 

LB Rating 

SDCM Rating 

EPA rating 

Dimensions: 690x618x369mm

Weight: 12kg

Control gear weight: 5.5kg



 21kg

 5 Years*

Data subject to change at any time

 For further information about our Warranties please go to: 

Commercial applications:

- Large area lighting



- Wharf/harbors

- Airports

DIMMABLE WARRANTYBEAMIK8IP66

• 

• 0-270° rotational head

• 0-100mm extendable head

• Fully gasketed lens and control gear to protect against the elements

• Power consumption: 500W

• Average life of 50,000 hours

• Low and high power options available

• 0-10v dimming capability

• 60° beam angle (30°/ 90°/ 120° option available)

• IP66 and IK08 rated

• Five year warranty

YEAR

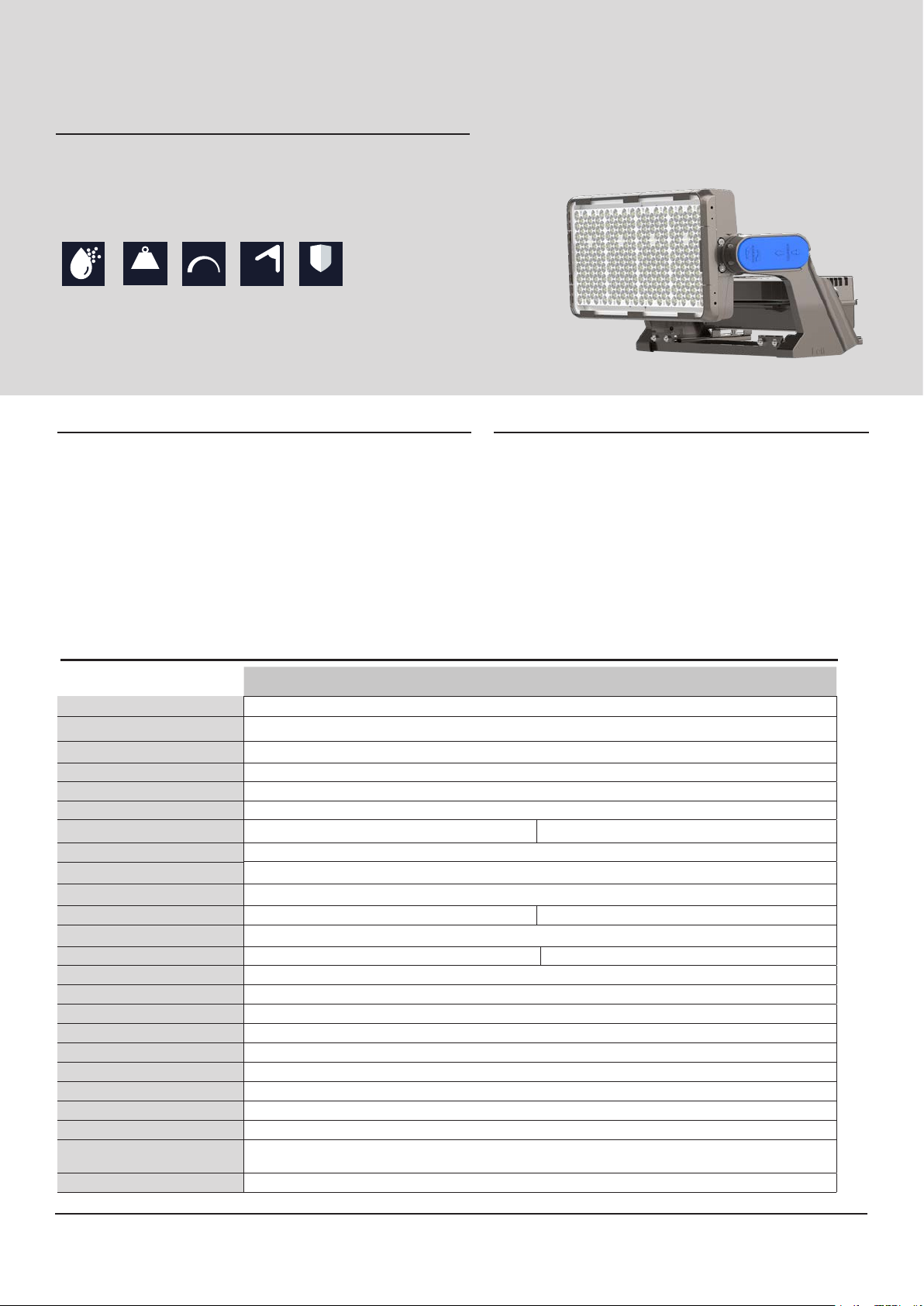

PULSE 500W

APPLICATIONS

FEATURES

TECHNICAL INFORMATION

COMPLIANCE

SAA, IP66, IK08, C-TICK

 

Total Power: 600w

MAX Lumen Output: 78000 lm

IP Rating: IP66

 130lm/W

 50/60Hz

 10mA

Current inrush 4.7A 7.7A

Beam Angle: 60° (30°/90°/120° options)

Temp Range: 

Dimmable: 0-10V dimming

  

Average Life: 50,000 hrs**

  1.3A

 

IK Rating 

LM Rating 

LB Rating 

SDCM Rating 

EPA rating 

Dimensions: 690x618x369mm

Weight: 12kg

Control gear weight: 5.5kg



 23kg

 5 Years*

Commercial applications:

- Large area lighting



- Wharf/harbors

- Airports

• 

• 0-270° rotational head

• 0-100mm extendable head

• Fully gasketed lens and control gear to protect against the elements

• Power consumption: 600W

• Average life of 50,000 hours

• Low and high power options available

• 0-10v dimming capability

• 60° beam angle (30°/ 90°/ 120° option available)

• IP66 and IK08 rated

• Five year warranty

APPLICATIONS

FEATURES COMPLIANCE

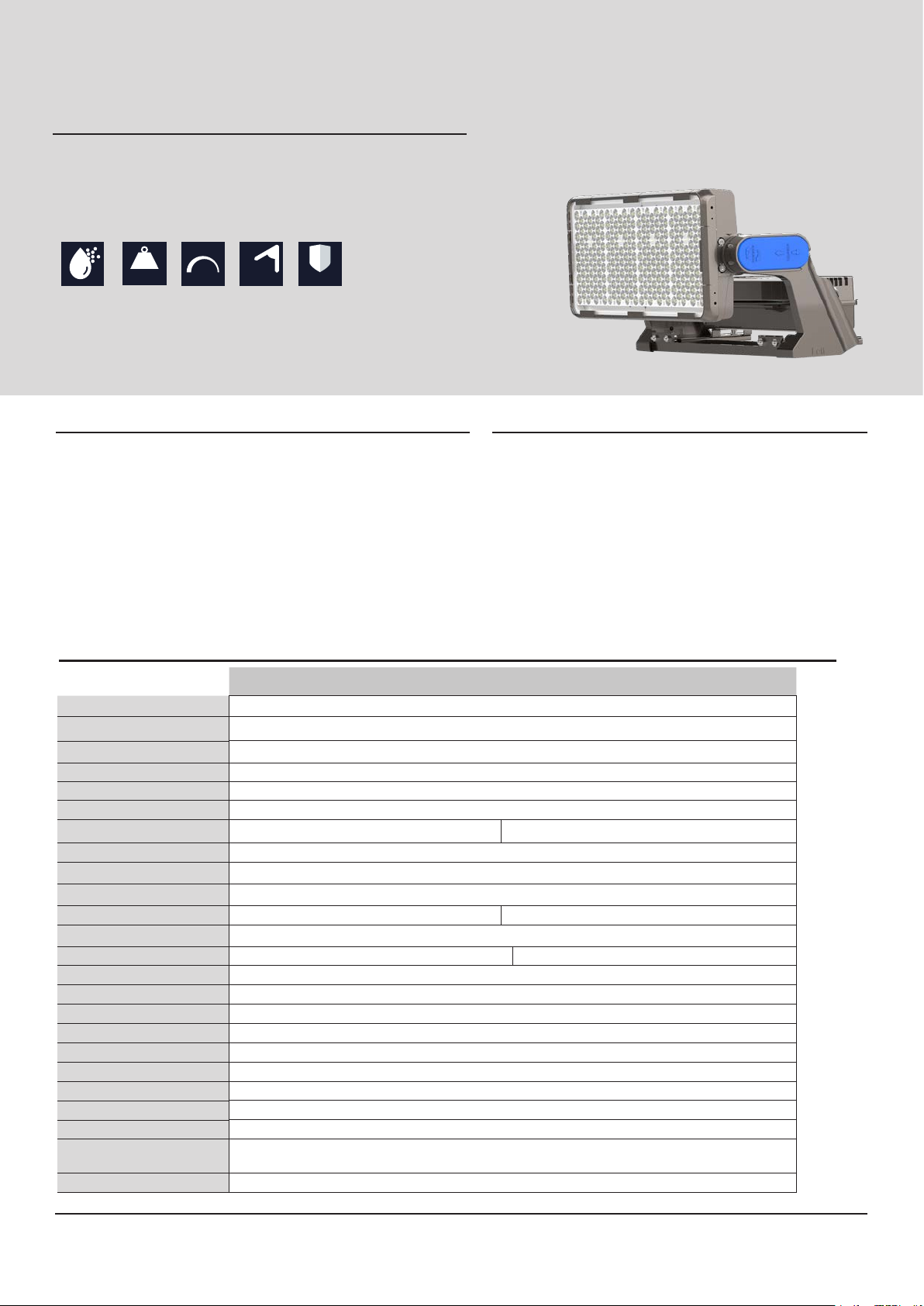

PULSE 600W

Data subject to change at any time

DIMMABLE WARRANTYBEAMIK8IP66

YEAR

TECHNICAL INFORMATION

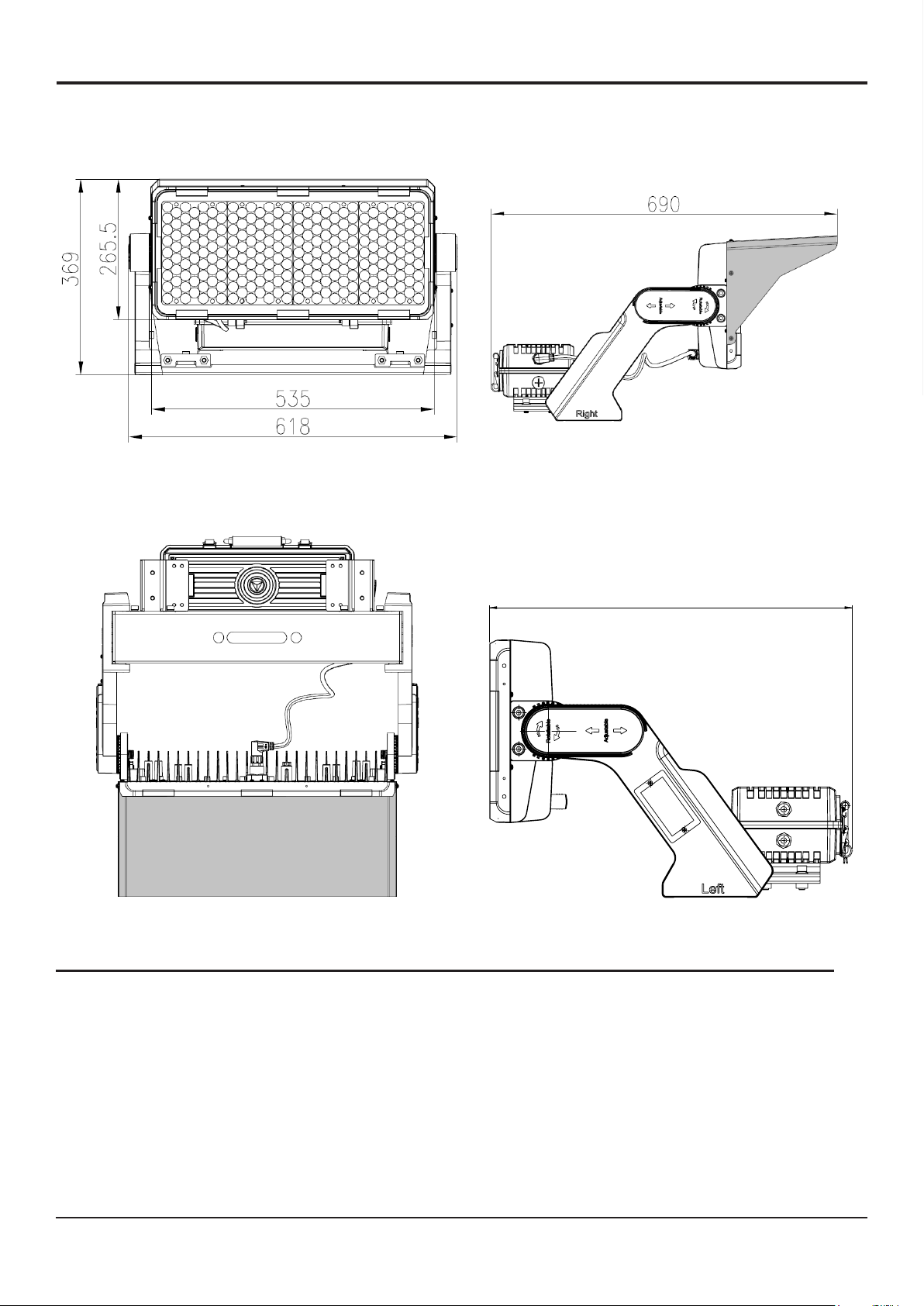

PRODUCT DIMENSIONS

498.70

A A

B B

C C

D D

E E

F F

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:10

SHEET 1 OF 1

WEIGHT:

001

M-ELEC PTY. LTD.

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPRIETARY OF

M-ELEC PTY. LTD. ANY REPRODUCTION

IN PART AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF

M-ELEC PTY. LTD. IS PROHIBITED

498.7



FRONT VIEW

BOTTOM VIEW



SIDE VIEW

PLEASE NOTE

• Read instructions carefully before attempting to install the fitting. Retain this guide for future reference

• Disconnect power before installing or servicing

• This fitting is for outdoor use and should not be used in areas with limited ventilation or high ambient temperatures

• Do not extend low voltage cables from the output of power supply

• All components must not be mechanically stressed

• 

• 000)

• 

under warranty

• Damage by corrosion will not be honoured as a material defect claim. It is the user’s responsibility to provide suitable protection against

corrosive agents such as moisture, condensation and other harmful elements

Data subject to change at any time

SAA, IP66, IK08, C-TICK

• 

• 0-270° rotational head

• 0-100mm extendable head

• Fully gasketed lens and control gear to protect against the elements

• Power consumption: 1000W

• Average life of 50,000 hours

• Low and high power options available

• 0-10v dimming capability

• 60° beam angle (30°/ 90°/ 120° option available)

• IP66 and IK08 rated

• Five year warranty

FEATURES COMPLIANCE

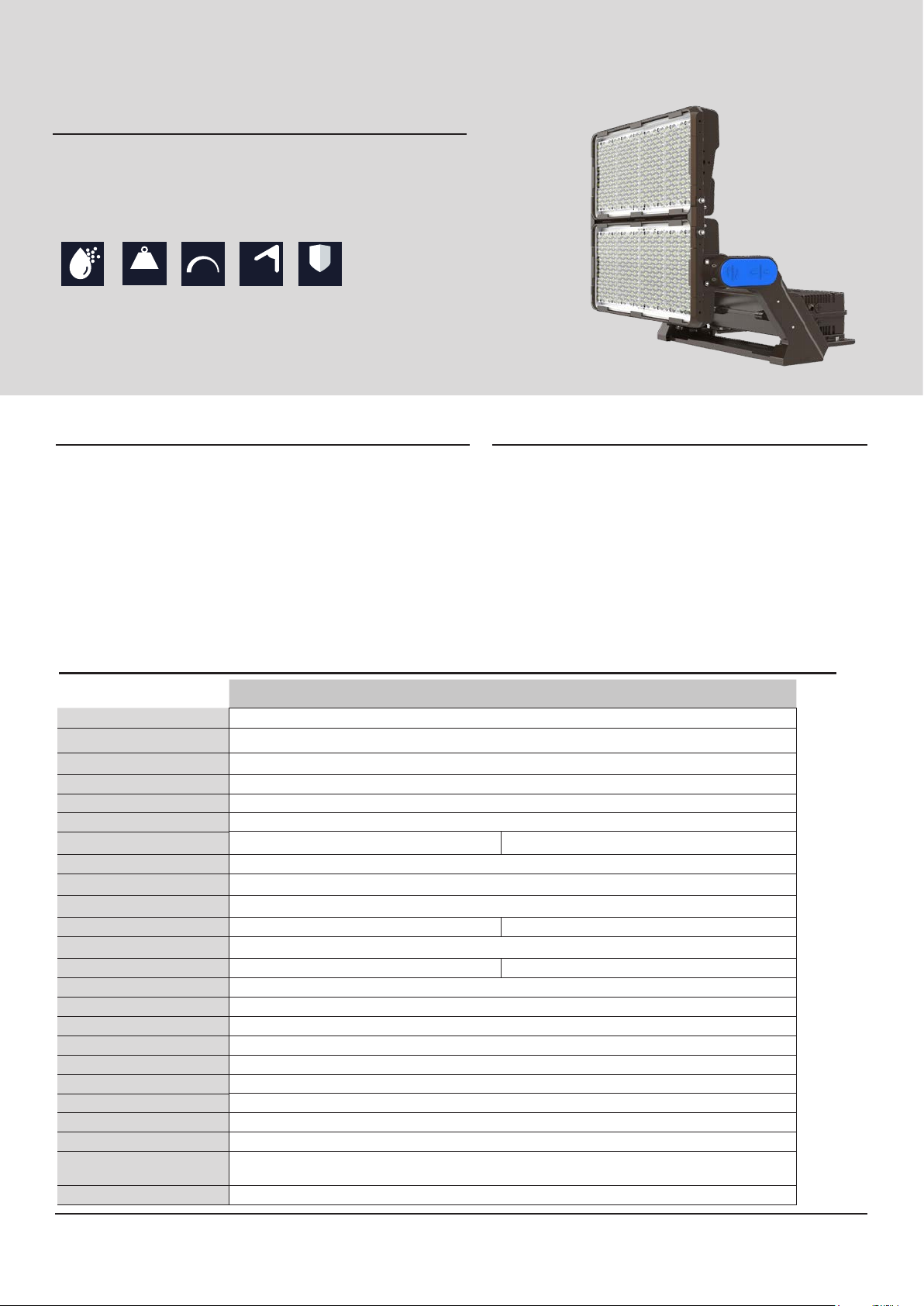

PULSE 1000W

Commercial applications:

- Large area lighting



- Wharf/harbors

- Airports

APPLICATIONS

DIMMABLE WARRANTYBEAMIK8IP66

YEAR

 

Total Power: 1000W

MAX Lumen Output: 130000 lm

IP Rating: IP66

 130lm/W

 50/60Hz

 10mA

Current inrush 5.6A 27.6A

Beam Angle: 60° (30°/90°/120° options)

Temp Range: 

Dimmable: 0-10V dimming

  

Average Life: 50,000 hrs**

  2.2A

 

IK Rating 

LM Rating 

LB Rating 

SDCM Rating 

EPA rating 

Dimensions: 780x618x621mm

Weight: 19.5kg

Control gear weight: 7.8kg



 32kg

 5 Years*

TECHNICAL INFORMATION

Data subject to change at any time

SAA, IP66, IK08, C-TICK

• 

• 0-270° rotational head

• 0-100mm extendable head

• Fully gasketed lens and control gear to protect against the elements

• Power consumption: 1200W

• Average life of 50,000 hours

• Low and high power options available

• 0-10v dimming capability

• 60° beam angle (30°/ 90°/ 120° option available)

• IP66 and IK08 rated

• Five year warranty

FEATURES COMPLIANCE

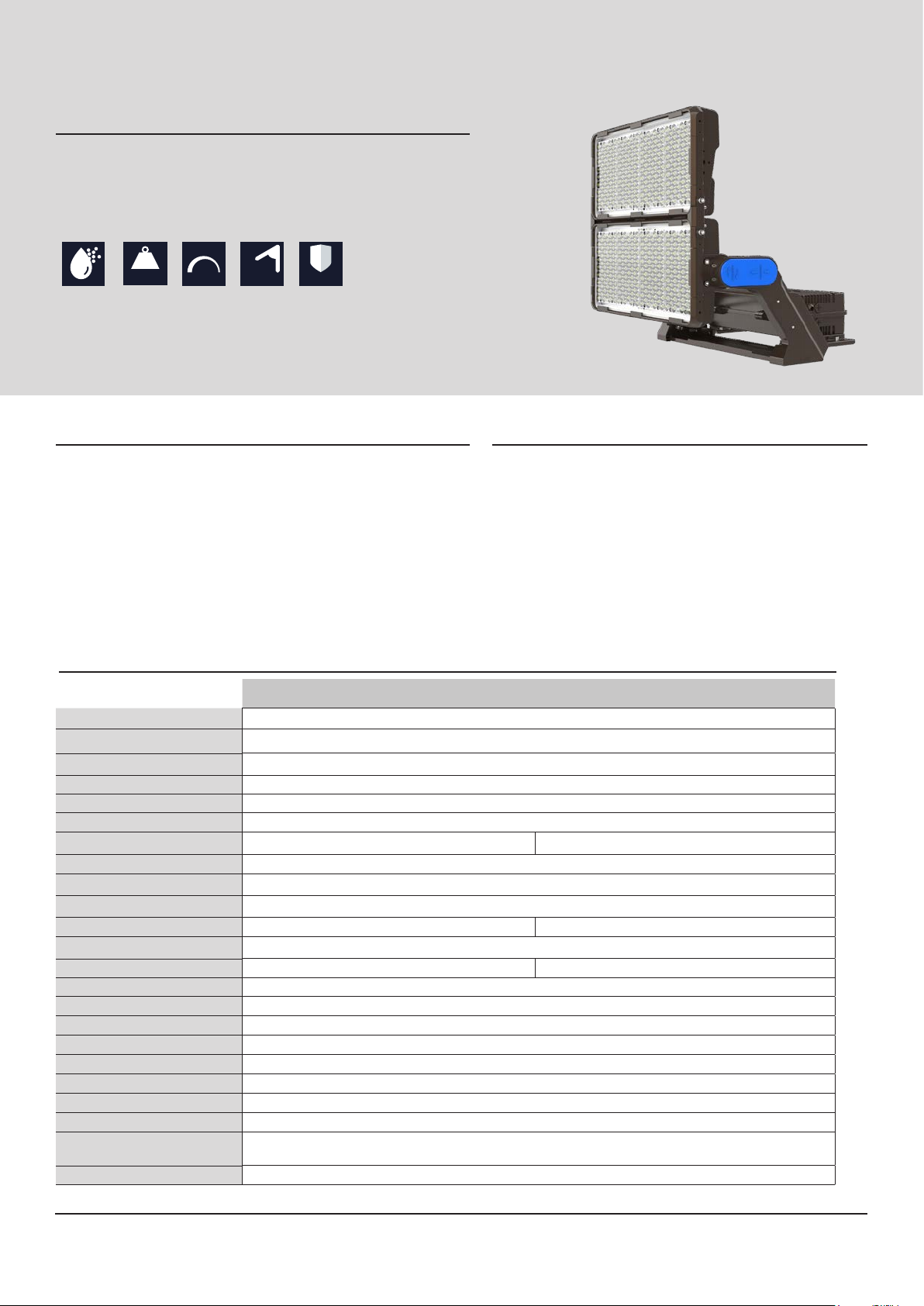

PULSE 1200W

Commercial applications:

- Large area lighting



- Wharf/harbors

- Airports

DIMMABLE WARRANTYBEAMIK8IP66

YEAR

APPLICATIONS

 

Total Power: 1200w

MAX Lumen Output: 156000 lm

IP Rating: IP66

 130lm/W

 50/60Hz

 10mA

Current inrush 9.4A 15.5A

Beam Angle: 60° (30°/90°/120° options)

Temp Range: 

Dimmable: 0-10V dimming

  

Average Life: 50,000 hrs**

  2.6A

 

IK Rating 

LM Rating 

LB Rating 

SDCM Rating 

EPA rating 

Dimensions: 780x618x621mm

Weight: 19.5kg

Control gear weight: 7.8kg



 34kg

 5 Years*

TECHNICAL INFORMATION

Data subject to change at any time

SAA, IP66, IK08, C-TICK

• 

• 0-270° rotational head

• 0-100mm extendable head

• Fully gasketed lens and control gear to protect against the elements

• Power consumption: 1500W

• Average life of 50,000 hours

• Low and high power options availble

• 0-10v dimming capability

• 60° beam angle (30°/ 90°/ 120° option available)

• IP66 and IK08 rated

• Five year warranty

FEATURES COMPLIANCE

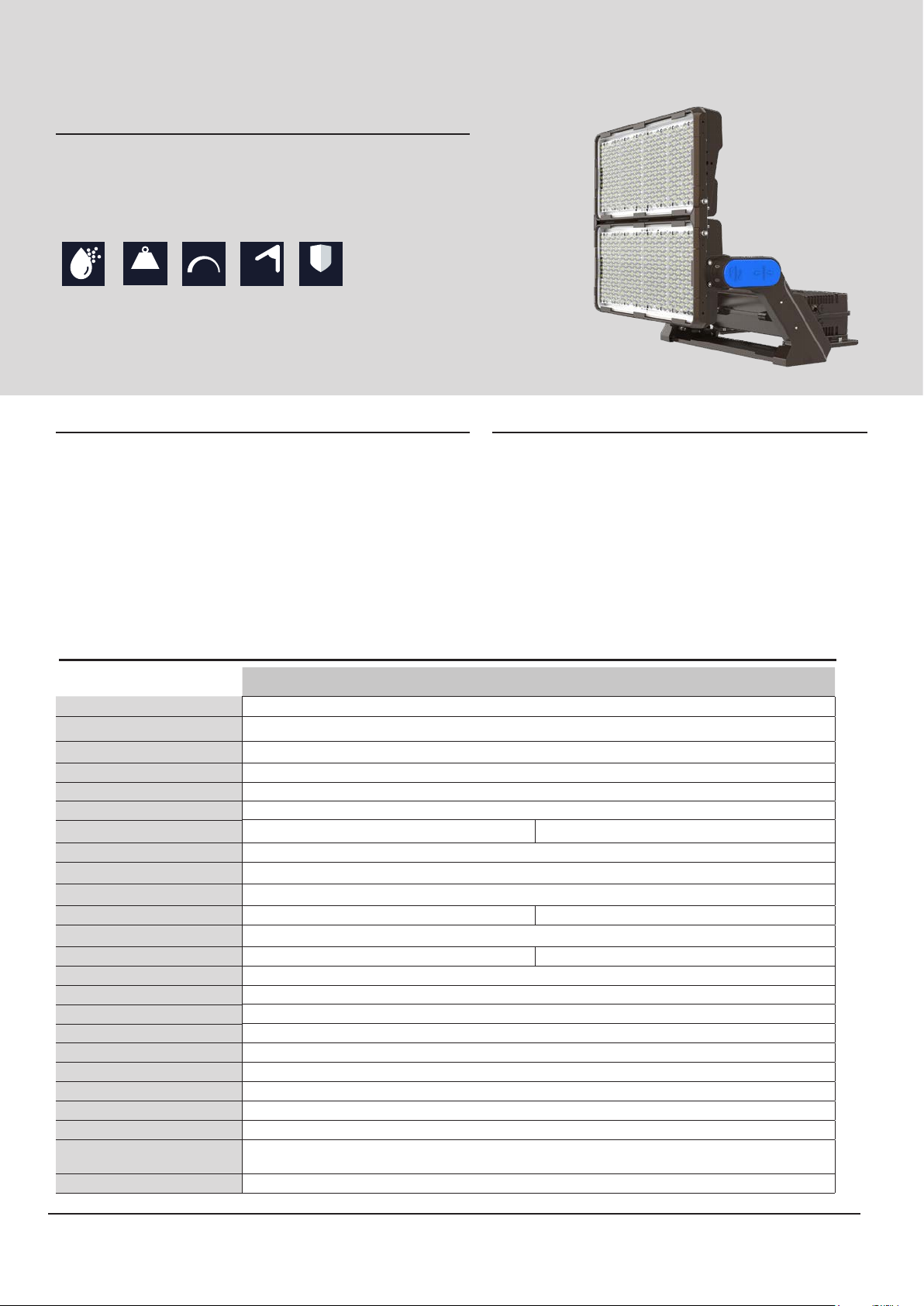

PULSE 1500W

Commercial applications:

- Large area lighting



- Wharf/harbors

- Airports

APPLICATIONS

DIMMABLE WARRANTYBEAMIK8IP66

YEAR

 

Total Power: 1500w

MAX Lumen Output: 195000 lm

IP Rating: IP66

 130lm/W

 50/60Hz

 10mA

Current inrush 8.4A 41.4A

Beam Angle: 60° (30°/90°/120° options)

Temp Range: 

Dimmable: 0-10V dimming

  

Average Life: 50,000 hrs**

  3.3A

 

IK Rating 

LM Rating 

LB Rating 

SDCM Rating 

Dimensions: 964x571x280mm

Weight: 27kg

Control gear weight: 11.8kg



 41kg

 5 Years*

TECHNICAL INFORMATION

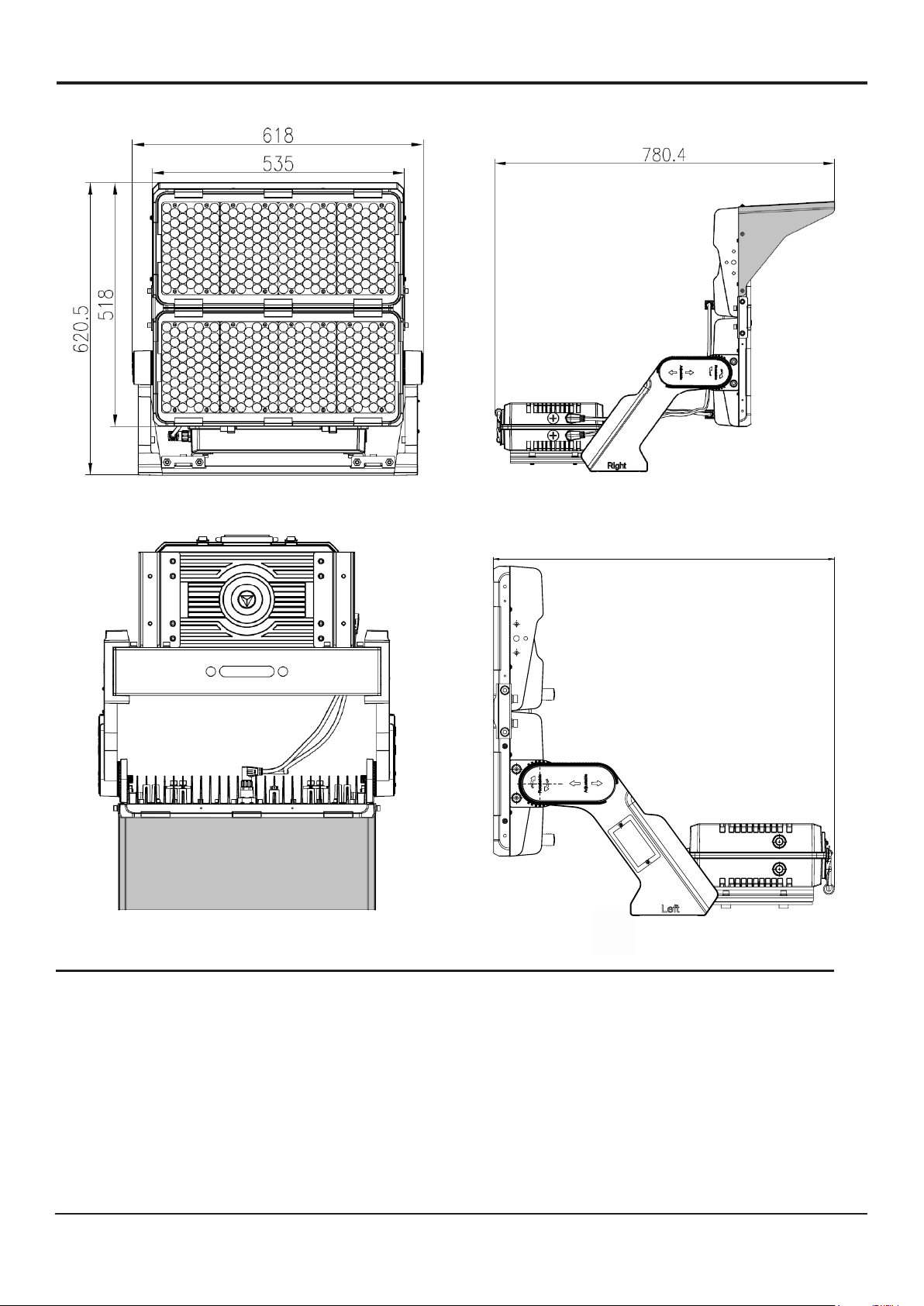

PRODUCT DIMENSIONS

591.68

A A

B B

C C

D D

E E

F F

DRAWN

CHK'D

APPV'D

MFG

Q.A

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN MILLIMETERS

SURFACE FINISH:

TOLERANCES:

LINEAR:

ANGULAR:

FINISH:

DEBURR AND

BREAK SHARP

EDGES

NAME

SIGNATURE

DATE

MATERIAL:

DO NOT SCALE DRAWING

REVISION

TITLE:

DWG NO.

SCALE:1:10

SHEET 1 OF 1

WEIGHT:

001

M-ELEC PTY. LTD.

PROPRIETARY AND CONFIDENTIAL

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPRIETARY OF

M-ELEC PTY. LTD. ANY REPRODUCTION

IN PART AS A WHOLE WITHOUT THE

WRITTEN PERMISSION OF

M-ELEC PTY. LTD. IS PROHIBITED

591.68



FRONT VIEW

BOTTOM VIEW



SIDE VIEW

PLEASE NOTE

Data subject to change at any time

• Read instructions carefully before attempting to install the fitting. Retain this guide for future reference

• Disconnect power before installing or servicing

• This fitting is for outdoor use and should not be used in areas with limited ventilation or high ambient temperatures

• Do not extend low voltage cables from the output of power supply

• All components must not be mechanically stressed

under warranty

• Damage by corrosion will not be honoured as a material defect claim. It is the user’s responsibility to provide suitable protection against

corrosive agents such as moisture, condensation and other harmful elements
