Logitech ZONE VIBE WIRELESS User manual

ZONE VIBE WIRELESS

Setup Guide

CONTENTS

English . . . . . . . . . . . . . . . . . 3

繁體中文 . . . . . . . . . . . . . . . . 11

한국어 . . . . . . . . . . . . . . . . . 19

Indonesia . . . . . . . . . . . . . . .27

KNOW YOUR PRODUCT

Front view:

Back view:

Microphone boom

Music control button

(play/ pause/

nexttrack)

Volume up / down

Teams/ Call button

3English

Bottom view:

3-position switch (power /

Bluetooth®pairing) USB-C port

LED light

Mute button

4English

USB-C USB-C

BOX CONTENT

1. Zone Vibe Wireless

2. Charging cable

3. Travel bag

4. User documentation

POWER ON / OFF

1. Slide the switch in the arrow’s direction to

the middle to power on the headphones.

2. Once powered on, the LED light will slightly

turn white.

3. There will be a voice prompt that tells you

the battery status.

5English

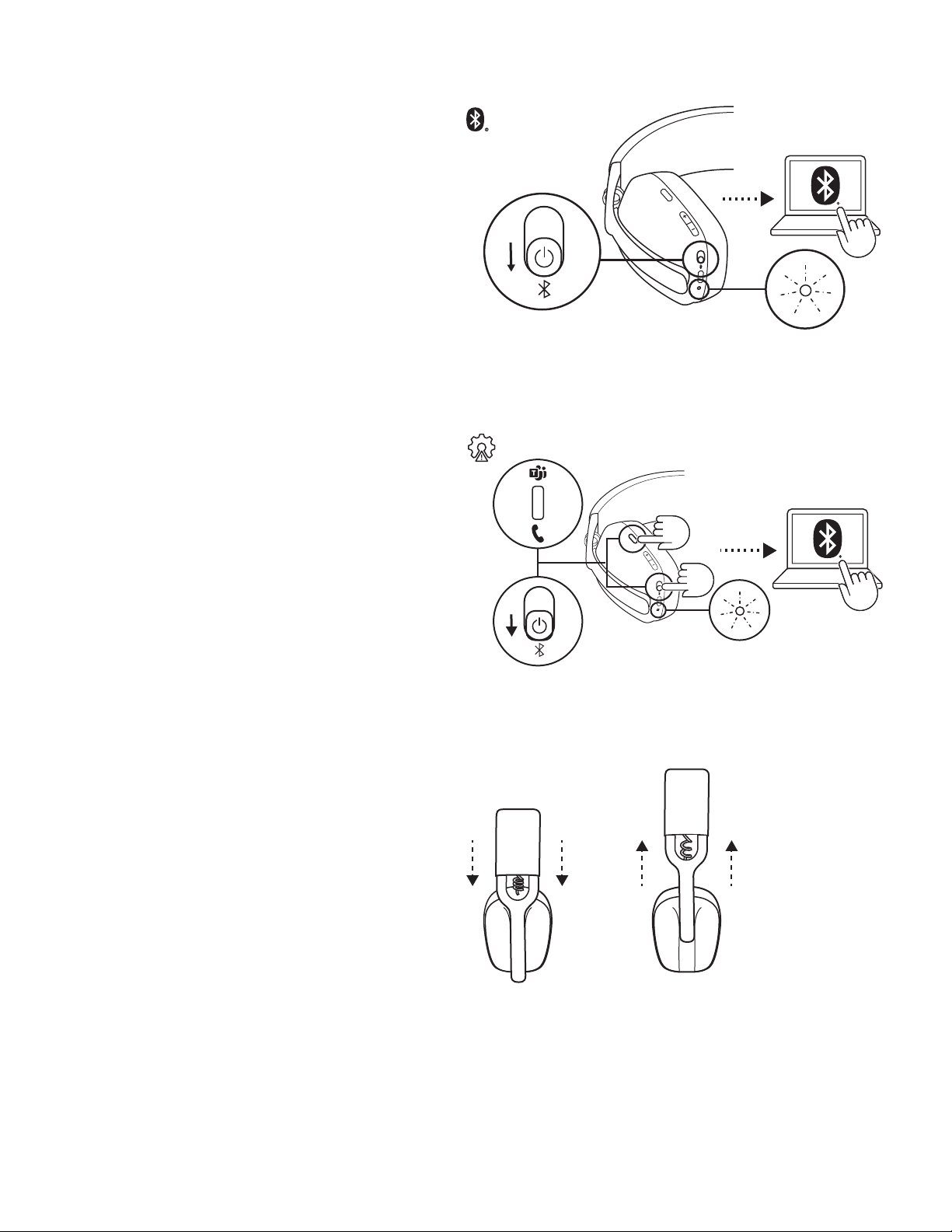

CONNECT YOUR HEADPHONES

a. Connect via BLUETOOTH®

1. Slide the switch to the bottom in the arrow’s

direction for 2 seconds to initiate pairing.

2. The LED light will ash white rapidly.

3. Open Bluetooth®settings on your device.

4. Select Logi Zone Vibe Wireless in

discoverable devices.

5. Once successfully paired, the LED light will

turn solid white.

TROUBLESHOOTING:

1. If you encounter audio issues aer connecting

your headphones to your device, please slide

the switch in the Bluetooth®direction and

press the call bottom at the same time for

2 seconds.

2. Repeat the steps from 2-5 in the previous step.

3. If you have further connecting issues, please

reach out to www.logitech.com/prosupport/

zone-vibe-wireless

LOGI Zone Vibe

Wireless

LOGI Zone Vibe

Wireless

2 sec.

ADJUSTING HEADPHONES

1. Adjust the headphones by sliding

earcups up and down the extended

part of the headband.

2. It may be easier to adjust the

headphones on your head. Slide the

earcups up and down the headband

until they sit comfortably on your ears.

6English

HEADPHONES CONTROLS

Note:

- Teams activities are only functional when Teams is running on an unlocked PC or Mac.

- Media control functionality depends on the type of application.

- Call activities are always the rst priority. When two Bluetooth®devices are connected, the last active device will

override the other.

Tip: Music EQ controls available on Logi Tune.

MSFT Teams:

Usage Button Action

Call controls

Answer / End call

Call button

Short press

Reject call 1.5 sec. press

Resume call

Short press

Transfer active call to other device

Team activities Invoke Teams Call button Short press

Music controls

Play / Pause

Music control button

Short press

Track forward Double press

Volume

Volume up "+"

Short press

Volume down "-"

Connectivity Bluetooth®pairing Power button 2 sec. press

Voice notications indicate

when the microphone is on /

o mute.

MUTE

There are 2 ways to mute your microphone.

Press the button to mute. Flip up or down the mic

boom to mute or unmute.

L L L

Mute

"Mute on"

"Mute o"

7English

HEADPHONES LIGHT INDICATOR

Note:

- User-triggered behaviors, such as Bluetooth®pairing, will be prioritized then revert back to its previous status once

thebehavior is completed.

Category Status Light

White

Power

Power ON Turn solid white and then dim

Battery charging Breathing

Battery fully charged Solid and then o

Connectivity

Bluetooth®pairing Fast blinking

Bluetooth®Turn solid white and then dim

Calls

Active call Solid

Incoming call Slow blinking

Red

Calls Mute Solid

Power Low battery (< 10%) Slow blinking

Factory reset Fast blink from red to white for

three times then LED turn o

CHARGING

To conserve battery life, headphones

automatically power o aer 30 minutes

without usage.

Sleep timer can be adjusted in Logi Tune.

The headphones LED light will turn RED slow

blinking when the battery is lower than 10%.

Charging via USB cable

1. Plug one end of the cable to theUSB-C port

on the bottom of the earcup and the other

end into the USB-C charging port on

yourcomputer.

2. The LED light will start breathing white when

charging.

3. The LED light will turn solid white when

fullycharged.

– 2 hours will fully charge the battery.

– 5 minutes will give you 1 hour of playback.

Note:

Battery life may vary based on user, environment,

andcomputing conditions.

4. You can use the headphones while charging.

8English

LOGI TUNE

Logi Tune helps boost your headphones

performance withperiodic soware

andrmwareupdates.

It is recommended to update yourheadphones

to the latest version. To do so, download and view

soware compatibility from logi.com/tune.

www.logitech.com/tune

Logi Tune

ADJUSTING SIDETONE

Sidetone lets you hear your own voice during

conversations so you are aware of how loud

you are talking.

In Logi Tune, select the sidetone feature, and

slide the adjustment bar accordingly.

 A higher number means you hear more

external sound.

 A lower number means you hear less

external sound.

AUTO SLEEP TIMER

By default, your headphones will

automatically power o when not in use for

30 minutes. Adjust the sleep timer in Logi

Tune. To wake up your headphones, try sliding

o/on the power button again.

RESET YOUR HEADPHONES

1. Power the headphones on.

2. Press and hold the call button and volume ’–’ button for

5seconds.

3. The LED light will quickly blink from red to white for

3timesand then turns o when your headphones are

successfully reset.

4. The headphones will turn o aer reset.

9English

Headphones:

Height x Width x Depth: 183.03 x 169.68 x 73 mm

Weight: 0.185 Kg

Earpads:

Height x Width x Depth: 98.6 x 75.44 x 19.3 mm

DIMENSIONS

Works with common calling applications across almost all platforms and operating

systems via Bluetooth®and iOS or Android Bluetooth®enabled devices.

SYSTEM REQUIREMENTS

TECHNICAL SPECIFICATIONS

www.logitech.com/prosupport/zone-vibe-wireless

Microphone Type: Dual omni-directional MEMS mics with directional

beamforming and DSP

Frequency response (Speaker): 20-20kHz (music mode), 100-8kHz (talk mode)

Frequency response (Microphone): 100-8kHz

Talk time up to 18 hrs *

Listen time up to 20 hrs *

Bluetooth®version (headphones): 5.2

Wireless range: Up to 30 m / 100  (open eld line of sight)

Cable length (USB C to A charging cable): 4.9  (1.5 m)

* Battery life was measured from fully charged to automatic shut-o, utilizing50% volume

forbothtalk time and listening time.

trademarks of Logitech Europe S.A. or its aliates in the U.S. and/or other countries. Apple,

theApple logo, Mac and iOS are trademarks of Apple Inc. App Store is a service mark of Apple

Inc. Android, Chrome, Google Play and the Google Play logo are trademarks of Google LLC.

TheBluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and

any use of such marks by Logitech is under license. Microso Teams and Windows are trademarks

of the Microso Corporation. USB-C is a trademark of USB Implementers Forum. All other third

party trademarks are the property of their respective owners. Logitech assumes no responsibility

for any errors that may appear in this manual. Information contained herein is subject to change

without notice.
