Logitech G633 Artemis Spectrum User manual
Logitech® G633
Artemis Spectrum
RGB 7.1 Surround
Gaming Headset
Casque pour le jeu
RVB avec son surround7.1
User Manual
Manuel
de l’utilisateur
Logitech® G633 Artemis Spectrum
2
Contents
English. . . . . . . . . . . . . . . . . . 3
Français . . . . . . . . . . . . . . . . 14
Español . . . . . . . . . . . . . . . . 25
Português . . . . . . . . . . . . . . 36
www.logitech.com/support/g633
Logitech® G633 Artemis Spectrum
3 English
What’s in the box
1. G633 Headset
2. Custom tags (L/R)
3. PC cable (USB to Micro-USB, 3m)
4. 3.5mm cable (1.5m)
1
2 2
3
4
Logitech® G633 Artemis Spectrum
4 English
1
8
7
9
10
11
12
13
4
5
3
2
6
Features
1. Adjustable padded sports mesh
headband
2. Removable backlit custom tags
3. Boom mic mute indicator LED
4. Retractable boom microphone
Automatically mutes in “up” position
5. Lighting zones (2)
6. Washable soft sports mesh earpads
7. PC/3.5mm mode switch
8. Pro-G Audio Drivers
9. Programmable buttons (3)
10. Microphone Mute
11. Volume Wheel
12. 3.5mm (mobile) connection
13. USB connection
Logitech® G633 Artemis Spectrum
5 English
Headset button layout
1. PC mode/3.5mm (mobile) mode switch
2. G3 (programmable):
Default equalizer (EQ) cycle
• Will cycle through EQ settings in
Logitech Gaming software, including:
Flat, MOBA, and FPS presets
3. G2 (programmable): Default Dolby
surround sound on/o
4. G1 (programmable): Lighting cycle
• Will cycle through lighting settings in
Logitech Gaming Software, including:
breathing, solid cyan, custom, and o
5. Microphone mute
6. Volume wheel
G1, G2, and G3 are programmable using
the Logitech Gaming Software
(in PC mode only):
www.logitech.support.com/g633
Note: Buttons and volume wheel only operate in
PC mode while connected to a PC with Logitech
Gaming software.
1
2
3
4
5
6
Logitech® G633 Artemis Spectrum
6 English
Inline 3.5mm audio controls
1. Mic select switch (headset boom/inline,
mobile mode only)
• Headset boom unavailable for mobile
device while in PC mode
2. Volume wheel
3. Mobile device play/pause/answer call
4. Inline microphone
5. Mobile mic mute switch
2
3
5
4
1
Logitech® G633 Artemis Spectrum
7 English
Setup for PC (PC mode)
1. Download and install Logitech
Gaming Software:
www.logitech.com/support/g633
2. Set mode switch to PC.
3. Connect the G633 to PC via USB cable.
Mixing audio sources
While in PC mode and connected via USB,
the G633 can also use the 3.5mm cable
to connect to another audio source
(ex. smartphone). Both audio sources
can be played simultaneously. Inline
controls and inline microphone can be
used to answer calls, adjust volume, etc
independently for the mobile device.
4. Answer phone calls while playing games
USB
1
2
3
4
Logitech® G633 Artemis Spectrum
8 English

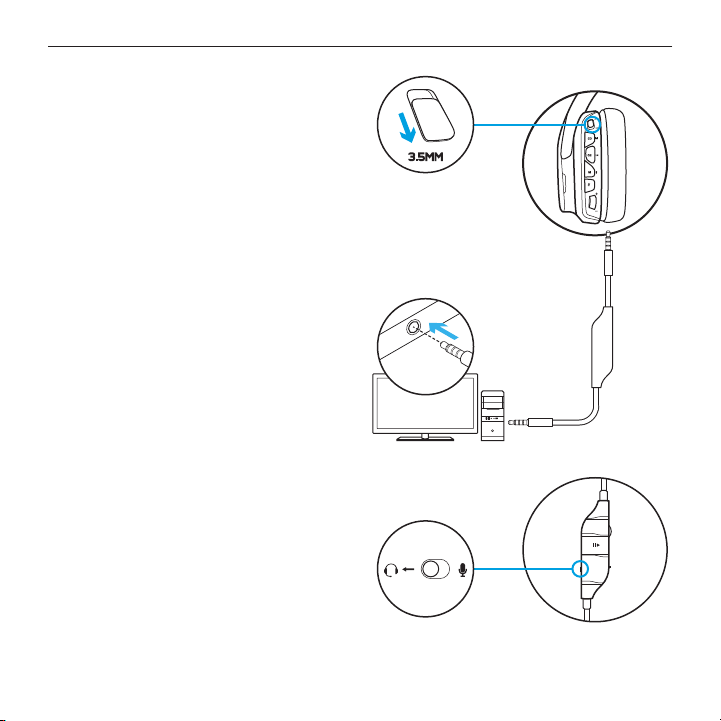

Setup for PC (3.5mm mode)
The G633 can also connect to audio
devices solely via 3.5mm cable.
1. Set mode switch to 3.5mm
2. Connect to PC using the 3.5mm cable
3. 3.5mm inline controls can be used
to adjust audio.
Mic select
• Select “microphone” position for inline
microphone
• Select headset position to use headset
boom microphone
Features that require USB power, including
7.1 surround sound, on-headset buttons,
volume wheel operation, and customization
of lighting and button functions are
not available without USB connection.
Boom mic is not available for 3.5mm device
while powered with USB.
Some PCs may require a 3.5mm 4-pole to
mic/stereo splitter adapter (not included)
to use microphone features in this mode.
3.5mm
1
3
2
Logitech® G633 Artemis Spectrum
9 English
Setup for mobile
1. Set the mode switch to 3.5mm.
2. Connect the headset to the mobile
device via the 3.5mm cable.
3. 3.5mm inline controls can be used
to adjust audio.
Mic select
• Select “microphone” position for inline
microphone
• Select headset position to use headset
boom microphone
Features that require USB power, including
7.1 surround sound, on-headset buttons,
volume wheel operation, and customization
of lighting and button functions are
not available without USB connection.
Boom mic is not available for 3.5mm device
while powered with USB.
3.5mm
1
2
3
Logitech® G633 Artemis Spectrum
10 English
Setup for console: Xbox One™
or PS4™
1. Set switch to 3.5mm mode.
2. Connect the headset to the console
controller using the 3.5mm cable.
• Xbox One may require Xbox One
headset adapter (sold separately).
PlayStation setup (settings)
1. Connect headset to console
2. Open Settings
3. Select “Sound and Screen”
4. Select “Audio Output Settings”
5. Set “Output to Headphones”
to “All Audio”
Headset will not operate via USB cable
on Xbox One.
Inline and boom microphones are both
available in analog (3.5mm) operation mode.
3.5mm
1
2
