Lightolier Round Calculite User manual

IS7790

RETAINER RING R0692

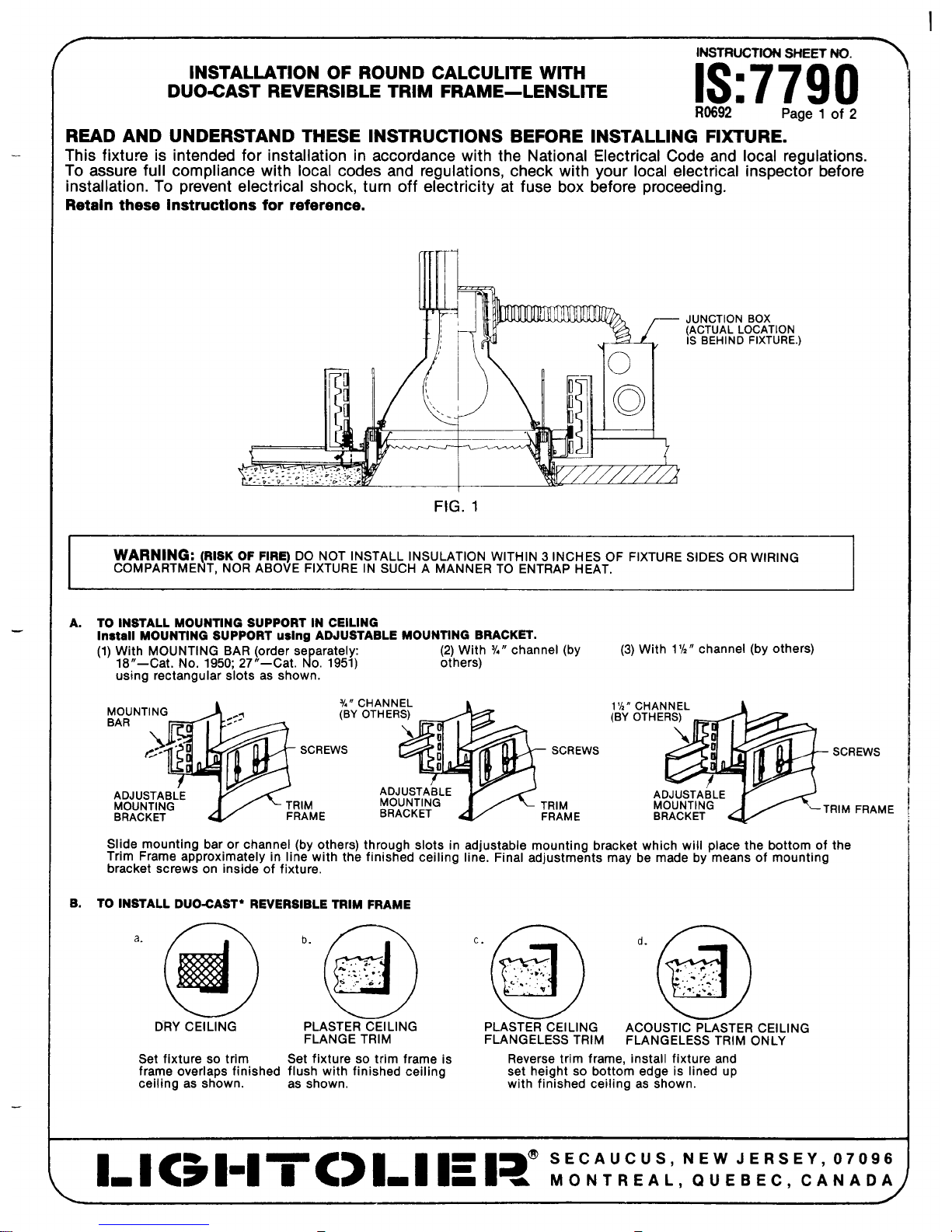

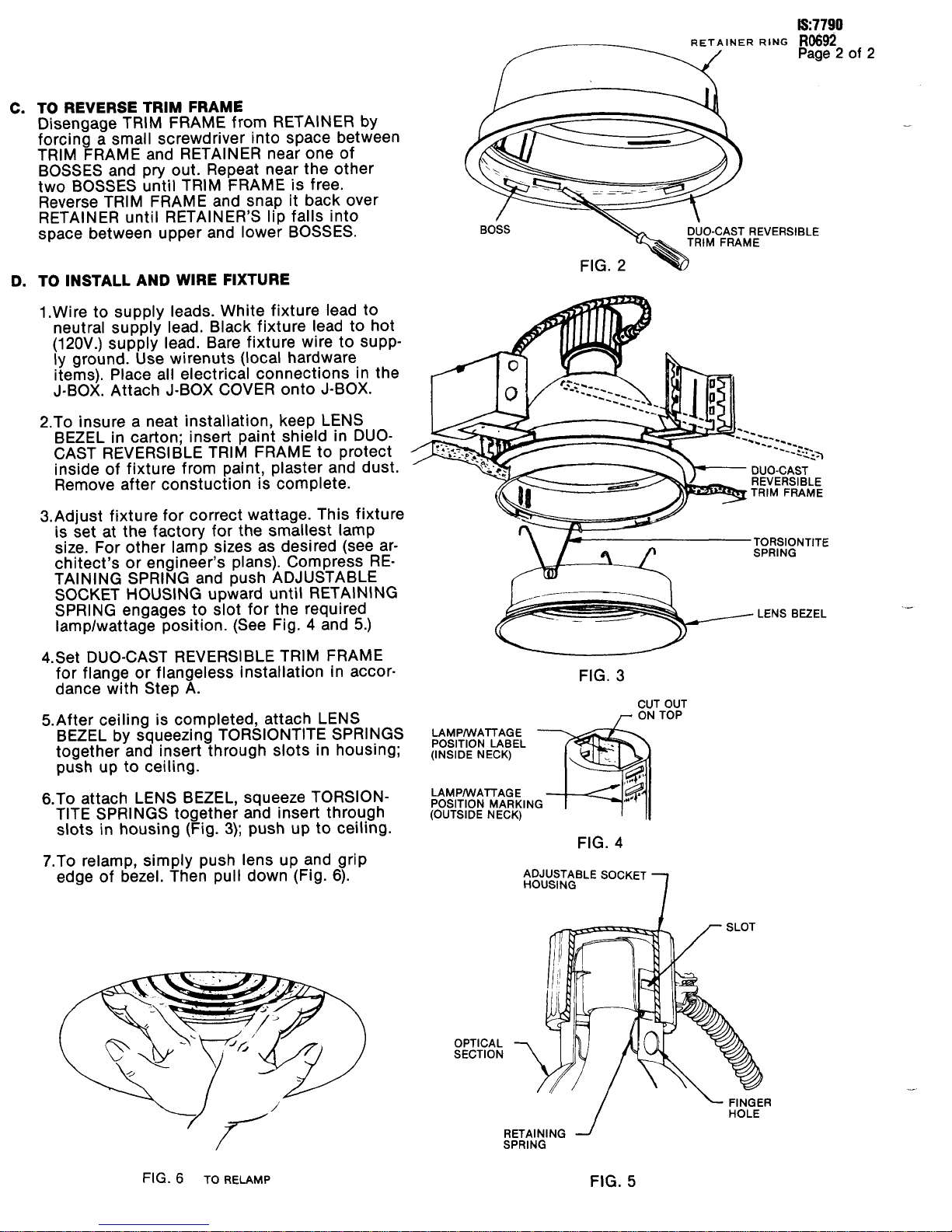

Page 2of 2

TO REVERSE TRIM FRAME

Disenaaae TRIM FRAME from RETAINER by

forcin~ ~small screwdriver into space between

TRIM FRAME and RETAINER near one of

BOSSES and pry out. Repeat near the other

two BOSSES until TRIM FRAME is free.

Reverse TRIM FRAME and snap it back over

RETAINER until RETAINER’S lip falls into

space between upper and lower BOSSES.

TO INSTALL AND WIRE FIXTURE

1.Wire to supply leads. White fixture lead to

neutral supply lead. Black fixture lead to hot

(120V.) supply lead. Bare fixture wire to supp-

ly ground. Use wirenuts (local hardware

items). Place all electrical connections in the

J-BOX. Attach J-BOX COVER onto J-BOX.

2.To insure aneat installation, keep LENS

BEZEL in carton; insert paint shield in DUO-

CAST REVERSIBLE TRIM FRAME to protect

inside of fixture from paint, plaster and dust.

Remove after construction is complete.

3. Adjust fixture for correct wattage. This fixture

is set at the factory for the smallest lamp

size. For other lamp sizes as desired (see ar-

chitect’s or engineer’s plans). Compress RE-

TAINING SPRING and push ADJUSTABLE

SOCKET HOUSING upward until RETAINING

SPRING engages to slot for the required

lamp/wattage position. (See Fig. 4 and 5.)

4.Set DUO-CAST REVERSIBLE TRIM FRAME

for flange or flangeless installation in accor-

dance with Step A.

5.After ceiling is completed, attach LENS

BEZEL by squeezing TORSIONTITE SPRINGS

together and insert through slots in housing;

push up to ceiling.

6.To attach LENS BEZEL, squeeze TORSION-

TITE SPRINGS together and insert through

slots in housing (Fig. 3); push up to ceiling.

7.To relamp, simply push lens up and grip

edge of bezel. Then pull down (Fig. 6).

VERSIBLE

DUO-CAST-

REVERSIBLE

TRIM FRAME

LENS BEZEL .-

FIG. 3

;:TT;;T

LAMPIWATTAGE

POSITION LABEL

(INSIDE NECK) .

LAMP/WAITAG E

POSITION MARKING $

(OUTSIDE NECK)

FIG. 4

OPTICAL

SECTION

J&FINGER

HOLE

RETAINING

SPRING

FIG. 6TO RELAMP FIG. 5
