Features

• Efficiency 53.1%.

• Dual swing down microperforated lamp shields separated by

luminous strip for easy relamping and maintenance.

• Alter soft white film on inside of mesh conceals lamp image

providing balance between reflected and direct light.

• Fully recessed luminaire.

• 95% Reflective Alter soft white paint finish.

• Specular interior reflector.

• One piece body for easy installation.

• Exclusive socket locks lamp into place.

• Easy access to ballast through lamp compartment.

• Fits standard T-Grid ceilings.

• Optional acrylic drop-down visual element.

ALTER SOFT LIGHTS QVS2GPFOS1FT

Page 1 of 2 2'x2' RECESSED DIRECT/INDIRECT FLUORESCENT

1 LAMP, TT5 BI-TUBE, 5 1/2’’ DEEP

MICROPERFORATED MESH LAMP SHIELD, STATIC

Microperforated mesh

lamp shields

Also available with solid opaque swing-

down lamp shield

Ceiling compatibility

Swing down optical system for

easy relamping and maintenance

Suited to standard exposed

T-grid ceilings

Suited to standard exposed

Slot T-grid ceilings

ALTER SOFT LIGHTS QVS2GPFOS1FT

Page 2 of 2 2'x2' RECESSED DIRECT/INDIRECT FLUORESCENT

1 LAMP, TT5 BI-TUBE, 5 1/2’’ DEEP

MICROPERFORATED MESH LAMP SHIELD, STATIC

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L10-35

Job Information Type:

Specifications

MATERIALS: One piece chassis constructed from die formed 20 gauge cold rolled

steel. Reflectors - 95% reflectance baked white acrylic matte paint finish.

Specular interior reflector. Soft white acrylic film on inside of lamp shield conceals

lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast (Bi-tube type).

If K.Os are within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by

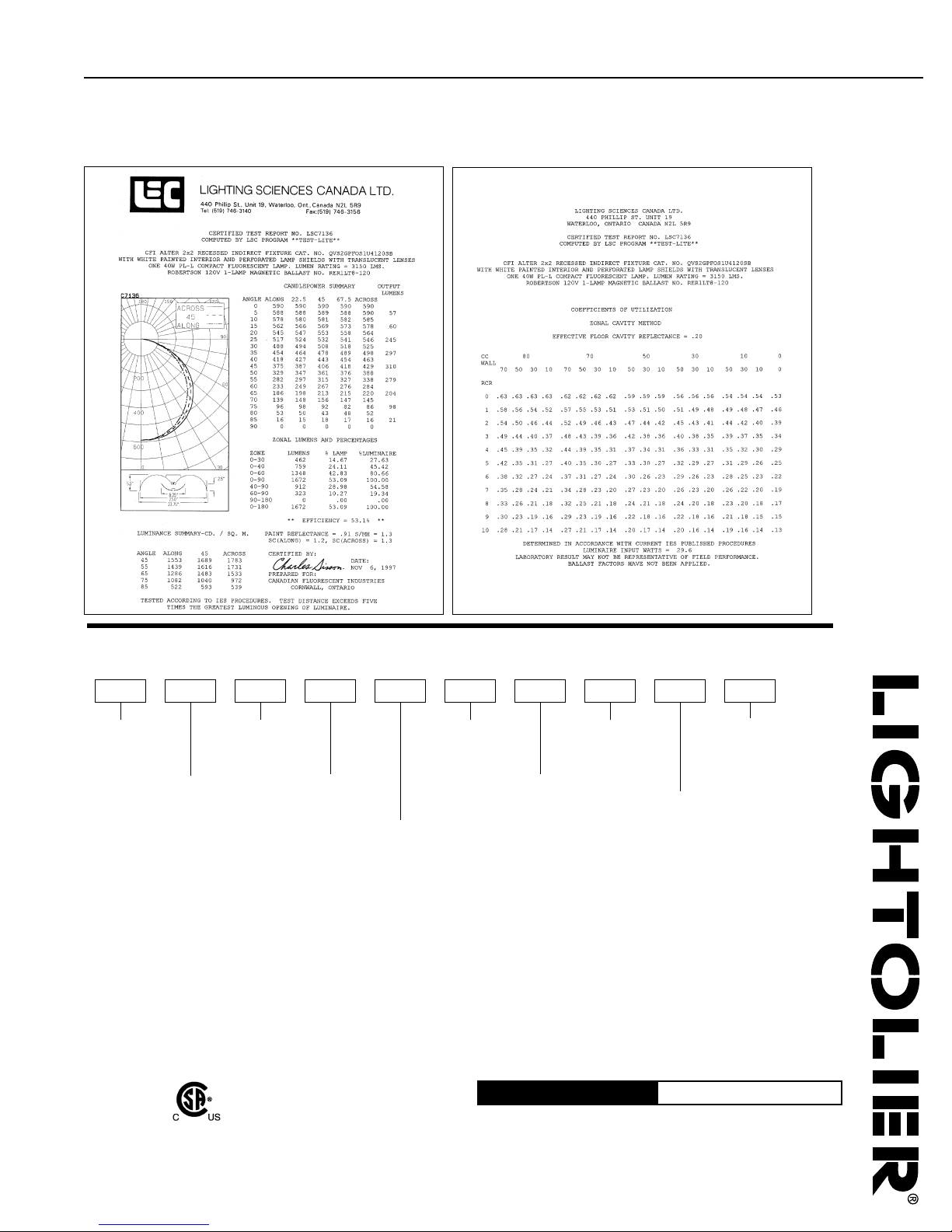

Photometry

Ordering Information

Explanation of Catalog Number. Example: QVS2GPFOS1FT120SB

QUALITY

VISUAL

STATIC

Recessed direct

indirect soft light

optical system FIXTURE

WIDTH:

2’

CEILING TYPE:

Standard exposed

T-grid ceilings

LAMP SHIELD:

PF = Microperforated

SD = Solid

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH:

(NOMINAL 24”)

FT = TT5

BI-Tube

VOLTAGE:

120V

277V

347V

QVS 2 G 1 FT

BALLAST:

BE = 50W Electronic TT5 RS

BR = 40W Electronic TT5 RS

BX = 40W Magnetic TT5 RS

PB = 40W TT5 PowerSpec Dimming*

PC = 50/55W TT5 PowerSpec Dimming*

SB = 40W Generic Electronic TT5

*Not available in 347V.

OPTIONS:

R = Radio Interference Filter

O = Emergency Lighting System

(for Canada)

N = Emergency Lighting System

(for U.S.)

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL

ELEMENT:

OS = Open slot (no acrylic)

OP = One Piece (no center slot)

GC = Clear acrylic

GG = Clear acrylic / Green projected color face

GB = Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face
