ProSpec®120V/277V Track Lighting 37254

Page 1 of 2 PowerWash™ T5 4 Foot Track Mounted 54 Watt High Output Fluorescent

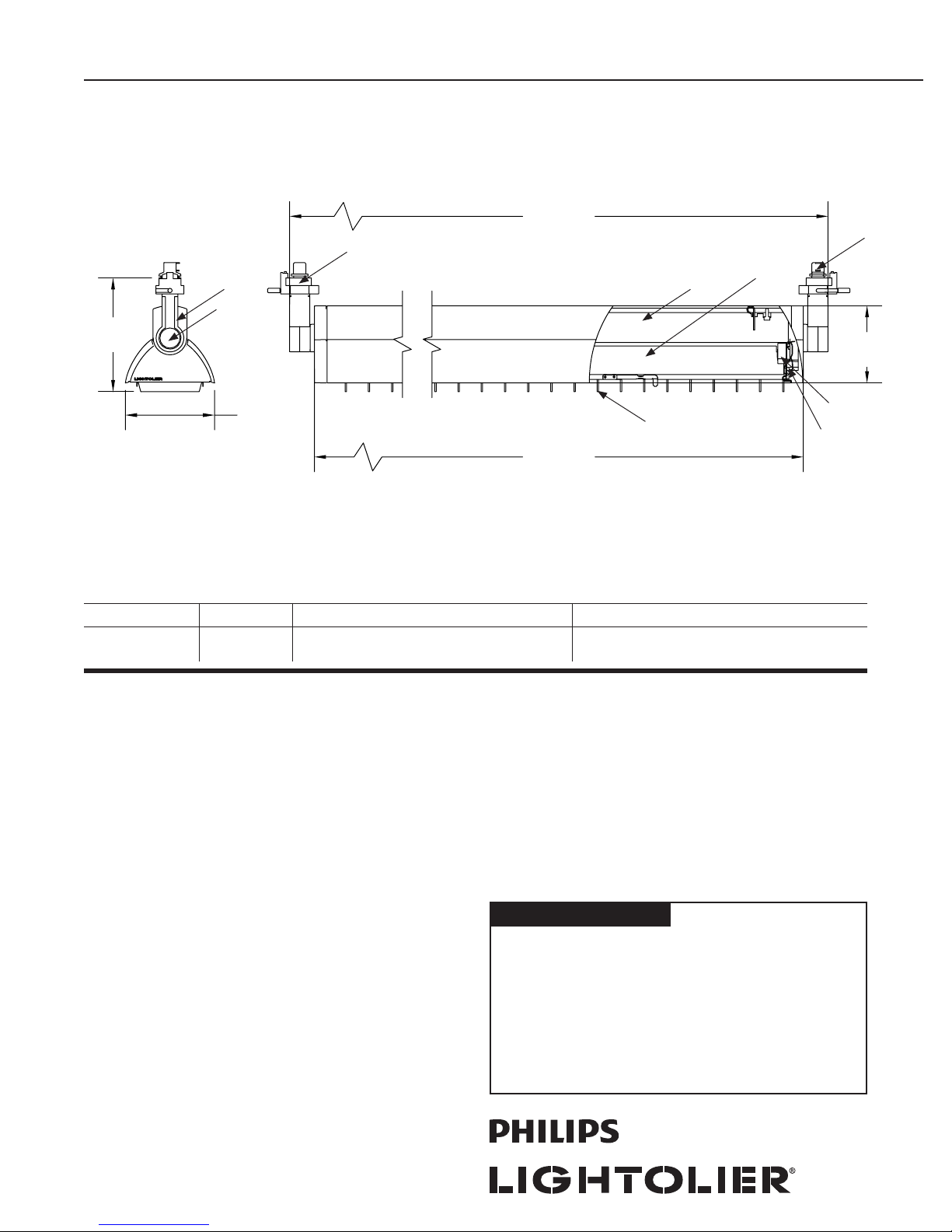

3 25/32 in

[96 mm]

47 7/16 in

[1205 mm]

49 9/16 in

[1259 mm]

3 9/32 in

[83 mm]

4 13/16 in

[123 mm]

Features

1. Ballast & Reflector Housing: Aluminum with die-cast endcaps.

2. Ballast: 54w electronic.

3. Flood Reflector: Aluminum, with highly reflective and semispecular finish

for a smooth wash of light.

4. Louver: Aluminum, for glare control, with captive locking springs for easy

installation and removal.

5. Vertical Pivot: Die cast rotation housing with positive rotation stop

provides 0° (NADIR) –130° vertical rotation in both directions.

6. Sockets: 600v rated mini bi-pin sockets with 90° rotor lock to engage

contacts and retain with a positive detent.

7. Socket Bracket: Adjustable steel, mounting bracket slides out for easy

lamping.

8. Attachment Fitting: Molded polycarbonate; pin rotates fitting into track

to engage luminaire

9. Track Adapter Arm: Die-cast aluminum with integral polarity keyguard.

Electrical

Class P T5HO Universal Voltage Electronic Ballast

Input Voltage: 120V/277V Sound Rated: A

Power Factor: >97% Minimum Start Temp: 0°F

Input Power: 121W/118W Do Not Use On Dimming Circuit

Max Input Current: 1.0A @ 120V/0.43A @ 277V

Finish

All painted finishes are baked enamel.

Labels

UL, c.U.L.

Catalog No. Finish Mounting Lamp

37254WH

37254BK

Matte White

Matte Black

ProSpec® 120V/277V track systems only.

Not compatible with MonoPoint.

2x 54W T5 High Output (Fluorescent)

Advent®is a registered trademark of Lightolier.

Job Information Type:Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

ProSpec®120V/277V Track Lighting 37254

Page 2 of 2 PowerWash™ T5 4 Foot Track Mounted 54 Watt High Output Fluorescent

0’ 1’ 2’ 3’ 4’ 5’

Lighting Data 2-54W T5 High Output

1’ 198 176 118 60 28 14

2’ 158 142 90 52 24 10

3’ 103 94 69 41 22 10

4’ 68 63 49 33 20 12

5’ 40 38 30 22 14 8

6’ 26 25 21 16 12 8

7’ 17 16 14 11 8 6

8’ 11 11 10 8 6 5

9’ 8 8 7 6 5 4

263 258 263

209 206 209

149 148 149

116 116 116

71 71 71

56 56 56

38 38 38

27 27 27

22 22 22

218 127 218

168 106 168

112 84 112

87 74 87

49 44 49

41 38 41

27 26 27

19 18 19

16 15 16

Footcandles on Wall

Track 3 Feet From Wall Single Unit Multiple Units

4’ 6’

3’

Distance From Ceiling

45˚

EXAMPLE: With track located 4’ from wall and multiple units spaced

6’ on center and aimed 45˚ from horizontal, the illumination on wall 4’

from ceiling will be 79 f.c. beneath units and 70 f.c. between units.

1’ 113 101 71 39 17 6

2’ 114 104 77 47 25 12

3’ 87 80 62 40 24 13

4’ 63 59 47 34 22 13

5’ 46 44 36 27 19 13

6’ 31 30 25 20 14 10

7’ 22 21 18 15 11 8

8’ 16 15 13 11 9 7

9’ 11 11 10 8 7 6

145 143 145

164 163 164

136 135 136

112 112 112

93 93 93

66 66 66

50 50 50

41 42 42

31 32 32

123 106 123

136 123 136

110 103 110

91 88 91

77 75 77

54 53 54

41 40 41

35 34 35

26 26 26

114 76 114

123 92 123

97 79 97

79 70 79

66 62 66

46 43 46

35 34 35

30 29 30

23 22 23

Track 4 Feet From Wall Single Unit Multiple Units

4’ 5’ 6’

4’

Distance From Ceiling

45˚

Footcandles are average and rounded off and data for multiple units are based on a minimum of five units.

Footcandles on wall:

Beam Center

231 184 231

180 150 180

124 112 124

97 92 97

57 55 57

47 46 47

31 31 31

22 22 22

18 18 18

5’

0’ 1’ 2’ 3’ 4’ 5’

1’ 81 75 59 40 25 15

2’ 83 77 61 42 27 16

3’ 75 70 57 41 28 18

4’ 55 52 43 32 23 15

5’ 42 40 34 27 19 14

6’ 33 31 27 22 17 12

7’ 25 24 21 17 14 11

8’ 18 17 15 13 10 8

9’ 13 13 12 10 9 7

140 139 140

147 147 147

143 143 143

109 109 109

89 89 89

76 76 76

62 62 62

46 46 46

39 39 39

115 109 115

121 116 121

118 115 118

89 87 89

73 71 73

62 61 62

51 50 51

37 37 38

32 32 32

102 86 102

107 93 107

104 94 104

76 71 76

62 59 62

53 51 53

44 42 44

32 31 32

27 27 27

Track 5 Feet From Wall Single Unit Multiple Units

4’ 5’ 6’

5’

Distance From Ceiling

45˚

Beam Center

Lamp Information:

2 X 54W T5 High Output

Mini Bi-Pin Fluorescent (9476)

1 x 54W T5 High Output

Mini Bi Pin Fluorescent (9477)

One Lamp, with louver,

aimed 45˚ down.

Two Lamps, without louver,

aimed 45˚ up.

Two Lamps, with louver,

aimed 45˚ down.

one lamp aimed

45degrees down

0˚ 30˚

90˚

60˚

180˚ 150˚

120˚

90˚

0˚ 30˚

90˚

60˚
