Lytespan Track Lighting LCAWTSX

Page 1 of 2 ColorSpot Color Changing RGGB DMX LED

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier is a Philips group brand

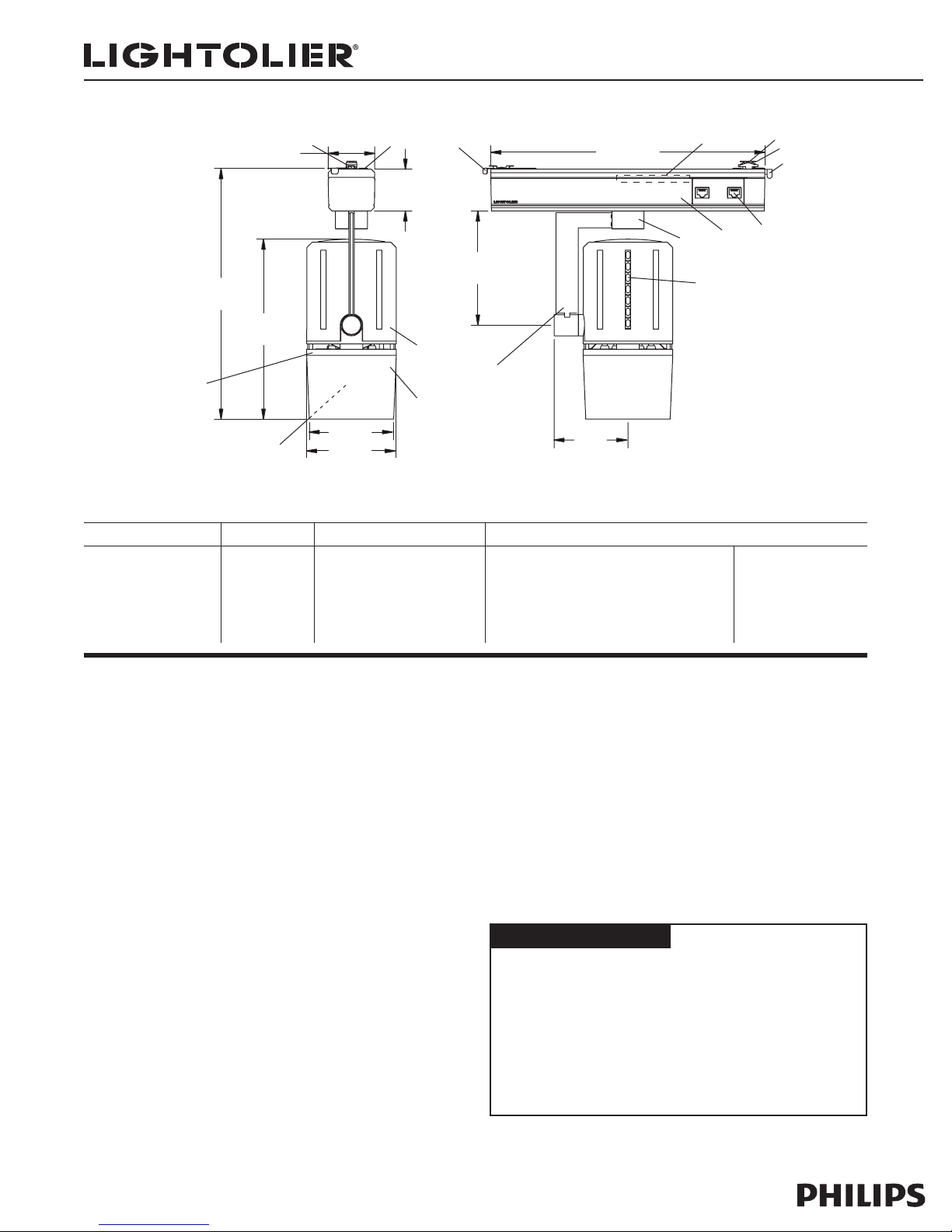

3-1/2"

(87.5mm)

5-3/8"

(135.4mm)

12-3/4"

(325.2mm)

(49.5mm)

2-1/8"

(55.0mm)

(100.1mm)

4-1/4"

(176.4mm)

8-3/8"

(213.5mm)

11-3/4"

(297.2mm)

17 2

9, 10

12-3/4"

(325.2mm)

3-1/2"

(87.5mm)

5-3/8"

(135.4mm)

(49.5mm)

2-1/8"

(55.0mm)

11-3/4"

(297.2mm)

8-3/8"

(213.5mm)

(100.1mm

4-1/4"

(176.4mm)

Features

1. Lytespan Attachment Fitting: Molded polycarbonate, rotates into track for

mechanical/electrical connection. Integral color.

2. Moveable Contact: Solid brass. Extends for connection to 2nd circuit in

Advent track.

3. Ground Contact: Solid brass

4. Polarity Keyway

5. Push Lever: Die-casted. Engages unit to track.

6. Locking Lever: 24 gague Spring steel. Locks and supports module to track.

7. Data Connectors: RJ45 connectors. Data input and data output for

connection of luminaire into a DMX network.

8. Thermal Management System: keeps the LED at the appropriate

temperature.

9. PSU Housing/Cover: Die-cast aluminum.

10.Power Supply Unit: High power factor solid state unit. Thermally protected,

Class 2.

11. Pivot Mounting: Die-cast aluminum. Permanently tensioned. 300° horizontal

rotation and 180° vertical adjustment.

12.Arm Housing/Cover: Die-cast aluminum. Hide leads.

13.LED Housing: Aluminum enclosure with slots and a perforated back for

ventilation to maintain appropriate temperature to LED system.

1 4 . O p t i c s : 6 clusters of 4 RGGB LEDs with built-in optics designed for maximum

optical intensity and mix of colors. Optics produce white and color light with

a 20° beam.

15.Mounting Belt: Die-cast aluminum. 4 slots for ventilation and mounting

of spot components.

16.Accessory Cartridge: Die-cast aluminum. Captive; retaining ring included,

to hold multiple louvers.

17. MIB Card (Master Interface Board): Translates signals from DMX,

4 Button to internal protocol.

Dimming

Not compatible w/dimmers.

Finish

All painted finishes are baked powder or enamel.

Labels

cULus, Certified for dry locations only.

Catalog No. Finish Specifications Mounting

LCAWTSXWH

LCAWTSXBK

LCAWTSXAL

White

Black

Aluminum

120V - 60Hz Monopoint/Multipoint

Basic, Radius, Advent Track Ceiling

Stem Mounted Track

Extension Wands/Slope Ceiling Adapter

Recessed Track

ProSpec Track

Yes

Lytespan Track Lighting LCAWTSX

Page 2 of 2 ColorSpot Color Changing RGGB DMX LED

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lightolier is a Philips group brand

Features

• RGGB Array – 24 high brightness LEDs

• Can be set to match any other white source (CFL, HID, etc.)

• Color sensor/feedback system continuously

monitors color and adjusts LED channels to

maintain color/CCT with no shift over life

• Light intensity sensor adjusts voltage to LEDs to

maintain the selected light output for life.

• Self-contained, intelligence complete with power supply/

control electronics, simplifies network design

• Internal mixing optics provide smooth even beam

of light and minimize the RGB dot effect

• No multiple shadows or color fringing

• Thermally optimized heat sink for consistent

output and long life (50K hrs @ 100%)

• Available in either 4-Button control model

with presets or DMX control model.

Catalog Number Controls Finish Wattage Voltage

LCAWTSXWH DMX (RJ45)

Matte White

34W to 64W 120V

LCAWTSBWH 4-Button

LCAWTSXBK DMX (RJ45)

Matte Black

LCAWTSBBK 4-Button

LCAWTSXAL DMX (RJ45) Matte

Aluminum

LCAWTSBAL 4-Button

6' 166 2.2' 2.2'

8' 94 3.0' 3.0'

10' 60 3.7' 3.7'

12' 42 4.4' 4.4'

6' 3.5' 108 3.0' 2.6'

8' 4.6' 61 4.0' 3.4'

10' 5.8' 39 5.0' 4.3'

12' 6.9' 27 6.0' 5.1'

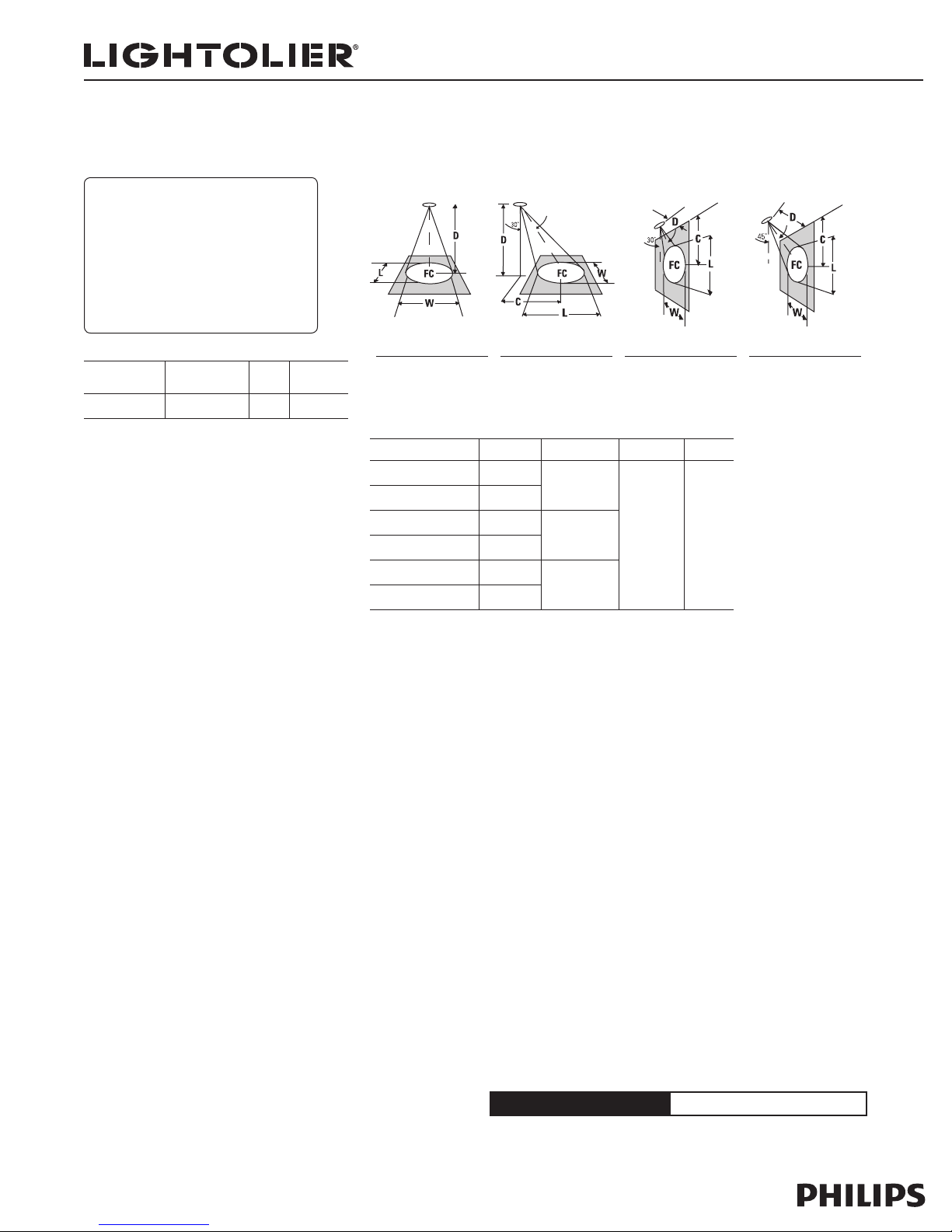

0° 30° Horizontal 30° Vertical 45° Vertical

D FC L W D C FC L W

Aiming Angle:

2' 3.5' 187 3.3' 1.8'

3' 5.2' 83 5.0' 2.2'

4' 6.9' 47 6.6' 3.0'

5' 8.7' 30 8.3' 3.7'

D C FC L W

3' 3.0' 235 2.3' 1.6'

4' 4.0' 132 3.1' 2.1'

5' 5.0' 85 3.8' 2.6'

6' 6.0' 59 4.6' 3.1'

D C FC L W

Lamp

Beam Spread

(To 50% CBCP) CBCP

Rated

Life (hrs.)

Lexel LED 20° 5984 50,000

L= Beam length D= Distance

W= Beam Width A= Aiming Angle

C= Distance to center beam FC = Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp

manufacturers for availability and performance.

CBCP = Center Beam Candle Power.
