Lightolier Lytespan 8119 User manual

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan®Track Lighting System 8119

Page 1 of 2 Cylinder Narrow Flood 23° Mini HID 39W T4.5 CMH Lamp

Lightolier is a Philips group brand

Catalog No. Finish Lamp

8119WH White G8.5 Bi-PIN

8119BK Black 39W T4.5 CMH (M130)

8119AL Aluminum Not Included

Features

1. Track Attachment Fitting: Molded polycarbonate, rotates into track and

locks into place with integral color.

2. Push Tab: Molded polycarbonate. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Movable Contact: Solid Brass. Extends for connection to 2nd circuit in

Advent track.

5. Ballast Housing: Extruded aluminum housing with die-cast

aluminum covers.

6. Ballast: High Power Factor metal halide electronic ballast. Mounting

Thermally protected, 0.40A maximum input current, maximum 45W input

power.

7. Pivot Mounts: Allows for 350° horizontal and 180° vertical rotation aim.

Ceiling and horizontal or vertical wall mounted.

8. Lamp Housing: 0.04" (1.02mm) aluminum.

9. Lampholder: Lock G8.5 base bi-pin, self centering lamp design. 5kV (750V)

pulse rated porcelain body socket with nickel-plated contacts. 18 AWG

silicone leads with fiberglass outer sleeve inside of the lamp housing.

10.Reflector: 0.02" (0.51mm) embossed anodized blasted specular aluminum.

11. Protective Glass: 0.13" (3.18mm) tempered glass.

12. Housing Cover: 0.04" (1.02mm) aluminum.

13. Knobs: Color steel knurled knob.

Accessories

Holder: 8195 (Holds one accessory only)

Diffusion/Special filters: AF25 series

Color Filters: ADF25 series

Louver (Hex Cell): AL25HC series

Mounting

All Monopoint, Multipoint, recessed track, suspension track, suspension stems,

sloped ceiling adapter, Basic Radius and Advent track systems only. Ceiling and

horizontal or vertical wall mounted. Not compatible with ProSpec track system.

Finish

All painted finishes are baked powder or enamel.

Markings cCSAus Certified for dry locations only

6.75"

(172mm)

5.25"

(133mm)

3 7/16"

(87mm)

4 11/16"

(119mm)

8.00"

(203mm)

6.75"

(172mm)

5.25"

(133mm)

3 7/16"

(87mm)

4 11/16"

(119mm)

8.00"

(203mm)

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting System 8119

Page 2 of 2 Cylinder Narrow Flood 23° Mini HID 39W T4.5 CMH Lamp

Lightolier is a Philips group brand

CMH 39T4/G8.5 11746 9,000

23°

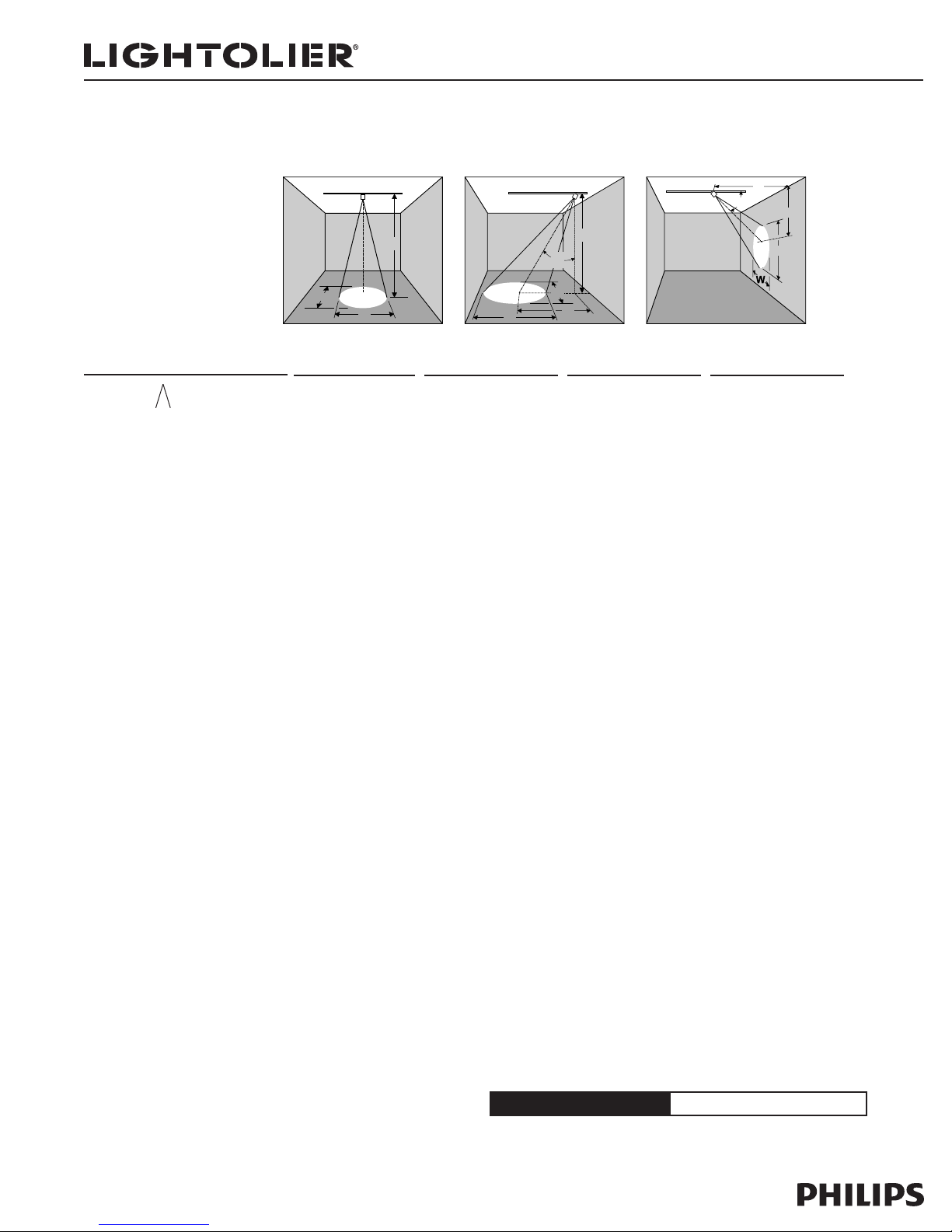

Lighting Data

DFC L

Lamp 0° Aiming Angle A=30° Aiming Angle A=45° Aiming Angle A=60° Aiming Angle

Aiming Angle 0° 30°, 45° or 60° Horizontal 30°, 45° or 60° Vertical

L Beam Length

W Beam Width

CDistance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Beam Spread Beam Center Rated

50% Max CP C.P. Candelas Life (Hrs.) D FC L W D C FC L W D C FC L W D C FC L W

8' 4.6' 119 4.4' 3.8'

10' 5.8' 76 5.5' 4.7'

12' 6.9' 53 6.6' 5.6'

14' 8.1' 39 7.7' 6.6'

4' 4.0' 260 3.4' 2.3'

5' 5.0' 166 4.2' 2.9'

6' 6.0' 115 5.1' 3.5'

7' 7.0' 85 5.9' 4.0'

4' 6.9' 92 7.4' 3.3'

5' 8.7' 59 9.3' 4.1'

6' 10.4' 41 11.2' 4.9'

7' 12.1' 30 13.0' 5.7'

10' 117 4.1' 4.1'

12'' 82 4.9' 4.9'

14' 60 5.7' 5.7'

16' 46 6.5' 6.5'
