Lightmybricks Fire Brigade User manual

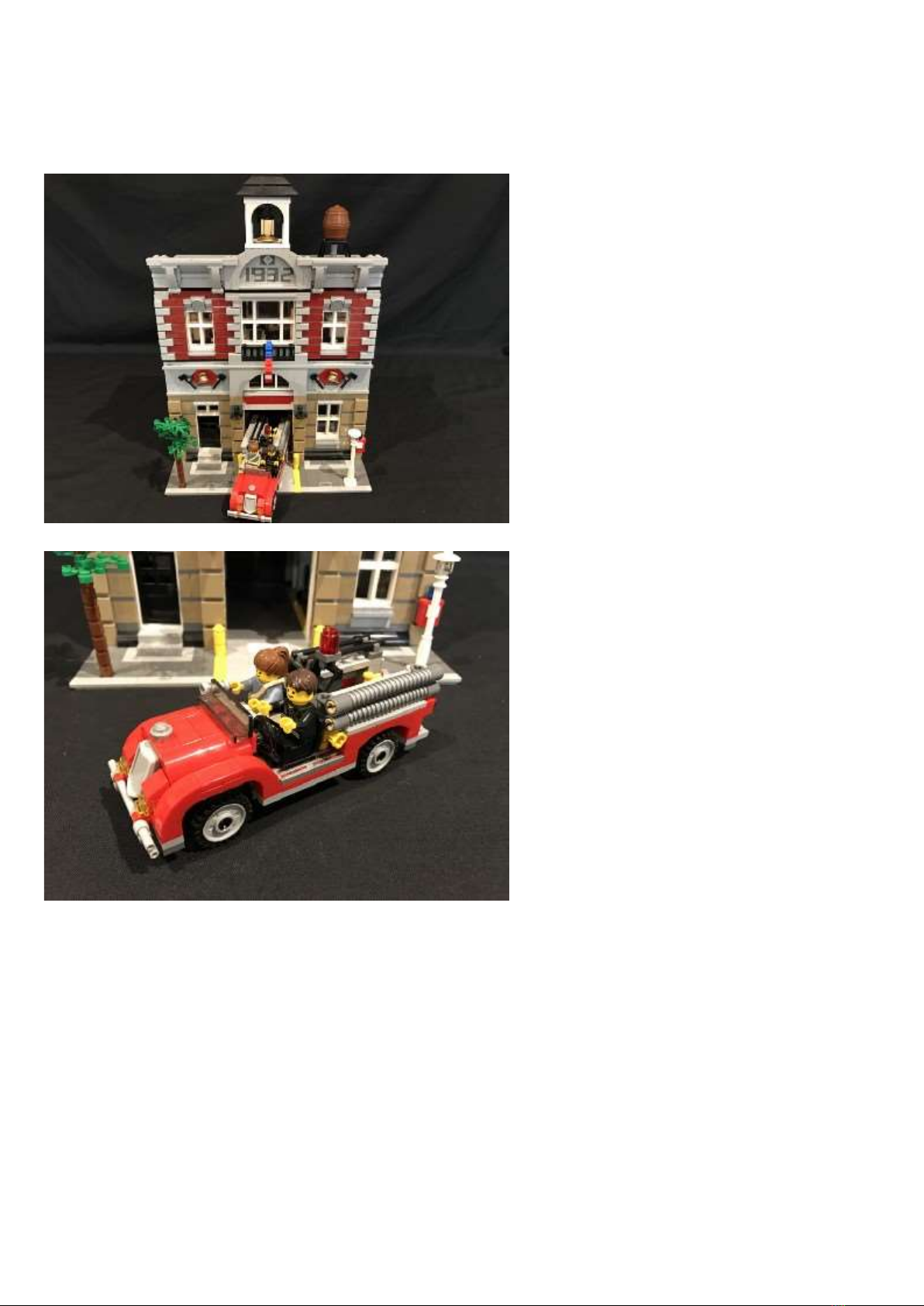

Light My Bricks : Fire Brigade LED Lighting Kit

Here is the instructions document for the LEGO Fire Brigade LED lighting kit. Please read

and follow the steps carefully to ensure this lighting kit is installed properly.

Package contents:

 1x Lamp Post with 30cm Bit Light installed

 4x White Bit Lights 30cm

 4x White Bit Lights 15cm

 2x White Flashing Bit Lights 15cm

 2x Red Flashing Bit Lights 30cm

 5x LED Strip Lights

 4x 15cm Connecting Cables

 1x 30cm Connecting Cable

 5x Adhesive Squares

 1x 12-port Expansion Board

 1x 8-port Expansion Board

 1x AA Battery Pack (Requires 3x AA Batteries)

 1x Flat Battery Pack (Requires 2x CR2032 Batteries)

Extra LEGO Pieces

 2x LEGO Trans Red 1×1 round bricks

 2x LEGO Light Grey 1L bar with mechanical claw clip

 4x LEGO Plates 1×6 for mounting Strip Lights

Important things to note:

Laying cables in between and underneath bricks

Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing they

are laid correctly between the LEGO® studs. Do NOT forcefully join LEGO® together

around cables; instead ensure they are laying comfortably in between each stud.

CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable

and light.

Connecting cable connectors to Strip Lights

Take extra care when inserting connectors to ports on the Strip Lights. Connectors can be

inserted only one way. With the Strip Light facing up, ensure the side of the connector

with the wires exposed is facing down. If a plug won’t fit easily into a port connector, don’t

force it. Doing so will damage the plug and the connector.

Connecting cable connectors to Expansion Boards

Take extra care when inserting connectors to ports of Expansion Boards. Connectors can

be inserted only one way. With the expansion board facing up, look for the soldered “=”

symbol on the left side of the port. The connector side with the wires exposed should be

facing toward the soldered “=” symbol as you insert into the port. If a plug won’t fit easily

into a port connector, do not force it.

Incorrectly inserting the connector can result in bent pins inside the port or

possible overheating of the expansion board when connected.

Installing Bit Lights under LEGO® bricks and plates.

When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way

up (Yellow LED component exposed). You can either place them directly on top of

LEGO® studs or in between.

OK, Let’s Begin!

Instructions for installing this kit

This section will guide you to install light to the fire truck first.

1) Start by removing the following pieces to allow us to remove one of the headlight

sections from the front.

Remove the trans yellow round plate and then take one White 15cm Bit Light and thread

the connector side through the front hole of the red brick as per below.
