OUTDOOR STORAGE BUILDING
OWNER’S MANUAL
MODEL 6424
30” OUTDOOR STORAGE EXTENSION KIT
OUTDOOR STORAGE
Copy
BEFORE BEGINNING ASSEMBLY
Identify and inventory all parts using the checklist boxes on the Parts List. Keep the
hardware bags and their contents separate. If any parts are missing, call our Customer
Service Department.
**A MINIMUM OF TWO ADULTS ARE REQUIRED FOR ASSEMBLY**
SAFETY INSTRUCTIONS
Failure to follow these safety instructions may result in serious injury or property damage. Proper and complete
assembly, use and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability
of serious injury exists if this display is not installed, maintained, or operated properly. • If using a ladder during assembly,
use extreme caution. Follow all warnings and cautions on the ladder carefully. • 2 people are required for assembly. •
Misuse could result in system failure. • If technical assistance is required, contact the manufacturer.
Most injuries are caused by misuse and/or failure to follow instructions.
PARTS LIST
ID Reorder# Part # Description Qty
108 ZS10882 1013592 Wall Panel 1
125 ZS12582 CB12500 Window Wall Panel 1
110 1029724 CB11000 Center Floor Panel 1
114 1009262 1009258 Lower Roof Panel 2
117 CB11780C CB11700 Center Roof Cap 1
AA 1009232 ------- Skylight 1
AB 1021645 ------- Roof Truss Channels 2
AC 1021644 ------- Roof Truss Brace 1
AD 1021649 ------- Roof Support 2
AE ZS01200 ------- Window 1
Hardware Bag [1026292]
TA 1021654 Truss Connector 1
TB BB04500 Threaded Rod 1
TD BN00300 1/4” Cap Nut 2
TE BN01600 #10 Cap Nut 6
TF BS06100 #10 x 3/8” Pan-Head Screw 8
TH BS07500 .25” x .625” Screw 45
TI BS05900 #10 x .5” Pan-Head Screw 6
TJ BW01200 #10-1” Fender Washer 6
TK 1007360 Window Latch 2
Part Numbers are listed when different from the Reorder Number.
The Part Number will appear on most of the plastic parts.
*
*
1. 7/16” Wrenches (2)
2. 3/8” Wrenches (2)
3. #2 Phillips screwdriver or
Electric drill with Phillips head
Tools and Materials
Required for Assembly
(Not Included)
INSTRUCTION #1045398 8/25/2008
For Assistance, including missing or broken parts,
Call Customer Service at:
1 (800) 225-3865
** Do Not Contact the Store **
Hours: Monday - Friday 9:00 a.m. to 5:00 p.m. (MST).
Call, or visit our Web site for Saturday hours.
Save this instruction in the event that the manufacturer has to be contacted for replacement parts.
Copy
3
110
114
125
AE
TK
TB
TA
AC
AB
AA
AD
HARDWARE IS ACTUAL SIZE
(Unless otherwise indicated)
TI TJ TD
TF
TH
TE
If you are Installing a New Shed
1. Check contents of boxes and compare to parts listed on the Parts List.
2. Follow instructions that came with your shed, but add extra floor panel, wall panels, Roof Cap
and Skylight at appropriate points in the assembly.
If you are Extending an Existing Shed
1. Remove any bolts or screws being used to anchor the shed to the ground.
2. Remove any objects from back shelves.
3. Remove any shelves, pegboards, or other objects hanging on the last two Side Wall Panels on
either side.
4. Check contents of boxes and compare to parts listed on the Parts List.
5. Follow the steps in this manual.
6. If you are extending an 8’ x 5’ shed you will need to modify the following instructions by not
removing as many parts as shown in the illustrations.
108117
4
1
a. Remove last three skylights.
2
a. Remove the back 3 roof caps.
3
a. Remove the back Roof panels and Roof support bars.
**Save all hardware for re-assembly!**
5

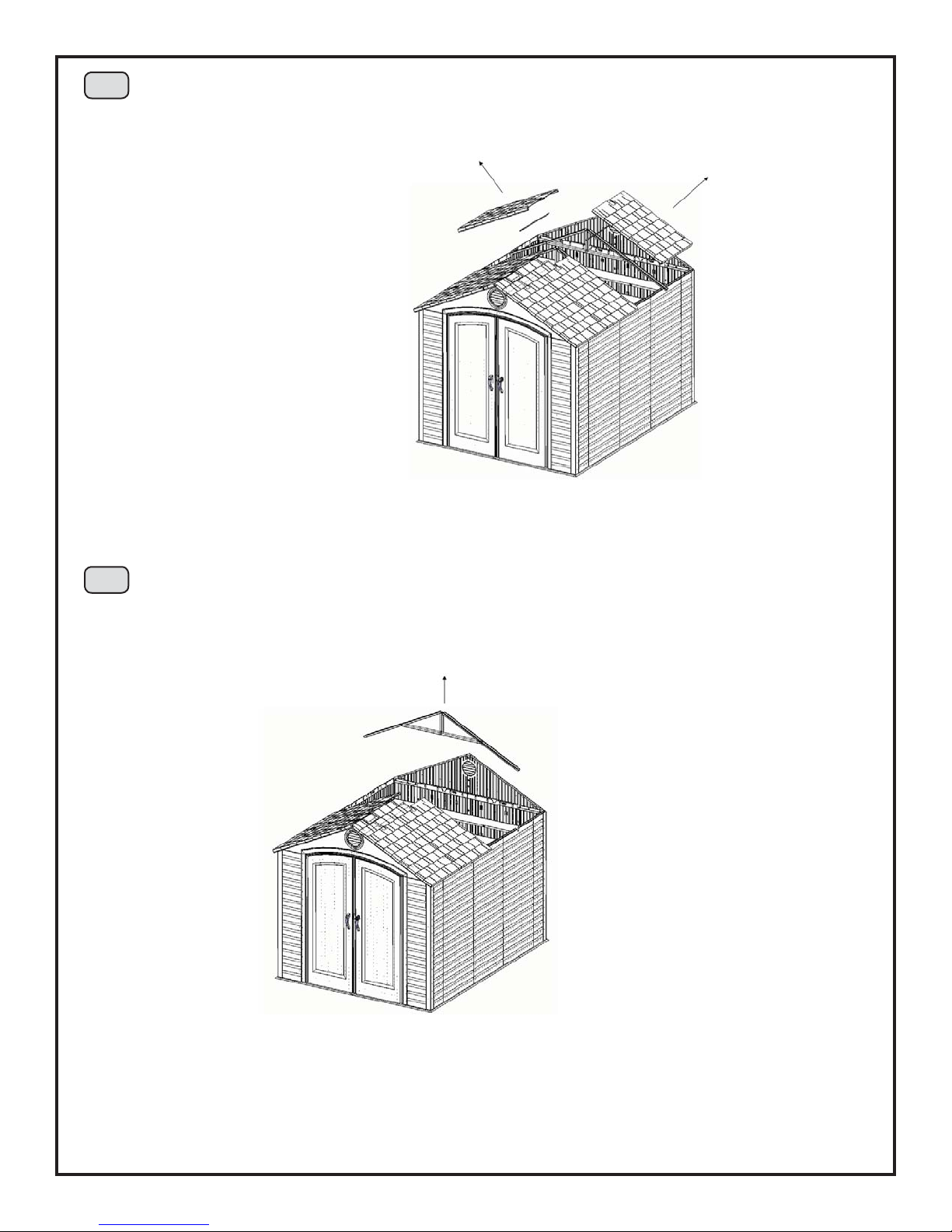

4
a. Remove the next Roof panels and Roof support bars.
5
a. Remove the Roof Truss.
6
6
a. Remove the last two Side Wall Panels.
7
a. Slide the back section of the shed away from the front. You will need to tip the back
section forward slightly in order to disconnect the floor panels
Be sure that there is nothing
on the back shelves before
moving the back section.
One person should support the
back wall while it is being tipped
and moved.
Note: If you’re adding onto a side entry shed, remove the panels (in gray) from the side of the shed rather than
removing the back of the shed. If you’re adding on to both sides, remove the panels (in gray) from both sides of
the shed (as illustrated), and follow the remaining steps.
7
a. Remove plastic sheeting from Window (AE) and slide Window into slot
on the Window Wall Panel (125). Attach a Window Latch (TK) above each
corner of the Window as shown. When tightening screws (TH), be sure
that Window Latches will slide freely. Do not overtighten. Insert screw (TF)
into the hole in the window. Set panel aside.
8Assemble Window
TH (4)
Insert window with bent edge
at top and pointing away from
the wall.
TK (2)
Place Screw (TF) in this hole to
keep window from sliding up
too far. Insert until flush with the
window
TF (1)
AE
8
9
a. Add new Floor Panel (110). Then, slide the back section into place
and connect the floor panels (you will need to tip the panels forward
slightly to connect the panels).
10
a. Add Wall Panels (108).
Insert a wood block directly
under the tab you want to
insert, then slide block to
next tab and repeat.
Tip up one floor panel and line up tabs
and then lay floor panel flat.
9
b. Use Truss Connector (TA) to attach Roof Truss Channels at top. Secure with Screws (TF) and Nuts
(TE). Before completely tightening, lay assembly on its side to be sure Channels and Brace are parallel.
Completely tighten all hardware.
11 Assemble Truss
a. Attach Brace (AC) to two Roof Truss Channels (AB) (one on each
side of Brace. Secure Brace with Screws (TF) and Nuts (TE).
Be sure that Truss Connector
is aligned with the Truss
Channels.
Follow picture above to
connect Brace to a Truss
Channel at each end of the
Brace.
TE (6)
TF (6)
The nut goes on
outside of the truss.
WARNING
Do not overtighten the Cap Nut. If the end of
the Bolt breaks through the plastic cap, call our
Customer Service Department.
10
c. Slide a Threaded Rod through the Truss Support
Brace and the top of the Truss Connector. TD (2)
d. Secure the top and bottom of the Threaded Rod with a 1/4” Cap Nut (TD).
TB
TB
WARNING
Do not overtighten the Cap Nut.
TD
TD
