BEFORE YOU BEGIN

Thank you for selecting the SEARS LIFESTYLEFP

EXPANSE 800 treadmill. The EXPANSE 800 treadmill

blends advanced technology with innovative design to

let you enjoy an excellent form of cardiovascular exer-

cise in the convenience and privacy of your home.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions,

please call our toll-free HELPLINE at 1-800-736-6879,

Monday through Saturday, 7 a.m. until 7 p.m. Central

Time (excluding holidays). To help us assist you,

please note the product model number and serial num-

ber before calling. The model number of the treadmill

is 831.297170. The serial number can be found on a

decal attached to the treadmill (see the front cover of

this manual for the location).

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Book Rack_

Rack

BACK

Accessory Tray

Storage Latch

Handrails

Walkin

Foot

Holder (Water

Bottle is not

included)

FRONT

Breaker

Cord

Rear Roller

Adjustment Bolt

Cushioned Walking

Platform for maximum

exercise comfort

RIGHT SIDE

ASSEMBLY

CAUTION: Carefully read and follow step 1 below before removing the restraining tie (see drawing 1

below). If the restraining tie is removed prematurely, serious bodily injury may result. Assembly requires

two people. Set the treadmill in a cleared area and remove the packing materials, except for the restraining tie.

Do not dispose ofthe packing materials until assembly is completed. Assembly requires the following tools (not

Included): Two adjustable wrenches _, a phillips screwdriver _, and a 3/8"

wrench '_ ,_...... 0 •

Slide the Left Upright (1) onto the left side of the Base

(59). It may be necessary to firmly push down on the

Left Upright until It Is fully seated on the Base.

Remove the restraining tie from the Base.

Attach the left handrail to the Base (59) with aHandrail

Bolt (93), Handrail Washer (67), and Handrail Nut (4). Do

not tighten the Handrail Bolt yet. Using a 3/8" wrench,

tighten two of the four Upright Screws (63) intothe Left

Upright (1) and the Base. To startthe Upright Screws,

push on the heads ofthe Screws while tighteningthem.

Restraining

2. Slide the Right Upright (44) onto the right side of the Base

(59), It may be necessary to firmly push down on the

Right Upright until it is fully seated on the Base. Be

careful not to pinch the Wire Harness (25) between

the Right Upright and the Base.

Attach the right handrail to the Base (59) with aHandrail

Bolt (93), Handrail Washer (67), and Handrail Nut (4). Do

not tighten the Handrail Bolt yet. Using a 3/8" wrench,

tighten two Upright Screws (63) into the Right Upright

(44) and the Base. To startthe Upright Screws, pushon

the heads of the Screws while tightening them.

Hand tighten the Handrail Nuts (4) used in steps 1 and 2.

Using a wrench, tighten the Handrail Bolts (93) used in

steps 1 and 2.

Remove the wire ties (not shown) attaching the Console

(9) to the Right Upright (44).

3. Set the Console (9) on the Left and Right Uprights

(1,44).

While one person carefully feeds any slack Wire Harness

(25) down into the Right Upright (44), a second person

should carefully pull the slack Wire Harness from the

lower end of the Right Upright. Refer to drawing 2 above.

Feed the slack Wire Harness into the Belly Pan (48).

Attach the Console (9) with four Screws (75).

4. With the help of a second person, carefully lower the Left

and Right Uprights (1, 44) until the handrails are resting

on the floor.

Handrails .-._

-%_

.Attach six Base Pads (57) to the bottom of the Base (59)

in the indicated locations. Note: An extra Base Pad may

be included.

(See drawing 4 above.) With the help of a second per-

son, raise the Left and Right Uprights (1, 44) until the

Base (59) is resting flat on the floor.

Before moving the treadmill, see HOW TO MOVE THE

TREADMILL on page 11.

6. Align the holes in the Book Rack (62) with those in the

Console (9). Attach the Book Rack to the Console with

the four remaining Screws (75) as shown.

7. Remove the backing from the Adhesive Clip (77). Press

the Adhesive Clip onto the Rear Roller Endcap (78) in the

indicated location. Press the Allen Wrench (76) into the

Adhesive Clip.

Make sure that all parts are tightened before you use the

treadmill. Note: To protect the floor or carpet, place a

mat under the treadmill. For Information on ordering a

mat, see REPLACEMENT PARTS on the back cover.

78 76

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBE TM WALKING BELT

Your treadmill features a walking belt coated with

PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other

substances to the walking belt or the walking plat-

form. They wUl deteriorate the walking belt and

cause excessive wear.

HOW TO PLUG IN THE POWER CORD

::i:i:!:!!:!:_:i:i:iii:i:i:i

iii_iiiiiimar!

Your treadmill, like any other type of sophisticated

electronic equipment, can be seriously damaged by

sudden voltage changes in your home's power.

Voltage surges, spikes, and noise interference can re-

sult from weather conditions or from other appliances

being tumed on or off.

To decrease the pos-

slblltty of your tread- 1

mill being damaged,

always use a surge

protector (not in-

cluded) with your

treadmill.

Surge protectors are

sold at most hardware

stores and department

stores. Use only a UL-

listed surge protector,

rated at 15 amps, with a

14-gauge cord of five

feet or less in length.

This product must be

grounded. If it should

malfunction or break

down, grounding pro-

vides a path of least re-

sistance for electric cur-

rent to reduce the risk of

electric shock. This product is equipped with acord

having an equipment-grounding conductor and a

grounding plug. Plug the power cord Into a surge

protector, and plug the surge protector into an ap-

propriate outlet that Is properly Installed and

grounded In accordance with all local codes and

ordinances.

This product is for use on a nominal 120-volt circuit,

and has a grounding plug that looks like the plug illus-

trated in drawing 1 below. Atemporary adapter that

looks like the adapter illustrated in drawing 2 may be

used to connect the surge protector to a2-pole recep-

tacle as shown in drawing 2 ifa properly grounded out-

let is not available.

The temporary adapter should be used only until a

properly grounded outlet (drawing 1) can be installed

by a qualified electrician.

The green-colored rigid ear, lug, or the like extending

from the adapter must be connected to a permanent

ground such as a properly grounded outlet box cover.

Whenever the adapter is used it must be held in place

by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec-

trician to determine if the outlet box cover is

grounded before using an adapter.

,/Grounded Outlet Box

/Grounding Pin

'_unding Plug

3rounded Outlet

Treadmill Power Cord-...

Grounding Plug_

_=_ 1 Grounded Outlet Box

Adapter

Grounding Pin

, Grounding Plug

Metal Screw_ _I

Surge Protector

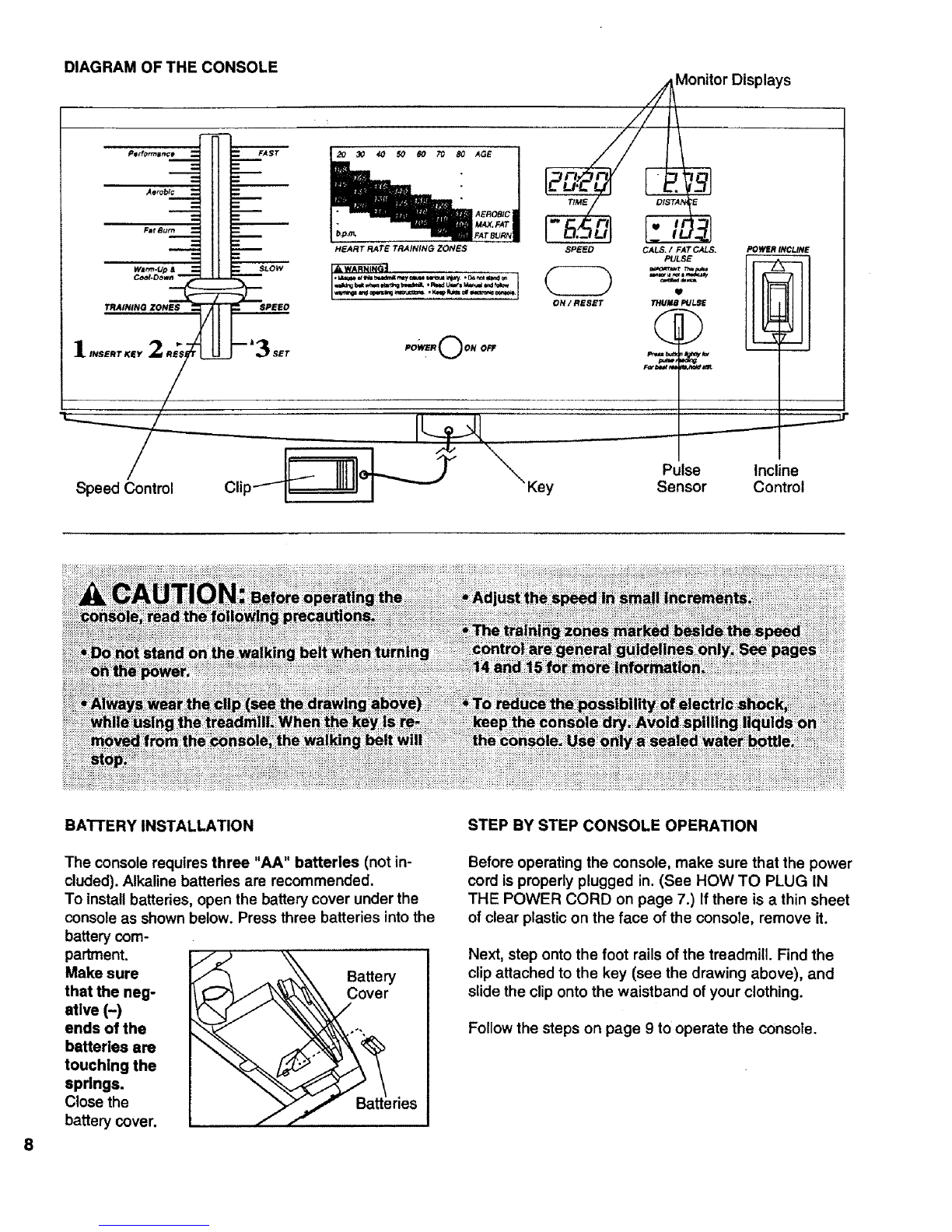

DIAGRAM OF THE CONSOLE Monitor Displays

_.o_o =ii -='_ _/L. "

_ _ TIME OISTA E

: _ -_.X.F*T

_-- _ HEART RATE TRAINING ZONES SPEED CALS, / FAT C/d.S. POWER INCLINE

-- i " PULSE

\ Po, o ,oo,oo

Speed Control Clip'_ l_'--WJ-II I_Key Sensor Control

BATI'ERY INSTALLATION

The console requires three "AA" batteries (not in-

cluded). Alkaline batteries are recommended.

To install batteries, open the battery cover under the

console as shown below. Press three batteries intothe

battery com-

parlment,

Make sure

that the neg-

ative (-)

ends of the

batteries are

touching the

spdngs.

Close the

battery cover.

STEP BY STEP CONSOLE OPERATION

Before operating the console, make sure that the power

cord isproperly plugged in. (See HOW TO PLUG IN

THE POWER CORD on page 7.) If there is athin sheet

of clear plasticon the face of the console, remove it.

Next, step onto the foot rails of the treadmill. Find the

clip attached to the key (see the drawing above), and

slide the cliponto the waistband of your clothing.

Followthe steps on page 9 to operate the console.

D Insertthekeyfullyintothepowerswitch.

Inserting the key will

not turn on the dis- _o._.C)o. o,,

plays. The displays will

turn on when the

ON/RESET button is

pressed or when the

walking belt is started.

Note: If you just in-

stalled batteries, the displays will already be on.

BReset the speed control.

Slide the speed control

down to the RESET po-

sition. Note: Each time

the walking belt is

stopped, the speed

control must be moved

to the RESET position

before the walking belt

can be restarted.

F=, Bum......._

Wean-Up 4

Coot-Down__._=--

_AINING ZONES

Start the walking belt.

After you have moved the speed control to the

RESET position, slowly slide it upward until the

walking belt begins to move at slow speed.

Carefully step onto the walking belt and begin exer-

cising. Change the speed of the walking belt as de-

sired by sliding the speed control.

To stop the walking belt, step onto the foot rails and

slide the speed control to the RESET position.

Follow your progress with the monitor displays.

TIME display--This

display shows the total

time that you have

walked or runon the

treadmill, TIME

CALORIES/FAT CAL-

ORIES/PULSE

displaywThis display

shows the approximate

numbers of calories and

fat calories you have

burned, (See FAT

Arrows

I!J l

CALS. / FAT CALS,

PULSE

CALORIES on page 14 for an explanation of fat

calories.) Every seven seconds, the display will

change from one number to the other. Arrows in the

display will indicate which number is currently

shown. Note: This display will also show your pulse

when the pulse sensor is used.

The displays can be

reset, if desired, by

pressing the ON/RESET

button. ON/RESET I

Measure your pulse, if desired.

To use the pulse !

sensor, stand on I Pulse

the foot roils and

place your thumb

on the pulse sen-

sor as shown. The

pulse sensor is

pressure-activated;

fully press down

the pulse sensor. Do not press too hard, or the

circulation in your thumb will be restricted, and

your pulse will not be

detected. Next, slightly

raise your thumb until !_I FI -tl

the heart-shaped indica- I.L ILl3 I

c Ls/ ATCA,--

tor inthe CALORIES/ ! PULSE

FAT CALORIES/PULSE Indicator

display flashes steadily.

Hold your thumb at this

level. After 5 to 10 seconds, your pulse will be

shown. Hold your thumb on the sensor.for another

15 seconds for the most accurate reading.If the dis-

played pulse appears to be too high or too low, or if

your pulse is not displayed, lift your thumb off the

sensor and allow the display to reset. Press down

again on the sensor as described above.

DISTANCE display--

This display shows the

total distance that you

have walked or run, in

miles.

Make sure that yourthumb is positioned as shown,

and that you are applying the proper amount of pres-

sure to the pulse sensor. Try the sensor several

times untilyou become familiar with it. Remember to

stand stillwhile measuringyour pulse.

SPEED display--This

display shows the speed

ofthe walking belt, in

miles per hour.

{'-ccml

LJU I

SPEED

BChange the incline of the treadmill, if desired.

To increase or decrease

the incline, hold down the

top or bottom of the incline

button. Important: Do not

change the Incline of the

treadmill by placing ob-

jects under the treadmill.

Change the Incline only

as described above.

POWER INCUNE

B hen you are finished exercising, stop the

walking belt and remove the key.

Step onto the foot rails,

stop the walking belt,

and remove the key

from the console. Store

the key in a secure

place. After the key is

removed, the displays

will remain on for

about five minutes.

POW£R OO-_ O_"F

Note: Any time that the walking belt is stopped

and no console buttons are pressed for five min-

utes, the displays will automatically turn off in

order to conserve the batteries.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, unplug the power cord. Caution:

You must be able to safely lift 45 pounds (20 kg) in order

to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown

at the right.To decrease the possibility of Injury, bend

your legs and keep your back straight. As you raise

the treadmill, make sure to lift with your legs rather

than your back. Raise the treadmill about halfway to the

vertical position.

Other manuals for expance 800

This manual suits for next models

Table of contents

Other LIFESTYLER Treadmill manuals

LIFESTYLER

LIFESTYLER 831.297033 User manual

LIFESTYLER

LIFESTYLER Expance 500 User manual

LIFESTYLER

LIFESTYLER 831.296703 User manual

LIFESTYLER

LIFESTYLER expance 800 User manual

LIFESTYLER

LIFESTYLER Expance 550 User manual

LIFESTYLER

LIFESTYLER 7.0 User manual

LIFESTYLER

LIFESTYLER EXPANSE 2000 User manual

LIFESTYLER

LIFESTYLER Expance 2000 User manual

LIFESTYLER

LIFESTYLER Expance 850 User manual

LIFESTYLER

LIFESTYLER Expance 850 User manual

LIFESTYLER

LIFESTYLER Expanse 600 831.297160 User manual

LIFESTYLER

LIFESTYLER EXPANSE 1000 831.297451 User manual

LIFESTYLER

LIFESTYLER 831.2974 User manual

LIFESTYLER

LIFESTYLER Inckine Lift assist 1900 User manual

LIFESTYLER

LIFESTYLER 8.0 User manual

LIFESTYLER

LIFESTYLER 831.297052 User manual

LIFESTYLER

LIFESTYLER Auto incline 2800 User manual

LIFESTYLER

LIFESTYLER 831.29725 User manual

LIFESTYLER

LIFESTYLER Expance 2000 User manual

LIFESTYLER

LIFESTYLER Expance 2000 User manual

LIFESTYLER

LIFESTYLER Expanse 600 831.297161 User manual

LIFESTYLER

LIFESTYLER 831.297420 User manual

LIFESTYLER

LIFESTYLER EXPANSE 500 831.297432 User manual

LIFESTYLER

LIFESTYLER Expance 600 User manual

Popular Treadmill manuals by other brands

Treadly

Treadly TREADLY 2 user manual

HEALTH ONE

HEALTH ONE Walk Ro user manual

NordicTrack

NordicTrack NTL12941 user manual

NordicTrack

NordicTrack T7.5 S user manual

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 user manual

Merax

Merax MS282992 manual

FYTTER

FYTTER RU-2SX manual

Precor

Precor 903 owner's manual

FitLogic

FitLogic freewill d225 owner's manual

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB instruction manual

Horizon Fitness

Horizon Fitness Adventure 5 Plus Service manual

Stamia

Stamia InMotion II owner's manual

Smooth Fitness

Smooth Fitness EVO 3i user manual

NordicTrack

NordicTrack NETL81810.0 user manual

Schwinn

Schwinn 830/Journey 8.0 Assembly manual / owner's manual

Keys Fitness

Keys Fitness HealthTrainer HT-740T owner's manual

Spirit

Spirit XT8 Service manual

NordicTrack

NordicTrack T 14.0 Treadmill Manuel de l'utilisateur
