Life Gear 40120 User manual

cv: mentor I, magnetic/TREADMILL

Item No.: 40120

Owner’s Manual

IMPORTANT: Read all instructions carefully before using this product. Retain this

owner’s manual for future reference.

The specifications of this product may vary from this photo, subject to change without notice.

2010, Dec.

TABLE OF CONTENTS

WARRANTY ------------------------------------------------------------------------------- 1

SAFETY INSTRUCTIONS ------------------------------------------------------------- 2

OVERVIEW DRAWING ---------------------------------------------------------------- 3

PARTS LIST ------------------------------------------------------------------------------- 4

HARDWARE PACKING LIST --------------------------------------------------------- 5

TOOLS -------------------------------------------------------------------------------------- 5

ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 6

OPERATING THE COMPUTER ------------------------------------------------------ 10

LIFTING UPAND SETTING DOWN THE TREADMILL ------------------------ 12

ADJUSTMENTS -------------------------------------------------------------------------- 13

LUBRICATE BELT ----------------------------------------------------------------------- 14

MAINTENANCE -------------------------------------------------------------------------- 15

TROUBLESHOOTING ------------------------------------------------------------------ 15

WARM UPAND COOL DOWN ROUTINE ----------------------------------------- 16

ONE YEAR LIMITED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in

material and workmanship when used for the purpose intended, under the conditions that it

has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's

obligation under this warranty is limited to replacing or repairing, free of charge, any parts

which may prove to be defective under normal home use. This warranty does not include

any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.

This warranty is extended only to the original owner and is not transferable.

When ordering replacement parts please have the following information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following safety

instructions when using this magnetic treadmill: Read all instructions before using

this magnetic treadmill.

1. Check every part of the equipment before exercise. If there is any defective

component, replace it immediately; keep the equipment out of use until repair.

2. Make sure all parts, bolts and nuts are well assembled and locked before exercise.

3. Never insert any object into any opening.

4. Never operate this magnetic treadmill if it is not working properly. If it has been

dropped or damaged, or been exposed to water, return the appliance to a service center

for examination and repair.

5. Do not attempt any maintenance or adjustments other than those described in this

manual. Should any problems arise, discontinue use and consult an Authorized

Service Representative.

6. Wear comfortable and suitable clothing when using the treadmill. Do not use the

treadmill barefoot, in only socks or in sandals, always wear athletic shoes. Never wear

loose clothing because it could run the risk of getting caught in the treadmill.

7. Keep children and pets away from the equipment while in use.

8. Do not use the treadmill outdoors. This magnetic treadmill is for household use only.

9. Only one person should be on the treadmill while in use.

10. Keep the magnetic treadmill on a solid, level surface with the minimum safety area

clearance of 2000mm x 1000mm of the magnetic treadmill. Be sure the area around

the treadmill remains clear during use and has adequate clearance.

11. Hold the handlebar with your hands when starting or stopping exercise and increasing

or decreasing the speed.

12. If feeling chest pains, nausea, dizziness, or short of breath, you should stop exercising

immediately and consult your physician before continuing.

13. The maximum weight capacity for this product is 110kgs.

WARNING:Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have

pre-existing health problems. Read all instructions before using any fitness

equipment.

CAUTION:Read all instructions carefully before operating this product.

Retain this Owner’s Manual for future reference.

OVERVIEW DRAWING

50 9

36 37

53 54

37 36

38 49

23 23

PARTS LIST

No. Description Qty No. Description Qty

001 Main Frame 1 034 Bolt M6x40 8

002 Left Handlebar Support Frame 1 035 Bolt M8x40 8

003 Right Handlebar Support Frame 1 036 Washer Ø8x1.5 10

004 Connection Support Frame 1 037 Nylon Nut M8 10

005 Safety Tube A 1 038 Bolt M8x35 3

006 Safety Tube B 1 039 Screw ST4.8x15 4

007 Incline Adjustment Frame 1 040 Washer Ø6x1.5 10

008 Handlebar Support Tube 2 041 Locking Pin 2

009 Wire Plug Ø12.1 2 042 Nylon Nut M6 8

010 Running Deck 1030x437x12 1 043 Sleeve Ø12.5xØ18x6.5 2

011 Front Roller 1 044 Sensor Wire II (L=700mm) 3

012 Front RollerAxle Ø12x495 1 045 Bolt M8x15 2

013 Rear Roller 1 046 Bolt M5x15 1

014 Rear RollerAxle 1 047 Big Washer Ø5 1

015 Rear RollerAdjustment Bolt

Plate 2 048 Screw ST4.2x20 2

016 Handlebar 1 049 Square Bushing 1

017 Hand Pulse Sensor with Wire

200mm 2 050 Sensor Wire I (L=800mm) 2

018 Foam Grip Ø38xØ30x250 2 051 Curve Washer Ø8 2

019 Running Belt 2325x340x1.2 1 052 Nut M6 2

020 Magnet Bracket 1 053 Washer Ø5 2

021 Spring Ø23xØ1.6x110 1 054 Bolt M5x10 2

022 Tension Control Knob Wire

Bracket 74x25x31 1 055 Computer 1

023 End Cap (25x50x1.5) 4 056 Bolt M5x12 4

024 Rubber Pad Ø39xH17 4 057 Sensor with Wire 150mm 1

025 Wheel Ø51xØ9xH22 2 058 Screw ST2.9x12 2

026 Spring Knob M16 1 059 Bolt M8x80 1

027 InclineAdjustment Frame End

Cap Ø38x1.5 2 060 Rear Roller Adjustment Bolt M6x70 2

028 Square End Cap (20x20x1.5) 1 061 Bolt M6x15 6

029 Side Rail 960x30x1.5 2 062 Nut M8 2

030 Tension Control Knob 1 063 Powder Metal Bushing

Ø18xØ25x3.0 2

031 Hex Head Bolt M12x50 2 064 Washer Ø8xØ25x2.0 2

032 Round Cap Ø32x1.5 2 065 Sleeve Ø12.5xØ18x3.5 2

033 Big Washer Ø12xØ24x2.5 2

HARDWARE PACKING LIST

TOOLS

(31) Hex Head Bolt

M12x50

2 PCS

(33) Big Washer

Ø12xØ24x2.5

2 PCS

(35) Bolt M8x40

6 PCS

(36) Washer Ø8x1.5

5 PCS (37) Nylon Nut M8

5 PCS (51) Curve Washer Ø8

2 PCS

(59) Bolt M8x80

1 PC (61) Bolt M6x15

2 PCS (62) Nut M8

2 PCS

Multi Hex Tool

1 PC

Allen Wrench 5mm

1 PC

Multi Hex Tool with Phillips Screwdriver

S13-14-15

1 PC

Allen Wrench 6mm

1 PC

Silicone Oil

1 PC

ASSEMBLY INSTRUCTIONS

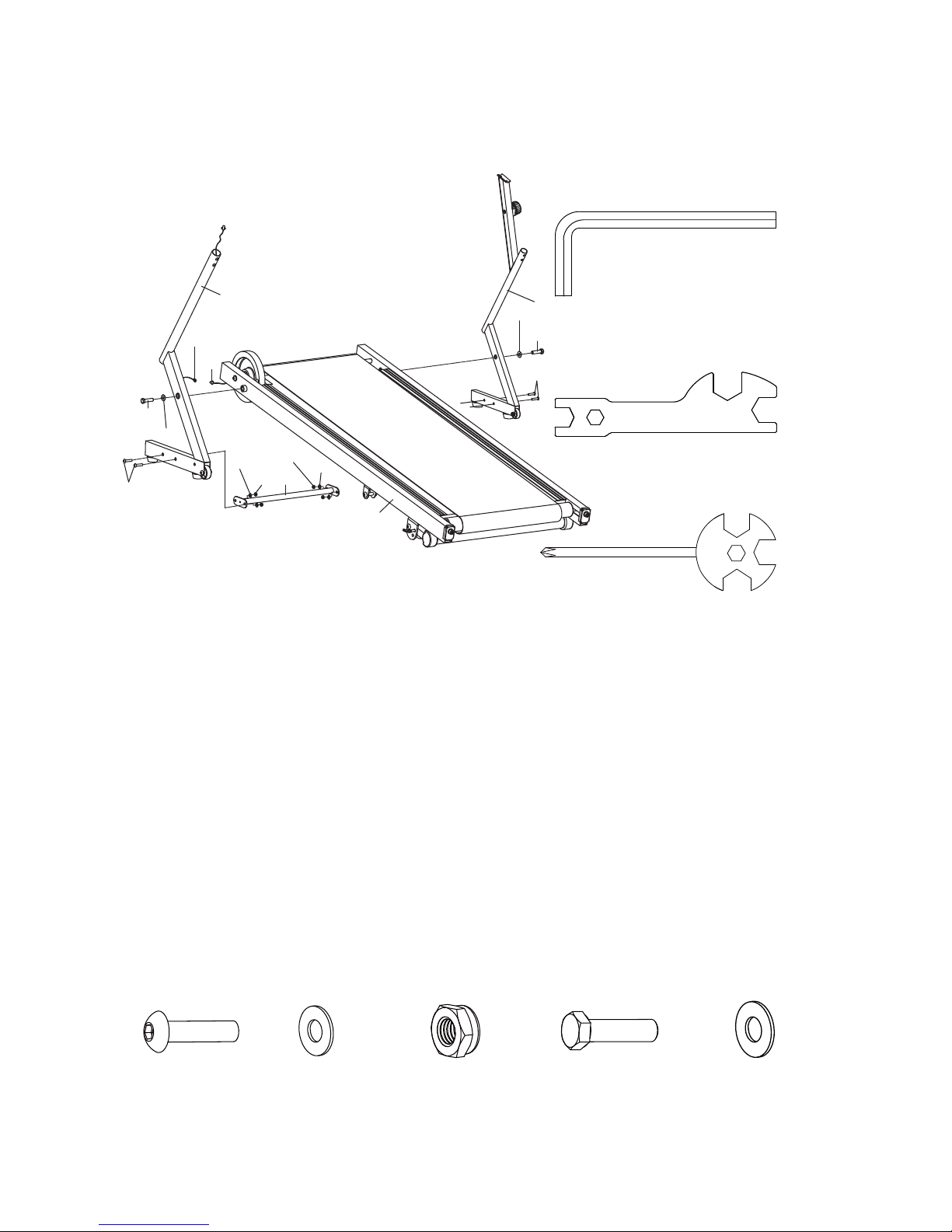

Step 1

Attach the Connection Support Frame (4) onto the Left/Right Handlebar Support Frames

(2, 3) with four M8x40 Bolts (35), four Ø8x1.5 Washers (36), and four M8 Nylon Nuts (37).

Tighten bolts and nuts with one 6mmAllen Wrench and one Multi Hex Tool with Phillips

Screwdriver provided.

Attach the Main Frame (1) onto the Left/Right Handlebar Support Frames (2, 3) with two

M12x50 Hex Head Bolts (31) and two Ø12xØ24x2.5 Big Washers (33). Tighten bolts with

the Multi Hex Tool provided.

Connect the Sensor Wire (57) from the Main Frame (1) to the Sensor Wire I (50) from the

Left Handlebar Support Frame (2).

NOTE: It is recommended that you always use the aid of a second person when

assembling the treadmill.

DO NOT FULLY TIGHTEN HARDWARE IN STEP 1 UNTIL STEP 4 IS COMPLETED.

Hardware:

4 Bolts (M8x40) 4 Washers

(Ø8x1.5) 2 Hex Head Bolts

(M12x50) 2 Big Washers

(Ø12xØ24x2.5)

4 Nylon Nuts (M8)

Tool:

Multi Hex Tool

Allen Wrench 6mm

Multi Hex Tool with Phillips Screwdriver

S13-14-15

36 36

Step 2

Remove one Ø8x1.5 Washer (36), one M8 Nylon Nut (37), and one M8x35 Bolt (38) from

the Main Frame (1).

Attach the Safety Tube B (6) onto the Main Frame (21) with one Ø8x1.5 Washer (36), one

M8 Nylon Nut (37), and one M8x35 Bolt (38) that were removed. Tighten the bolt and

nylon nut with one 6mm Allen Wrench and one Multi Hex Tool with Phillips Screwdriver

provided.

Attach the Safety Tube A(5) onto the Left Handlebar Support Frame (2) with one Ø8x1.5

Washer (36), one M8 Nylon Nut (37), one M8x80 Bolt (59), and two M8 Nuts (62). Tighten

bolt and nylon nut with one 6mm Allen Wrench and one Multi Hex Tool with Phillips

Screwdriver provided.

NOTE: DO NOT FULLY TIGHTEN HARDWARE IN STEP 2 UNTIL STEP 4 IS

COMPLETED.

Hardware:

1 Washer (Ø8x1.5) 1 Nylon Nut (M8) 1 Bolt (M8x80) 2 Nuts (M8)

Tool:

Allen Wrench 6mm

Multi Hex Tool with Phillips Screwdriver

S13-14-15

Step 3

Remove four M6x15 Bolts (61) from both Handlebar Support Tubes (8).

Connect the Sensor Wire I (50) from the Handlebar Support Tube (8) to the other Sensor

Wire I (50) from the Left Handlebar Support Frame (2). Then install the Handlebar Support

Tube (8) to the Left Handlebar Support Frame (2) by inserting the Handlebar Support Tube

(8) into the Left Handlebar Support Frame (2), using two M6x15 Bolts (61) that were

removed. Tighten bolts with one 6mm Allen Wrench.

Install the other Handlebar Support Tube (8) to the Right Handlebar Support Frame (3) by

inserting the Handlebar Support Tube (8) into the Right Handlebar Support Frame (3), using

two M6x15 Bolts (61) that were removed. Tighten bolts with one 6mm Allen Wrench.

IMPORTANT: While sliding the Handlebar Support Tube (8) into the Left Handlebar Support

Frame (2), make sure the wires are installed inside the Left Handlebar Support Frame (2)

and pay attention not to pinch the wires.

NOTE: DO NOT FULLY TIGHTEN HARDWARE IN STEP 3 UNTIL STEP 4 IS

COMPLETED.

Tool:

Allen Wrench 6mm

Step 4

Connect the Hand Pulse Sensor Wire (17) from the Handlebar Support Tube (8) to the

Sensor Wire II (44) from the Handlebar (16).

Connect the Hand Pulse Sensor Wire (17) and Sensor Wire I (50) from the Handlebar

Support Tube (8) to the Sensor Wires II (44) from the Handlebar (16).

Install the Handlebar (16) to the Handlebar Support Tubes (8) by inserting the Handlebar (16)

into the Handlebar Support Tubes (8), using two M8x40 Bolts (35), two Ø8 Curve Washers

(51), and two M6x15 Bolts (61). Tighten bolts with one 6mm Allen Wrench.

Remove four M5x12 Bolts (56) from the Computer (55). Connect the Sensor Wires II (44)

from the Handlebar (16) to the wires that come from the Computer (55).

Attach the Computer (55) onto the plate of the Handlebar (16) with four M5x12 Bolts (56)

that were removed. Tighten bolts with the Multi Hex Tool with Phillips Screwdriver provided.

IMPORTANT: While sliding the Handlebar (16) into the Handlebar Support Tubes (8), make

sure the wires are installed inside the Handlebar (16) and pay attention not to pinch the

wires.

NOTE: PLEASE FULLY TIGHTEN ALL HARDWARE INSTALLED IN STEP 1 THROUGH

STEP 4 WITH THE TOOLS PROVIDED.

Hardware:

2 Bolts (M8x40) 2 Curve Washers (Ø8) 2 Bolts (M6x15)

Tool:

Allen Wrench 6mm

Multi Hex Tool with Phillips Screwdriver

S13-14-15

Other manuals for 40120

Table of contents

Other Life Gear Treadmill manuals

Life Gear

Life Gear POWER TRACK PLUS 97362 User manual

Life Gear

Life Gear 97620 User manual

Life Gear

Life Gear FLIP TRACK III 97276 User manual

Life Gear

Life Gear 97780 User manual

Life Gear

Life Gear ACACIA PRO User manual

Life Gear

Life Gear 97830 User manual

Life Gear

Life Gear 97988T User manual

Life Gear

Life Gear Mentor II User manual

Life Gear

Life Gear 97960 User manual

Life Gear

Life Gear 40160 User manual

Life Gear

Life Gear 97910 User manual

Life Gear

Life Gear MARK X 97582H User manual

Life Gear

Life Gear 40120 User manual

Life Gear

Life Gear 97295 User manual

Life Gear

Life Gear 97640 User manual

Life Gear

Life Gear 97875 User manual

Life Gear

Life Gear 97450 User manual

Life Gear

Life Gear 97355 User manual

Life Gear

Life Gear 97400 User manual

Life Gear

Life Gear FLIP TRACK II 97270 User manual

Life Gear

Life Gear SYMPHONY PRO 97655 User manual

Life Gear

Life Gear POWER TRACK PRO 97370 User manual

Life Gear

Life Gear 97320 User manual

Life Gear

Life Gear 97240 User manual

Popular Treadmill manuals by other brands

Treadly

Treadly TREADLY 2 user manual

HEALTH ONE

HEALTH ONE Walk Ro user manual

NordicTrack

NordicTrack NTL12941 user manual

NordicTrack

NordicTrack T7.5 S user manual

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 user manual

Merax

Merax MS282992 manual

FYTTER

FYTTER RU-2SX manual

Precor

Precor 903 owner's manual

FitLogic

FitLogic freewill d225 owner's manual

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB instruction manual

Horizon Fitness

Horizon Fitness Adventure 5 Plus Service manual

Stamia

Stamia InMotion II owner's manual

Smooth Fitness

Smooth Fitness EVO 3i user manual

NordicTrack

NordicTrack NETL81810.0 user manual

Schwinn

Schwinn 830/Journey 8.0 Assembly manual / owner's manual

Keys Fitness

Keys Fitness HealthTrainer HT-740T owner's manual

Spirit

Spirit XT8 Service manual

NordicTrack

NordicTrack T 14.0 Treadmill Manuel de l'utilisateur
