OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully. This
will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
MFL69739811
Rev.00_28102016 www.lg.com
EN ENGLISH CS CZECH SK SLOVAK
F 4 J5/J6 T/Q (Y)(W)(0~9)(W)(S)
F 2 J5/J6 T/Q (Y)(W)(0~9)(W)(S)
F 0 J5/J6 T/Q (Y)(W)(0~9)(W)(S)
FW82J6TY1, F82J6TY1W, F84J6TY0W, F82J6TY0W, F84J6TY1W, FW84J6TY1
FW82*, FW84*, FW80*, F84J*, F82J*, F80J*
TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ................................................. 3
IMPORTANT SAFETY INSTRUCTIONS ....................................................3
Disposal of Your Old Appliance..............................................................8
INSTALLATION ............................................................... 9
Parts ...................................................................................................9
Accessories..........................................................................................9
Specifications..................................................................................... 10
Installation Place Requirements........................................................... 11
Unpacking and Removing Transit Bolts................................................. 12
Using Anti-Slip Sheets (Optional)......................................................... 13
Wooden Floors (Suspended Floors) ..................................................... 13
Leveling the Appliance........................................................................ 14
Connecting the Water Supply Hose......................................................14
Installing the Drain Hose .................................................................... 17
OPERATION .................................................................. 18
Using the Washing Machine ................................................................ 18
Sorting Laundry ................................................................................. 19
Adding Cleaning Products ................................................................... 20
Control Panel ..................................................................................... 22
Programme Table ............................................................................... 23
Option Programme............................................................................. 27
SMART FUNCTIONS ...................................................... 30
Using the Smart Diagnosis™ Function.................................................. 30
MAINTENANCE ............................................................. 32
Cleaning Your Washing Machine.......................................................... 32
Cleaning the Water Inlet Filter............................................................. 32
Cleaning the Drain Pump Filter............................................................ 33
Cleaning the Dispenser Drawer ........................................................... 34
Tub Clean (Optional) .......................................................................... 34
Caution on Freezing During Winter...................................................... 35
TROUBLESHOOTING..................................................... 37
Diagnosing Problems.......................................................................... 37
Error Messages .................................................................................. 40
WARRANTY................................................................... 42
OPERATING DATA ........................................................ 45
Using the Tag On Function..................................................................31
Using the Application
......................................................................... 31
3
SAFETY INSTRUCTIONS EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect operation
of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to the indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, re, death, electric shock,
injury or scalding to persons when using this product,
follow basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
4
EN
For use in Europe:
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
Installation
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be transported by two or more
people holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area
that is subject to weathering conditions such as direct sunlight,
wind, or rain or temperatures below freezing.
•Tighten the drain hose to avoid separation.
•If the power cord is damaged or the hole of the socket outlet
is loose, do not use the power cord and contact an authorized
service centre.
•Do not plug multiple socket outlets, an extension power cable or
adapter with this appliance.
5
EN
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the appliance, in such a way that a full opening of the appliance
door is restricted.
•This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
•This appliance is equipped with a power cord having an
equipment-grounding conductor and a grounding power plug.
The power plug must be plugged into an appropriate socket
outlet that is installed and grounded in accordance with all local
codes and ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualied electrician
or service personnel if you are in doubt as to whether the
appliance is properly grounded.
•Do not modify the power plug provided with the appliance.
If it does not t the outlet, have a proper outlet installed by a
qualied electrician.
Operation
•Do not attempt to separate any panels or disassemble the
appliance. Do not apply any sharp objects to the control panel in
order to operate the appliance.
•Do not repair or replace any part of the appliance. All repairs
and servicing must be performed by qualied service personnel
unless specically recommended in this Owner’s Manual. Use
only authorized factory parts.
6
EN
•Do not put animals, such as pets into the appliance.
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
•Do not leave the appliance door open. Children may hang on
the door or crawl inside the appliance, causing damage or
injury.
•Use new hose or hose-set supplied with the appliance. Reusing
old hoses can cause a water leak and subsequent property
damage.
•Never reach into the appliance while it is operating. Wait until
the drum has completely stopped.
•Do not put in, wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or explosive
substances (such as wax, oil, paint, gasoline, degreasers,
drycleaning solvents, kerosene, vegetable oil, cooking oil, etc.).
Improper use can cause re or explosion.
•In case of ood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the door excessively, when the appliance
door is open.
•Do not touch the door during a high temperature programme.
•Do not use ammable gas and combustible substances
(benzene, gasoline, thinner, petroleum, alcohol, etc.) near the
appliance.
7
EN
•If the drain hose or inlet hose is frozen during winter, use it only
after thawing.
•Keep all washing detergents, softener and bleach away from
children.
•Do not touch the power plug or the appliance controls with wet
hands.
•Do not bend the power cable excessively or place a heavy
object on it.
•Do not wash rugs, mats, shoes or pet blankets, or any other
items other than clothes or sheets, in this machine.
•This appliance must only be used for domestic household
purposes and should not be used in mobile applications.
•If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the area
immediately.
Maintenance
•Securely plug the power plug in the socket outlet after
completely removing any moisture and dust.
•Disconnect the appliance from the power supply before cleaning
the appliance. Setting the controls to the OFF or stand by
position does not disconnect this appliance from the power
supply.
•Do not spray water inside or outside the appliance to clean it.
•Never unplug the appliance by pulling on the power cable.
Always grip the power plug rmly and pull straight out from the
socket outlet.
8
EN
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can
cause suffocation.
•Remove the door before disposing of or discarding this
appliance to avoid the danger of children or small animals
getting trapped inside.
Disposal of Your Old Appliance
•This crossed-out wheeled bin symbol indicates that waste electrical and electronic
products (WEEE) should be disposed of separately from the municipal waste
stream.
•Old electrical products can contain hazardous substances so correct disposal
of your old appliance will help prevent potential negative consequences for the
environment and human health. Your old appliance may contain reusable parts that
could be used to repair other products, and other valuable materials that can be
recycled to conserve limited resources.
•You can take your appliance either to the shop where you purchased the product,
or contact your local government waste ofce for details of your nearest authorised
WEEE collection point. For the most up to date information for your country please
see www.lg.com/global/recycling.
INSTALLATION

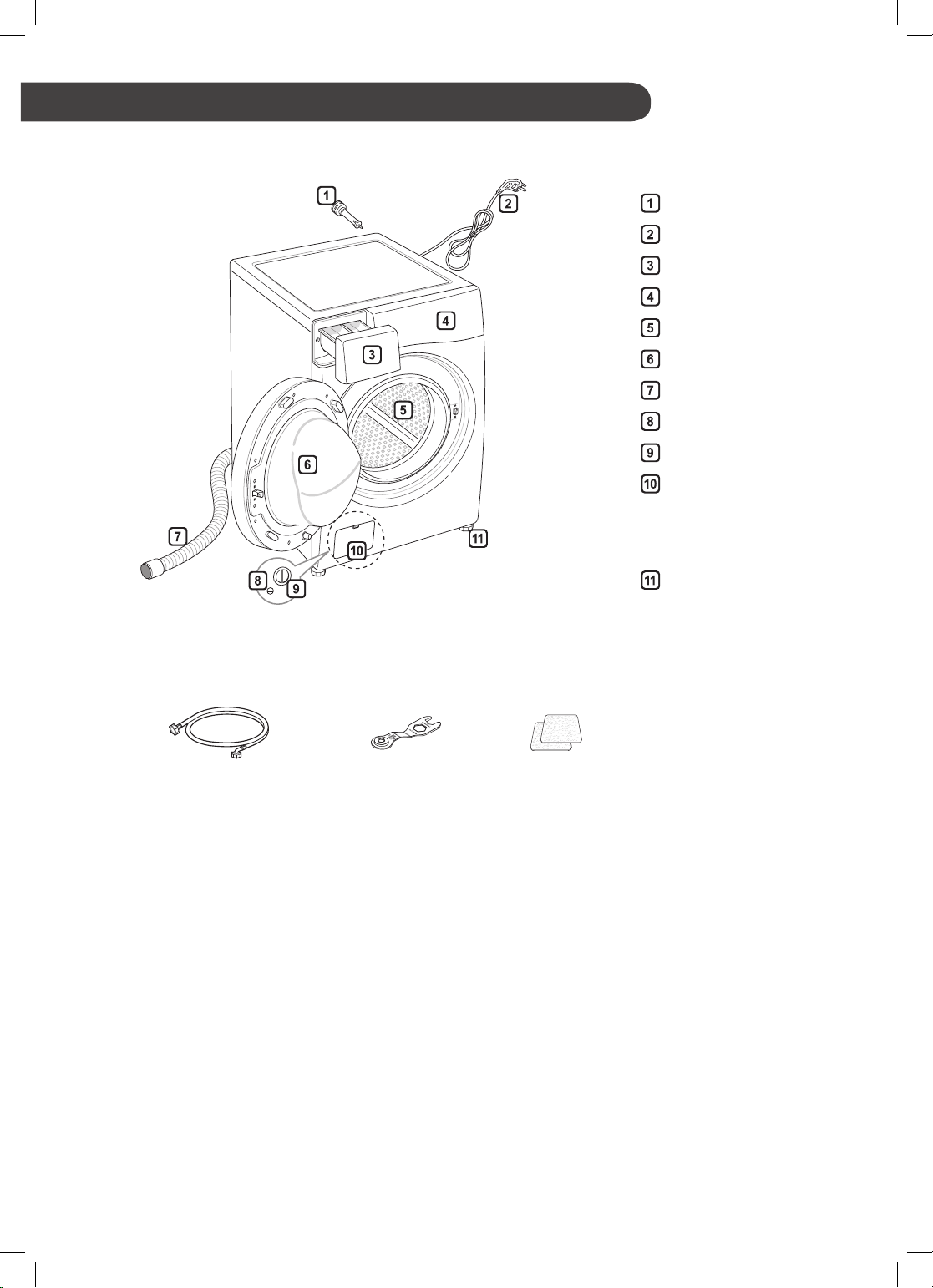

Parts
Transit bolts
Power plug
Drawer
Control panel
Drum
Door
Drain hose
Drain plug
Drain pump lter
Cover cap
(Location may
vary depending on
products)
Adjustable feet
Accessories
Cold supply hose (1EA)
(Option: Hot (1EA))
Spanner Anti–slip sheets (Optional)
EN
9
This manual suits for next models
119
Table of contents
Languages:
Other LG Washer manuals
Popular Washer manuals by other brands
Tricity Bendix
Tricity Bendix AW 1000 W Operating & installation instructions
Panasonic
Panasonic NA-F60L5WRB operating instructions
GE
GE WSLP1500 Dimensions and installation information
Electrolux
Electrolux EWF1284EDW Service manual
Bosch
Bosch WAN2829BSN User manual and installation instructions
VESTEL
VESTEL CMH-XL 7510 TE user manual
