LG PQWRHSF0 Quick start guide
ENGLISH
LG
Wireless Remote Controller
LG
IMPORTANT
• Please read this installation manual completely
before installing the product.
• Installation work must be performed in
accordance with the national wiring standards
by authorized personnel only.
• Please retain this installation manual for future
reference after reading it thoroughly.
Owner's & Installation Manual
Visit us at : http://www.lgservice.com
Models: PQWRHSF0
PQWRCSF0
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH
2Wireless Remote Controller
Wiress Remote Controller Owner’s & Installation Manual
TABLE OF CONTENTS
■Safety Precautions..............................................................3~4
■Part Description ..................................................................5~6
■Installation Method .................................................................7
■How to use the Mode Selection Button...........................8~18
• Cooling Operation ....................................................................................8
• Auto-Operation .........................................................................................9
• Auto Changeover Operation(Heat Pump Model Only) ........................10
• Healthy Dehumidification Operation ....................................................11
• Heating Operation(Heat pump model only) .........................................12
• Jet Cool Operation .................................................................................13
• NANO PLASMA Purification Operation ................................................14
• 2nd F Operation......................................................................................15
• Additional features...........................................................................16~18
• Setting the Central-Control Address ...................................................18
Safety Precautions
Owner’s & Installation Manual 3
ENGLISH
■Installation
■Operation
Safety Precautions
• The installation requires expert skills, and it should be installed by the service center or other shops specialized
in the installation and recognized by our company.
• For all the problems arising after installation by someone who has no relevant qualifications, LG will not provide
free service.
• The following safety cautions are provided to prevent unexpected dangers or losses.
: If the user does not follow the mandatory items, it may result in serious injury or death.
: If the user does not follow the mandatory items, it may cause personal injury or property
damage.
: Warning and Caution are to call the user’s attention to the possible danger. Read and follow
them carefully in order to prevent a safety accident.
: Warning and Caution are indicated in this guide and the product itself to help protect the users
from danger.
WARNING
CAUTION
WARNING
Do not recharge or disassemble the batteries. Do
not dispose of batteries in a fire.
They may burn or explode.
If the liquid from the batteries gets onto your skin
or clothes, wash it well with clean water. Do not
use the remote if the batteries have leaked.
The chemicals in batteries could cause burns or
other health hazards.
Replace the all batteries in the remote control
with new ones of the same type. Do not mix old
and new batteries or different types of batteries.
There is risk of fire or explosion
Do not disassemble, repair, or modify the product
at your discretion in order to prevent fire or an
electric shock.
Safety Precautions
4Wireless Remote Controller
Push the button at one time.
There will be no operation if
you Several buttons at one
time.
Do not drop or throw the
remote Controller. Do not give
any strong impact and Put
your foot it.
Do not use this at the moisture
and Humidity places.
Do not use this at heating and
Firing conditions.
Do not place the remote
controller in a location exposed
to direct sunlight
Aim at the signal receptor on
the wiress remote controller so
as to operate
Only
One
Signal receptor
Signal receptor
7m
Signal receptor
The remote control signal can be received at a
distance of up to about 7m
Be sure that there are no obstructions between
the remote controller and the signal receptor
Block a strong light over the signal receptor with a curtain or etc. so as to prevent the abnormal operation.
(ex:electronic quick start, ELBA, inverter type fluorescent lamp)
CAUTION

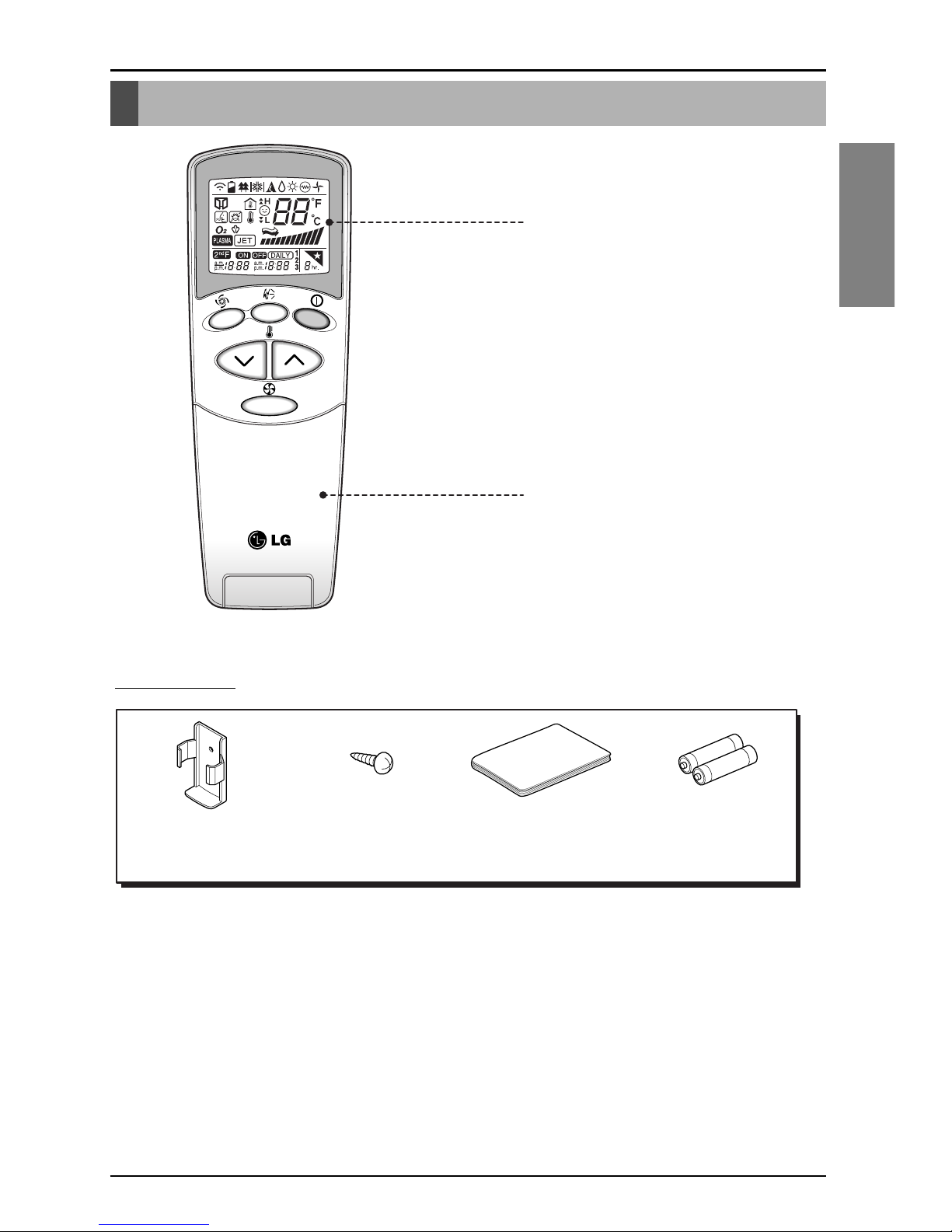

Part Description
Owner’s & Installation Manual 5
ENGLISH
Flip-up door(Closed)
Wireless Remote Controller
LCD Screen
Part Description
Accessory
Holder(1EA) Fixing Screw (2EA) User / Installation
Manual
AAA(1.5V)
Batteries(2EA)
Part Description
6Wireless Remote Controller
Wireless Remote Controller
Flip-up door
(opened)
Signal transmitter
ON OFF
CANCEL
AUTO CLEAN
SET
51
3
10
9
17
12
14
16
6
4
2
7
11
8
13
15
Cooling Operation
Auto Operation or Auto Changeover
Healthy Dehumidification Operation
Heating Operation
•
Cooling Model( ), Heat Pump Model( )
Operation Mode
1. Start/Stop Button
Operation starts when this button is pressed.
2. Operation Mode Selection Button
Used to select the operation mode.
3. Room Temperature Setting Buttons
Used to select the room temperature.
4. Indoor Fan Speed Selector
Used to select fan speed in four steps low,
medium, high and Chaos.
5. Jet Cool
Speed cooling/heating operates super high fan
speed.
6. Chaos Swing Button
Used to stop or start louver movement and set
the desired up/down airflow direction.
7. On/Off Timer Buttons
Used to set the time of starting and stopping
operation.
8. Time Setting Button
Used to adjust the time.
9. Timer Set/Cancel Button
Used to set the timer when the desired time is
obtained and to cancel the Timer operation.
10. Sleep Mode Auto Button
Used to set Sleep Mode Auto operation.
11. Air Circulation Button
Used to circulate the room air without cooling or
heating.
12. Room Temperature Button
Used to set the desired horizontal airflow
direction.
13. Plasma
Used to start or stop the plasma-purification
function.
14. Horizontal Airflow Direction Control Button
Used to set the desired horizontal airflow
direction.
15. Reset Button
Initialize remote controller.
16. 2nd F Button
Used prior to using modes printed in blue at the
bottom of buttons.
17. Auto Clean
Used to set Auto Clean mode.
To use the functions printed in blue at the bottom of the buttons press 2
nd
F button first and then the required function
button. Pressing the 2
nd
F button activates the blue printed function of the respective button. To cancel the function
press the 2nd F button again else it will automatically cancel if remains idle after 10 seconds.
NOTE
Insert Pull
Wall
Installation Method
Owner’s & Installation Manual 7
ENGLISH
How to mount on a wall
How to insert batteries
Installation Method
To insert the remote control to the holder.
Use the screws to secure the holder to the wall or attach the holder side of indoor unit.
1
2
1. Remove the cover from the back of the
remote controller.
•Slide the cover according to the arrow
direction.
2. Insert two batteries.
•Be sure that the (+) and (-) directions are
correct.
•Be sure that both batteries are new.
3. Re-attach the cover.
•Slide the cover into back position.
•Do not use
rechargeable batteries
such batteries are
different from standard
dry cells in shape,
dimensions, and
performance.
•Change the batteries
with a new one if the
remote control does not
work properly after
using for an extended
length of time.
How to use the Mode Selection Button
8Wireless Remote Controller
How to use the Mode Selection Button
Cooling Operation
ON
Cooling
Healthy
Dehumidification
Auto
Heating
(Heat pump model only)
To lower the temperature
To raise the temperature
Open the door on the Remote Controller. To select Cooling
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is shifted
in the direction of the arrow.
Set the temperature lower than the room temperature.
The temperature can be set within a range of 18°C~30°C in
1°C.
You can select the fan speed in four
steps-low, medium, high, or CHAOS. Each
time the button is pressed, the fan speed
mode is shifted.
Natural wind by the CHAOS logic
❏For more fresh feeling, press the Indoor Fan Speed Selector and set CHAOS mode. In this mode, the wind
blows like natural breeze by automatically changing fan speed according to the CHAOS logic.
Press the Start/Stop button.
The unit will respond with beep sound.
1
2
3
4
How to use the Mode Selection Button
Owner’s & Installation Manual 9
ENGLISH
Auto Operation
ON
Cooling
Healthy
Dehumidification
Auto
Heating
(Heat pump model only)
To lower the temperature
To raise the temperature
Press the Start/Stop button.
The unit will respond with beep
sound.
Open the door on the Remote Controller. To select Auto
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.
The temperature and fan speed are automatically set by the
electronic controls based on the actual room temperature. If
you want to change the set temperature, press the Room
Temperature Setting buttons. The set temperature will be
changed considering room temperature.
DURING AUTO OPERATION:
❏You cannot switch the indoor fan speed. It has already been set by the Fuzzy rule.
❏If the system is not operating as desired, manually switch to another mode. The system will not
automatically switch from the cooling mode to the heating mode, or from heating to cooling, then you must
set the mode and the desired temperature again.
❏During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and down
automatically. If you want to stop auto-swing, press the chaos swing button again.
1
2
3
Auto changeover operation(Heat pump model only)
ON
Cooling
Healthy
Dehumidification
Auto
changeover
Heating
(Heat pump model only)
To lower the temperature
To raise the temperature
How to use the Mode Selection Button
10 Wireless Remote Controller
Press the Start/Stop button.
The unit will respond with
a beep.
Open the door of the remote controller. To select Auto Changeover
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is shifted in the
direction of the arrow.
1
2
Close the door of the remote controller. Set the temperature
lower than the room temperature. The temperature can be
set within a range of 18°C~30°C at intervals of 1°C.
Set the fan speed again with the door
of the remote controller still closed.
You can select the fan speed in four
steps-low, medium, high and CHAOS.
Each time the button is pressed, the
fan speed mode is shifted.
3
4
During Auto changeover Operation
The air conditioner changes the operation mode automatically to keep indoor temperature. When room
temperature vary over ±2°C with respect to setting temperature, air conditioner keeps the room
temperature within ±2°C with respect to setting temperature by auto changeover mode.
Other manuals for PQWRHSF0
1
This manual suits for next models
1
Table of contents
Other LG Remote Control manuals
LG
LG Premium Magic Remote PM20GA Operation manual
LG
LG Magic Remote Owner's manual
LG
LG Magic Remote Operation manual
LG
LG AKB732955 Operation manual
LG
LG AKB32977003 User manual
LG
LG AN-MR300 User manual
LG
LG Magic Remote AN-MR300 User manual
LG
LG PQRCUSA0 Quick start guide
LG
LG ARUN100LT2 Quick start guide
LG
LG PQRCHCA0Q Quick start guide
LG
LG AN-MR600 Operation manual
LG
LG PQWRCDF0 Quick start guide
LG
LG Magic Remote User manual
LG
LG AN-PM19BA Operation manual
LG
LG Magic Remote User manual
LG
LG PREMTB001 Quick start guide
LG
LG ZENITH 27FB32COM Operating and maintenance manual
LG
LG EM9600 User manual
LG
LG Magic Remote MR23GN User manual
LG
LG MR20GA User manual
