LG MAGIC REMOTE AN-MR300 User manual
OWNER’S MANUAL
MAGIC REMOTE
AN-MR300
Remote control (AN-MR3004)
RF Dongle (AN-MR300C)
www.lg.com
MY APPS
❶
❷❺
❻
❹
❼
❽
❾
❸
P/NO : MBM51168845(1204-REV01)
2
A
R
P
d
P
-
-
-
-
-
-
<ENGLISH>
Remote Description
❶POWER : Turns the TV on or off.
❷BACK : Returns to the previous menu.
❸Wheel (OK) : The pointer will then appear on
the screen.
Selects menus or options and con-
firms your input. Scrolls through the saved chan-
nels. If you press the navigation button while mov-
ing the pointer on the screen, the pointer disap-
pears, and the Magic remote control works as a
regular remote control. To display the pointer again,
shake the Magic remote control from side to side.
When you click on the wheel while watching normal
programming, a guide will appear on the bottom of
your TV screen. If you follow the gesture commands
you can view previous channel and recently viewed list.
❹RF & Bluetooth transmitter indicator
Blinks when the remote is sending a signal to the TV.
❺HOME : Accesses the Home menu.
❻Navigation (up/down/left/right)
Scrolls through menus or options.
❼VOL (+/-) : Adjusts the volume level.
CH
(
∧/∨) : Scrolls through the saved program or channels.
MUTE :
Mutes all sounds.
M
(
3
❽See MY APPS / Q.MENU.
❾See User guide.
Accessories
RF Dongle
PM6800 / PM6700 / PM4710 / PM4700 don’t need this
device. PDP TV is built in.
PRECAUTIONS TO TAKE
-
Use the remote control within the maximum communication
distance ( 10 m, 32.8 ft ).
-
A communication failure may occur due to nearby devices.
-
It is recommended that your wireless access point be located
more than 1 meter away from the TV ( 3.28 ft )
.
-
Do not dismantle or allow the battery to get too hot.
-
Do not drop battery or exert extreme impact that may cause the
case to be damaged.
-
There is danger of leakage if the battery is inserted backwards.
Cable IN
Lamp
ENGLISH
Magic remote control and
Alkaline Batteries (AA)
(Depending on country)
Owner’s
manual RF Dongle RF Dongle
Cable Velcro
4

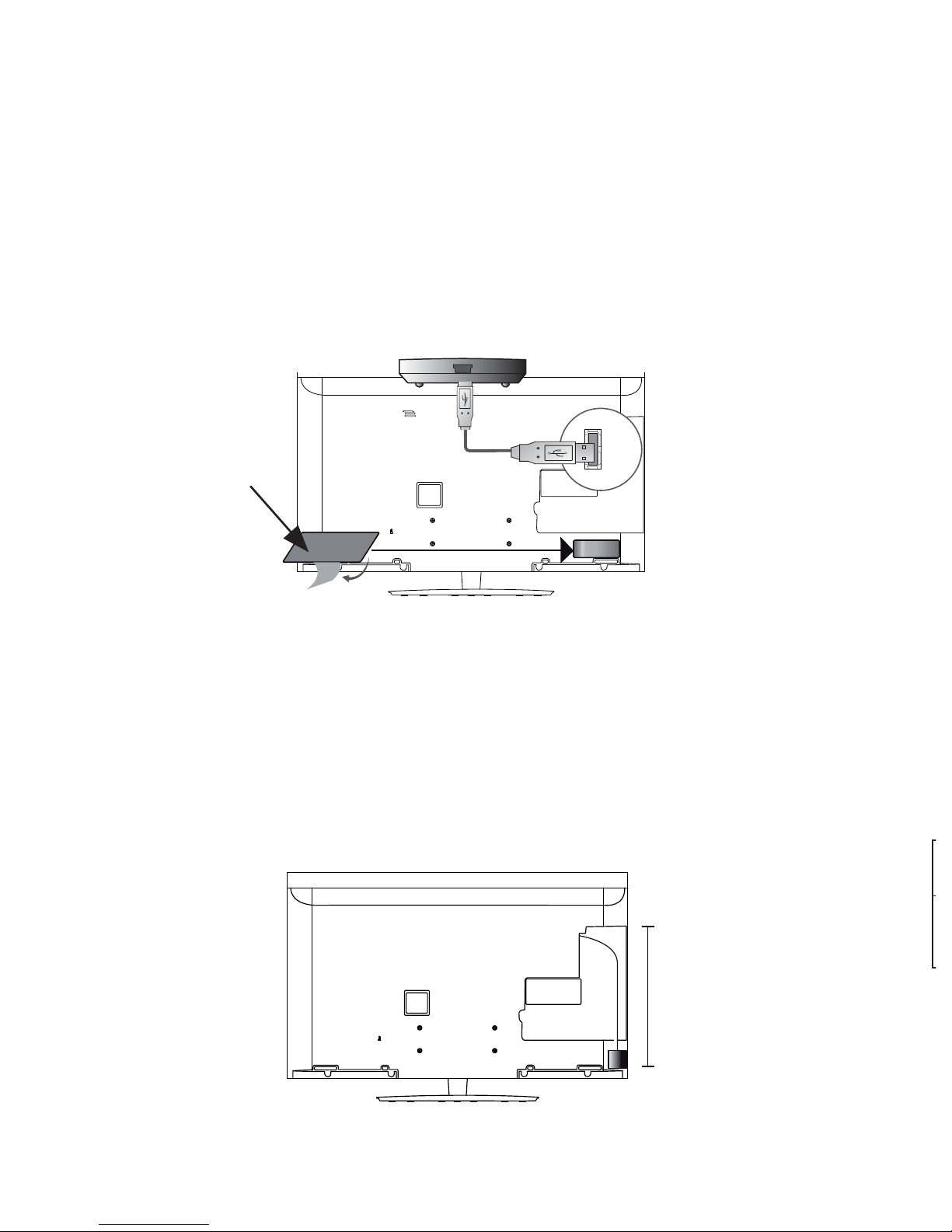

Installing RF Dongle
Image shown may differ from your TV.
1
Locate the designated Velcro attachment location on the
TV. Then tear off the protection paper and attach the Velcro.
(The attachment location is different depending on the TV
model you own)
2 Connect the RF Dongle Cable plug on the RF Dongle to a
USB or USB Apps jack on the TV.
3 Attach the RF Dongle to the velcro as shown below and
then turn on the TV.
4 Make sure that your TV is turned on and then register the
Magic Remote Control with your TV after 20 seconds.
* If the RF Dongle for the wireless media box is attached,
attach the RF Dongle for the Magic remote control on the
below right of the back of the TV.
* To avoid wireless interference, keep the distance between
the Wi-Fi dongle and the remote RF dongle over 20 cm.
R
T
u
ꔛ
ꔛ
ꔛ
ꔛ
I
ꔛ
T
P
d
*
※
20cm
Velcro
86%
5
o
.
RF Specification
The Magic remote control communicates with the RF Dongle
using a Bluetooth Version3.0 .
ꔛOutput Power (Max.) : 10 dBm or lower
ꔛ
Maximum Communication Distance :
Line of Open Sight approx. 10 m (30 ft)
ꔛFrequency Range : 2.400 GHz ~ 2.4835 GHz
ꔛData Rate (Max.) : 3 Mbps
Installing Batteries
ꔛ
To replace batteries, open the battery cover, replace
Alkaline batteries (1.5 V AA) matching and ends to the
label inside the compartment, and close the battery cover.
Don’t mix old or used batteries with new ones.
To use the pattern gesture function
Press the Wheel (OK) with the normal video screen on and
draw a pattern toward the screen.
Previous channel : Moves back to the previous channel.
Recent list : Shows channels recently watched.
* Gestures may not work when certain windows are open.
※Button labels on the remote control may differ depending
on the region.
ENGLISH
