LG AKB32977003 User manual
AKB32977003/AKB32977004 Remote Controller
INSTRUCTION MANUAL
P/No.: MFL38235803
Remote Controller AKB32977003 (no sweep) and
AKB32977004 (with sweep) is a two-piece fan
coil thermostat for air conditioner.
Display unit Econo3
1. Power
Press
POWER
button to turn on/off the
air conditioner.
2. Fan
Use
FAN
switch to select the fan speed
(high, medium, low).
HIGH MEDIUM LOW
3. Temperature setting
Rotate
TEMPERATURE
knob to set the
temperature.
4. Sweep (Model AKB32977004)
Use
SWEEP
switch to turn on/off the sweep
motor.
5. Mode
Use
SYSTEM
switch to select
Cool mode: the system will operate as
Cooling unit.
Fan mode: the system will operate as Fan
only.
6. Compressor Status
COMP. indicator is lit when the compressor is
operating.
All manuals and user guides at all-guides.com
all-guides.com

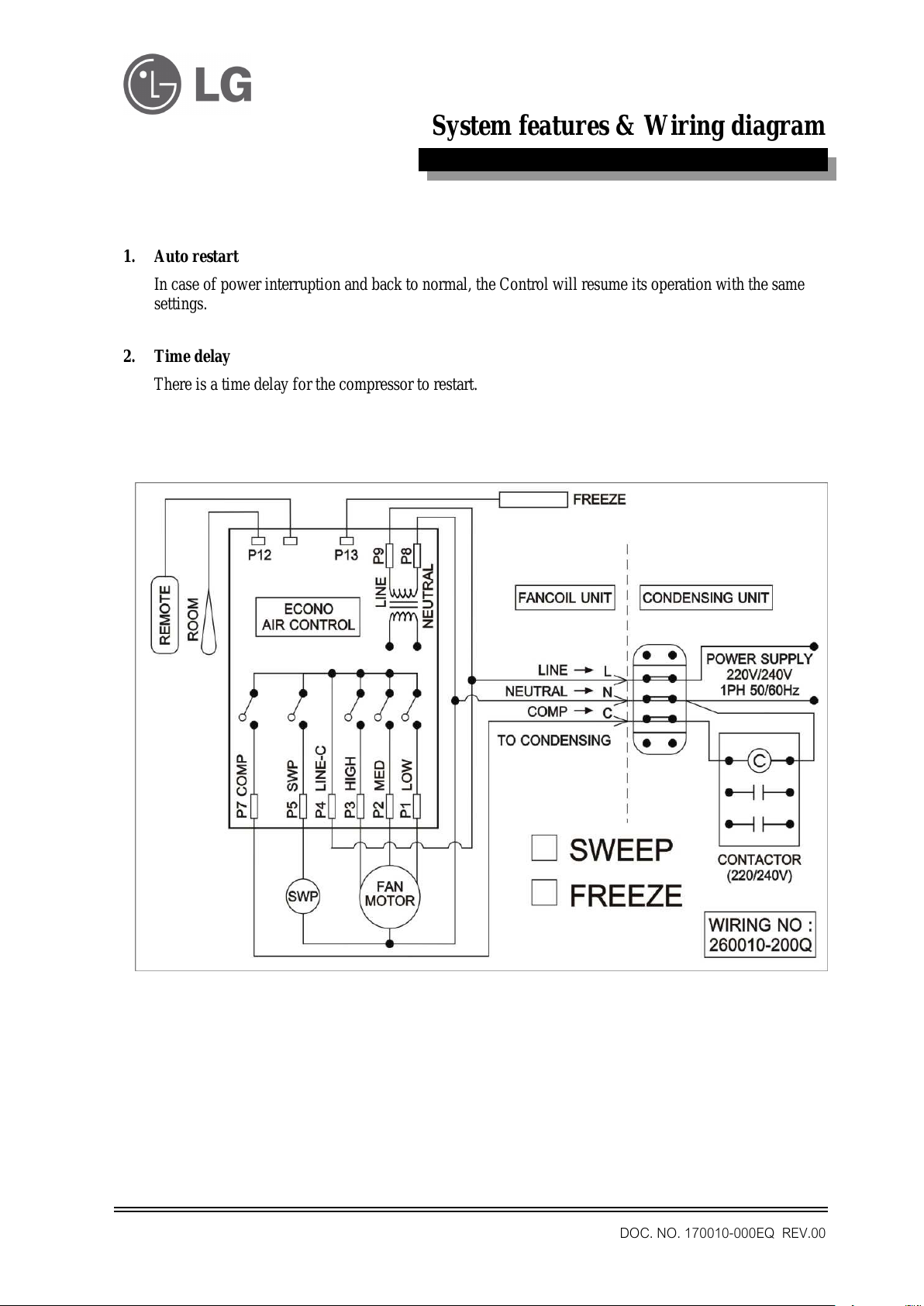

System features & Wiring diagram
DOC. NO. 170010-000EQ REV.00
1. Auto restart
In case of power interruption and back to normal, the Control will resume its operation with the same
settings.
2. Time delay
There is a time delay for the compressor to restart.
All manuals and user guides at all-guides.com
AKB32977003/AKB32977004 Remote Controller
INSTRUCTION MANUAL
P/No.: MFL38235803
Remote AKB32977003 (no sweep) AKB32977004
(with sweep)
Display unit Econo3
1. Power
POWER /
2.
Fan
FAN
(high, medium, low)
HIGH MEDIUM LOW
3. Temperature setting
TEMPERATURE
4. Sweep (Model AKB32977004)
SWEEP -
5. Mode
SYSTEM
Cool
Fan
6. Compressor Status
COMP.
All manuals and user guides at all-guides.com
System features & Wiring diagram
DOC. NO. 170010-000EQ REV.00
1. Auto restart
2. Time delay
All manuals and user guides at all-guides.com
