Leviton DMX-512 User manual

OPT 7512

DMX512 KIT

INSTALLATION GUIDE

DI-400-A7512-01B

INSTALLING THE OPT 7512 DMX512 KIT ON MC 1616 CONSOLE

1. Remove screws from bottom of the MC 1616 Console and remove bottom cover.

2. Remove the 2 screws securing the DMX512 option plate and remove cover plate.

3. Insert the DMX512 5-pin connector through the mounting hole and install the hardware provided as shown.

4. Connect cable from DMX512 connector to 5-pin connection as per illustration.

5. Install 485 (3695) IC into 8-pin socket (U46) as shown, being sure to observe the orientation of the notch or dimple.

6. Replace the bottom cover and secure.

7. Since DMX512 does not provide phantom power like Micro-plex, the included power supply is required to power the

console.

JP4

JP1

AUDIO IN

JP3

U46

JP2

MIDI-IN MIDI-OUT MIDI-THRU

P3P2

USH

PLEX

X P

WER I

TEM

NFI

DMX

OUT

MIDI THR

MIDI

OUT

MIDI IN

LEVITON MF

. CO.

INC

TUALATIN

RT 1-

800

4-2

502

+ 12-1

5-pin connection

4Install DMX512 connector thru

mounting hole with flange to

outside of chassis

Install 485 (3695) IC here

(Observe notch or dimple location)

Bottom view.

Back of PC board exposed with bottom of unit removed.

Leviton NSI Division Headquarters

20497 SW Teton Avenue, Tualatin, OR 97062

Customer Service Telephone: 800.736.6682

Customer Service Fax: 503.404.5594

Technical Services: 800.959.6004

Leviton Manufacturing Company, Incorporated.

59-25 Little Neck Parkway, Little Neck, NY 11362-2591.

Visit Leviton’s websites at http://www.nsicorp.com &

http://www.leviton.com

Rights Reserved

Specifications and pricing subject to change at any time.

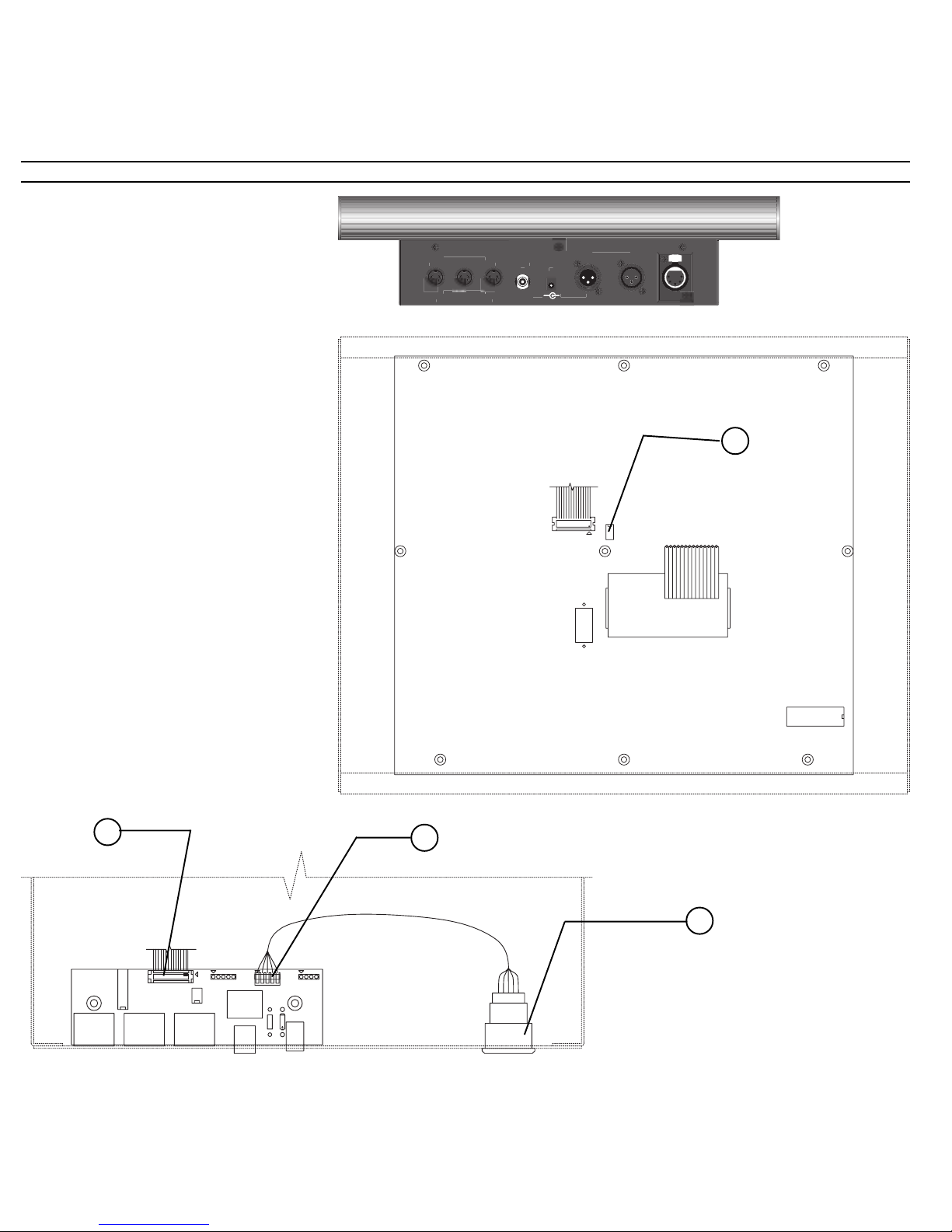

INSTALLING THE OPT 7512 DMX512 KIT ON MC 6300 CONSOLE

1. Remove 6 screws from bottom front lip and rear panel

of the MC 6300 Console and open top panel.

Disconnect data cable from I/O card (JP6) to remove

top panel.

2. Remove the 2 screws securing the DMX512 option

plate and remove cover plate.

3. Insert the DMX512 5-pin connector through the

mounting hole and install the hardware provided as

shown.

4. Connect cable from DMX512 connector to 5-pin

connection as per illustration.

5. Install 485 (3695) IC into 8-pin socket (U21) as shown,

being sure to observe the orientation of the notch or

dimple.

6. Replace top panel and secure.

7. Since DMX512 does not provide phantom power like

Micro-plex, the included power supply is required to

power the console.

USH

-PLEX

OUT

LEVITON MFG. CO., INC.

TUALATIN

RT: 1-

800

4-2

502

+ 12-1

THR

OUT

MIDI

NNE

TO I/O CARD

U21

TO MAIN BOARD

MIDI THRU MIDI OUT MIDI IN

MICROPLEX DMX512

AUDIO IN

JP6

R57

J5 J4 J1 J3

+ 12-15 VDC

JP4

JP5

JP3

IS01

5-pin connection

Install DMX512 connector thru

mounting hole with flange to

outside of chassis

Bottom view.

Back of PC board exposed with bottom of unit removed.

Install 485 (3695) IC here

(Observe notch or dimple location)

Data cable connection

DI-400-A7512-01B

Front Panel

FOLD SCHEME

8.5¨

Fold Line

Panel Line

Cat. No.

DOCUMENTATION

LEVITON INSTRUCTION SHEET/MANUAL

SPECIFICATIONS

08/02/04

Helvetica

DI-400-A7512-01B

Black

4855049

Final fold size:

20 Lb. offset

2.83" X 4.25"

Overall size:

8.5" X 8.5"

Paper size:
