Lenze L-force 8400 Series User manual

安装指导

EDK84VxCC153xxB

.Nö[

Ä.Nö[ä

8400 0.25 ... 45 kW



E84AVxCCxxxx Cold Plate

变频器

Frequency Inverter

Mounting Instructions

L-force Drives







2EDK84VxCC153xxB EN/ZH 5.0

s

警告>

运行本设备需根据硬件手册中所提供的详细安装和操作说明来使用。本设备包装中包

含提供此说明的光盘。请始终保存该光盘。关于此说明的复印件，请通过电话或邮件

索取，详细联系方式见文档背面。

危险>

危险电压

ƒ电源端子uNMM 和uNMR 在电源断开 P分钟之内会继续保持危险电压。

可能的后果：

ƒ如果触到电源端子，可能会造成死亡或严重受伤

保护措施：

ƒ切断电源电压，再开始操作设备之前等待至少P分钟。

ƒ检查所有电源端子都已不带电。

请也遵循 `a 光盘中有关设备和安全技术的更多相关信息>



3

EDK84VxCC153xxB EN/ZH 5.0

V

Warnings!

Operation of this equipment requires detailed installation and operation instructions

provided in the Hardware manual intended for use with this product. This information

is provided on the CD-ROM included in the container this device was packaged in. It

should be retained with this device at all times. A hard copy of this information may

be ordered by phone or e-mail, printed on the back of this document.

Warnings!

Pour assurer le bon fonctionnement de cet équipement, se conformer aux instructions

d’installation et de mise en service contenues dans le manuel correspondant et

régissant l’utilisation de ce produit. Ces informations sont contenues sur le CD-ROM

compris dans l’emballage livré, qui doit être consultable à tout moment. Une version

papier de ces informations peut être commandée par téléphone ou par mail

(coordonnées figurant au dos du présent document).

Danger!

Dangerous voltage

ƒThe power terminals X100 and X105 carry dangerous voltages for up to 3 minutes

after mains disconnection.

Possible consequences:

ƒDeath or severe injury if the power terminals are touched.

Protective measures:

ƒSwitch off the mains voltage and wait at least 3 minutes before starting to work on

the device.

ƒCheck that all power terminals are deenergised.

Please also observe more important information on device and safety technology provided on the

enclosed CD-ROM!



0.25 … 3.0 kW



4EDK84VxCC153xxB EN/ZH 5.0



0.25 … 3.0 kW

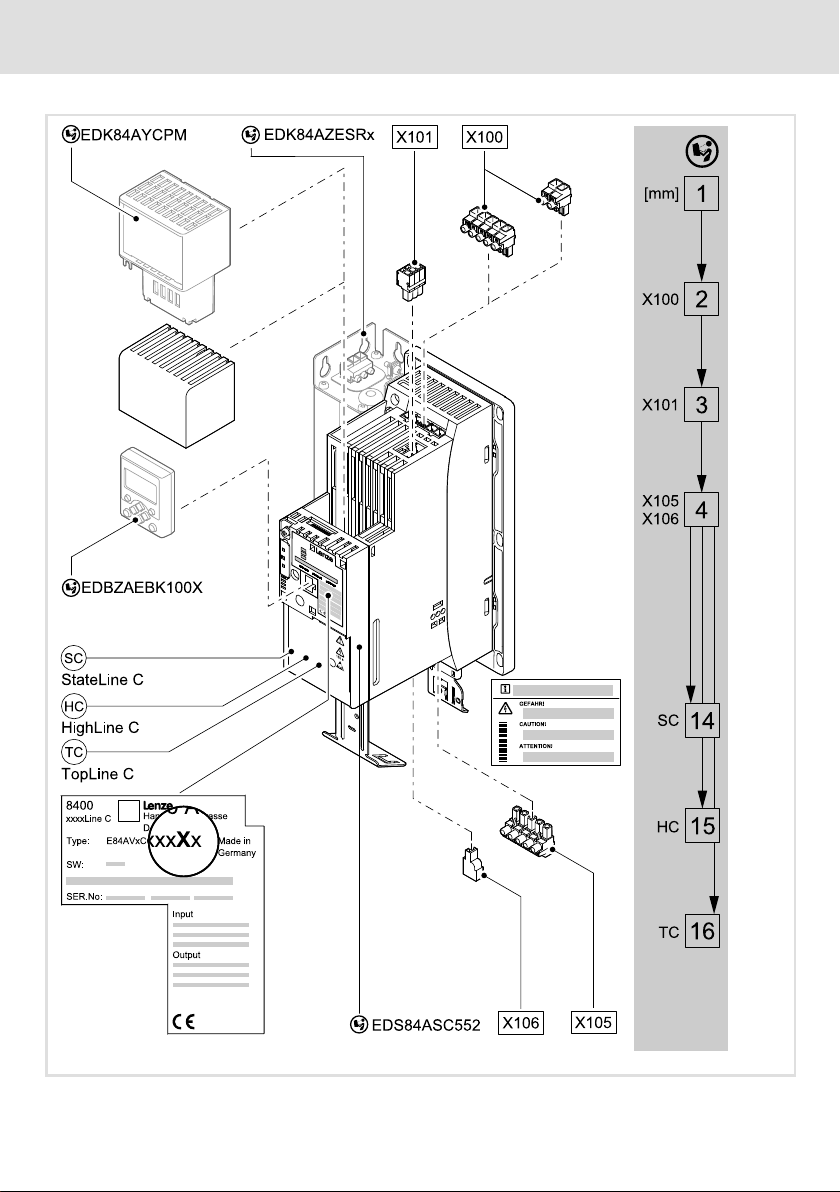

8400HLC075a



0.25 … 3.0 kW

5

EDK84VxCC153xxB EN/ZH 5.0

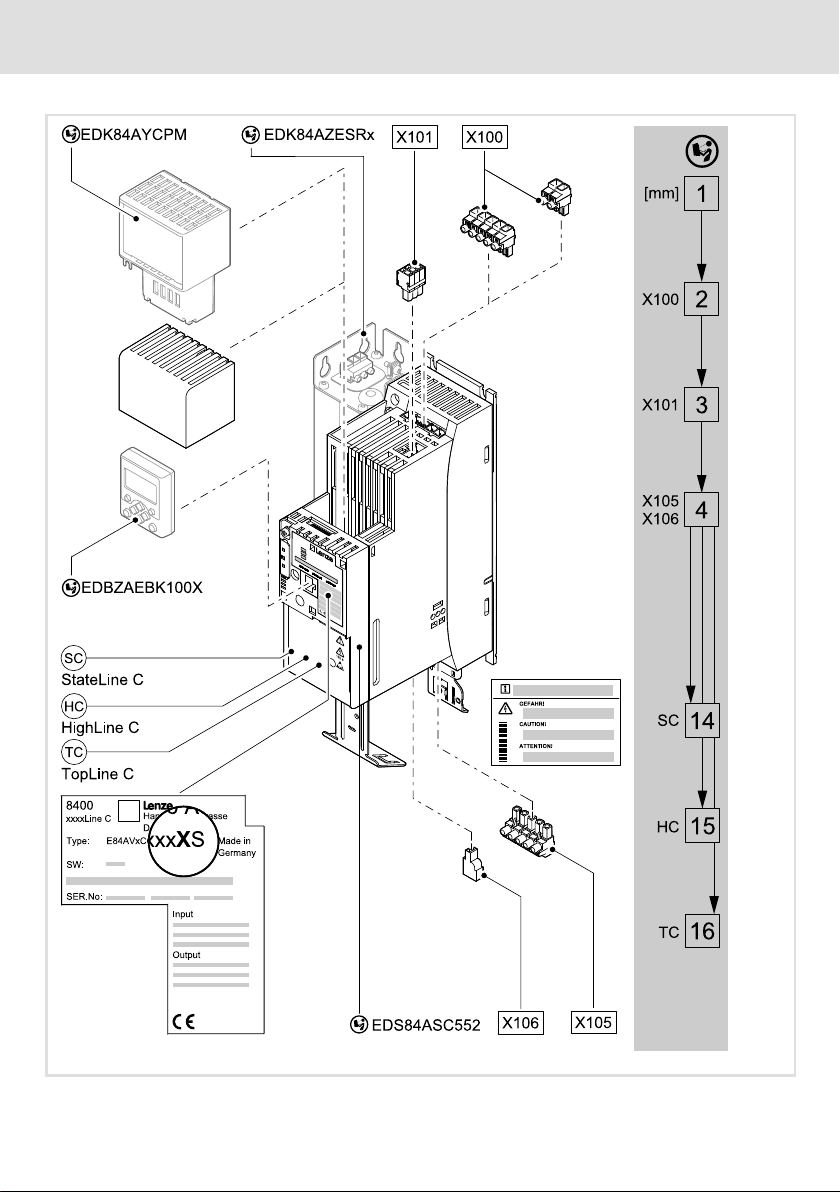

8400HLC082a



0.37 … 3.0 kW



6EDK84VxCC153xxB EN/ZH 5.0

0.37 … 3.0 kW

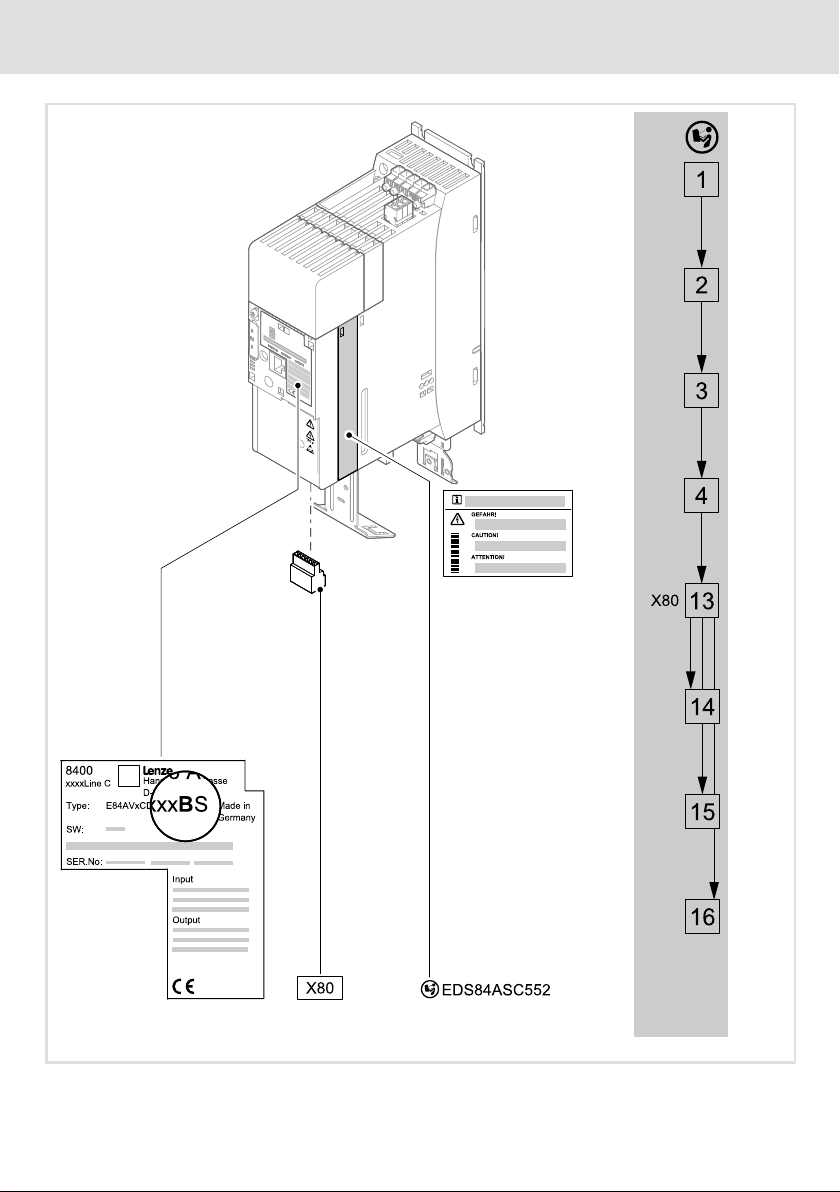

8400HLC075b



0.37 … 3.0 kW

7

EDK84VxCC153xxB EN/ZH 5.0

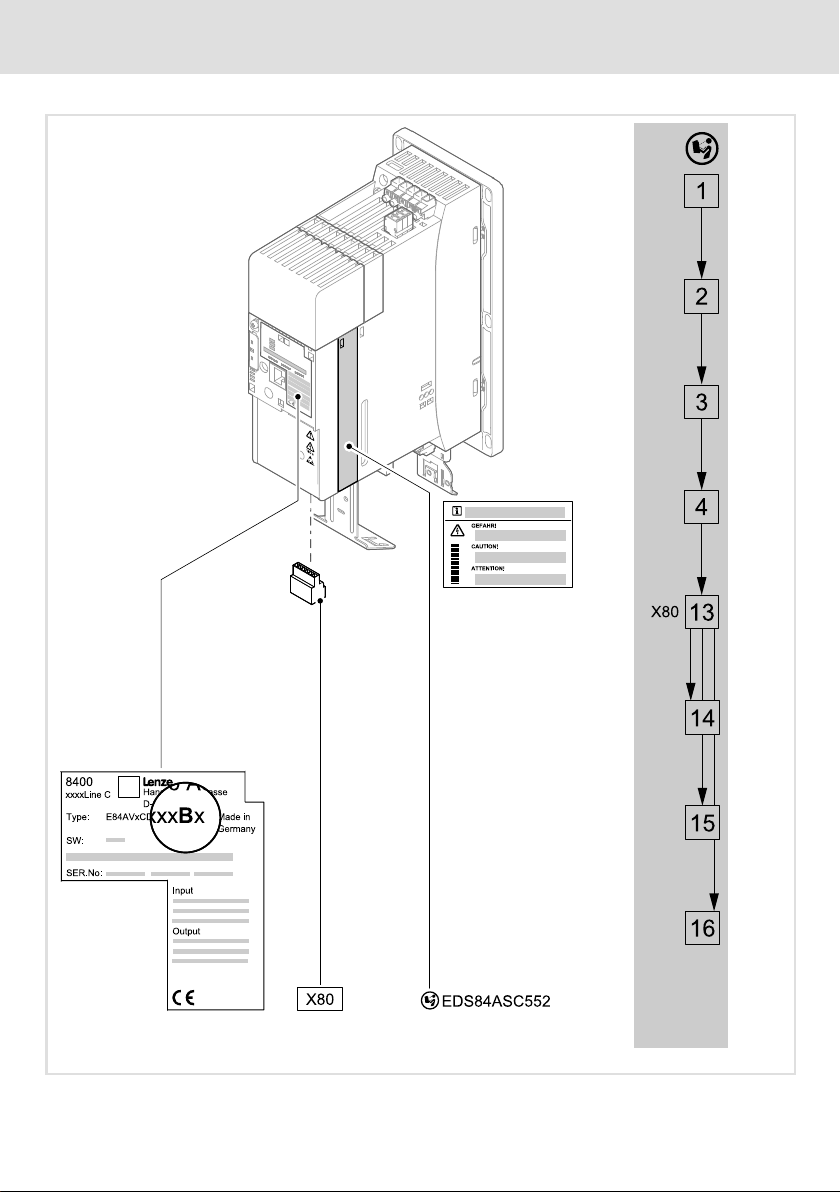

8400HLC082b



3.0 … 22 kW



8EDK84VxCC153xxB EN/ZH 5.0

3.0 … 22 kW

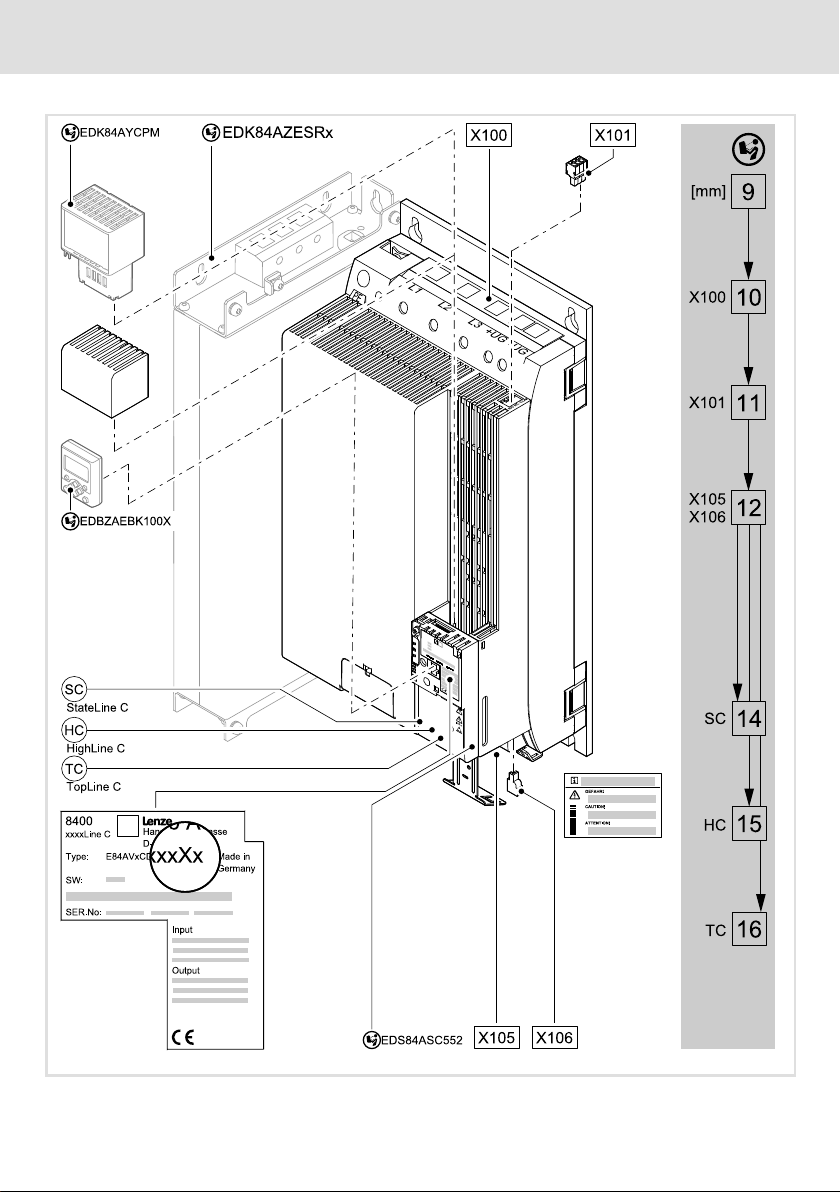

8400HLC076



3.0 … 22 kW

9

EDK84VxCC153xxB EN/ZH 5.0

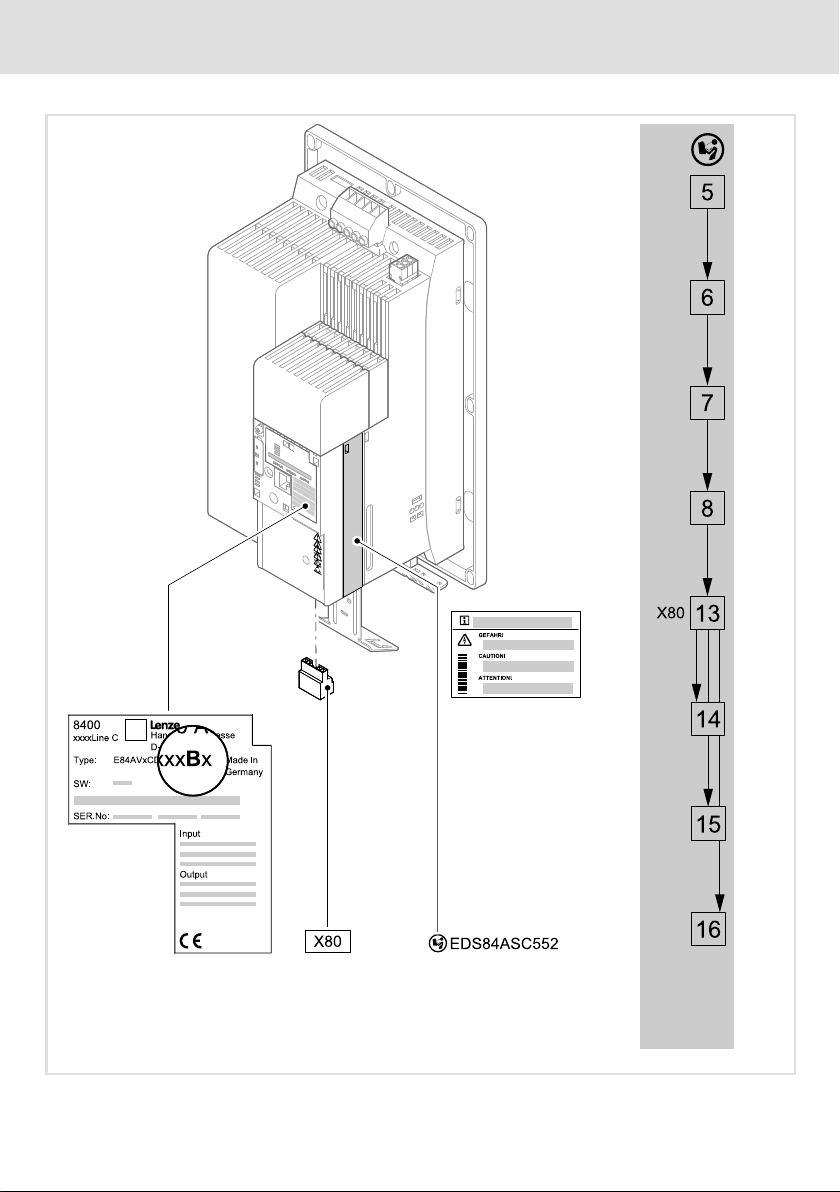

8400HLC083



30 … 45 kW



10 EDK84VxCC153xxB EN/ZH 5.0

30 … 45 kW

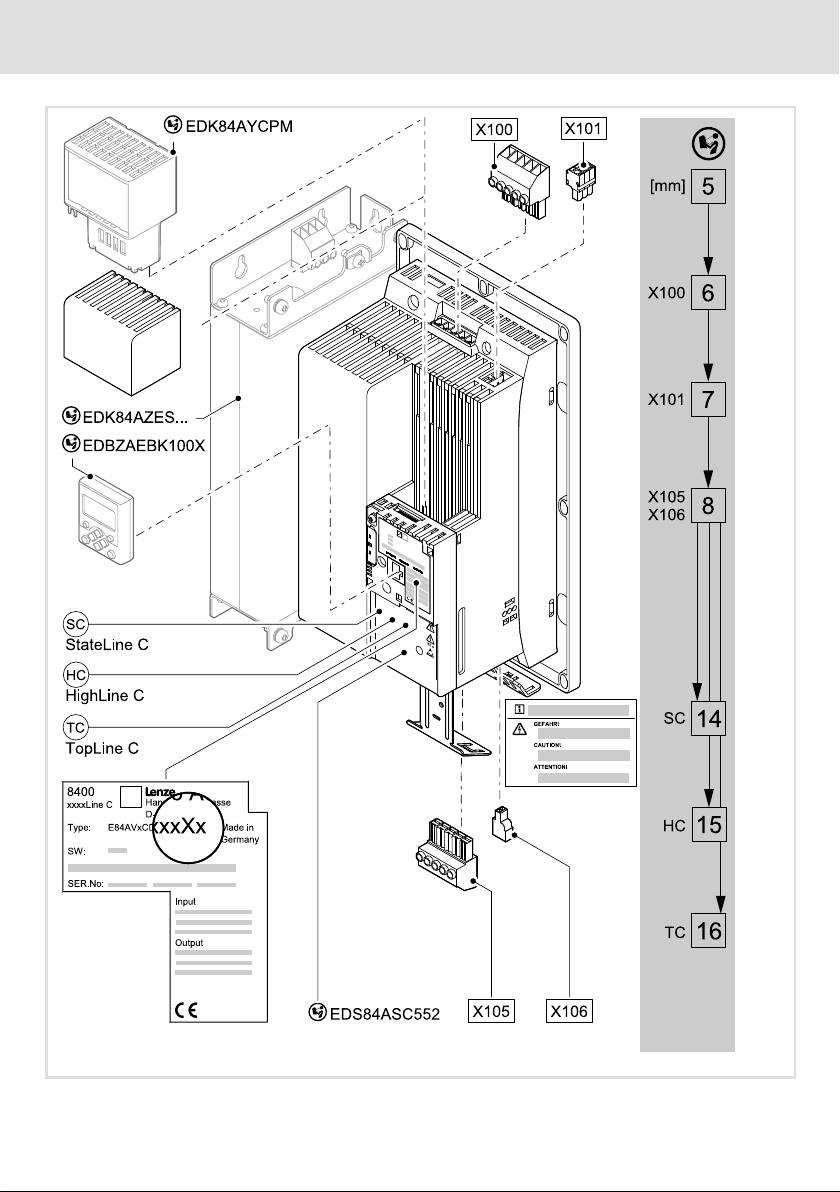

8400GG066
