Lenovo ThinkVision P24q-30 Instructions for use

Service Manual

1

P24q-30 Simplified service manual for dismantling

Model Name: Lenovo P24q-30

Service Manual

2

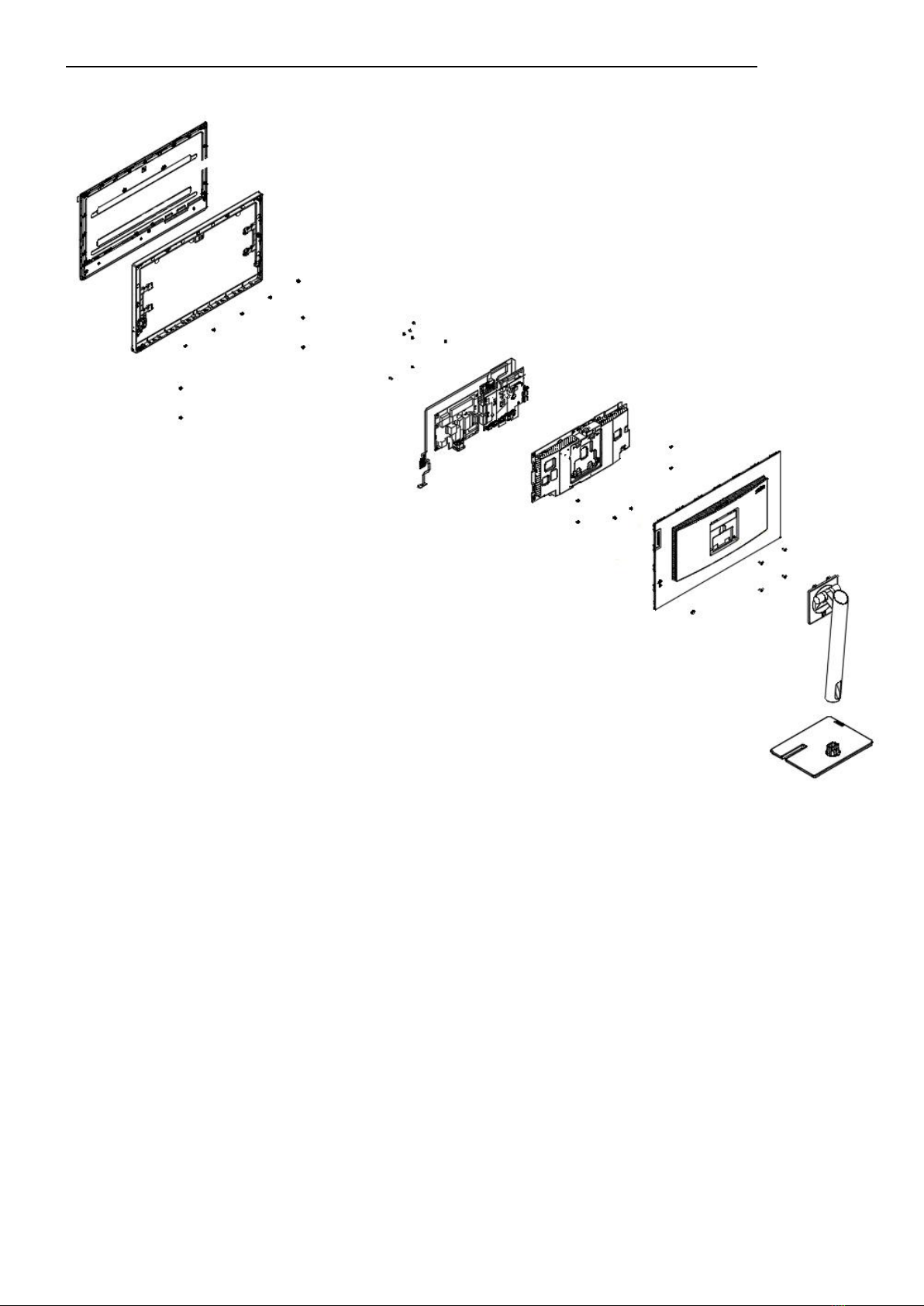

Exploded Diagram

Service Manual

3

1. Precaution

Please read the precaution as follows to prevent any damages to the LCD Monitor.

Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status.

Prepare soft cloth and

sponge as working

platform

to place LCD monitor

horizontally.

Hold LCD by the side

carefully and DON’T touch

or

press panel directly.

Service Manual

4

2. Appropriate tools

Select the Appropriate tools for disassembly and re-assembly.

Service Manual

5

3. Disassembly SOP

Put the monitor on a flat surface

(Put the pe bag under the monitor)

Push the button to release the stand

Remove the screw * 4pcs

Tool : Screwdriver #2

Use the C/D disassembly tool to

release Rear cover hook

Service Manual

6

Remove All tape and foil

Remove the screw.

Tool : Screwdriver #2

Remove the screw.

Tool : Screwdriver #0

Service Manual

7

Unplug LVDS line/power key pcb

line/light bar line

Release joy-stick key pcb and

power key pcb from the the middle

frame

Remove the Main chassis

Release the middle frame from the

Panel

Unplug power-pcb to if-pcb cable

Remove acetate tape and mylar

sheet from Main chassis

Service Manual

8

Remove All screw.

Tool : Screwdriver #2

Take out PCB and Peel off all

Gasket、mylar、thermal pads .

Take out the Thermal pads from

pcb
