Lenovo ThinkVision M14t Instructions for use

M14t Simplified service manual for dismantling

Model Name: Lenovo M14t

Exploded Diagram

1. Precaution

PleasereadtheprecautionasfollowstopreventanydamagestotheLCDMonitor.

Makesureallpowerconnectorisremoved.BesurethattheLCDMonitorisinpoweroffstatus.

Preparesoftclothand

spongeasworking

platform

toplaceLCDmonitor

horizontally.

HoldLCDbytheside

carefullyandDON’Ttouch

orpresspaneldirectly.

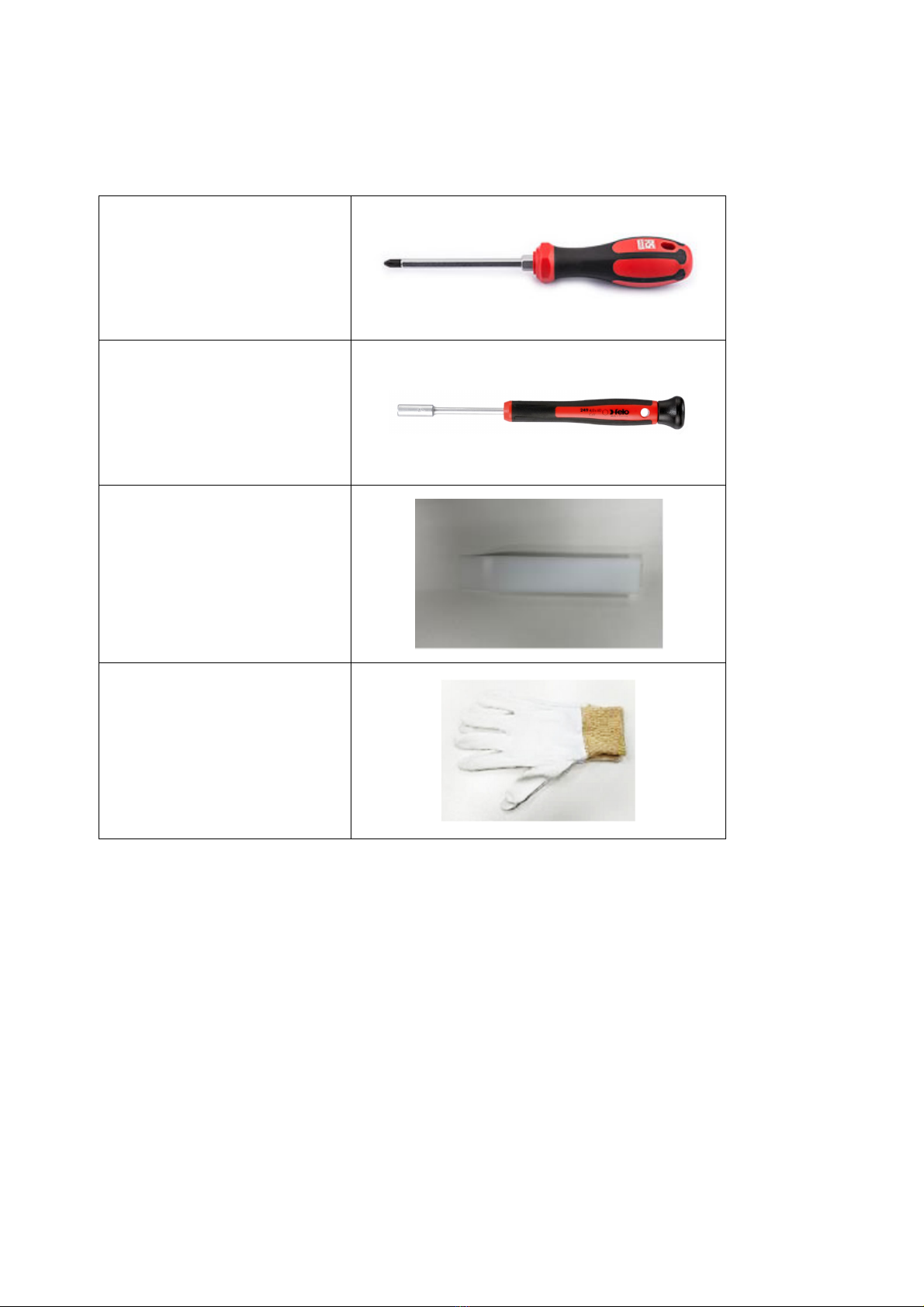

2. Appropriate tools

SelecttheAppropriatetoolsfordisassemblyandre-assembly.

Phillipsscrewdriver(#2)

spacerscrewdriver

C/Ddisassemblytool

Glovesorsoftcloth

3. Disassembly SOP

Remove the foot pad.

Remove the screw*6pcs to remove

the DIE-CASTING.

Tool : Screwdriver #2

Take off the tape and disconnect

the connector. Remove the

screw*6pcs to remove the hinge.

Tool: Screwdriver #2

Remove the screw*5pcs to remove

the hinge.

Tool: Screwdriver #2

The Panel
