LENCO XEMIO-106 User manual

Xemio-106/116/126/136

User's Manual

Notice: Thank your for choosing our product! Please read the user's manual

carefully to ensure proper operation.

Content

Precautions

System requirement

1. Installation instruction

1.1 Installing the driver

1.2 Installing the battery

2. Connecting/ downloading/ disconnecting

2.1 Connecting a PC

2.2 Downloading MP3 music

2.3 Removing USB device

3. Basic operation

3.1 Buttons and functions

3.2 Power on/off

3.3 Main menu setup

4. MP3 Player Operation

4.1Playing music

4.2 Voice mode

4.2.1 Playing voice

4.2.2 Recording

4.3 Function Setting

4.3.1 Setting EQ mode

4.3.2 Setting play mode

4.3.3 Setting contrast

4.3.4 Setting backlight

4. 3.5 Setting power set

4.3.6 Setting recording

4.3.7 Setting language

4.3.8 Exit

4.4 Intro

4.5 About

4.6 Folder function

4.7 Exit

5. A-B loop playing

6. Lock function

Lyric sync

USB mode

FAQ

Technical specifications

Precautions

1) Never use the player during driving or operating other vehicles to avoid traffic

accident, which is also restricted by the law in some districts. Even on foot, it is still

dangerous to listen in extremely high volume especially during crossing the street.

Wherever with potential risks, please stop using the player for safety purpose.

2) Please insert the earphone before powering on the player, which can not only

avoid damaging the earphone but keep the player in good condition.

3) Keep the player clean and away from heat source or direct sunlight, dirty, humid or

rainy place.

4) If the surface is dirty, please clean with soft cloth dipped with clean water or soft

abluent. Never clean the case with alcohol or diluents.

5) Never use the player in rather dry environment to avoid static.

6) Never disconnect the player from PC abruptly during downloading, uploading and

formatting to avoid application failure.

7) When the player is used as removable disk, please follow the proper file

download and upload procedures. Our company resumes no responsibility for any

file lost due to improper operation.

System requirement

System requirement of MP3 player:

Microsoft Windows 98/2000/Me/XP

Pentium 200MHZ or above.

USB

120MB hard disk space

Mouse installed

CD-ROM drive

1. Installation instruction

1.1 Installing driver only for Windows 98 (The driver can be downloaded from our

website: www.lenco-audiovideo.com. This driver is not required for Windows ME

or above)

a. Connect the MP3 Player to the USB port of a PC, "Find new hardware" appears

on the screen, then click "Search latest driver for this device", and then click

"Next".

b. Select "Look in" to select the directory where you unzipped the driver files, and

then click Yes.

c. PC will install the driver for Windows 98 automatically.

1. 2 Installing battery

 Install one #7 1. 5V alkaline battery properly upon indicator on the play.

 Press and hold the  button to power the player on and enter the MP3

standby mode.

2. Connecting and downloading

2.1 Connecting a PC

Before operation, please verify the player is powered off with one end of the USB

cable came with the system inserted into PC and another end into the MP3 player.

2. 2 Downloading MP3 music

 Connect MP3 player to the USB port of a PC

 Download MP3 music to MP3 player.

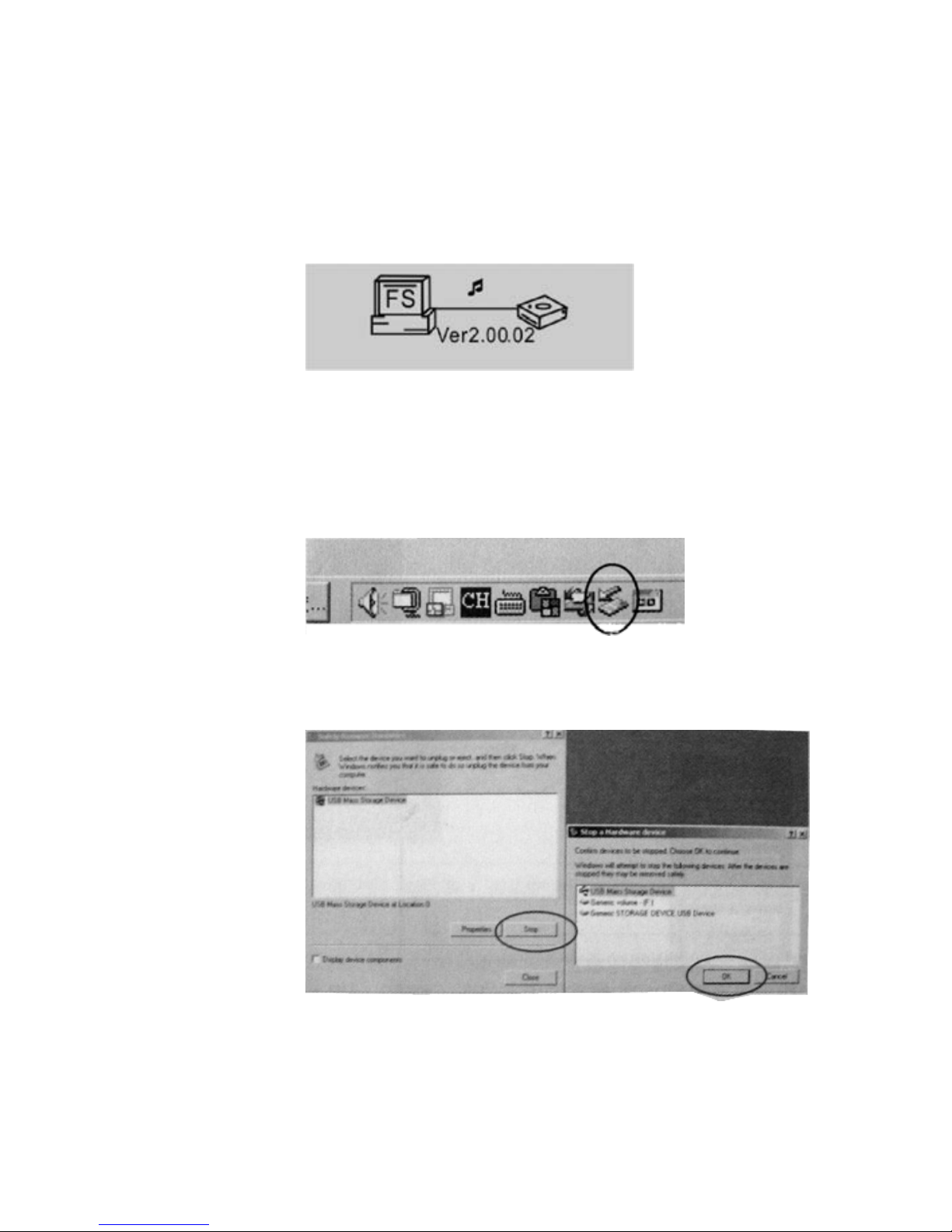

Data transmitting

Notice: If not all the downloaded files can be played, please verify there are not

more than 500 files on the MP3 player. This is the maximum capacity.

2.3 Removing the USB device

 Double click the Safely Remove Hardware icon on the taskbar:

 From the Safely Remove Hardware screen, highlight "USB Mass Storage

Device" item, and then click the "Stop” button. The "Stop Hardware Device" window

appears on the screen as shown in the picture below.

 Click “OK”. After the "Safe to Remove Hardware" window appears, the

player can be safely disconnected from the PC.

Notice: Never unplug the USB cable when transmitting data with PC to avoid

damaging the Player. After data transmitting, please do not disconnect the player

from your PC until "Device can now safely be removed" appears. While using USB

function, all other buttons will be nonfunctional.

In case of application lost or I/O error and power on issues caused by improper

operations, please refer to the FAQ.

3. Basic operation

3. 1 Buttons and functions

1) Play/Pause/Stop

2) Menu/Last/Next

3) Hold

4) Earphone

5) (A-B) Repeat/REC

6) Volume+

7) Volume–

3.2 Power on/off

From power off mode, press the  button to enter the MP3 standby mode.

Press the button 3 seconds in any mode and the player will save the data and

enter power off mode.

MP3 standby mode

Notice: If the player is powered off while in standby mode or while playing, all the

settings will be lost!

3.3 Main menu setup

 From standby or playing mode, you can press the MENU button to enter the

main menu.

 Push the ׀or ׀button to select: Play music, Voice, Setting, Intro, About,

Folder and Exit; you can press the MENU button to enter the desired submenu.

4. How to use the MP3 player

4.1Playing music

a) From MP3 standby mode, you can press the button to play MP3 music and

press the  button again to pause. To resume playing, please press the

button a third time.

Play Pause

b) From play or pause mode, press and hold the button for 2 seconds, the

player will return to the MP3 standby mode, press and hold the button again, it

will repeat step "a)".

c) From MP3 standby or play mode, you can push the ׀or ׀button to select

the previous or next song.

d) From STOP mode, you can push and hold the ׀or׀button to find your

desired music quickly.

e) From PLAY mode, you can press the ׀or׀button to fast backward or

forward in the current song.

f) From PLAY mode, press the V + or V-button to adjust the volume.

g) From MP3 standby, play and pause mode, press and hold the  button for 3

seconds, the player will save the data and enter the power off mode.

4.2. Setting the voice mode

4.2.1 Playing voice

a) From MP3 mode or voice standby mode, you can press the MENU button to enter

the main menu. To enter the playing voice mode, please push the ׀or ׀button to

select Voice and press the  button. You can press the  button to play, and

press this button again to pause. To resume playing, please press this button a third

time.
