Leica Lino P5 User manual

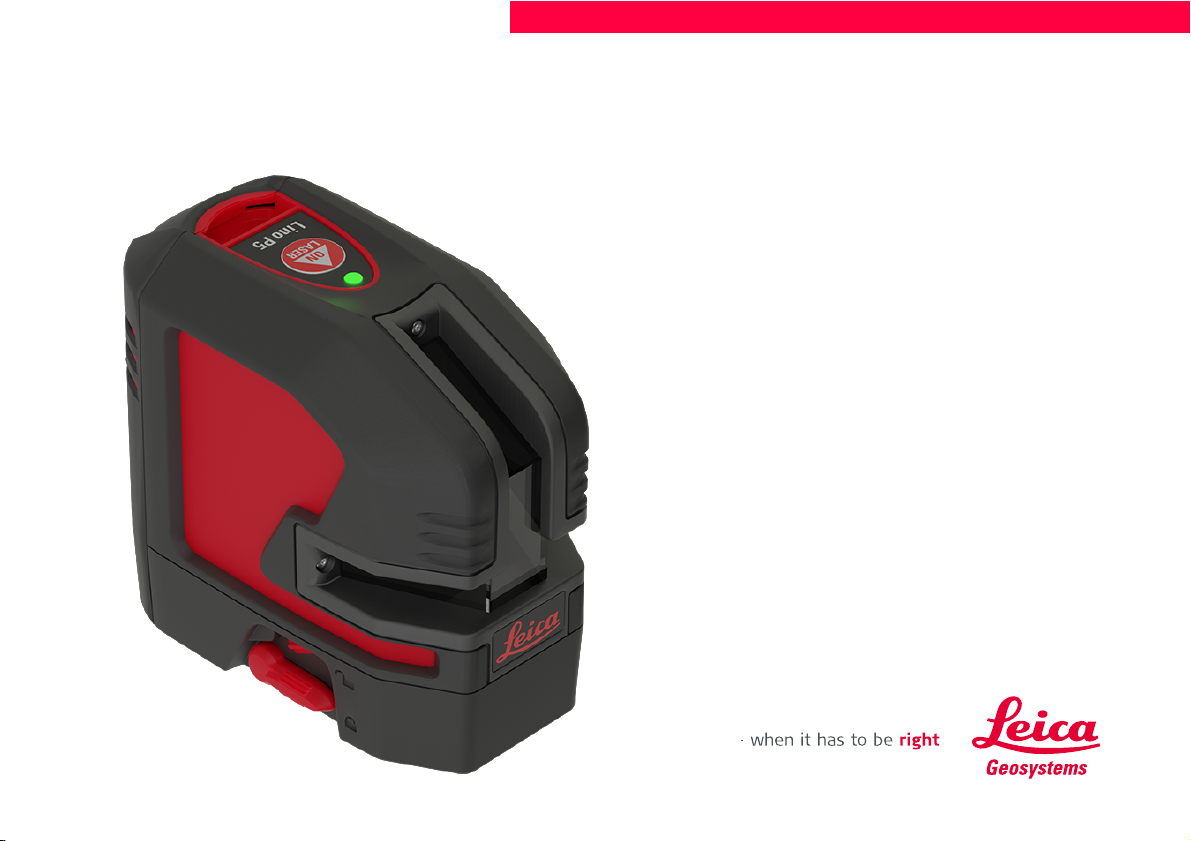

Leica LINO P5

Overview 2

Technical data 3

Instrument Set-up 4

Operations 7

How to use the smart adapters 9

Message Codes 11

Accuracy Check 12

Care 15

Warranty 16

Safety instructions 17

Leica Lino P5 1

Overview

Ove rview

The Leica Lino P5 is a self-levelling multifunctional

point laser. It is a reliable precision laser for any

kind of tasks like levelling, plumbing, transfering

and setting out right angles.

It supports you on job side with vertical and hori-

zontal five points (four points and one point in front

of the device) which are arranged precisely in 90°

to each other.

1Window of plumb up point

2Window of horizontal transfer points

3Window of plumbing

4Status LED (on keypad)

5Laser key (on keypad), ON/OFF

6Keypad

7Levelling lock

8Battery pack

9Tripod thread 1/4"

Leica Lino P5 2

Technical data

Te c h n ica lda ta

Leica Lino P5 3

Description P5

Point direction Up, down, right, left, front (90°/180°)

Range* 30 m (98 ft)

Levelling accuracy ±0.2 mm/m = ±2.0 mm @ 10m (±0.002 in/ft = ±0.08 in @ 33ft)

Point accuracy ±0.2 mm/m (±0.002 in/ft)

Self-levelling range ± 4 °

Self-levelling time < 3 s

Out-of-level warning Yes - blink lines every 5 s

Levelling system Automatic pendulum lockable

Pendulum Lock Yes

Laser type 635 ± 5 nm, Class 2 (acc. IEC 60825-1)

Protection class IP 54 (IEC 60529) dust and splash water

Drop resistant 6 x 0.5 m (1.64 ft)

Battery type 3 alkaline AA (opt. Li-Ion battery pack 5200 mAh)

Operating time with Li-Ion battery 59h (5 point) -

100h (2 point) continuous

Operating time with alkaline batteries 25h (5 point) -

37h (2 point) continuous

Automatic shut-off Available

Dimensions (L x W x H) 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)

Weight with Li-Ion/Alkaline battery 530/505 g (1.17/1.11 lbs)

Operating temperature -10…+50 °C (+14…+122 °F)

Storage temperature -25…+70 °C (-13…+158 °F)

Laser point diameter at 5m distance < 5 mm (<0.2 in)

Tripod thread 1/4’’ (+ 5/8’’ with adapter)

Pulse power for receiver Not available

* depending on lighting conditions

Instrument Set-up

Ins trume n tSet-up

Introduction

The safety instructions (see Safety Instruc-

tions) and the user manual should be read

through carefully before the product is used

for the first time.

The person responsible for the product must

ensure that all users understand these dir-

ections and adhere to them.

The symbols used have the following meanings:

WARNING

Indicates a potentially hazardous situation or an

unintended use which, if not avoided, will result in

death or serious injury.

CAUTION

Indicates a potentially hazardous situation or an

unintended use which, if not avoided, may result in

minor injury and/or appreciable material, financial

and environmental damage.

Important paragraphs which must be

adhered to in practice as they enable the

product to be used in a technically correct

and efficient manner.

Levelling lock

Levelling unlocked

In the unlocked position the instrument auto-

matically levels itself within the specified inclin-

ation range. (See Technical data)

Levelling locked

Turn the levelling lock in order to transport or tilt

the instrument beyond the self-levelling range.

When locked, the pendulum is fixed and the self-

levelling function is deactivated. In this case the

laser blinks every 5sec.

Leica Lino P5 4

Instrument Set-up

Li-Ion battery (optional)

Charge Li-Ion battery

Charge the Li-Ion battery before using it for the

first time. While charging, the instrument may heat

up. This is normal and should not affect the instru-

ment´s lifespan or performance. At the recom-

mended storage temperature of -20°C to +30°C

(-4°F to +86°F), batteries containing a 50% to

100% charge can be stored up to 1 year. After this

storage period the batteries must be recharged.

CAUTION

Connecting the charger using the wrong adapter

may cause serious damage to the instrument. Any

damage caused by misuse is not covered by war-

ranty. Use only Leica-approved chargers, bat-

teries and cables. Unapproved chargers or cables

can cause the battery to explode or damage the

instrument.

Insert Li-Ion battery

Insert the battery-pack by pressing it down and

then tilting it towards the housing as shown until it

snaps in.

Li-Ion status LED

lights green: charging battery

OFF: charging finished / no charging

Leica Lino P5 5

Instrument Set-up

Alkaline batteries

To ensure a reliable use, we recommend

using high quality Alkaline batteries.

Insert Alkaline batteries

Insert Alkaline batteries in the battery-pack.

Insert the battery-pack

Insert the battery-pack by pressing it down and

then tilting it towards the housing as shown until it

snaps in.

Leica Lino P5 6

Operations

Ope rations

Switching ON/OFF Auto power-off

Place the lock switch to the unlocked position

(see Levelling lock). To activate auto power-

off after 30 min operation press and hold the

On button at start for 5 sec. The status LED

blinks 3 times in green colour. To deactivate

it again repeat the described steps until the

status LED blinks 3 times in red colour.

Leica Lino P5 7

Operations

Functions

Check if self-levelling is required and cor-

respondingly activated.. (See Levelling lock

for details)

Vertical dots / horizontal dots on

Horizontal dots on Vertical dots on

Leica Lino P5 8

How to use the smart adapters

How tous e the s ma rtada p ters

Setup device to adapter

Snap the device on the Twist 360 adapter.

Alignment of vertical laser lines

Turn the device 360° around the plumb point to

adjust the vertical line.

Alignment of horizontal laser lines

Turn the adjustment knob of UAL130 to fine adjust

the horizonal line to the desired reference level.

Leica Lino P5 9
