LEGRAND 5 743 12 User manual

Requires prior installation of a connected starter pack "... with Netatmo".

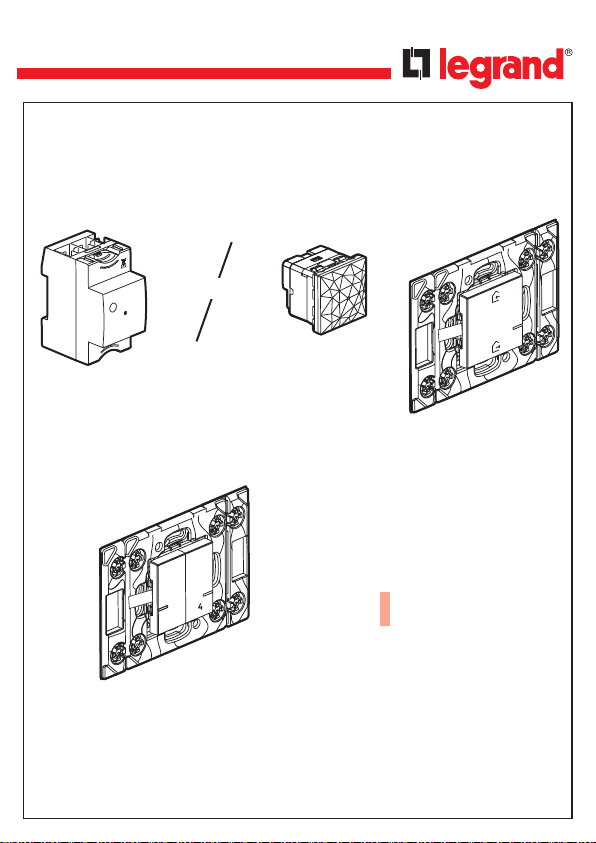

Contents:

Control Module

Frequency bands: 2.4 - 2.4835 GHz

Power level: <100mW

Gateway and Leave home/back home

general control

Wireless control

4 scenarios

x 2

Repositionable

adhesives

Wireless switch 4 scenes

5 743 12/13/14/15

LE12021AA

 Start to configure the wireless switch 4 scenes

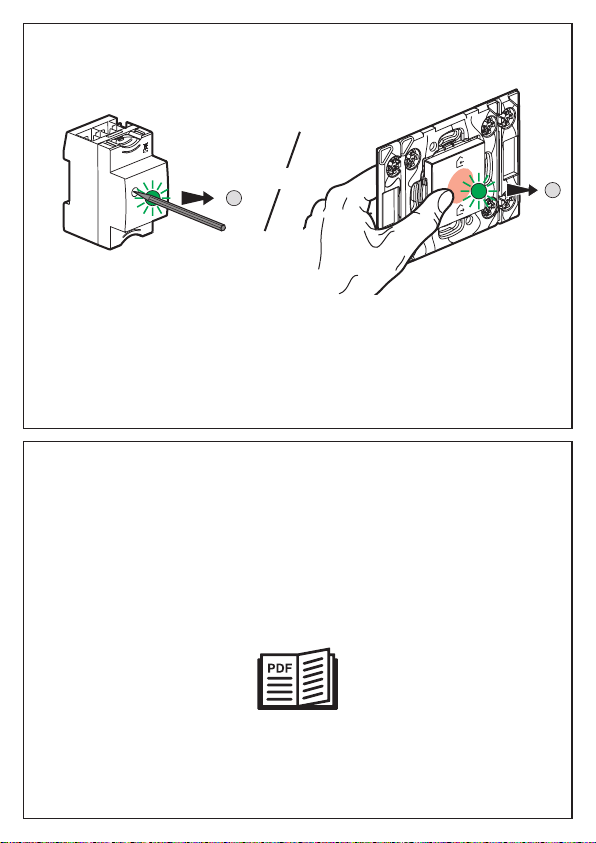

Press the conguration button of the Control Module or press the middle of the General

Control until its light briefly turns green, and then stop pressing. The indicator light of the

products that you have wired will turn green.

 Power the wireless switch 4 scenes

Remove

the battery's

protective strip

to power

the wireless

switch

4 scenes.

Press briey on one of the buttons of the

wireless switch 4 scenes to activate it. The

indicator light will ash green.

The 2 indicator lights of the wireless switch will go

to green and then switch o. The wireless switch 4

scenes is ready to use.

> 3 s

3 Complete the setup

To complete your installation, briefly press the configuration button of your Control

Module or at the middle of the wireless master switch.

All the indicator lights on the products switch off.

< 1 s < 1 s

Customize your scenarios

- in the Legrand Home + Control application (Parameters/Scenes section)

Let yourself be guided

LEGRAND - Pro and Consumer Service - BP 30076

87002 LIMOGES CEDEX FRANCE • www.legrand.com

www.legrand.fr/reference/574312

Replacing the battery

If the bottom right indicator light ashes

red 3 times when you press any button

battery is low

دﮭﺟﺑ موﯾﺛﯾﻟ

تﻟوﻓ

Lithium CR 2032

3 V battery

SIMPLIFIED EU DECLARATION OF CONFORMITY

The undersigned,

Legrand

declares that the radio-electric equipment referred to in these instructions

complies with directive 2014/53/UE.

The full text of the EU declaration of conformity is available on the following website:

www.legrandoc.com

The support is breakable

for 2 and 3-gang installations

 
