LEGRAND SANUS WSSE3A1 User manual

WSSE3

A1 / WSSE3A2

Height-Adjustable

Speaker Stand

For SONOS®Era 300™

INSTRUCTION MANUAL

Texto en español, página 12 Deutscher Text Seiten 16 Svensk text sida 20 中文文字说明请参见第 24 页

Texte français page 14 Nederlandse tekst op pagina 18 Русский текст: стр. 22 日本語は 26 ページ

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

US: +1 (800) 359-5520 • EMEA: +31 (0) 495 580 852 • UK: +44 (0) 800 056 2853

We’re ready to help!

CAUTION: Avoid potential personal injuries and property damage!

•Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.

•Please read through these instructions completely to be sure you’re comfortable with this easy install process.

• Do not use this product for any purpose not explicitly specified by manufacturer.

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service at US: +1 (800) 359-5520 • EMEA: +31 (0) 495 580 852 • UK: +44 (0) 800 056 2853.

Before getting started, let’s make sure this product is perfect for you!

10 lbs.

(4.5 kg)

Speaker

Weight Limit

DO NOT

EXCEED

Tool Needed

Screwdriver

This stand is designed to support only Sonos® Era 300™ speakers.

IMPORTANT SAFETY INSTRUCTIONS

—PLEASE READ ENTIRE MANUAL PRIOR TO USE —SAVE THESE INSTRUCTIONS

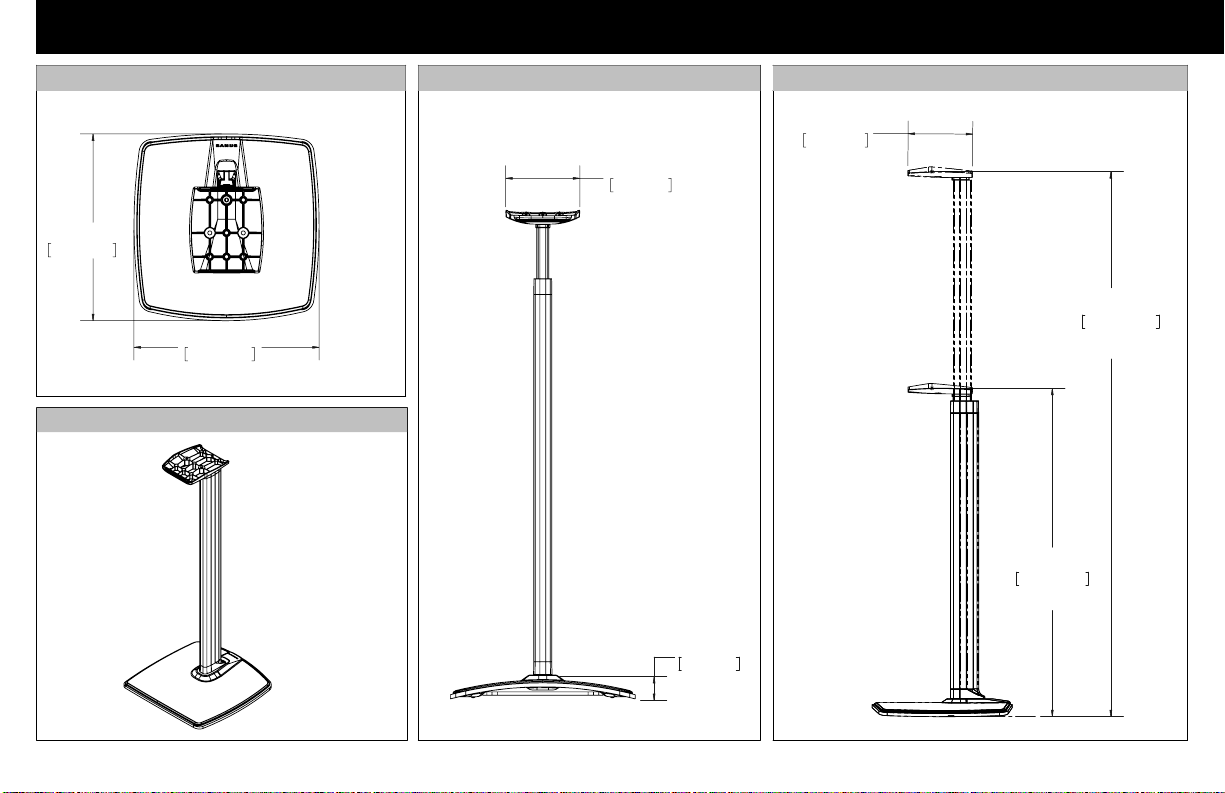

Dimensions





















































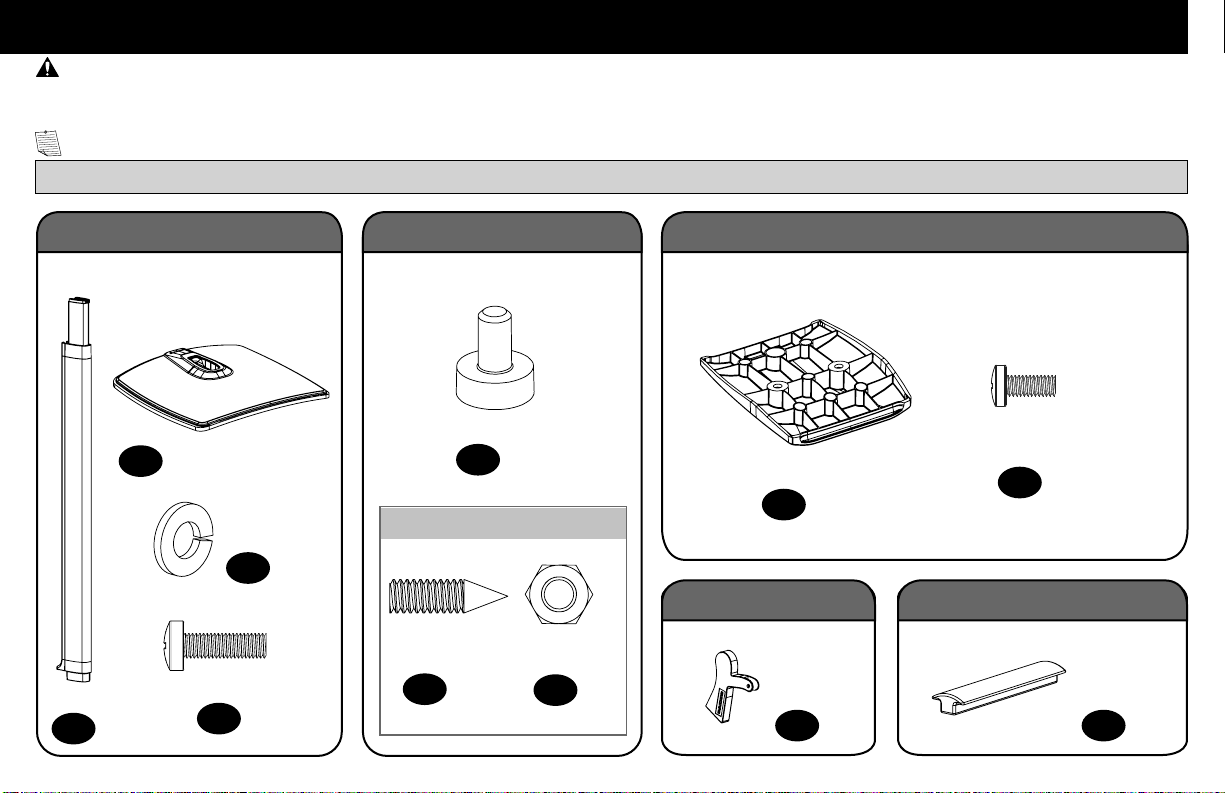

Parts and Hardware

NOTE: Not all hardware included will be used.

Quantities shown are for one speaker stand.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service. Never use damaged parts!

  





STEP 2 STEP 3 STEPS 4 and 5

STEP 6 STEP 7

OPTIONAL

Base

Lock

Washer

Pillar Screw

Carpet Spike

Jam Nut

Rubber Pad

Clip

Trigger

Pillar

01 x2

06 x4

10 x4

Bracket

Speaker Screw

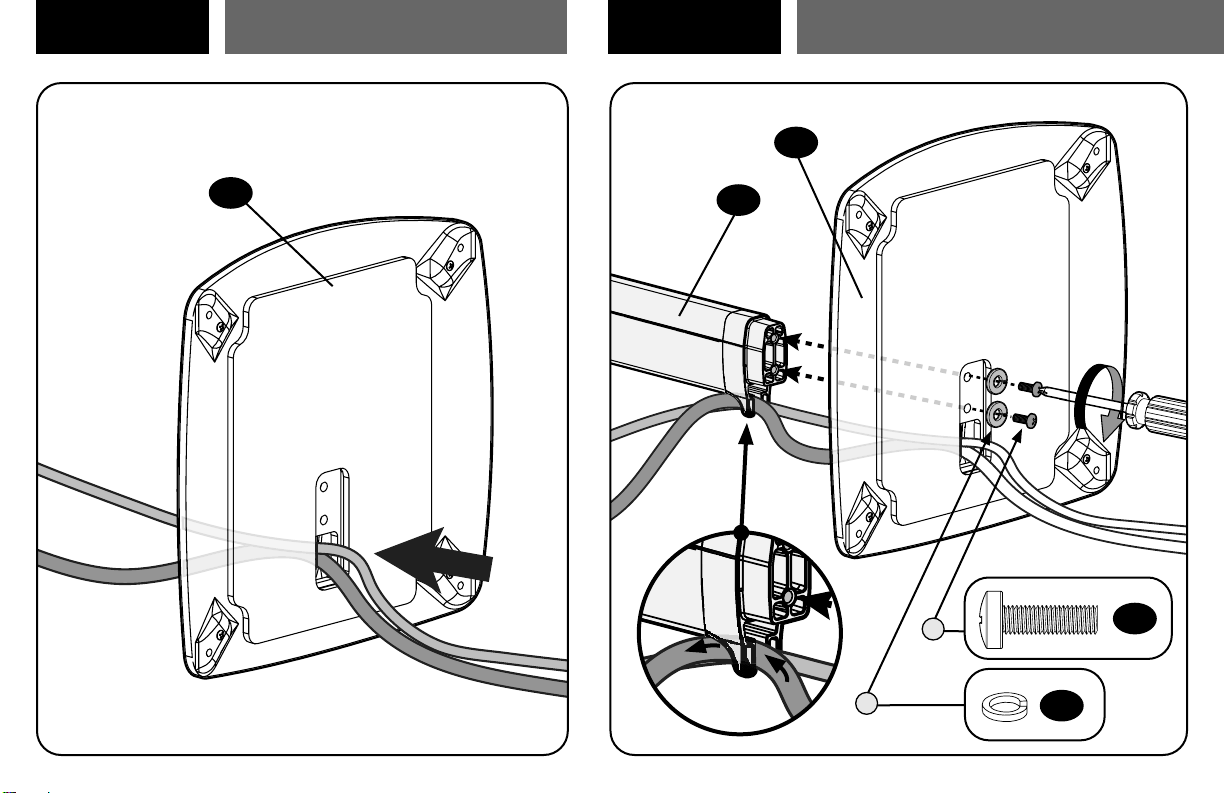

Route Cable(s)

STEP 1

Attach Base to Pillar

STEP 2

02 01



Optional Carpet Spikes

Rubber Pads

Install Rubber Pads -or- Carpet Spikes

STEP 3

Twist rubber pads 05 into the base 02 .

WARNING: The

ends of carpet spikes

06 are sharp and

may scratch flooring,

damage wiring, or be

hazardous to children.

07 06

===

HEIGHT ADJUST

Attach Bracket to Pillar

STEP 4

M5 x 12mm

CAUTION:

Do not overtighten.

Install Speaker

STEP 5

M5 x 12mm

CAUTION: Avoid potential personal

injuries and property damage!

Hold upper post 01 BEFORE pressing

trigger button 10 .

Trigger button 10 is removable to

prevent accidental lowering, or to route

cables into post 01 (STEP 7).

RAISE LOWER

HOLD

1 2 PRESS 3LOWER

Height Adjustment

STEP 6

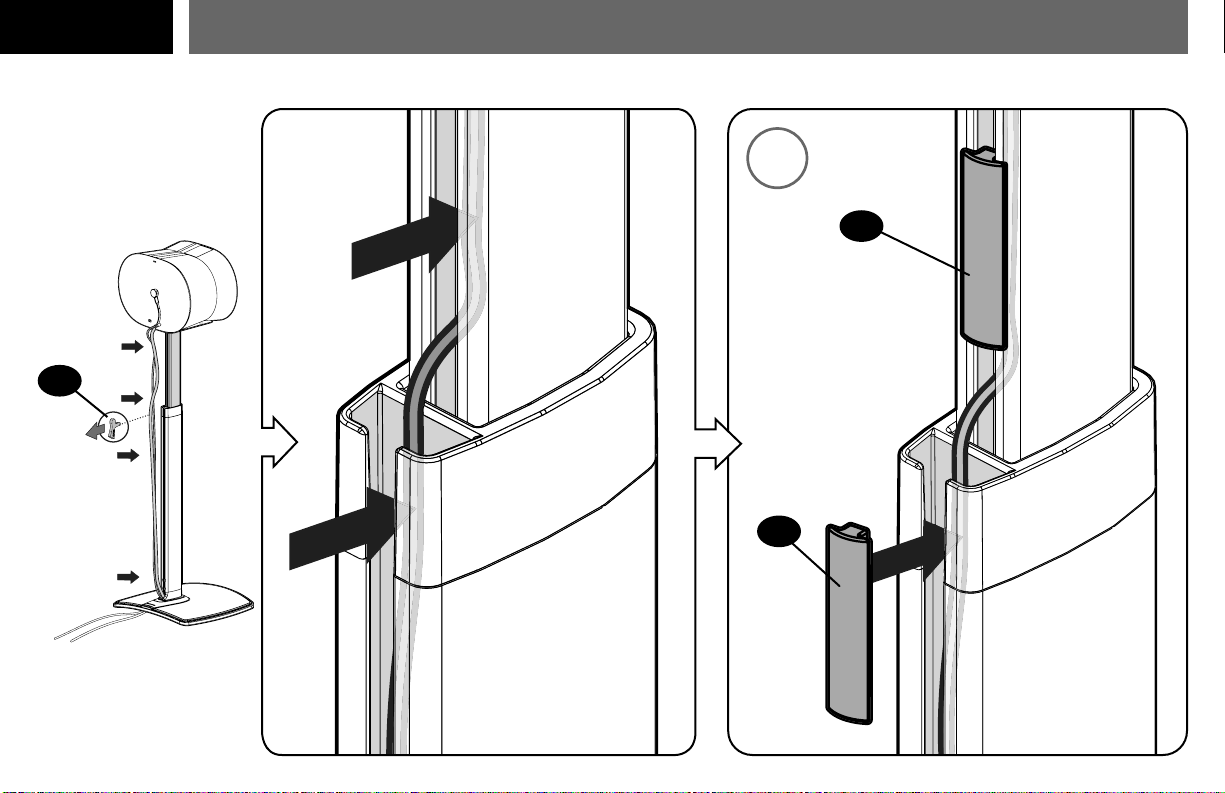

Secure Cable(s)

STEP 7

This manual suits for next models
