LEGRAND Sanus WSS52 User manual

WSS

WIRELESS SPEAKER STAND

INSTRUCTION MANUAL

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call. We’re ready to help!

US: +1 (800) 359-5520 • UK: +44 (0) 800 056 2853 • EMEA: +31 (0) 495 580 852

This stand is designed to support the Sonos®PLAY:5™and Five™speaker only.

IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

CAUTION: Avoid potential personal injuries and property damage!

•Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.

•Please read through these instructions completely to be sure you’re comfortable with this easy install process.

• Do not use this product for any purpose not explicitly specified by manufacturer.

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service at: US: +1 (800) 359-5520 • UK: +44 (0) 800 056 2853 • EMEA: +31 (0) 495 580 852.

Before getting started, let’s make sure this product is perfect for you!

15 lbs.

(6.8 kg)

Speaker Weight Limit

DO NOT EXCEED

Tool Needed Screwdriver

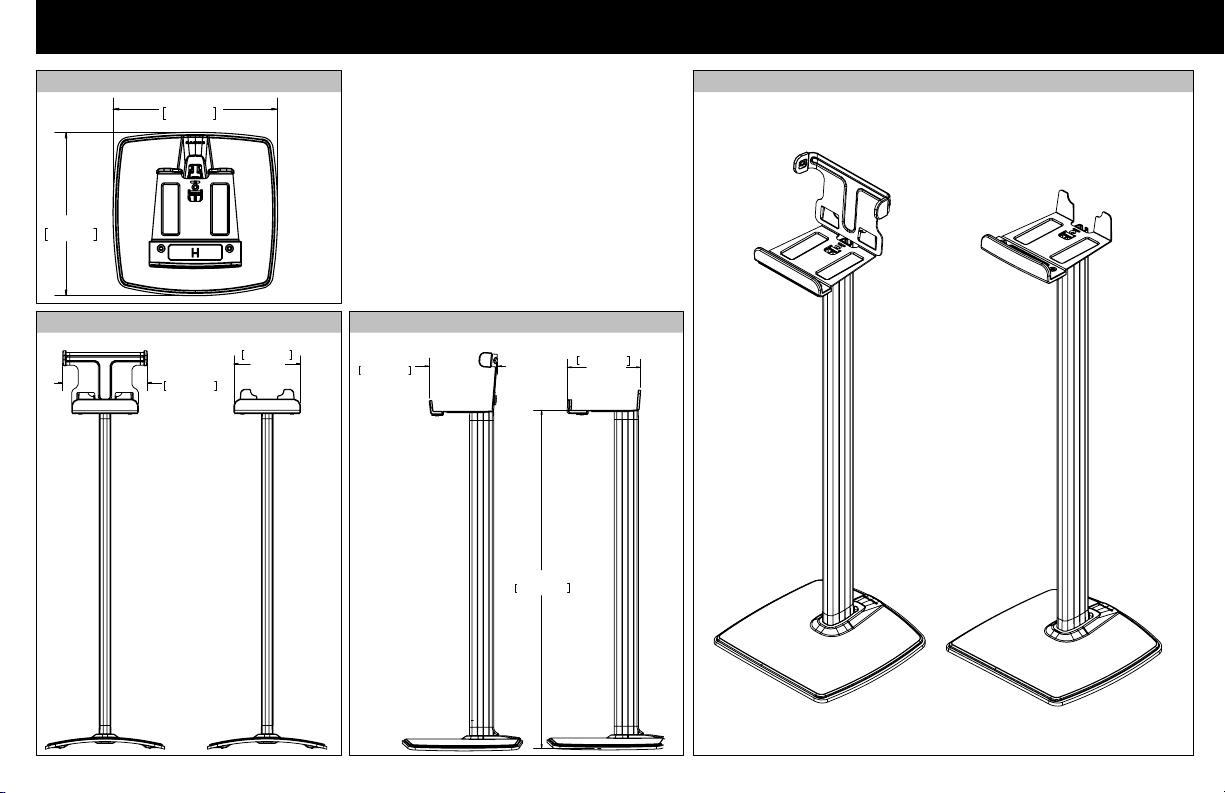

Dimensions

10.90

[276.9]

5.86

[148.8]

11.00

[279.4]

4.97

[126.1]

31.46

[799.1]

TOP VIEW

FRONT VIEW

SIDE VIEW

3-D

31.46 in.

799.1 mm

6.24 in.

158.5 mm

6.75 in.

171.4 mm

7.76 in.

197.0 mm

6.1in.

155.0 mm

11.00 in.

279.4 mm

10.9 in.

276.9 mm

M6 x 20 mm

M6 x 20mm

M5 x 14mm

1/4-20 x 1/2”

STEPS 1 & 2 STEP 3 STEP 5

STEP 7

STEP 4

Parts and Hardware

NOTE: Not all hardware included will be used.

OPTIONAL

Base

Shaft Screw

Lock Washer

Top Plate

M5 Screw

Carpet Spike

Jam Nut

Rubber Pad

Clip

Shaft

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service. Never use damaged parts!

Front Horizontal

Bumper

Rear Bumpers

Front Bumper

Screws

Vertical Bracket

Horizontal Orientation Vertical Orientation

Front Vertical

Bumper

Route Power Cables

STEP 1

Ethernet

(if needed)

Attach Base to Shaft

STEP 2

03 04

Optional Carpet Spikes

Rubber Pads

Install Rubber Pads -or- Carpet Spikes

STEP 3

Twist rubber pads 05 into the base 02 .

WARNING:

The ends of carpet

spikes 06 are

sharp and may

scratch flooring,

damage wiring, or

be hazardous to

children.

07 06

===

HEIGHT ADJUST

Attach Top Plate to Shaft

STEP 4

M5 x 14mm

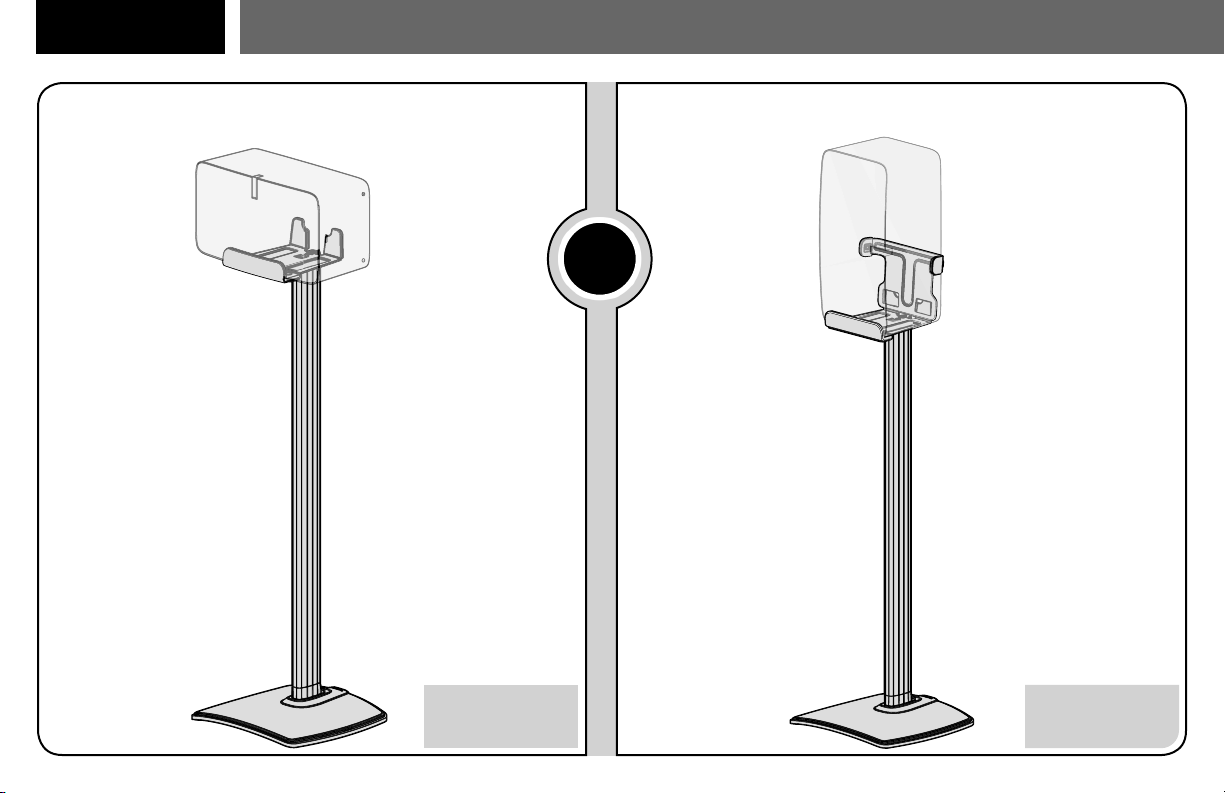

Determine Speaker Orientation

STEP 5

Vertical Orientation

Horizontal Orientation

Go to STEP 5A on

PAGE 9

Go to STEP 5B

on PAGE 10

Horizontal Orientation

1 Install Front Bumper 2 Install Rear Bumpers

1/4-20 x 1/2”

10 11

0801 01

Vertical Orientation

1 Install Front Bumper 2 Slide Rear Bracket onto Rear Tabs

1/4-20 x 1/2”
