LEGRAND SANUS VMT5-B2 User manual

THANK YOU FOR CHOOSING SANUS

VIELEN DANK, DASS SIE SANUS GEWÄHLT HABEN

MERCI D'AVOIR CHOISI SANUS

GRACIAS POR ELEGIR SANUS

VMT

5-B2

Instruction Manual

VMT5

Texto en español, página 26

Texte français page 28

Deutscher Text Seiten 30

Nederlandse tekst op pagina 32

Svensk text sida 34

Русский текст: стр. 36

中文文本，第38页

日本のテキスト、40ペジ

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

+1 (800) 359-5520

(EMEA: +31 (0) 495 580 852; UK: +44 (0) 800 056 2853)

We’re ready to help!

Wir helfen Ihnen für

eine problemlose Montage

Falls Sie bei der Montage Fragen haben sollten, rufen Sie uns an.

+1 (800) 359-5520

(EMEA: +31 (0) 495 580 852; Großbritannien: +44 (0) 800 056 2853)

Wir helfen Ihnen gerne!

Nous ferons en sorte que tout soit simple

pour vous

Si vous avez des questions pendant l’installation, appelez-nous.

+1 (800) 359-5520 (États-Unis)

(EMEA: +31 (0) 495 580 852; RU: +44 (0) 800 056 2853)

Nous sommes là pour vous aider!

Sin estrés

Si más adelante tiene preguntas, llámenos.

+1 (800) 359-5520

(EMEA: +31 (0) 495 580 852; Reino Unido: +44 (0) 800 056 2853)

¡Estamos a su disposición!

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let’s make sure this mount is perfect for you!

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call +1 (800) 359-5520

(EMEA: +31 (0) 495 580 852 UK: +44 (0) 800 056 2853) to find a compatible mount.

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Also check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service at +1 (800) 359-5520 (EMEA: +31 (0) 495 580 852; UK: +44 (0) 800 056 2853).

Do you have

all the tools

needed?

What is your

wall made of? Drywall with

wood studs? Solid concrete or

concrete block?

CAUTION: Avoid potential personal injuries and property damage!

●This product includes directions and hardware for use with wood stud, solid concrete and concrete block walls –DO NOT install into

drywall alone. For information on how to use this product with steel stud walls contact Customer Service and ask about the steel stud

mounting kit.

●The wall must be capable of supporting five times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly specified by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

Perfect! Perfect!

Ready to

begin?

34 kg

(75 lbs)

Does your TV weigh

more than 34 kg

(75 lbs) including

accessories?

CAUTION:

DO NOT install into

drywall alone

Drywall with

steel studs? Unsure?

Call Customer Service: +1 (800) 359-5520 (EMEA: +31 (0) 495 580 852; UK: +44 (0) 800 056 2853)

Steel stud kit required [NOT INCLUDED]

Wood Stud Install

Concrete Install

Pencil Screwdriver

Tape

Measure

7/32 in.

(5.5 mm)

Wood

Drill Bit

Electric Drill Hammer

1/2 in.

(13 mm)

Socket

Wrench Drill Bit

3/8 in.

(10 mm)

Concrete

1/2 in.

(13 mm)

Drywall

OPTIONAL

Single Stud Install

Drill Bit

Studfinder Awl

Level

STEP 1 Attach Bracket to TV

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;

contact Customer Service. Never use damaged parts!

Parts and Hardware for STEP 1

M8 x 50mm

For concrete installations ONLY

2.5mm

22mm

M6 x 12mm M6 x 20mm M6 x 35mm

M8 x 40mm

M8 x 20mm

M8x30 mm

5mm

5/16 x 2¾in.

5/16 in.

Right TV

Bracket

Left TV

Bracket

TV Screws

TV Washers

Spacers

03 x4

04 x4

05 x4

01 x1

02 x1

0201

1-1 Select TV Screws 1-2 Spacers

0505

0201

M6 M8

NOTE: If your TV included

inset spacers or wall mount

adapters, use

them UNDER the

mount hardware.

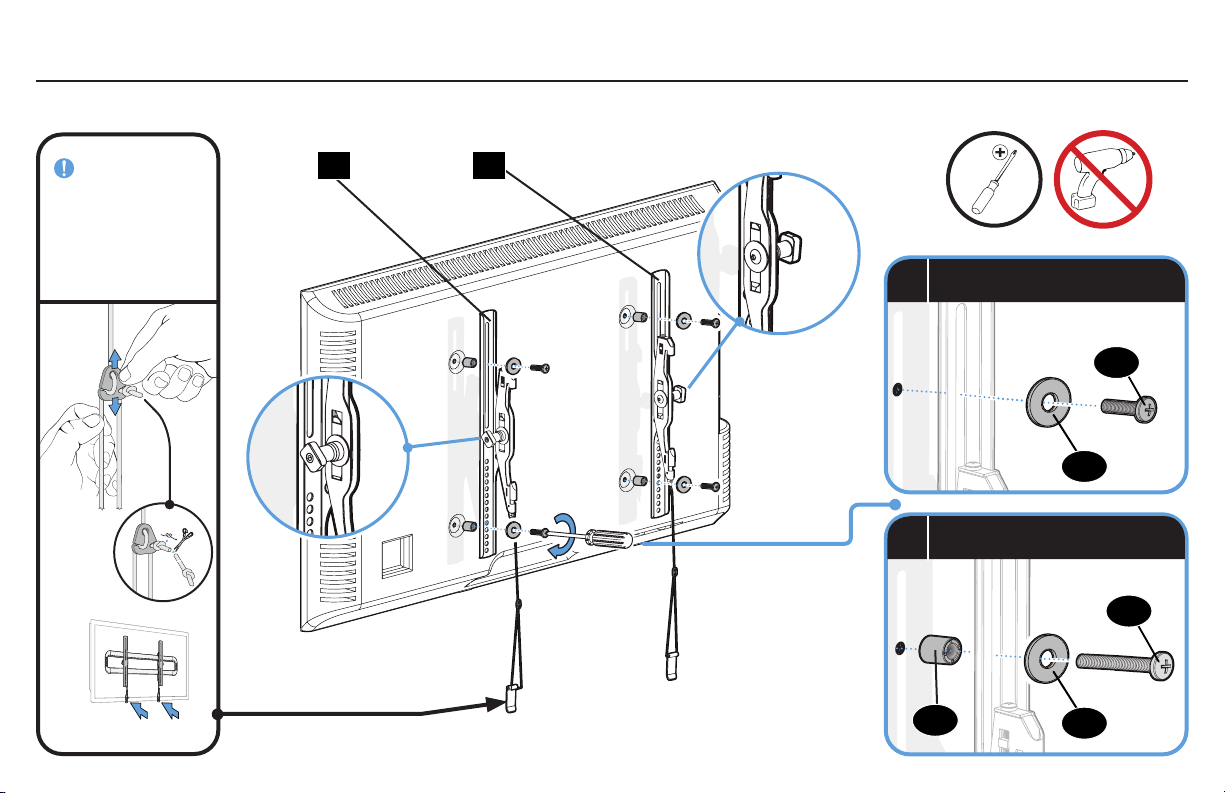

1-3 Attach TV Brackets

01 02

IMPORTANT:

For ease of access,

straps should

be level with the

bottom of the TV. aScrew and washer

bSpacer, screw and washer

M8 x 50mm

For concrete installations ONLY

2.5mm

22mm

M6 x 12mm M6 x 20mm M6 x 35mm

M8 x 40mm

M8 x 20mm

M8x30 mm

5mm

5/16 x 2¾in.

5/16 in.

STEP 2 Attach Wall Plate to Wall

Parts and Hardware for STEP 2

For wood stud installations (Double Stud), follow STEP 2A on PAGE 8

For wood stud installations (Single Stud), follow STEP 2B on PAGE 12

For concrete installations, follow STEP 2C on PAGE 19

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer;

contact Customer Service. Never use damaged parts!

M8 x 50mm

For concrete installations ONLY

2.5mm

22mm

M6 x 12mm M6 x 20mm M6 x 35mm

M8 x 40mm

M8 x 20mm

M8x30 mm

5mm

5/16 x 2¾in.

5/16 in.

Wall Plate

Template

Lag Bolt

09 x4

10 x4

06 x1

07 x1

Concrete Anchor UX10 x 60R

CAUTION: Do not use in drywall or wood

Washer

08 x4

STEP 2A Wood Stud Option (Double Stud Install)

1 2 3

Max. 5/8 in. (16 mm)

Min. 16 in. (406 mm) Min. 3  in. (89 mm)

Min. 1  in. (38 mm)

Wood Stud Option (Double Stud Install)

0606

4 5

7/32 in.

(5.5 mm)

3 in. (75 mm)
