LEGRAND 882 08 User manual

Radio - Mobile dimmable plug

882 08/72

Characteristics

1Incandescent lamp

2Halogen lamp

3ELV halogen lamp with ferromagnetic or electronic transformer

N0064FJ6/05

1 2 3

110 V Min. 60 W 60 W 60 VA

Max. 250 W 250 W 250 VA

230 V Min. 60 W 60 W 60 VA

Max. 500 W 500 W 500 VA

Protection by electronic device :

In case of short-circuit or very high overload, the dim-

mer switch without neutral switches off.

After fault clearance, the product is operational again.

Important :

- Ferromagnetic transformers must be changed to more

than 60% of their nominal power.

- Take account of the efficiency of the ferromagnetic

transformers when calculating the permissible power

(eg. transformer for a 50 W bulb with efficiency of 0.78

=> actual power consumed by the transformer = 64 VA).

Connection

Voltage 100 - 240 V AC

Frequency 50 - 60 Hz

Radio frequency 868.3 MHz

Range about 200 m, in free field

+ 5°C to + 45°C

Characteristics

882 08

882 72

Factory settings

When first powered up, pressing

the ON or OFF buttons controls all

the lighting points of the «In One by

Legrand» installation.

This option is provided so that the

correct operation and connection

of all the lighting fixtures can be

checked.

Pressing Learn(1) twice cancels this

general control function.

(1)

Programming or learning button.

Important :

A load must be connected before starting product learning in a scenario.

Description

Control

buttons

LEARN button

Operation

The dimmer switch without neutral controls the load that is connected to its cut phase terminal ($) using the ON, OFF, +

or - keys, or following a command received from a Leader product with which it was associated during the learning(1) of a

scenario(2).

It is then the Actor of a scenario and can take part in a maximum of 32 scenarios.

It can be controlled by an In One by Legrand general control from a radio product or a PLC product via the PLC/RF inter-

face Cat. No. 036 06.

The commands are the following :

- switch on by a short press on the ON key

- switch off by a short press on the OFF key

- dimming by the keys :

+ (factory set to 66%)

- (factory set to 33%)

with a short press.

- increasing by a long press on the ON keys or +

- decreasing by a long press on the OFF keys or -

(1) Learning : action of associating products to be controlled simultaneously from a central point.

This association is performed by applying the scenario learning procedure on page 6.

(2) Scenario : the set of products (actors) that are associated with a control key..

Personalise the lighting level of the + and - keys (outside learning)

The ON and OFF keys are factory set and cannot be modified.

Notes : The + and - keys can manage 2 different lighting levels :

- - key = 33%

- + key = 66% (factory set).

It is recommended to perform this operation with the rockers mounted.

On the + key :

- adjust the lighting level using the ON, OFF +, - keys by a long press

- validate by simultaneous pressing on the + and ON keys for 5 secs (after switching off, the load switches on again at the

set level), the level of the + key is then saved.

On the - key :

- adjust the lighting level using the ON, OFF +, - keys by a long press

- validate by simultaneous pressing on the - and OFF keys for 5 secs (after switching off, the load switches on again at

the set level), the level of the - key is then saved.

To save a lighting level during the learning, step 2 of Scenario learning becomes:

Press LEARN Press the ON command key

which must be associated

with the leader

Press the on or off command

key to set the required

lighting level







4



Learn scenario

Key

The indicator lamp

goes off

Press LEARN Press the command key that is to

control the scenario

Press LEARN

Press the command key that is to be

associated with the leader

The indicator lamps of all the products go off.

The scenario is recorded.

Step 1 : Start the learn phase (on the LEADER)

Step 2 : Add an actor to the scenario (on the ACTOR)

Step 3 : Record the scenario (on the LEADER)

To add a number of products to the scenario, repeat operations 3and 4for each actor.

The indicator lamp

blinks slowly

The indicator lamp

blinks quickly

The indicator lamp

flashes







4



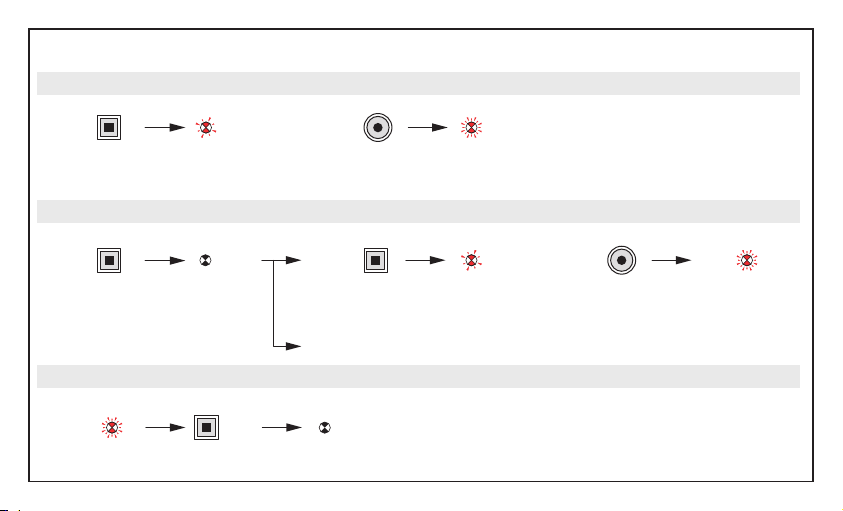

Modification of a scenario

Press LEARN Press the command key

that controls the scenario

The indicator lamps of all the product

in the scenario blink.

Press the command key

that is to be associated

Step 1: Open the scenario (on the LEADER)

Press LEARN

To remove the product from the

scenario, go to step 3

Step 2 : Modify the state of an actor in the scenario (on the ACTOR)

Step 3 : Record the scenario (on the LEADER)

Press LEARN

The indicator lamps of all the products go off.

The scenario is recorded.







4



Clearing a scenario

Press LEARN

The scenario is cleared

Press the command key

and hold it down for 10 s

Clear all the scenarios linked with the command key (on the LEADER)

Press LEARN

Return the product to

factory configuration

Press LEARN and hold

down for 10 s

Clear all the scenarios linked to this product (on the LEADER)

5 s

Safety instructions

This product should be installed preferably by a qualified electrician. Incorrect installation and use can entail risk of electric shock or fire.

Before carrying out the installation, read the instructions and take account of the product’s specific mounting location.

Do not open up the device. All Legrand products must be exclusively opened and repaired by personnel trained and approved by LEGRAND.

Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.

Only use genuine accessories.

GB I E

ES I T

F I

S I

L T

I S R U

A T L I

L V

FR L U BE

GR CY

NL BE

TR CY

Dimmer ohne Neutralleiter

882 08/72

Technische Daten

1 2 3

110 V Min. 60 W 60 W 60 VA

Max. 250 W 250 W 250 VA

230 V Min. 60 W 60 W 60 VA

Max. 500 W 500 W 500 VA

Elektronische Sicherung :

Bei Kurzschluss, bzw. Überlast schaltet der Dimmer

automatisch ab.

Nach Überprüfung und Behebung der Störung

Netzspannung kurz unterbrechen.

Danach kann der Dimmer wieder in Betrieb genommen

werden.

1Glühlampe

2Hochvolt Halogenlampe

3Niedervolthalogenlampen mit konventionellem oder

elektronischem Trafo

Hinweise :

- Konventionelle (ferromagnetische) Trafos müssen mit

mehr als 60% ihrer Nennleistung belastet Werden.

- Wirkungsgrad der konventionellen Trafos bei der

Berechnung der zulässigen Höchstleistung berück-

sichtigen, z. B. Trafo für eine 50 W-Lampe mit einem

Wirkungsgrad von 0,78 => Systemleistung = 64 VA .

Anschluss

Spannung 100 - 240 VA

Frequenz 50 - 60 Hz

Funkfrequenz 868.3 MHz

Reichweite ca. 200 m freies Feld

+ 5°C bis + 45°C

Technische Daten

882 08

882 72
