Larson Electronics EPL-16BS-1X150LED-25 Manual

EPL-16BS-1X150LED-25

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 4

150W Explosion Proof LED Light

Base Stand Mount - 21,000 Lumens - Class I Div 1 C&D - 25' Cord

Instruction Guide

Thank you for your purchase of the Larson Electronics EPL-16BS-1X150LED-25.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE EPL-16BS-1X150LED-25 MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL

CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

WARNING:

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE. THIS LINE

CORD IS INTENDED TO ALLOW OPERATORS TO EXTEND POWER TO EQUIPMENT WHEN STATIONARY OUTLETS ARE NOT

READILY AVAILABLE.

IMPROPER USE OF THIS CORD, PLUG, AND RECEPTACLE CAN LEAD TO SERIOUS INJURIES OR DEATH TO

PERSONNEL.

PERIODIC INSPECTION OF THE CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, OR ANY SEVERE ABRASIONS, AND IF ANY ARE FOUND,

THE CORD MUST BE REPLACED BEFORE RESUMING USE.

EPL-16BS-1X150LED-25

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 4

WARNING

TO AVOIDTHE RISKOF FIRE,EXPLOSION OR ELECTRIC SHOCK, THIS PRODUCT SHOULD BE INSTALLED,

INSPECTEDAND MAINTAINEDBY A QUALIFIED ELECTRICIANONLY, IN ACCORDANCEWITHALL

APPLICABLEELECTRICAL CODES.

TO AVOIDELECTRIC SHOCK:

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•PRODUCT MUST BE CONNECTED TO A WIRING SYSTEM WITH AN EQUIPMENT-GROUNDING

CONDUCTOR.

TO AVOID EXPLOSION:

•MAKE SURE THE SUPPLY VOLTAGE IS WITHIN THE VOLTAGE RATING.

•ENSURE THE MARKED T RATING IS LESS THAN THE IGNITION TEMPERATURE OF THE HAZARDOUS

ATMOSPHERE.

•DO NOT OPERATE IN AMBIENT TEMPERATURES ABOVE THOSE INDICATED ON THE PRODUCT

NAMEPLATE.

•DO NOT OPERATE IF THE LENS, CORD, SEALS, HOUSING, RECEPTACLES, ETC. IS CRACKED OR

DAMAGED. IF SO, DISCONTINUE USE AND CONTACT MANUFACTURER FOR REPLACEMENT PARTS.

•ALL FASTENERS SHOULD BE PROPERLY SEATED.

The EPL-16BS-1X150LED-25 from Larson Electronics is an Explosion Proof LED Base Stand Light that is rated Class I

Divisions 1 & 2 Groups C & D and Class II Divisions 1 & 2 and uses a 22 inch Cree LED light head to produce 21,000

lumens of light while drawing only 150 watts. The EPL-16BS-1X150LED-25 is mounted on a convenient aluminum base

stand that provides a stable way to hold the light head in position in the work place.

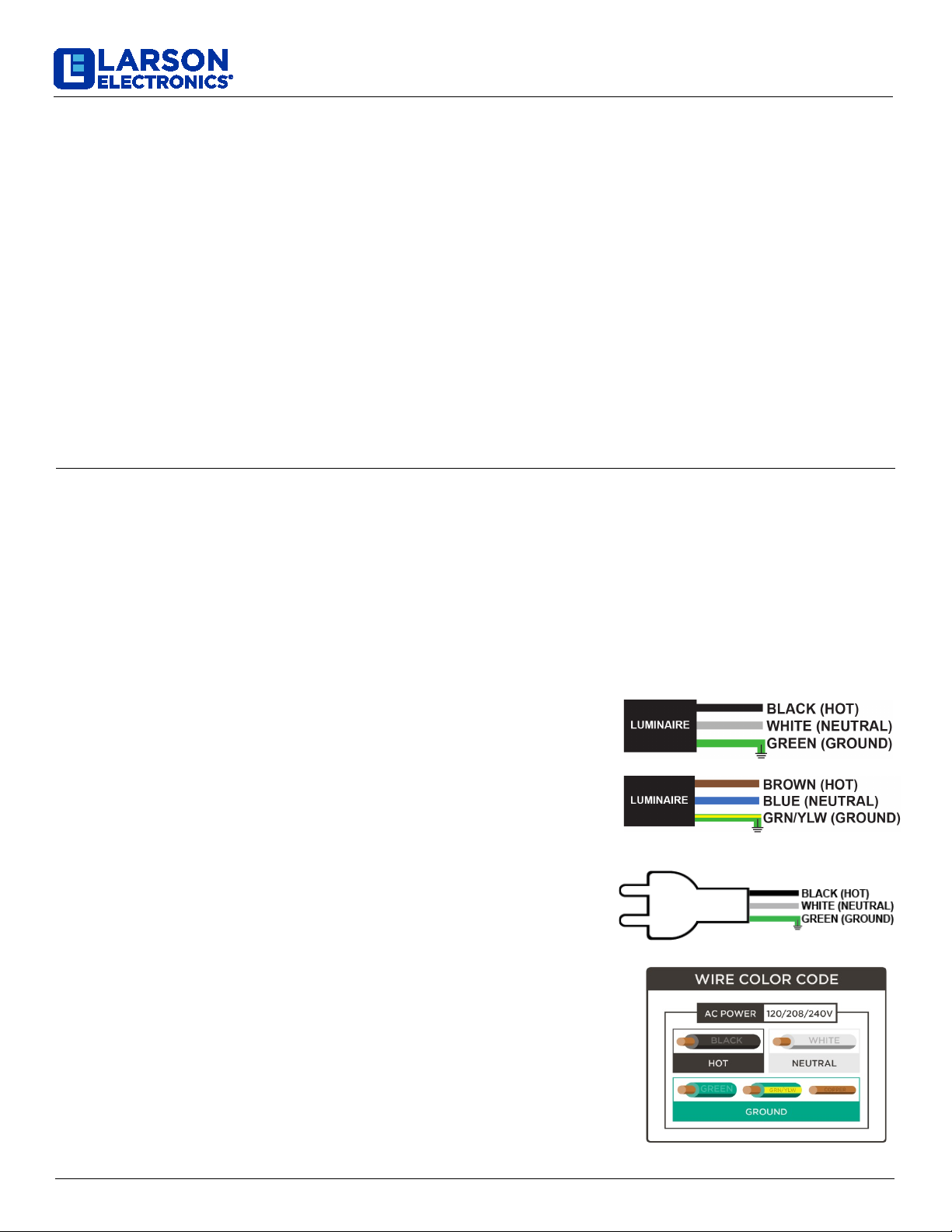

WIRING

Standard pigtail(flying leads) wiring

We strongly encourage a licensed electrician install this product,in all locations especially in outdoor areas

where weatherproofing may be required. Universal voltage driver permits operation at 120V - 277V AC, 50 or 60Hz.

Warning: Check product label for correct input voltage!

Attach supply line wires to the appropriate light fixture wires as shown

in thediagram 

Secure each pair of wires according to the diagram. Utilize a junction box or

similar device and take precautionary steps for weatherproofing all

connections if installed in a location where water may come in contact with the

unit. Ensure the unit is properly grounded and that wiring is done according to

all local and national electrical/building codes.

Exp Cord Cap

Position device near work area for operation. Run cable to nearby power

source. Insert and twist-lock explosion-proof plug into a compatible receptacle within

the hazardous environment. See plug operation below.

PLUG OPERATION

Electrical connection between plug and compatible receptacle is accomplished

after plug fully inserts into receptacle and rotated clockwise.

1. Lift receptacle door and locate polarization on mating plug pin and

receptacle face. Insert plug straight all the way into receptacle until it

cannot go further.

2. Rotate plug clockwise limit (37º), this closes internal contacts and

completes circuit. This also mechanically locks plug into receptacle so it

cannot be pulled out.

3. To remove plug, push plug inward and turn to counterclockwise, pull plug

straight out.

EPL-16BS-1X150LED-25

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

3of 4

INSTALLATION

Before operation, confirm that the power source will provide the correct voltage indicated on the product

nameplate. Ensure the receptacle will accept the cord cap attached to the light. This light is shipped

preconfigured with selected Beam Config, Voltage, and Cord Cap.

Check product nameplate for Ratings and Approvals.

Place the light in the desired location and run its power cord to a compatible power source. Ensure all safety

requirements are followed for the hazardous area. Light head can separate from base stand. To install light

head, simply slide over base stand and tighten the hand screw. Ensure light head is fully seated before

tightening hand screw. This can be loosened to rotate light head 360° horizontally.

This light is instant-on and will illuminate once energized.

Multi-voltage capability allows this light to be powered via Voltage: 120-277V AC, 50/60Hz

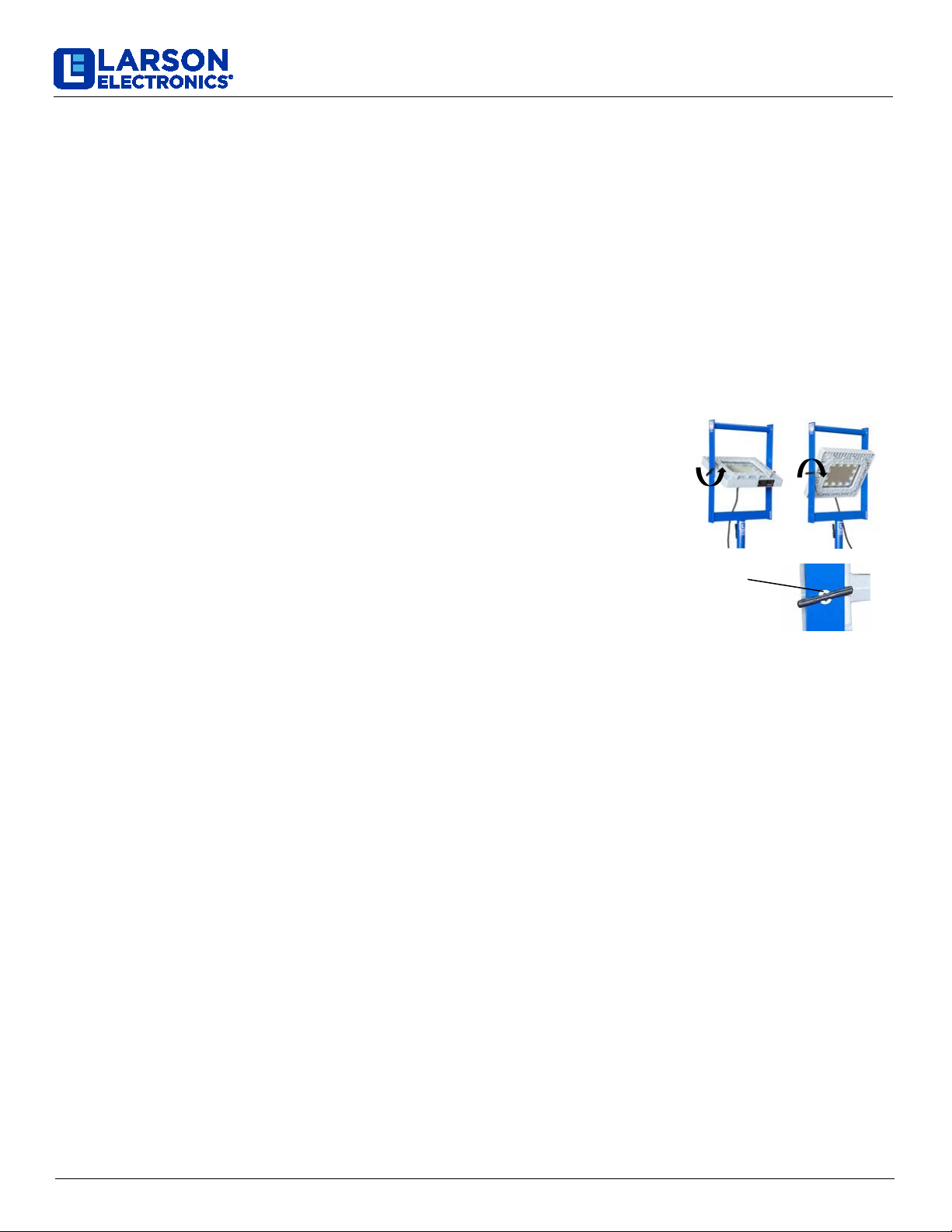

ADJUSTMENT

Loosen the hand screws on either side of the light to make vertical adjustments.

Tighten hand screws once desired angle is achieved.

The light head can be removed from the base stand for easy maneuverability or

for stowing. Simply loosen the hand screw toward the base of the light head and

lift off light head. Place light head on base stand and tighten hand screw to replace. HAND SCREW

MAINTENANCE

It is recommended that you implement a standard monthly or morefrequent preventive maintenance schedule. Safety requires a

thorough visual examination of the unit for physical damage that might cause a spark or result in the ignition of hazardous

atmospheres.

Maintenance includes a careful examination to ensure at least:

A. The Light Body is not cracked, broken or breeched.

B. The Lens is not cracked or chipped.

C. The Cable is not frayed and is gripping tightly in all points of cable contact.

D. The Cable Jacket is completely intactand that no internal conductorsor conductor insulation is exposed.

E. The Connection Box is not cracked, broken or breeched.

F. The Cord Plug is not cracked or damaged and the Ground Post is intact.

For your safety and to maximize the life of the light, avoid rough usage suchas:

A. Pulling the Light by the Cable, which could weaken or damage the cable.

B. Impacting the lens with hard, sharp or heavy objects, which could cause the lens to scratch, chip,

crack, or shatter.

C. Disconnecting the Cord Plug from the receptacle by pulling on the Cable.

Keeping the light clean and free of material splatter,overspray, and debris during usage will ensure the maximum life and luminosity of

the light.

TROUBLESHOOTING

Refer to the guide below or contactthe manufacturer if the fixture does not function properly.

Is the correct line voltage being supplied to the fixture?

Is the fixture properly grounded?

Make sureinstalled power switch is functioning properly (if applicable).

EPL-16BS-1X150LED-25

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

4 of 4

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The EPL-16BS-1X150LED-25 is designed to provide years of reliable performance. Should the need for replacement

parts arise, please contact Larson Electronics.
