La Crosse Technology WS9245 User manual
19
WIRELESS 868 MHz TEMPERATURE STATION
Instruction Manual
INTRODUCTION:
Congratulations on purchasing this temperature station with wireless 868 MHz
transmission of outdoor temperature and display of indoor temperature. With two easy to
use function keys, this innovative product is ideal for use in the home or office
« Instant Transmission+» is the up and coming state-of-the-art new wireless
transmission technology, exclusively designed and developed by LA CROSSE
TECHNOLOGY.
“IT +” offers you an immediate update of all your outdoor data measured from
the transmitters: follow your climatic variations in real-time!
20
FEATURES:
Temperature station
The Temperature Station
•Manual time setting (hour and minute display)
•Time display 24-hour time format
•Temperature display in degree Celsius (°C)
•Indoor and outdoor temperature display with MIN/MAX records
•Low battery indicator
•Wireless transmission at 868 MHz
•Signal reception intervals at 8 seconds
•Wall mounting or table standing
Stand
Hanging
hole
Battery
compartment
LCD displa
y
Function
keys
21
The Outdoor Temperature Transmitter
•Remote transmission of outdoor temperature to
Temperature Station by 868 MHz signals
•Rain proof casing
•Wall mounting and table-standing
•Mounting at a sheltered place. Avoid direct rain and
sunshine
SETTING UP:
Note: this temperature station can only receive one transmitter only.
1. First, insert the batteries to the transmitter (see “How to install and replace
batteries in the Temperature transmitter”below).
2. Within 30 seconds of powering up the transmitter, insert the batteries to the
Temperature Station (see “How to install and replace batteries in the
Temperature station”below). Once the batteries are in place, all segments of the
LCD will light up briefly. Following the indoor temperature, the time as 0:00 will be
displayed. If they are not shown in LCD after 60 seconds, remove the batteries and
wait for at least 60 seconds before reinserting them. Once the indoor data is
displayed user may proceed to the next step.
22
3. After the batteries are inserted, the Temperature Station will start receiving data
signal from the transmitter. The outdoor temperature should then be displayed on
the Temperature station. If this does not happen after 2 minutes, the batteries will
need to be removed from both units and reset from step 1.
4. In order to ensure sufficient 868 MHz transmission however, this should under
good conditions be a distance no more than 80 meters between the final position of
the Temperature Station and the transmitter (see notes on “Positioning” and “868
MHz Reception”).
HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE STATION
The Temperature Station uses 2 x AA, IEC LR6, 1.5V
batteries. When batteries will need to be replaced, the
low battery icon will appear on the LCD. To install and
replace the batteries, please follow the steps below:
1. Lift up the battery compartment cover.
2. Insert batteries observing the correct polarity (see
marking).
3. Replace compartment cover.
NOTE: During a reset or battery change, it is
recommended to leave the station and sensor without powerfor 10 minutes.
23
HOW TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE
TRANSMITTER The Temperature transmitter uses 2 x AAA, IEC LR3, 1.5V batteries.
When batteries will need to be replaced, the low battery icon will
appear on the LCD of the Temperature Station. To install and replace
the batteries, please follow the steps below:
1. Remove the battery compartment cover.
2. Insert the batteries, observing the correct polarity (see
marking).
3. Replace the battery holder to the unit.
Note:
In the event of changing batteries in any of the units, all units need to be reset by
following the setup procedures. This is because a random security code is assigned by
the transmitter at start-up and this code must be received and stored bythe Temperature
Station in the first few minutes of power supplying.
BATTERY CHANGE:
It is recommended to replace the batteries in all units regularly to ensure
optimum accuracy of these units. (Battery life –see Specifications)
24
Please participate in the preservation of the environment. Return used batteries to
an authorized depot.
FUNCTION KEYS:
The Temperature Station has only two easy to use function keys:
SET key
•Press and hold for about 3 seconds to enter the Manual setting mode.
+ key
•Press to make adjustment in the setting mode.
•Press and hold to reset all MIN/MAX records
+ key
SET ke
y
25
Outdoor Reception
Signal icon*
MIN/MAX Outdoor
temperature
LCD SCREEN AND SETTINGS:
*When the signal from the transmitter is successfully received by the Temperature Station,
this icon will be switched on. (If not successful, the icon will not be shown on the LCD).
Time
Indoo
r
Temperature
in °C
Outdoo
r
Temperature
in °C
MIN/MAX Indoor
temperature
Low battery indicator
(temperature station)
Low battery indicato
r
(transmitter)
26
Minutes (flashing)
Hour (flashing)
User can therefore easily see whether the last reception was successful (“ON” icon) or not
(“OFF” icon). On the other hand, the short blinking of the icon shows that a reception is
being done at that time.
MANUAL TIME SETTING:
To manually set the time of the Temperature Station:
1. Press and hold the SET key for 3 seconds to enter the manual time setting mode.
2. The hour digit of the time display will be flashing.
3. Press the +key to adjust the hour (press and hold to allow fast advance). Press
SET key to confirm and go to the minute setting.
4. The minute digit will be flashing. Press the +key to adjust the minute (press and
hold to allow fast advance). Press SET key once more to return to normal display.
Note:
If no buttons are pressed within approximately 8 seconds while in setting mode, the unit
will return to normal operating mode.
VIEWING THE INDOOR TEMPERATURE AND MIN/MAX
27
Indoor temperature
MAX indoor
temperature
MIN indoo
r
temperature

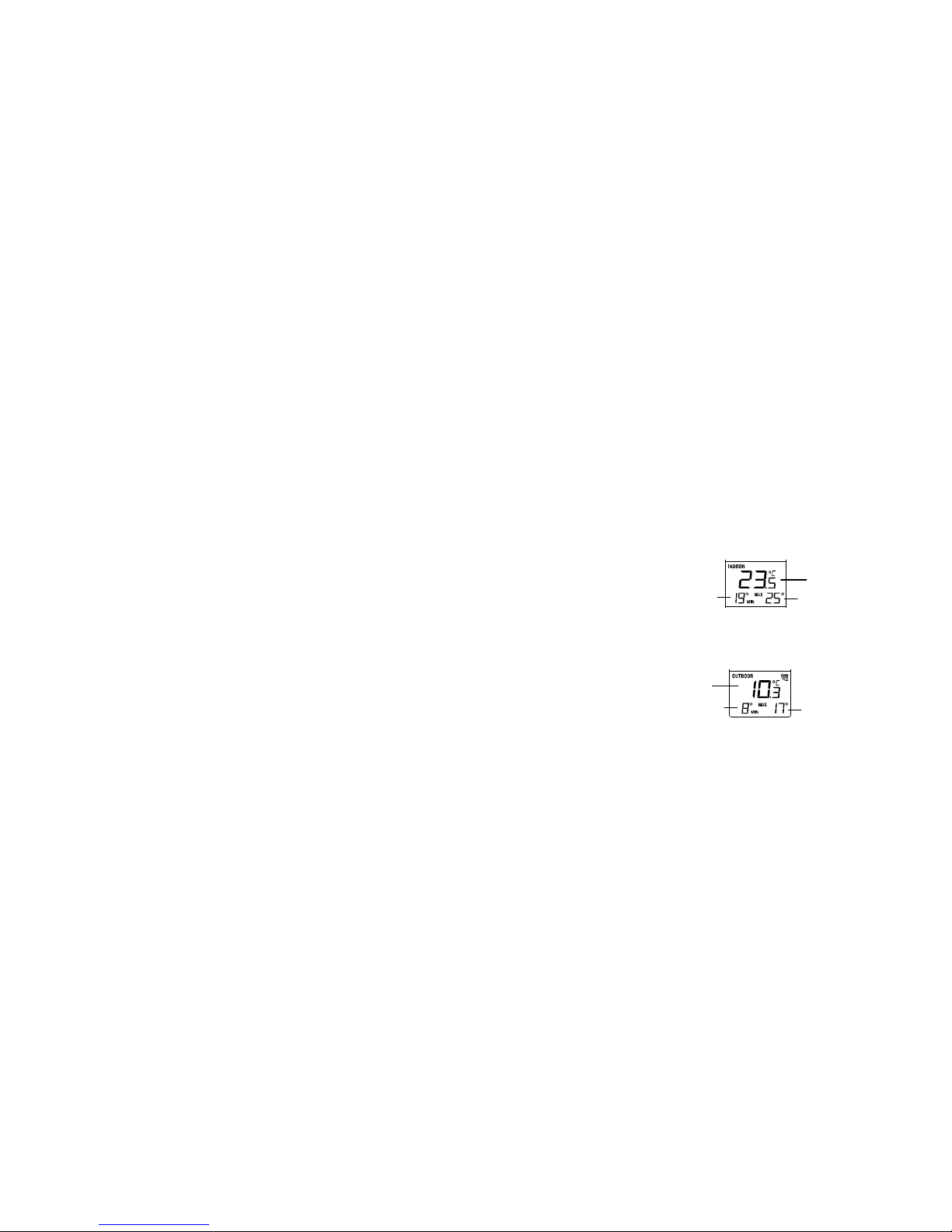

The indoor temperature is displayed in the second section of the LCD along with the
indoor MIN/MAX records:
Note:
•The maximum temperature record for the MIN indoor temperature can only be
up to -10ºC, and the MIN/MAX temperature resolution is 1°C.
•The resolution of the indoor temperature is 0.5ºC
VIEWING THE OUTDOOR TEMPERATURE AND THE MIN/ MAX
The outdoor temperature is displayed in the last section of the LCD along with the outdoor
MIN/MAX records:
28
MAX outdoor
temperature
MIN outdoo
r
temperature
Outdoor temperature
Note:
•The minimum/maximum temperature resolution is 1°C.
•The resolution of the outdoor temperature is 0.1ºC
TO RESET THE MIN/MAX DATA:
The MIN/MAX temperature can be reset manually by pressing and holding the + key for
about 3 seconds. This will reset all indoor and outdoor MIN/MAX temperature to current
indoor and outdoor temperatures.
LOW BATTERY INDICATOR
Low battery indicator is displayed on the LCD when the batteries require changing.
868 MHz RECEPTION CHECK
The Temperature Station should receive the outdoor temperature data within a few
minutes after setup. If the temperature data are not received about 2 minutes after setup
(the signal reception icon does not appear), please check the following points:
1. The distance of the Temperature Station or transmitter should be at least 1.5 to 2
meters away from any interfering sources such as computer monitors or TV sets.
