La Crosse Technology C84428 User manual

Page | 1Professional Remote Monitoring Station

PROFESSIONAL

Remote Monitoring Weather Station

Welcome!

--------------

Congratulations on your new Professional Weather Station and welcome to

the La Crosse Technology family! This product was designed with you in mind

by our hometown team of weather enthusiasts based in La Crosse, Wisconsin.

Instructional Manual

Model: C84428

DC: 082717

www.lacrossetechnology.com/C84428

Page | 2Professional Remote Monitoring Station

Table of Contents

Temperature | Humidity Trend Arrows

Daily HI | LO Temperatures

Feels Like Temperature

Seasonal Changes in Foliage

Backlight Brightness

Low Battery Icons

Sensor ID | Sensor Search

Delete Your Sensor ID

Factory Reset C84428

Detailed Sensor Setup and Mounting

Bonus Station Setup

Help Us, Help You

Let’s Be Social

Speciﬁcations

Care and Maintenance

Warranty and Support

FCC Statement

Canada Statement

Step 1: Power Up

Step 2: Station Options

Step 3: Mounting Basics

Option 1: Connect with La Crosse View

Wi-Fi Network Requirements

La Crosse View

La Crosse View Enhancements

New Data Stream Technology

Simple Status Messages

Connect Additional Sensors to Your

La Crosse View™ App

Option 2: Standalone Station

Settings Menu

Your Station’s Features:

Standalone or Connected

Wind Speed Readings

Wind Speed History

Reset Wind Speed History

Rainfall Readings

Reset Rainfall Readings

HI | LO Temperature/Humidity Records

Reset HI | LO Temperature/Humidity

Page | 3Professional Remote Monitoring Station

Insert the included batteries (in any order):

• 2-C batteries into Wind speed sensor

• 2-AA batteries into Thermo-hygro sensor

• 2-AA batteries into Rain sensor

• 5 volt power cord (required) into C84428 station

*3-AA batteries for optional backup of your time and date

• 2-AAA batteries into LTV-D1 bonus station

*Battery operation only, station will not update sensor or Wi-Fi data. Power cord is required.

STEP 1. Power Up

STEP 2: Station Options

OPTION 1

CONNECT WITH LA CROSSE VIEW™ APP

The easiest and fastest way to setup your station!

• Enjoy all of the standalone station features along with the enhanced feature set from your

La Crosse View™ app! Continue with these instructions on page 4.

OPTION 2

OPERATE AS A STANDALONE STATION

Full Weather Station Features

• Monitor your backyard temperature, humidity, wind speed, and rainfall information

on the easy-to-read LCD display. Continue with these instructions on page 9.

• You always have the option of connecting to the La Crosse View™ app at a later time if you choose.

STEP 3: Mounting Basics

At this time, all of your sensor information should be displayed on your station.

Here are a few quick tips for mounting your sensors:

THERMO-HYGRO

Keep out of direct sunlight & ensure the sensor is well-ventilated.

• We recommend mounting under a deck or eave facing north.

WIND SPEED

Ensure the sensor is mounted vertically – an unobstructed rooftop is ideal.

• Your wind sensor should be the tallest object in the area to avoid any obstructions.

RAIN

Mount in an open area, preferably o the ground on a level platform.

• Clean out the bucket regularly to avoid debris; this can aect readings.

For detailed sensor setup and mounting instructions, see page 18.

Page | 4Professional Remote Monitoring Station

Option 1: Connect with La Crosse View™

DOWNLOAD

• Visit the App Store or Google Play Store to download the free La Crosse View™ app on your mobile device.

CHECK YOUR NETWORK

• Conﬁrm that your mobile device is connected to a 2.4GHz (802.11 b/g/n) Wi-Fi band before trying to connect

your station to the La Crosse View app. The station itself cannot accept 5GHz Wi-Fi bands that most

dual-band routers oer

MAKE SURE YOUR STATION IS READY TO CONNECT.

• When connecting to the app, ensure the Wi-Fi Indicator icon is blinking.

• Solid: Indicates that you are connected to Wi-Fi.

• Slow Flash: Searching for connection

• Not displayed: Not Connected

• If your Wi-Fi icon is not displayed, perform a Wi-Fi search by pressing & holding the + & - buttons

together until it begins to flash.

• For detailed information about all of this station’s icons, see page 11.

LAUNCH

• Open the app on your iOS or Android device.

FOLLOW INSTRUCTIONS

• The La Crosse View™ app will walk you through creating an account and connecting your station to the

Internet. Once connected, your time, date, and local forecast information will update instantly on your

weather station’s screen. For online help: http://www.lacrossetechnology.com/lacrosseviewsupport

Wi-Fi Network Requirements

In order for your station to connect to your Wi-Fi, it will need to meet the following requirements:

• Conﬁrm that your mobile device is connected to a 2.4GHz (802.11 b/g/n) Wi-Fi band before trying to connect

your station to the La Crosse View app. The station itself cannot accept 5GHz Wi-Fi bands that most

dual-band routers oer

• Weather station power cord use is required for Wi-Fi connection.

iOS Requirements: Mobile device with iOS 9.0 (or higher) with cellular or Wi-Fi service

Android Requirements: Mobile device with Android OS 5.0 (or higher) with cellular or Wi-Fi service

Tips:

• Do not use public Wi-Fi networks.

• Your weather station and mobile device must be within 10 feet of each other during setup.

• If you change your Wi-Fi network, simply go into the La Crosse View™ app, select your station, and then

choose “Select Wi-Fi” from the app menu. Here, you will just need to enter your new Wi-Fi network’s login

information.

• Hold the PLUS and MINUS buttons together for 3 seconds to have your station search for your Wi-Fi.

• If you have connection issues, Hold the RAIN and LIGHT buttons together for 5 seconds to complete a

factory restart.

Page | 5Professional Remote Monitoring Station

ON-THE-GO HOME MONITORING

• Check Current Indoor & Outdoor Readings, View History Charts, and Set Custom Mobile Alerts.

FRIENDS & FAMILY SHARED ACCOUNTS

• No Need to Share Logins or Passwords! Invite Friends & Family to Download the App & Monitor Your

Home’s Data.

BEST IN CLASS APP EXPERIENCE

• Use Your Own Photos and Receive Free Push Notifications on the New, Easy-to-Navigate App

NEW DATA STREAM TECHNOLOGY

• Add your own personal messages or NWS data feeds from your La Crosse View™ app, that will show on

your station.

ADD OTHER SENSORS TO YOUR LA CROSSE VIEW™APP

• You can add additional Temperature & Humidity, Wind Speed, Rain, or Multi-Sensors to your La Crosse View™

app, easily expanding your coverage to all areas of your home.

• Your weather station will act as a Wi-Fi gateway, allowing these additional sensors to pass through the station

and show their data on your La Crosse View™ app.

• Add-on sensor data will, however, not be shown directly on your weather station.

• For more help connecting additional sensors, see page 9.

Note: If switching to a new Wi-Fi network, your station may take up to 3 minutes to reacquire all sensor

information.

Note: In the event of a power outage, or your station being unplugged temporarily, your station should

automatically reconnect to your existing Wi-Fi network, once power is reestablished.

Note: Weather station power cord use is required. Battery operation only will not update sensor or Wi-Fi data.

Connecting You to Your Home Anytime, Anywhere.

Page | 6Professional Remote Monitoring Station

NWS (National Weather Service) Daily HI | LO temperature

Note: When not using the app, the daily HI | LO will come

from your outdoor TH sensor.

NWS Chance of Precipitation

The letters NWS will show in the forecast area

NWS Additional Forecast Icons

Standard Icons:

Sunny • Partly Sunny • Clouds • Rain • T-Storm • Snow

Additional Icons:

Windy • Light Rain • Severe T-Storm • Light Snow

Wintry Mix • Blizzard • Fog • Ice

NWS Wind Direction

The words “NWS Wind Direction” will show, and the blue

circle will change to indicate wind direction.

La Crosse View™ Enhancements

NWS

WIND

DIRECTION

FORE CASTNWS

MPH

WIND SPEED

1 HOUR

NWS FORECAST

FEELS LIKE

RAIN

OUTDOOR

INDOOR

TOP

SPEED

1 HR

Standard Forecast Icons:

FORECAST FORECAST FORECAST FORECAST FORECAST FORECAST

Sunny Partly Sunny Clouds Rain T-Storm Snow

FORECASTNWS FORECASTNWS FORECASTNWS FORECASTNWS

FORECASTNWS FORECASTNWS

NWS Additional Forecast Icons:

Note: Snow icon will show when the outdoor temperature is 32°F or lower and the forecast is Rain or T-Storm.

When your station is connected to the NWS, you will see the six icons above (with precipitation added) as well

as the additional eight icons here:

Windy Light Rain Severe T-Storm Light Snow Wintry Mix Blizzard

Fog Ice

FORECASTNWSFORECASTNWS

Page | 7Professional Remote Monitoring Station

New Data Stream Technology

NWS

WIND

DIRECTION

FORE CASTNWS

MPH

WIND SPEED

1 HOUR

NWS FORECAST

FEELS LIKE

RAIN

OUTDOOR

INDOOR

TOP

SPEED

1 HR

Use the Data Stream Menu in the La Crosse View™ app to select up to 4 items to stream on your station.

1. Open the La Crosse View™ app and select your station.

2. Scroll down to the Data Stream section and press the blue icon.

3. Follow the app’s instructions to add the “Data Stream” you’d like displayed on your station

Allow a few minutes for all the data to update on your station.

Data Stream Items:

National Weather Service (NWS)

• Selectable Forecast on Your Display

(Wind, Snow, & Sky Conditions, probability of Thunderstorms, Hail or Tornados)

Personal Message

• Enter Up to 20 Characters for Special Events or Reminders

Note: Allow up to 10 minutes for new Data Stream selections to appear on your station.

Page | 8Professional Remote Monitoring Station

NWS

WIND

DIRECTION

FORE CASTNWS

MPH

WIND SPEED

1 HOUR

NWS FORECAST

FEELS LIKE

RAIN

OUTDOOR

INDOOR

TOP

SPEED

1 HR

NWS

WIND

DIRECTION

FORE CASTNWS

MPH

WIND SPEED

1 HOUR

NWS FORECAST

FEELS LIKE

RAIN

OUTDOOR

INDOOR

TOP

SPEED

1 HR

FORE CAST

MPH

WIND SPEED

1 HOUR

FEELS LIKE

RAIN

OUTDOOR

INDOOR

TOP

SPEED

1 HR

“NO CONNECT APP SERVER”

• The Wi-Fi router connection is working.

• Check your connection to the La Crosse View app.

• Is there an update to install?

“NO NIST SERVER”

• This indicates an error on the NIST server.

• Your time will be maintained by your weather station

until the NIST updates resume.

• The NIST will resolve this.

• Very rare to have this error.

“NO NWS SERVER”

• This indicates an error on the NWS server.

• NWS Expanded Forecast, Wind Direction, and

selected data streams will not update or show.

• The NWS will resolve this.

• Very rare to have this error.

Simple Status Messages

Your station has built-in status messages for your

convenience. Press and release the SET button to view.

Note: Only one relevant status message will display.

NWS

WIND

DIRECTION

FORE CASTNWS

MPH

WIND SPEED

1 HOUR

NWS FORECAST

FEELS LIKE

RAIN

OUTDOOR

INDOOR

TOP

SPEED

1 HR

“ALL OK CONNECTED”

• Your station is connected, there are no problems.

FORE CAST

MPH

WIND SPEED

1 HOUR

FEELS LIKE

RAIN

OUTDOOR

INDOOR

TOP

SPEED

1 HR

“LOST Wi-Fi”

• Check your power cord connection.

(power cord required to connect)

• When trying to reestablish your station’s Wi-Fi

connection, be sure your mobile device is on

the same 2.4GHz network you want your station

to use.

• Check your network connection.

• Hold the + and - buttons together for 3 seconds to

search for Wi-Fi.

Page | 9Professional Remote Monitoring Station

Connect Additional Sensors to Your La Crosse View™ App

Add Sensors:

Open your La Crosse View™app to add sensors.

1. From Main Menu - select “Devices” under “Add/Edit”

2. On Edit Devices page - select “ADD DEVICE”

3. Scan Device ID - Scan the bar code on your sensor or choose “ADD MANUALLY” to type in the number on

the bar code. Select “CONTINUE”.

4. On Conﬁrm Device page - Conﬁrm the sensor image and select “YES”

5. On Enter Device and Location Name page - enter Device Name and select a location or enter a Location

Name for your sensor. Select “DONE”.

Repeat steps 1-5 for any additional sensors you wish to add.

Note: Additional sensors may be purchased and added to your La Crosse View™ app at any time. Compatible

additional sensors start with the letters “LTV-”. Always check your product page for available sensors:

www.lacrossetechnology.com/C84428

DID YOU KNOW?

You can expand your system’s coverage with additional sensors (sold separately). These add-on sensors will use

your weather station as a gateway to the La Crosse View app, where their data can be viewed and tracked 24/7

from anywhere.

Note: The number of sensors or stations you can add will be limited by the memory of your mobile device.

Expand your coverage:

• Your baby’s room

• Your wine cellar

• Your basement

• Your attic

• Your garage

Just add a sensor and use your La Crosse View™app to monitor its data anywhere on-the-go.

For support and guidance of your La Crosse View™ app, please visit:

www.lacrossetechnology.com/lacrosseviewsupport

Page | 10Professional Remote Monitoring Station

When operating as a standalone station, you can manually adjust your stations settings

Note: When using the La Crosse View™ app, time and date will be set automatically.

Settings Menu

1. Hold the SET button for 3 seconds to enter settings menu.

2. Press and release the + or - buttons to adjust the ﬂashing values. Hold to adjust quickly.

3. Press and release the SET button to conﬁrm and move to the next item.

Note: Press and release the LIGHT button any time to exit settings.

Settings menu order:

1. BEEP ON | OFF

2. 12/24 hour format

3. Hour

4. Minutes

5. Year

6. Month

7. Date

8. Temperature Fahrenheit | Celsius

Note: SEE APP TO CONNECT will show as a reminder to connect to La Crosse View™ (optional).

• Press the LIGHT button to exit Settings Menu.

Option 2: Standalone Station

BEEP ON | OFF 12 | 24 Hour Time

Hour Minutes

Year Month

Date Temp °F | °C

Connection Prompt

Other manuals for C84428

Table of contents

Other La Crosse Technology Weather Station manuals

La Crosse Technology

La Crosse Technology 308-1417V2 User manual

La Crosse Technology

La Crosse Technology WS-9124U-IT-CA User manual

La Crosse Technology

La Crosse Technology 308-1414WBV2 User manual

La Crosse Technology

La Crosse Technology 308-1425BV3 Dimensions

La Crosse Technology

La Crosse Technology Tomorrow's Weather Today WS-7394U-IT User manual

La Crosse Technology

La Crosse Technology 327-1418BW User manual

La Crosse Technology

La Crosse Technology TX-440-TH User manual

La Crosse Technology

La Crosse Technology WS6304 User manual

La Crosse Technology

La Crosse Technology WS-9057U-IT Dimensions

La Crosse Technology

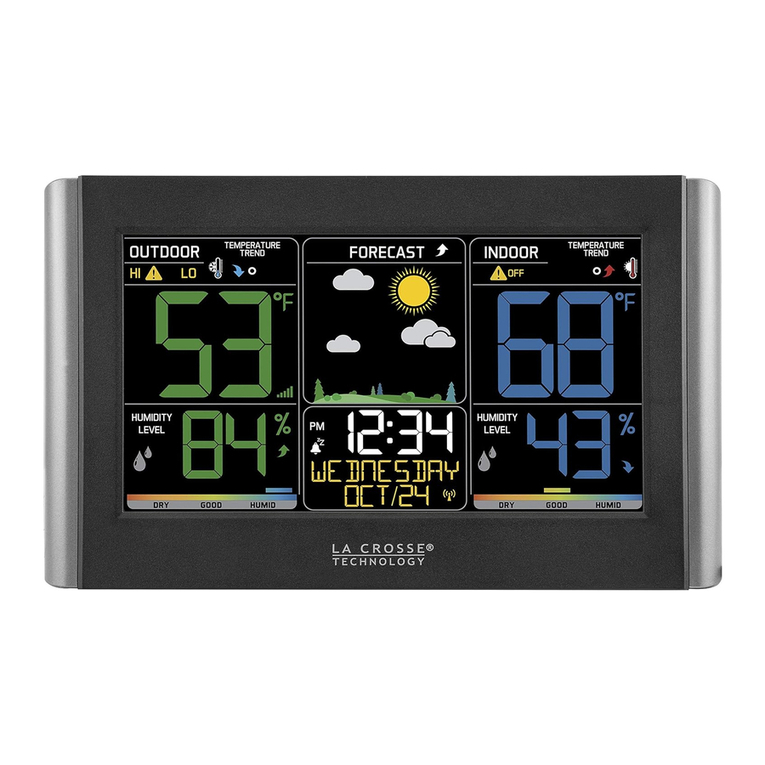

La Crosse Technology C85845 User manual

La Crosse Technology

La Crosse Technology T85647 User manual

La Crosse Technology

La Crosse Technology T83653v2 User manual

La Crosse Technology

La Crosse Technology 308-1417v3 User manual

La Crosse Technology

La Crosse Technology 79400 User manual

La Crosse Technology

La Crosse Technology 308-1451 User manual

La Crosse Technology

La Crosse Technology Wireless Weather Station User manual

La Crosse Technology

La Crosse Technology WS-9117U-IT User manual

La Crosse Technology

La Crosse Technology S88785 User manual

La Crosse Technology

La Crosse Technology 308-179OR User manual

La Crosse Technology

La Crosse Technology TX141TH-BCH User manual

La Crosse Technology

La Crosse Technology C83332 User manual

La Crosse Technology

La Crosse Technology WS-2315 User manual

La Crosse Technology

La Crosse Technology WS-9400U User manual

La Crosse Technology

La Crosse Technology 330-2315 Operating and maintenance manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions

TFA

TFA 30.3013.IT instruction manual

Alecto

Alecto WS-1200 user manual

Oregon Scientific

Oregon Scientific RMR966PA instruction manual
