La Crosse Technology WS6304 User manual

WS6304 User Manual

Features:

 DCF Radio control time function

 Perpetual Calendar Up to Year 2099

 Day of week in 15 languages user selectable: English, German, French, Spanish, Italian, Dutch, Danish, Portuguese,

Norwegian, Swedish, Polish, Finnish, Czech, Hungarian, and Russian

 Time in optional 12/24 hour format.

 Two daily alarms

 Automatic snooze function (OFF or 5~60min)

 The moon phase display

 Temperature:

— Indoor temperature measurement ranges: 0°C (32°F) ~ 50°C (122°F)

—Remote temperature measurement ranges: -40°C (-44°F) ~ 70°C (158°F)

— Temperature alternatively in °C or °F.

—Remote thermometer and frost alert

 Humidity: Indoor & Remote measurable range: 20%RH ~ 95%RH

 Minimum/maximum display for air humidity and temperature

 Display of comfort and mold risk

 Wireless Remote Sensor (3pcs):

— Wall Mount or Table Stand

— 3 Wireless Thermo/hygro Sensor Included

— 433.92MHz RF transmitting frequency

— 60 meter transmission range in an open area

—Up to 3 wireless outdoor sensors can be connected.

— Maximum transmit power: <+10mW

 Atmospheric pressure:

— Atmospheric pressure measurement ranges: 600 hPa/mb to 1100 hPa/mb -- 17.72 inHg to 32.50 inHg

— Pressure alternatively in hPa/mb or inHg

 The weather forecasting function

 Power Supply:

Weather Station:

Battery: 2 x LR6 AA

Equipment power input: DC 5V 600mA (dedicated power adapter)

Wireless Remote Sensor:

Battery: 2 x LR03 AAA

WS6304 User Manual

F.Y.I.:

The wireless remote sensor can work at -30°C to +70°C. Please choose the right battery according to the limit

temperature of the wireless sensor:

Alkaline zinc manganese battery can work at -20°C to +60°C

Polymer lithium ion rechargeable battery can work at -40°C to +70°C.

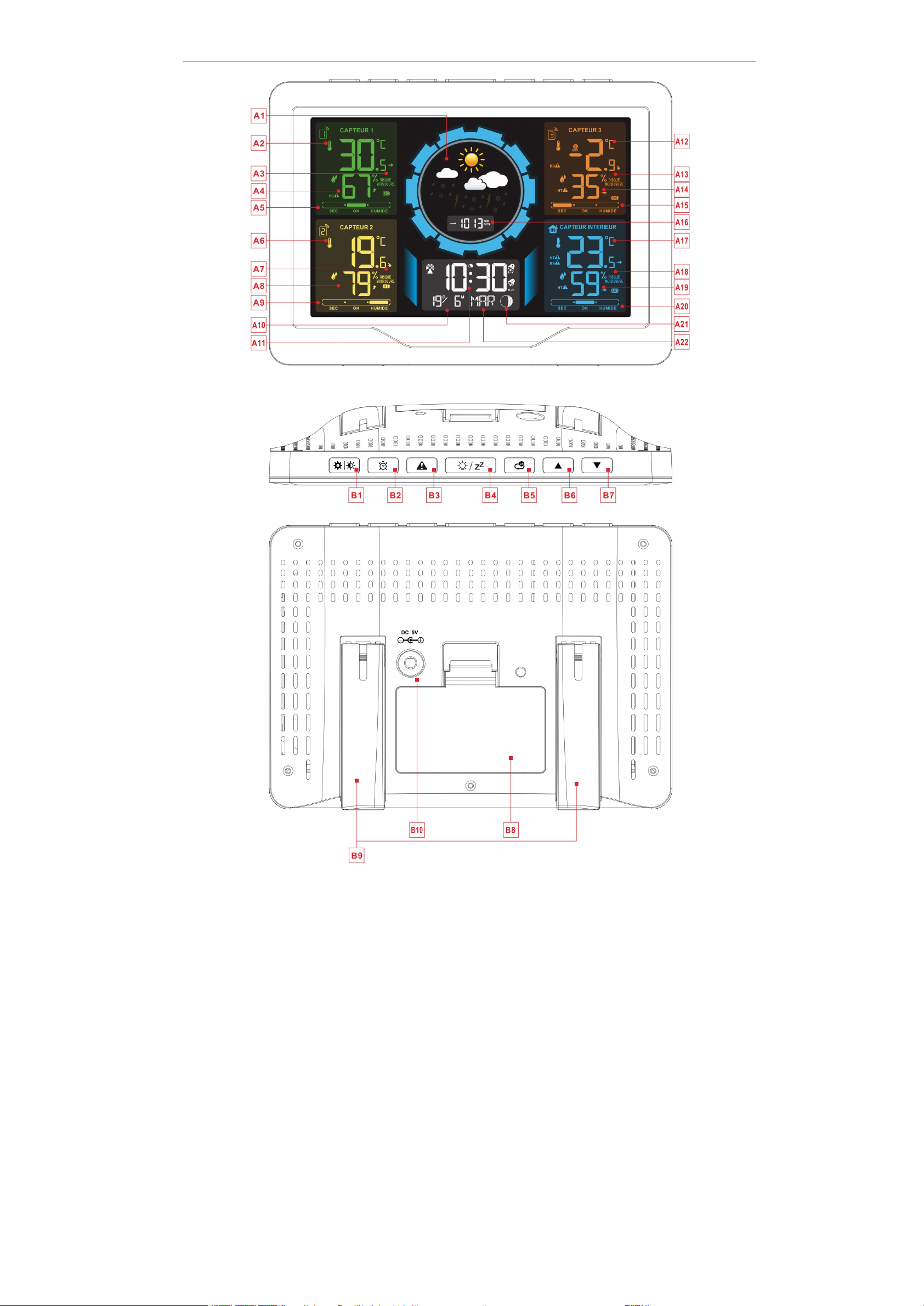

Weather Station Appearance

WS6304 User Manual

Part A-Positive LCD

WS6304 User Manual

A1: Weather Forecasting A2: Temperature of Wireless Remote Channel 1

A2: Mold Risk of Wireless Remote Channel 1 A4: Humidity of Wireless Remote Channel 1

A5: Comfort Index of Wireless Remote Channel 1 A6: Temperature of Wireless Remote Channel 2

A7: Mold Risk of Wireless Remote Channel 2 A8: Humidity of Wireless Remote Channel 2

A9: Comfort Index of Wireless Remote Channel 2 A10: Month and date

A11: Time A12: Temperature of Wireless Remote Channel 3

A13: Mold Risk of Wireless Remote Channel 3 A14: Humidity of Wireless Remote Channel 3

A15: Comfort Index of Wireless Remote Channel 3 A16: Atmospheric pressure

A17: Temperature of Indoor A18: Mold Risk of Indoor

A19: Humidity of Indoor A20: Comfort Index of Indoor

A21: Moon phase A22: Week Day

Part B – Back button and power

B1: “ ” button B2: “ ” button

B3: “ ” button B4: “ ” button

B5: “ ” button B6: “▲” button

B7: “▼” button B8: Battery compartment

B9: Support frame B10: Power supply socket

Part C –Wireless Remote Sensor:

C1: LCD display – Temperature

C2: LCD display – Humidity

C3: Transmit signal LED

C4: “°C/°F” button

C5: “TX” button

C6: “CHANNEL 1 or 2 or 3” switch

C7: Battery compartment

WS6304 User Manual

Initial operation:

 First, open the battery slots of the three remote wireless sensors respectively, first set the number of

channels, set them in channel 1, channel 2 and channel 3 respectively, and then install the 2 x "AAA" 1.5V

battery according to the battery polarity direction.

 When the wireless sensor is loaded into the battery, all the icon on the LCD display will briefly light up for 3

seconds, and detect the temperature and humidity of the sensor, At the same time, LED lights flicker once,

the wireless sensors automatically transmit wireless signals.

 According to the appearance of the Weather Station, the power adapter is inserted from the B10 position,

and the power supply of the power adapter is also noted.

 Open Weather Station battery compartment cover, open Weather Station battery compartment cover, insert

2 x AA batteries observing polarity [ “+” and “–” marks]

 After the weather station is connected to the power supply according to the above two steps, all the icons on

the LCD display will light up for 3 seconds, you will hear the buzzer, and check the indoor temperature and

humidity.

 The weather station will now start connecting to the outdoor remote sensor. This operation takes about 3

minutes, and the receiving RF antenna symbol displays and flashes above the three channel labels

corresponding to the weather station.

 The signal from 3 sensors will be automatically received within 3 minutes. After receiving, the temperature

and humidity of the remote sensors in the 3 channel bars will be displayed.

Manual settings:

 Press and hold down the “ ” button more than 2 seconds to enter the time and general settings, first set

the temperature of the unit, now use “▲” and “▼” buttons to set the unit of temperature in “°C” or “°F”.

 Press “ ” to confirm your setting, switch to radio controlled clock (RCC) function setting, Now use “▲”

and “▼” buttons set the RCC receive function to activate(ON) or close (OFF)

 Press “ ” to confirm your setting, switch to daylight saving time (DST) function setting. This function is

not usable in Europe.

 Press “ ” to confirm your setting, switch to the 12/24 hour mode display setting. Now use “▲” and “▼”

buttons to set the time displayed in 12-hour or 24-hour format

 Press “ ” to confirm your setting, switch to time zone setting, Now use “▲” and “▼” buttons set a

correct time zone (-2 to +2).

WS6304 User Manual

 Press “ ” to confirm your setting, switch to the hour setting. Now use “▲” and “▼” buttons to set the

correct hour.

 Press “ ” to confirm your setting, switch to the minute setting. Now use“▲” and “▼” buttons to set the

correct minute.

 Press “ ” button to confirm your setting, switch to the Month and Date display setting. Now use “▲” and

“▼” buttons to set the date display on Month/Date or Date/Month.

 Press “ ” button to confirm your setting, switch to the year setting. Now use “▲” and “▼” buttons to set

the correct year.

 Press “ ” button to confirm your setting, switch to the month setting. Now use “▲” and “▼” buttons to

set the correct month.

 Press “ ” button to confirm your setting, switch to the date setting. Now use “▲” and “▼” buttons to set

the correct date.

 Press “ ” button to confirm your setting, switch to the language selection for the week and month

displays setting. Now use “▲” and “▼” buttons to select a language.

Note: There are 15 languages of Weekday: English, German, French, Italian, Spanish, Portuguese,

Dutch, Danish, Norwegian, Swedish, Polish, Finnish, Czech, Hungarian, and Russian

Week language display

Language Sunday Monday Tuesday Wednesday Thursday Friday Saturday

ENGLISH MONDAY TUESDAY WEDNESDAY THURSDAY FRIDAY SATURDAY SUNDAY

ENG MON TUE WED THU FRI SAT SUN

GERMAN MONTAG DIENSTAG MITTWOCH DONNERSTAG FREITAG SAMSTAG SONNTAG

GER MON DIE MIT DON FRE SAM SON

FRENCH LUNDI MARDI MERCREDI JEUDI VENDREDI SAMEDI DIMANCHE

FRE LUN MAR MER JEU VEN SAM DIM

ITALIAN LUNEDI MARTEDÌ MERCOLEDÌ GIOVEDI VENERDÌ SABATO DOMENICA

ITA LUN MAR MER GIO VEN SAB DOM

SPANISH LUNES MARTES MIERCOLES JUEVES VIERNES SABADO DOMINGO

SPA LUN MAR MIE JUE VIE SAB DOM

PORTUGUESE

SEGUNDA-FEIRA TERÇA QUARTA-FEIRA QUINTA-FEIRA SEXTA-FEIRA SABADO DOMINGO

POR SEG TER QUA QUI SEX SAB DOM

DUTCH MAANDAG DINSDAG WOENSDAG DONDERDAG VRIJDAG ZATERDAG ZONDAG

DUT MAA DIN WOE DON VRI ZAT ZON

DANISH MANDAG TIRSDAG ONSDAG TORSDAG FREDAG LØRDAG SØNDAG

DAN MAN TIR ONS TOR FRE LOR SON

NORWEGIAN MANDAG TIRSDAG ONSDAG TORSDAG FREDAG LØRDAG SØNDAG

NOR MAN TIR ONS TOR FRE LOR SON

WS6304 User Manual

SWEDISH MÅNDAG TISDAG ONSDAG TORSDAG FREDAG LÖRDAG SÖNDAG

SWE MAN TIS ONS TOR FRE LOR SON

POLISH PONIEDZIAŁEK WTOREK ŚRODA CZWARTEK PIĄTEK SOBOTA NIEDZIELA

POL PON WTO SRO CZW PIA SOB NIE

FINNISH MAANANTAI TIISTAI KESKIVIIKKO TORSTAI PERJANTAI LAUANTAI SUNNUNTAI

FIN MAN TII KIS TOR PER LAU SUN

CZECH PONDĚLÍ ÚTERÝ STŘEDA ČTVRTEK PÁTEK SOBOTA NEDĚLE

CZE PON UTE STR CTV PAT SOB NED

HUNGARIAN HÉTFŐ KEDD SZERDA CSÜTÖRTÖK PÉNTEK SZOMBAT VASÁRNAP

HUN HET KED SZE CSU PEN SZO VAS

RUSSIAN PERIOD ПОНЕДЕЛЬНИК ВТОРНИК СРЕДА ЧЕТВЕРГ ПЯТНИЦА СУББОТА ВОСКРЕСЕНЬЕ

RUS ПОН BTO CPE ЧЕТ ПЯТ СУБ ВОС

 Press “ ” to confirm your setting, switch to pressure unit setting. Now use the “▲” and “▼” button to set

the pressure of the unit, the unit of t pressure can be set to “hPa” or “inHg”

 Press “ ” button to confirm your setting, switch to barometric pressure calibration mode. Now use “▲”

and “▼” buttons to set the atmospheric pressure value.

 Press “ ” button to confirm your setting, switch to setting the initial weather. Now use “▲” and “▼”

buttons to select the current weather

 Press“ ” to confirm your setting and to end the setting procedures, enter the clock mode

 During the time setting process, Press the “ ” button to exit the setting mode directly.

F.Y.I.:

 After 20 seconds without pressing any button, the clock switches automatically from Set Mode to Normal

Time Mode.

 In the set time, the number of minutes of the change, automatically from the zero second forward

 In the set time, you can press hold the “▲” and “▼” button to quickly change the setting of the value

 When the weather station is in the same area as Germany, the time zone is set to 00, one hour slower than

German time, the time zone is set to -01, one hour faster than German time, the time zone is set to 01, 2

hours faster than German time, time zone Set to 02,

 Exceeding the German signal tower diameter of 1500KM or more, the signal received by the radio clock

signal is very poor. It is recommended to set the RCC to OFF.

Setting the daily alarms:

 Press and hold down“ ” button more than 2 seconds to enter the alarm setting mode, first enter the alarm 1

hour setting. Use the “▲” and “▼” buttons to set the required hour.

WS6304 User Manual

 Press “ ” button to confirm your setting, switch to the alarm 1 Minute setting. Use the “▲” and “▼” buttons

to set the required minute.

 Press “ ” button to confirm your setting, switch to the alarm 1 repeat setting. Use the “▲” and “▼” buttons

to set the alarm type in “L-V” (from Monday to Friday) or “S-D” (from Saturday to Sunday) or “L-D” (from

Monday to Sunday).

 Press “ ” button to confirm your setting, switch to the alarm 1 snooze time setting. Use the “▲” and “▼”

buttons to set the minute of snooze you need.

 Press “ ” button to confirm your setting, switch to the alarm 2 hour setting. Use the “▲” and “▼” buttons to

set the required hour.

 Press “ ” button to confirm your setting, switch to the alarm 2 minute setting. Use the “▲” and “▼” buttons

to set the required minute.

 Press “ ” button to confirm your setting, switch to the alarm 1 repeat setting. Use the “▲” and “▼” buttons

to set the alarm type in “L-V” (from Monday to Friday) or “S-D” (from Saturday to Sunday) or “L-D” (from

Monday to Sunday).

 Press “ ” button to confirm your setting, switch to the alarm 1 snooze time setting. Use the “▲” and “▼”

buttons to set the minute of snooze you need.

 Press “ ” button to confirm your setting and to end the setting procedure.

 During the alarm setting process, Press the “ ” button to exit the setting mode directly.

F.Y.I.:

 After 20 seconds without pressing any button the clock switches automatically from setting mode to Normal

clock mode.

 When the alarm repeat is set to L-V, the alarm function will be activated from Monday to Friday, and will be

disabled on Saturday and Sunday, “L-V” appears below the alarm symbol. When the alarm repeat is set to

S-D, the alarm function will be activated on Saturday and Sunday, and will be disabled from Monday to

Friday, and a “S-D” appears below the alarm symbol. When the alarm repeat is set to display L-D at the

same time, the alarm function will be activated for a week, “L-V” and “S-D” appears below the alarm

symbol.

 The snooze time setting range: 5 ~ 60MIN, OFF, when set to OFF, means no snooze function. Snooze time

unit is minutes.

WS6304 User Manual

Alarm ON/OFF

 Press “ ” button can switch the display ALARM1 time or ALARM2 time, in the alarm1 or alarm2 display

mode, press the “▲” button to turn the alarm on or off.

 The alarm 1 or alarm 2 turn on, the “ ” or “ ” icon is displayed, the alarm 1 or alarm 2 function is open, the

repeat of alarm icon at the same time is also displayed.

 The alarm 1 or alarm 2 turn off, the“ ” or “ ” icon disappears, the alarm 1 or alarm 2 function is close.

 During alarm viewing mode, Press the “ ” button to exit the setting mode directly.

F.Y.I.:

 The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm

will be repeated automatically after 24 hours.

 Rising alarm sound (crescendo, duration: 2 minutes) changes the volume 4 times whilst the alarm signal is

heard.

Switching off the alarm signal

 Press any button except the “ ” button to stop the alarm signal. It is not necessary to reactivate the

alarm. It switches itself automatically to the alarm time which has already been set.

Snooze function:

 When the time is up to the alarm, press the “ ” button, the alarm signal stops, and enter the SNOOZE

mode. After the snooze time is counted, the alarm will ring again.

 In snooze mode, press any buttons except the “ ” button or press the “ ” button and hold for

more than 2 seconds to exit the snooze mode.

F.Y.I.:

When the snooze function is set to OFF, when the time is up to the alarm, press the “ ” button does not

have this snooze function.

Lunar phases:

 The Moon icon indicator of the Weather Station will also display 12 different Moon phase phases according

to the set calendar.

New

moon

Waxing half-moon Half-moon

Waxing full

moon

Full

moon

Waning full

moon

Half-moon

Waning half-moon

WS6304 User Manual

Temperature & Humidity detection:

 Indoor temperature measuring range: -9.9°C (+14°F) ~ +50°C (+122°F), LL.L °C(°F) will displayed if value

lower than -9.9°C (+14°F), HH.H °C(°F) will displayed if value higher than +50°C (+122°F).

 Outdoor temperature measuring range: 40°C (-40°F) ~ +70°C (+158°F), LL.L °C(°F) will displayed if value

lower than -40°C (-40°F), HH.H °C(°F) will displayed if value higher than +70°C (+158°F).

 Indoor and outdoor humidity measuring range: 20%RH ~ 95%RH, 19%RH will displayed if value lower than

20%RH, 96%RH will displayed if value higher than 95%RH.

Wireless sensor transmission:

 When the weather station successfully receives the signal from the wireless sensor, the outdoor

temperature and humidity will be displayed in the columns of channels 1, 2 and 3 of the weather station.

 The Weather station can connect up to 3 channel wireless sensor registration, the use of multiple wireless

sensor, the wireless sensor channel cannot choose the same channel at the same time (A total of 1, 2, 3

channels can be set, three sensors need to set different channels)

 If any channel of the weather station fails to receive the transmission from the outdoor sensor (“--” is

displayed on the LCD), press the “ ” button to select the corresponding channel number. After selecting,

the corresponding channel number will flash and display, at this time, press and hold the “ ” button for 3

seconds to receive and transmit manually. The RF receiving antenna symbol “ ” flashes, and the weather

station will receive the wireless signal from the outdoor sensor again.



Displaying temperature/humidity and temperature/humidity trend

 The current indoor temperature/humidity/barometric pressure and the temperature/humidity trend (indoors)

are shown in the LCD display.

 After successfully connecting with the remote sensor, the weather station can display the remote

temperature/humidity and the temperature/humidity trend (remote)

 You may see the following displays:

: The temperature/humidity is rising.

: The temperature/humidity is remaining constant.

: The temperature/humidity is falling.

Maximum/Minimum Temperature/Relative Humidity

Table of contents

Other La Crosse Technology Weather Station manuals

La Crosse Technology

La Crosse Technology 308A-146 User manual

La Crosse Technology

La Crosse Technology C80758-UK User manual

La Crosse Technology

La Crosse Technology WS-2310 User manual

La Crosse Technology

La Crosse Technology V40-PRO User manual

La Crosse Technology

La Crosse Technology WS-2315 User manual

La Crosse Technology

La Crosse Technology WS- 1910TWC-IT User manual

La Crosse Technology

La Crosse Technology WS-9620U-IT User manual

La Crosse Technology

La Crosse Technology Tomorrow's Weather Today TX24U User manual

La Crosse Technology

La Crosse Technology 308-1412-3TX Dimensions

La Crosse Technology

La Crosse Technology WS-9057U-IT-LC User manual

La Crosse Technology

La Crosse Technology WS-9153TWC-IT User manual

La Crosse Technology

La Crosse Technology WS-1517 User manual

La Crosse Technology

La Crosse Technology 327-1417BW Operating and maintenance manual

La Crosse Technology

La Crosse Technology WS-2210 User manual

La Crosse Technology

La Crosse Technology WS-2010 Quick start guide

La Crosse Technology

La Crosse Technology WD-2513U User manual

La Crosse Technology

La Crosse Technology 308-1425BCA Dimensions

La Crosse Technology

La Crosse Technology WS-2317U User manual

La Crosse Technology

La Crosse Technology C84428 User manual

La Crosse Technology

La Crosse Technology S84107 User manual

La Crosse Technology

La Crosse Technology V22-WRTHV2 User manual

La Crosse Technology

La Crosse Technology WS-7048U User manual

La Crosse Technology

La Crosse Technology C85845 Operating and maintenance manual

La Crosse Technology

La Crosse Technology 308-1417BLV2 User manual

Popular Weather Station manuals by other brands

Auriol

Auriol AHFL 433 A1 operating instructions

NexSens

NexSens G2-HYDROMET quick start

Hyundai

Hyundai WS 2202 instruction manual

IROX

IROX HBVR761 UV-X user manual

ADE

ADE WS 1711 operating instructions

Auriol

Auriol z29592 Operation and safety notes

Auriol

Auriol 296289 Operation and safety notes

Hyundai

Hyundai WS 2266 instruction manual

Ventus

Ventus W177 owner's manual

National Geographic

National Geographic VA Colour RC instruction manual

Renkforce

Renkforce 1208067 operating instructions

Levenhuk

Levenhuk Discovery Report WA40 quick start guide

Instant Transmission

Instant Transmission MA 10410 instruction manual

Lutron Electronics

Lutron Electronics PHB-318 Operation manual

WAREMA

WAREMA EWFS Weather station eco Operating and installation instructions

TFA

TFA 30.3013.IT instruction manual

Alecto

Alecto WS-1200 user manual

Oregon Scientific

Oregon Scientific RMR966PA instruction manual
