Kyocera DuraForce Pro 3 User manual
Quick
Reference
Guide
About your phone
Wide-angle camera
Macro camera Main camera
Tool Anchors
Tool Anchors
SIM/
microSD
card slot
(internal)
Charging
contacts
Back cover screw
Flash
USB/Charger port
Secondary
microphone
Right channel
speaker
Receiver/Left
channel speaker
PTT key*
Front camera
Main microphone
LED indicator
Volume
keys
Camera
key*
Power key
(Fingerprint
sensor)
SOS key*
Proximity/
Light sensor
Qi wireless
charging
location
NOTE: Devices and software are constantly evolving. The screen images and icons you see here are for reference only.
*NOTE: These keys also function as programmable keys that can be assigned to frequently used applications or functions for quick access.
SIM/microSD card slot
Notch

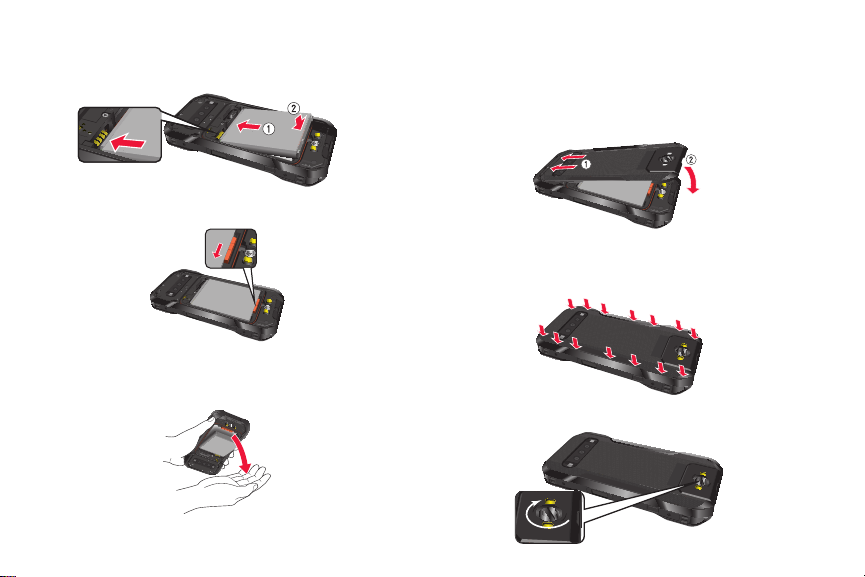

Setting up your phone
Your phone already has a SIM card installed. For
optimal functionality of your new device, please use
the pre-installed SIM card. To insert a microSD card or
replace the SIM card, follow these steps:
Step 2. Insert a microSDTM card (optional).
NOTE: microSD cards are sold separately.
Locate the SIM/microSD card slot inside the battery
compartment and pull the card tray out of the slot.
Step 1. Remove the back cover.
Using a coin, rotate the back cover screw counter-
clockwise several times to loosen it.
NOTE: The back cover screw is permanently mounted on the
cover and should not be removed.
Insert your fingernail into the notch at the bottom of the
back cover and lift the cover.
Step 3. Insert the battery.
Unlock the battery latch by sliding it in the direction
indicated by the arrow in the picture below.
Put the tray onto a flat surface and place a microSD
card into the tray. Ensure the gold contacts are facing
down as shown.
Insert the tray into the SIM/microSD card slot, being
careful not to let the cards slide out. Then gently push
the tray back into the slot until it fits into place.
Unlock
Battery latch
UNLOCK
Insert the battery, making sure to align the gold contacts.
Press down gently to secure the battery.
Lock the battery latch by sliding it in the direction
indicated by the arrow in the picture below.
Tip: Remove the battery.
With the battery latch unlocked, hold the phone with one
hand and tap it gently against your other hand to dislodge
the battery.
CAUTION: Do not use screwdrivers or other tools when removing
the battery in order to avoid damage.
Using a coin, rotate the back cover screw to secure it. Do
not overtighten.
Step 4. Replace the back cover.
Insert the top edge of the cover into place first before
pressing the rest of the cover down.
NOTE: The back cover will not close properly unless the battery
latch is in the locked position.
LOCK
Press all around the edges of the back cover as shown
below, starting at the top and working your way down along
each side, as shown below. Make sure all the tabs are secure
and there are no gaps between the cover and the phone.
Lock
Using your phone
Turning your phone on
To turn your phone on, press and hold the Power key.
Turning your phone off
1. Press and hold the Power key until the phone options
are displayed.
2. Tap Power off to turn the phone off.
Locking/unlocking the screen
To turn on your screen, press the Power key, then:
> Swipe up to open the Home screen.
> Swipe left to open the Camera app.
> Swipe right to launch Google Assistant.
To turn off your screen and prevent accidental key
presses, press the Power key.
USB Type-C cable
Step 5. Charge your phone.
Before turning on your phone, charge it fully.
NOTE: Only insert a USB Type-C connector into the phone’s USB/
Charger port.
Open the USB/Charger port cover and insert the smaller
end of the USB cable (included) into the phone. Insert the
other end of the cable into a compatible AC adapter (sold
separately) and plug the adapter into a power outlet.
When charging is complete, remove the cable from the
port and close the cover securely. Unplug the AC adapter
from the power outlet to conserve energy.
WARNING: Use only Kyocera-recommended adapters and cables.*
Improper handling of the charging port, as well as the use of an
incompatible adapter or cable, may cause damage to your device
and void the warranty.
*For more information, visit
https://solutions.kyoceramobile.com/shop
https://kyoceramobile.com/duraforce-pro-3/.
WARNING: Do not use the phone under water if the back cover or USB/
Charger port cover is broken or open.
Accessing apps
1. From the Home screen, tap an app icon that you want
to open.
– or –
1. Swipe up from the bottom of the Home screen to open
the Apps launcher screen.
2. Tap to hide the keyboard if necessary, and then tap
an app icon to open it.
– or –
Enter the app name you want to access in the search
field, and then select your desired app.
Making a call
Using the dialpad:
1. From the Home screen, tap to open the phone app.
2. Tap DIALPAD on the bottom left of the screen.
3. Tap the number keys on the dialpad to enter the phone
number.
4. Tap to call the number.
5. To end the call, tap .
From Contacts list:
1. From the Home screen, tap .
2. Tap CONTACTS to display your contacts list.
3. Tap the contact you want to call.
4. Tap to call the number.
My Verizon Mobile App
Manage your account, track your usage, edit
account information, pay your bill and more.
Support and more
From your computer, visit
verizonwireless.com/Support
Customer service
Call 800.922.0204
Twitter @VerizonSupport
Download a User Guide from
verizonwireless.com/Support
NOTE: For User Guide and Safety & Warranty information about
your phone, swipe up on the Home screen and tap Settings >
About phone > User guide or Safety & Warranty on your phone or
visit: KyoceraMobile.com/Support/Phone and select your phone.
© 2023 Kyocera Corporation. All rights reserved. KYOCERA is a registered trademark of Kyocera Corporation. All other trademarks are the property of their
respective owners.
Additional information
Your wireless device and third-party services
Verizon Wireless is the mobile carrier associated with this wireless device, but many services and features offered through this device are
provided by or in conjunction with third parties. Verizon Wireless is not responsible for your use of this device or any non-Verizon Wireless
applications, services and products, including any personal information, you choose to use, submit or share with others. Specific third-party terms
and conditions, terms of use and privacy policies apply. Please review carefully all applicable terms conditions and policies prior to using this
wireless device and any associated application, product or service.
Hearing aid compatibility information
This phone has been tested and certified for use with hearing aids for some of the wireless technologies that it uses. However, there may be
some newer technologies that have not been tested yet for use with hearing aids. It is important to try the different features of this phone
thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. To enable Hearing
Aid Compatibility Mode, swipe up on the Home screen and tap Settings > Accessibility. Then, scroll down to Hearing aids and tap the on/off
icon to enable. Ask your service provider or the manufacturer of this phone for information on hearing aid compatibility. If you have questions
about return or exchange policies, ask your service provider or phone retailer.
