Kuppersberg WIS 60149 Installation and maintenance instructions

TECHNICAL PASSPORT

ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ

WIS 60149

WASHING MACHINES

СТИРАЛЬНЫЕ МАШИНЫ

TECHNICAL PASSPORT ENGLISH

Washing Machines

SAFETY NOTICE ..........................................................................................................................................3

NAME OF PARTS..........................................................................................................................................7

ACCESSORIES...............................................................................................................................................7

NAMES AND FUNCTIONS OF CONTROL PANEL.......................................................................8

LOCK AND UNLOCK THE DOOR .........................................................................................................10

USAGE INSTRUCTION FOR DETERGENT CASE.........................................................................10

HOW TO USE THE WOOL PROGRAM................................................................................................11

NORMAL USAGE..........................................................................................................................................11

HOW TO USE THE BLANKET PROGRAM........................................................................................11

HOW TO USE THE PRESET COURSE................................................................................................12

COURSE CHOOSING GUIDE..................................................................................................................13

CARE AND MAINTENANCE....................................................................................................................14

VARIOUS FUNCTIONS

CHILD LOCK FUNCTION..................................................................................................................15

ADDING CLOTHES MIDWAY..........................................................................................................15

WASHING TIPS.............................................................................................................................................15

NO TROUBLE CONDITIONS..................................................................................................................16

TROUBLE SHOOTING GUIDE...............................................................................................................17

INSTALLATION INSTRUCTIONS........................................................................................................18

SPECIFICATIONS........................................................................................................................................21

CONTENTS

ENGLISH TECHNICAL PASSPORT

Washing Machines

SAFETY NOTICE

(be sure to observe)

To protect the user and other

people’s health and property, be sure to

observe the following safety notice.

WARNINGS

please read this part of substance

carefully for proper operation before

using your machine.

The precautions stated here are

classiﬁ ed as “Warning” and “Attention”

according to the damage and the

emergency caused by mlsoperatlon, and

are described respectively In line with

the marks below.

WARNING

With no respect to mark, the

misoperation may cause death or GBH.

ATTENTION

With no respect to mark, the

misoperation may cause body harm or

object damage.

This mark indicates the content of

warning or attention.

This mark indicates the prohibited

action.

This mark indicates the compulsory

action to be carried out.

WARNING

Dismantling, repair or alterations

should only be carried out by

professional technician as otherwise

you may be subject to electric shock,

may cause ﬁ re or get injured.

Electricity supply must be

unplugged with dry hands.

Otherwise, this may ause electric

shock.

Wet hands Prohibited

Damaged or loosen wire or plug

shouldlSjB not be used.

Otherwise electric shock, short circuit

or ﬁ re may take place.

Do not damage wire.

Do not damage or alter the wire forcibly

bend, pull twist or handle the wire.

Beside, please do not put weigh on or

trap the wire.

Damage of wire may case electric

shock or ﬁ re.

Prohibited

Do not put water in direct contact

with the unit during maintenance and

repair.

TECHNICAL PASSPORT ENGLISH

Washing Machines

This may cause short circuit or electric

shock.

Prohibited

Do not put gasoline, benzine,

alcohol, thinner of fabrics with these

stains into or nearto the washing

machine.

To prevent ﬁ re or explosion which j

may cause injuries.

Prohibited

This washing machine is

equipped with the electricity wire with

bielectrode grounding socket. The

creepage protector shall be used if

possible.

To prevent electricity leak which may

cause injuries.

Grounding

Please use the single socket with

special Л Л voltage and current matched

with plug I marked speciﬁ cation.

The share of the same socket with

other electric appliances may cause ﬁ re

due to excessive.

Clear

Thoroughly wipe the power plug

when II dirt is adhering the prong or

around the base of the prong.

Failure to do so may cause a ﬁ re.

Washing machine should not be

installed in humid place or in places

exposed to wind and rain

Otherwise, electricity leak causing

electric shock or ﬁ re may occur.

Prohibited

This washing machine is strictly

prohibited to get close to the locations

with candle, mosquito- repellent

incense, dog-end or other kinds of open

ﬂ ame.

To avoid injuries caused by the lock

damage.

Do not operate the machine

when there is gas leak.

Prohibited

ENGLISH TECHNICAL PASSPORT

Washing Machines

Keep child awayfrom the washing

spinning basket and do not place box or

shelves next to the washing machine.

children may fall into the basket

resulting in injuries.

This appliance is not intended for

use by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction prohibited

concerning use of the appliance by a

person responsible for their safety.

Prohibited

The glass door becomes hot in

process of high-temperature washing.

Do not touch the door when the

machine is on, especially children.

If you need to open the door

during high-temperature washing

program, wait until the temperature

drop to safe standard, and the door

unlocked automatically.

Packing material may be

dangerous to kids, please keep all

packing material (plastic ЬадЛЙПЛ

foam etc) far away from the kids.

Prohibited

ATTENTION

Do not pull the wire from the

socket when unplugging the unit.

To avoid electric shock or ﬁ re cause

by short ciruit may result.

Prohibited

Electricity supply must be

unplugged with dry hands during

maintenance and repair.

Otherwise, electric leakage causing

injuries may occur.

If the power cord or supply cord

is damaged, the manufacturer or its

service agent or similarly qualiﬁ ed

person must replace it in order to avoid

a hazard.

Do not wash, rinse and spin the

water proof fabric or cloth.

Sleeping bag, raincoat, cover of

skiing, utilities, bicycles, cars and

motors. Otherwise may lead to injury

by abnormal vibration during spinning

TECHNICAL PASSPORT ENGLISH

Washing Machines

or damage the washing machine, wall,

ﬂ oor and clothes.

Prohibited

Keep hands and feet away from

the buttom of the washing when it is

motion.

Ports in motion beneath the unit may

cause injuries.

Prohibited

Water leakage

Water supply hose should be

tightly II screwed to the unit.

Failure to do so may result in water

leakage. Used fora long period of time, the

unitmay result in water leakage caused

by loosen union nut. So please check it in

time and screw tightly again.

Please unplug the unit when not

Sfer using the unit fora long period of

time.

Electric shock or leakage may occur

due to deformation of plastic parts of the

unit.

Water of above 50°С should not be

used for washing .

Electric shock or leakage may occur

due to deformation of plastic parts of

the unit.

Prohibited

Do not stand on or put weight on

the top of the

Otherwise, deformation and damage

may causing injuries.

Two people are required in

moving or Prohibited transportation.

Prohibited

Water leakage

Check water supply hose connection

ﬂ B by turning on the water before

washing. To prevent damages caused by

possible water leakage due to loosen

screw or not tightly.

ENGLISH TECHNICAL PASSPORT

Washing Machines

The new hose-sets supplied with the appliance are to be used and that old

hose-sets should not be reused.

Do not block the ventilation openings on the bottom of washer by carpeting

when the washer is installed on a carpeted ﬂ oor.

Please turn off the water tap when not using the unit.

To prevent damages caused by water leakage.

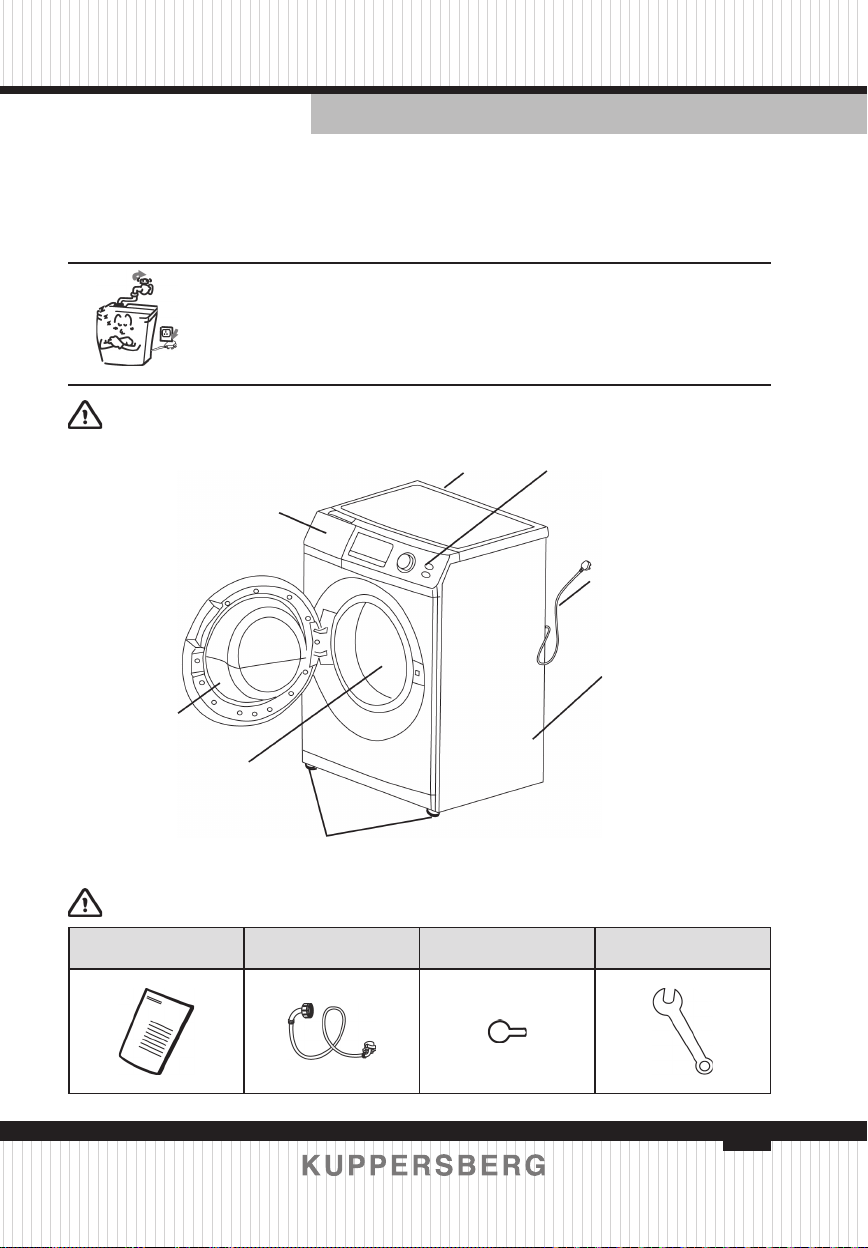

NAME OF PARTS

ACCESSORIES

Instruction

manual Water Supply Hose Lid

(4Piece) Spanner

Adjustable Leg

Wash/Spin Tub

Washer Door

Detergent Case

Water inlet Valve Control Panel

Power Cord

Frame

TECHNICAL PASSPORT ENGLISH

Washing Machines

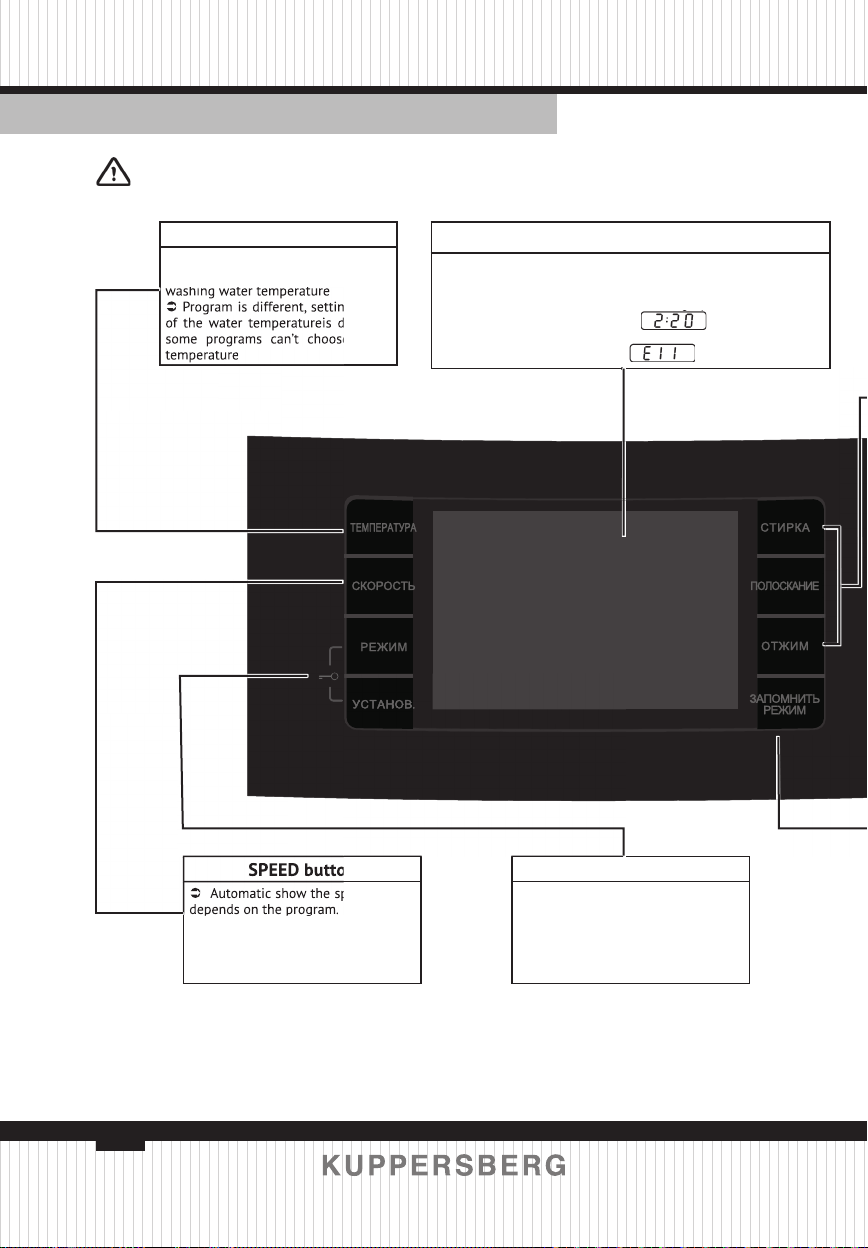

NAMES AND FUNCTIONS OF CONTROL PANEL

Warm button

According to the types and stain

of washing clothes to choose the

washing water temperature

Program is different, setting range

of the water temperatureis different,

some programs can’t choose water

temperature

SPEED button

Automatic show the speed of spin

depends on the program.

You can set the speed of spin as

the request, and the speed rang of

spin limits when you handle several

programs.

FUNCTION/SET button

Put these two Buttons at the same

time according in 5 seconds long, you

can set the child lock function

You can choose different kinds of

wash function by Function Button, and

then confrim by Set Button.

Display window

When the power is on, the window will display spinning speed

and so on.

The window will display the left time during operation.

For example: left time is 2h 20m.

The window will display the left time during operation.

When there is error, the window will display error code. For

example: no water entering in.

SPEED button



Automatic show the speed of spin

depends on the program.

washing water temperature



Program is different, setting range

of the water temperatureis different,

some programs can’t choose water

temperature

ENGLISH TECHNICAL PASSPORT

Washing Machines

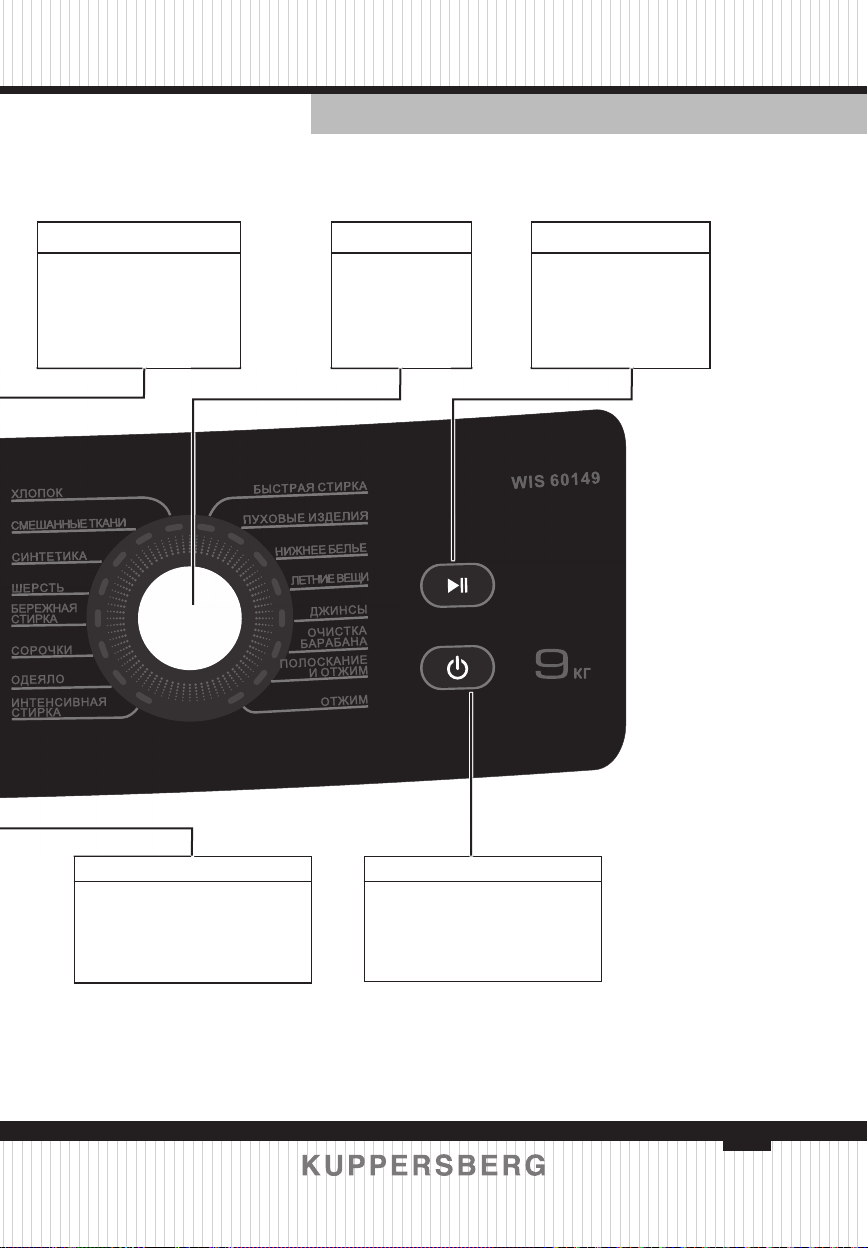

POWER ON/OFF button

Press this button to turn on/off the

power.

When washing has ﬁ nished, the

power will be turned off automatically.

FAVORITE button

It keeps the memory after washing

program.

Process button

You can choose the wash

times , rise times and spin times.

When process is going with

ﬂ ashing of lights to mark, and

the digital window displays

time.

START/PAUSE button

Press this button to start

the operation.

Press this button to

pause the operation, and

press it again to continue

the rest program.

PROGRAM knob

Choose the right

course according to

the type and stained

of clothes.

TECHNICAL PASSPORT ENGLISH

Washing Machines

LOCK AND UNLOCK THE DOOR

Lock the door

The door will be locked automatically when the machine gets started, and the

light will turn on at the time.

Unlock the door

When the light is on, press START/PAUSE button, the Wash/Spin tub stop,

then the door will be unlocked after 2 minutes.

The door will be unlocked after 2 minutes if you directly pulled out the

electrical plug.

Foam spill over if you open the door during washing process, use towel to

clean it.

The door can not be unlocked in high temperature or high water level.

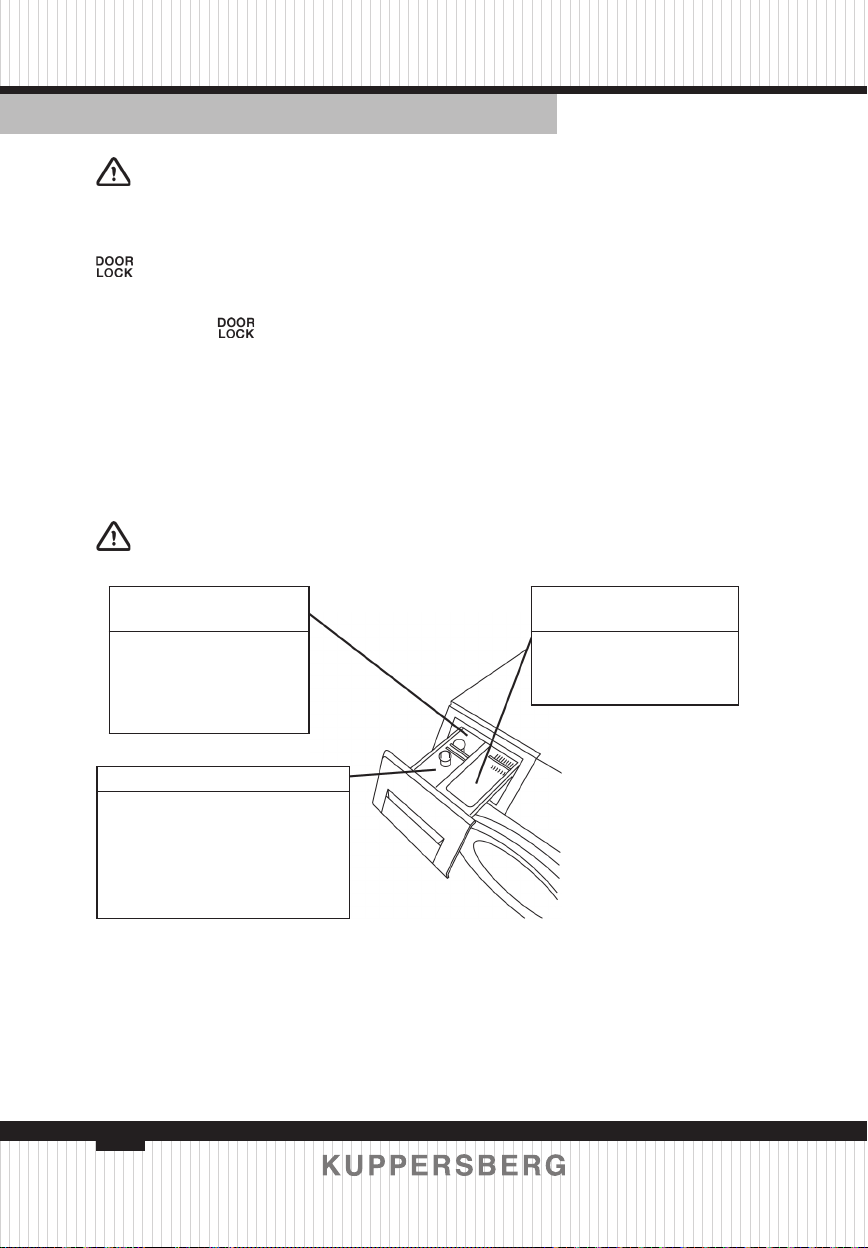

Liquid detergent

and Bleach

Use low bubble liquid

synthetic detergents.

For the concentrated liquid

detergents, diluted it double

times with water, then pour into

.the case.

Softener

Put into the case before washing it

will be poured into the tub automatically

at the last round of rinse.

For the concentrated detergents, use

corresponding proportion of water to

dilute it, then pour it into the case.

No exceed to the full mark line.

Powder synthetic

detergents

For the undissolved

detergents, for example: powder

state soap, dissolve it in advance,

then pour into the case.

High bubble Washer powder or detergent is forbidden.

Use the detergent in accordance with the instruction by its manufacturer.

Excessive detergents will cause too much bubble and affect the rinse, also

create function faults.

Choose suitable detergents in accordance with the type and color of clothes,

the water temperature and the stain.

USAGE INSTRUCTION FOR DETERGENT CASE

Table of contents

Languages:

Other Kuppersberg Washer manuals

Kuppersberg

Kuppersberg WIS 56149 G Installation and maintenance instructions

Kuppersberg

Kuppersberg WIS 56149 G Installation and maintenance instructions

Kuppersberg

Kuppersberg WM 490 W Installation and maintenance instructions

Kuppersberg

Kuppersberg WD 1488 Installation and maintenance instructions

Kuppersberg

Kuppersberg WIS 50106 Installation and maintenance instructions

Kuppersberg

Kuppersberg WIS 46106 Installation and maintenance instructions

Kuppersberg

Kuppersberg WM 410 W Installation and maintenance instructions

Kuppersberg

Kuppersberg WM 581 W Installation and maintenance instructions

Kuppersberg

Kuppersberg WM 1477 Installation and maintenance instructions

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
