Kontron 820951 ADD2-DVI-Dual-Internal User manual

ADD2-DVI-Dual

KTD-00714-F Public User Manual Date: 2008-11-25 Page 1 of 9

User Manual

for the Add-On cards:

820951 ADD2-DVI-Dual-Internal

820952 ADD2-DVI-Dual

820955 ADD2-DVI-Dual-Internal-C01

820958 ADD2-DVI-Dual-Internal-150

AGP Digital Display second generation card with Dual DVI transmitters

Designed primarily for 986LCD-M family and KT965/Flex motherboards.

Pending is support for KTQ45, KTG41 and KTGM45 motherboards.

820951 ADD2-DVI-Dual-Internal

820958 ADD2-DVI-Dual-Internal-150

820952 ADD2-DVI-Dual

820955 ADD2-DVI-Dual-Internal-C01

ADD2-DVI-Dual-

Internal ADD2-DVI-Dual ADD2-DVI-Dual-

Internal-C01 ADD2-DVI-Dual-

Internal-150

Part no. 820951 820952 820955 820958

PCB no. 30103291 30103281 30103311 30103291

Ass. no. 68910000 68810000 69000000 68910000

Note Incl. 2 x 300mm cable Incl. 300 mm cable Incl. 2 x 300mm cable Incl. 2 x 150mm cable

ADD2-DVI-Dual

KTD-00714-F Public User Manual Date: 2008-11-25 Page 2 of 9

Document revision history.

Revision Date By Comment

F Nov 25th 2008 MLA BIOS version info added. More modules added.

E Oct. 31st 2007 MLA Design update. Corrections and more info added.

D Sept. 27th, 2007 MLA Item no. corrected on front page. Added text.

C Sept. 7th, 2007 MLA Installation guide added.

B Aug. 22nd 2007 MLA Picture changed.

A Aug. 10th 2007 MLA Picture added.

0 Feb. 23rd 2007 MLA Preliminary version.

No part of this document may be reproduced or transmitted in any form or by any means, electronically or

mechanically, for any purpose, without the express written permission of KONTRON Technology A/S.

Trademark Acknowledgement:

Brand and product names are trademarks or registered trademarks of their respective owners.

Disclaimer:

KONTRON Technology A/S reserves the right to make changes, without notice, to any product, including

circuits and/or software described or contained in this manual in order to improve design and/or performance.

Specifications listed in this manual are subject to change without notice. KONTRON Technology assumes no

responsibility or liability for the use of the described product(s), conveys no license or title under any patent,

products are free from patent, copyright, or mask work right infringement, unless otherwise specified.

Applications that are described in this manual are for illustration purposes only. KONTRON Technology A/S

makes no representation or warranty that such application will be suitable for the specified use without

further testing or modification.

ADD2-DVI-Dual

KTD-00714-F Public User Manual Date: 2008-11-25 Page 3 of 9

Life Support Policy

KONTRON Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN LIFE

SUPPORT DEVICES OR SYSTEMS WITHOUT EXPRESS WRITTEN APPROVAL OF THE GENERAL

MANAGER OF KONTRON Technology A/S.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into

body, or (b) support or sustain life and whose failure to perform, when properly used in accordance with

instructions for use provided in the labeling, can be reasonably expected to result in significant injury to

the user.

2. A critical component is any component of a life support device or system whose failure to perform can be

reasonably expected to cause the failure of the life support device or system, or to affect its safety or

effectiveness.

KONTRON Technology Technical Support and Services

If you have questions about installing or using your KONTRON Technology Product, check this User’s

Manual first – you will find answers to most questions here. To obtain support, please contact your local

Distributor or Field Application Engineer (FAE).

Before Contacting Support: Please be prepared to provide as much information as possible:

ADD-On Board

1. Type.

2. Part-number (Number starting with “68”).

Configuration

1. Motherboard Type

2. BIOS Revision (Find the Version Info (BIOS ID) in the BIOS Setup Menu)

3. BIOS Settings different than Default Settings (Display related settings).

4. O/S Make and Version.

5. Graphic Driver Version numbers.

6. Attached LCD Panel(s) etc.

ADD2-DVI-Dual

KTD-00714-F Public User Manual Date: 2008-11-25 Page 4 of 9

Table of contents:

INTRODUCTION................................................................................................................................................5

MECHANICAL DRAWING.................................................................................................................................5

FUNCTIONAL DIAGRAM..................................................................................................................................6

INCLUDED DVI CABLE.....................................................................................................................................7

CONNECTOR DESCRIPTION...........................................................................................................................8

JUMPER DESCRIPTION (UNSUPPORTED)....................................................................................................9

INSTALLATION GUIDE.....................................................................................................................................9

ELECTRICAL SPECIFICATION........................................................................................................................9

ADD2-DVI-Dual

KTD-00714-F Public User Manual Date: 2008-11-25 Page 5 of 9

Introduction

•Dual DVI Transmitter each working as Single Transmitter up to 165Mpixels/s

•Panel resolution up to 1920x1200 or similar

•Monitor Detection supported through Hot Plug or Receiver Sense

•DVI 1.0 compliant

•High-speed SDVO1 serial (1G~2Gbps) AC-coupled

•Differential RGB inputs

•Complete Windows and DOS driver support

•Included DVI Cables to implement dual DVI connectors

•DVI Bracket (Full Height) and screws are included for the 820952 ADD2-DVI-Dual

The ADD2-DVI-Dual cards are based on the Silicon Image SiI1364 DVI transmitter. The ADD2-DVI-Dual is

equipped with two SiI1364 and supports two independent displays having resolutions up to 1920x1200

possible. The card is designed for the PCI-Expressx16 connector which on the 986LCD-M family of

motherboards and on the KT965/Flex motherboard is multiplexed PCI-Expressx16 and SDVO. When the

ADD2-DVI card is plugged into the PCI-Expressx16 connector then the motherboard automatically detects

the card and select SDVO output. The card operates at pixel rates of up to 165MHz per link, supporting

1920x1200 panels at a 60Hz refresh rate.

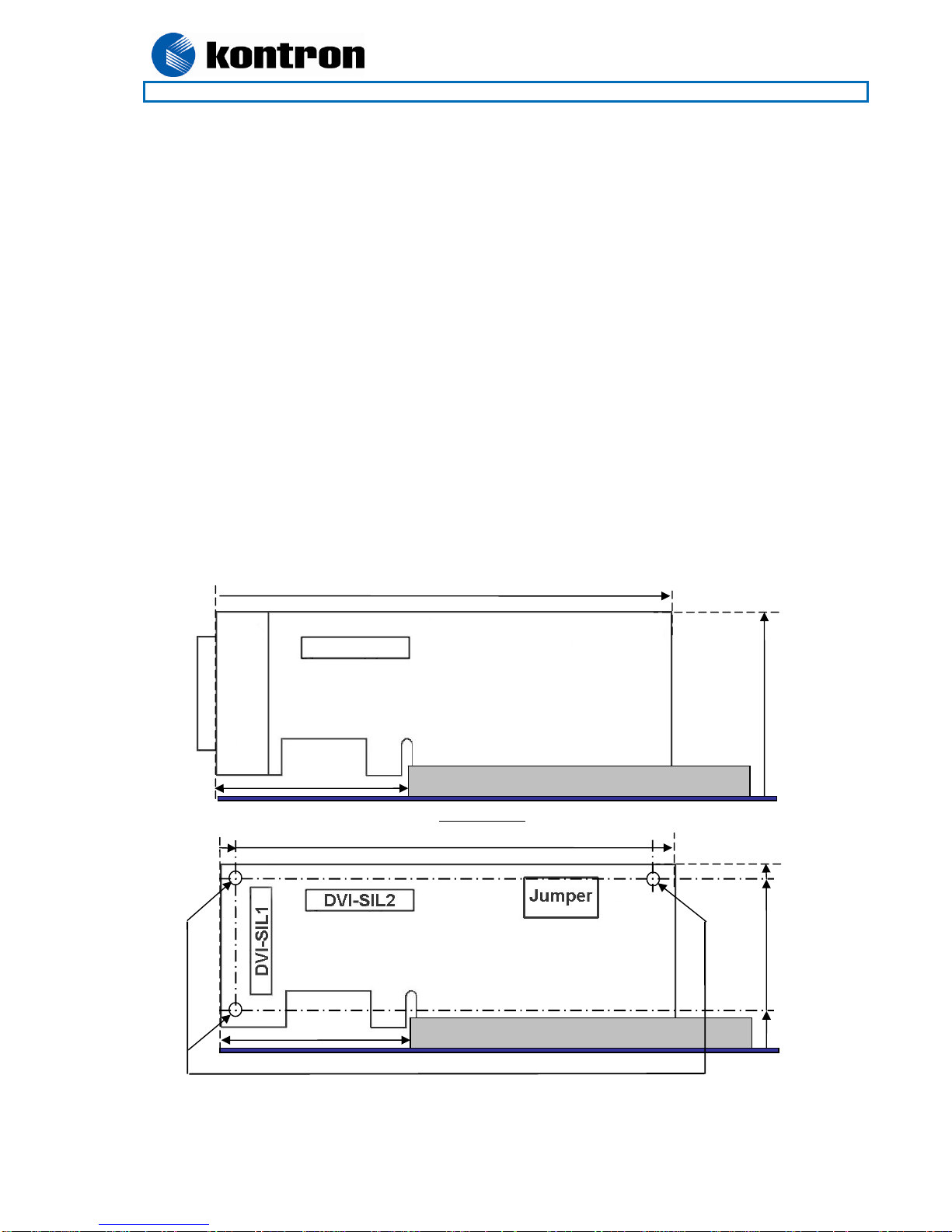

Mechanical Drawing

MB PCB

Measures in mm

45.0

44.0

96.4

MB PCI-Expressx16

DVI-I

DVI-SIL

820952/820958 ADD2-DVI-Dual

12.4

45.0

42.4

96.4

MB PCI-Expressx16

820951 ADD2-DVI-Dual-Internal

42.0

4.1 93.0

Mounting holes diam. 3.0 mm

820955 ADD2-DVI-Dual-lnternal, super low profile 30.0 x 106.0 mm

MB PCB

ADD2-DVI-Dual

KTD-00714-F Public User Manual Date: 2008-11-25 Page 6 of 9

Functional Diagram

Note that VBIOS located in I2C is not used as default. The reason is that the BIOS used in the Kontron

Motherboards of 986LCD-M and KT965 families are supporting the ADD2-DVI card directly.

PCI-Expressx16 connector

Motherboard with multiplexed PCI-Expressx16/SDVO connector

SDVO to DVI

Converter #1

DVI

r DVI-I

VBIOS

I2C PROM

(option)

5V Current limited

SDVO to DVI

Converter #2

DVI

r DVI-

SDVO

SDVO-B SDVO-C

ADD2-DVI-Dual

PCI-Expressx16 connector

Motherboard with multiplexed PCI-Expressx16/SDVO connector

SDVO to DVI

Converter #1

DVI

r DVI-

VBIOS

I2C PROM

5V Current limited

supply

SDVO to DVI

Converter #2

DVI

r DVI-

SDVO

SDVO-B SDVO-C

DIP-

(

DIP-

)

ADD2-DVI-Dual-Internal

EDID I2C

PROM#2

EDID I2C

PROM#1

ADD2-DVI-Dual

KTD-00714-F Public User Manual Date: 2008-11-25 Page 7 of 9

Included DVI Cable

DVI cable (item no. 821524 ADD2-DVI Aux Cable 300mm or 1022-2966 ADD2-DVI Aux Cable 150mm) is

included.

820951 includes two 821524 ADD2-DVI Aux Cable 300mm

820952 includes one 821524 ADD2-DVI Aux Cable 300mm

820955 includes two 821524 ADD2-DVI Aux Cable 300mm

820958 includes two 1022-2966 ADD2-DVI Aux Cable 150mm

Example: 820951 ADD2-DVI-Dual-Internal with cables mounted.

The 821524 and 1022-2966 cable kits are based on two pieces of Hirose DF19L-20P-1H connector. The

wiring is a one-to-one connection. The cable kit includes a DVI-SIL to DVI-I converter module.

Cable wiring:

DVI-SIL 1 DVI-SIL 2 DVI-I

Pin No. Pin No. Pin No. Signal

1 1 - GND

2 2 - GND

3 3 14 +5V (55mA)

4 4 16 Hot Plug Detect

5 5 15 GND

6 6 7 DDC Data

7 7 6 DDC Clock

8 8 - GND

9 9 24 TMDS Clock-

10 10 23 TMDS Clock+

11 11 22 GND

12 12 17 TMDS Data 0-

13 13 18 TMDS Data 0+

14 14 19 GND

15 15 9 TMDS Data 1-

16 16 10 TMDS Data 1+

17 17 11 GND

18 18 1 TMDS Data 2-

19 19 2 TMDS Data 2+

20 20 3 GND

ADD2-DVI-Dual

KTD-00714-F Public User Manual Date: 2008-11-25 Page 8 of 9

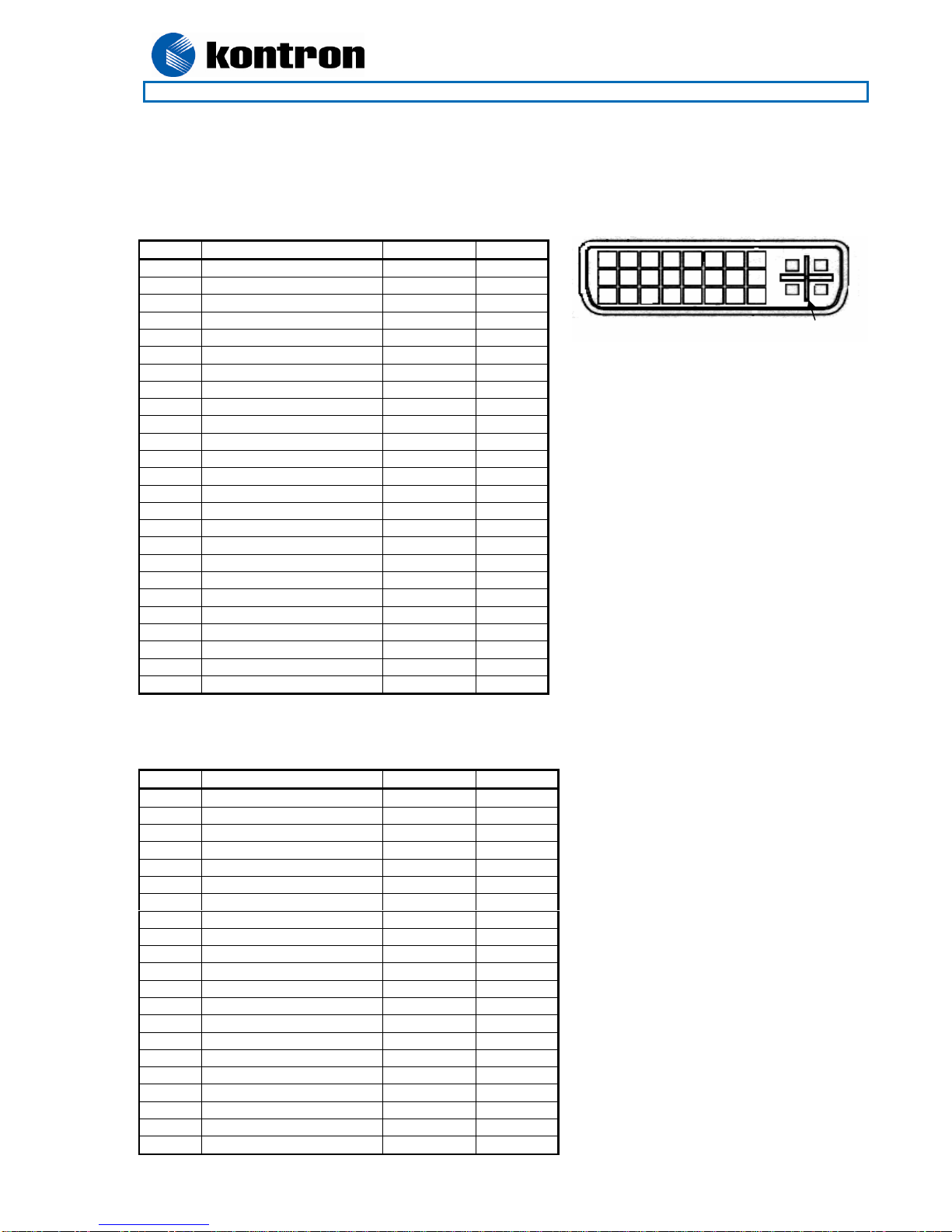

Connector Description

The DVI-I connector is a Molex 74320-1004 (or similar). Only DVI Digital output is supported.

(Both DVI-I and DVI-D cables can be connected).

The DVI-SIL, is a Hirose DF19G-20P-1H. Mating connector is Hirose DF19L-20P-1H or similar.

Pin No. Signal Type Pull Up

1 TMDS Data 2- LVDS OUT

2 TMDS Data 2+ LVDS OUT

3 TMDS Data 2/4 Shield PWR

4 N.C. -

5 N.C. -

6 DDC Clock IO 2K2

7 DDC Data IO 2K2

8 N.C. -

9 TMDS Data 1- LVDS OUT

10 TMDS Data 1+ LVDS OUT

11 TMDS Data 1/3 Shield PWR

12 N.C. -

13 N.C. -

14 +5V (55mA) PWR

15 GND PWR

16 Hot Plug Detect I

17 TMDS Data 0- LVDS OUT

18 TMDS Data 0+ LVDS OUT

19 TMDS Data 0/5 Shield PWR

20 N.C. -

21 N.C. -

22 TMDS Clock Shield PWR

23 TMDS Clock+ LVDS OUT

24 TMDS Clock- LVDS OUT

C1 - C5 N.C. -

Pin No. Signal Type Pull Up

1 GND PWR

2 GND PWR

3 +5V (55mA) PWR

4 Hot Plug Detect I

5 GND PWR

6 DDC Data IO 2K2

7 DDC Clock IO 2K2

8 GND PWR

9 TMDS Clock- LVDS OUT

10 TMDS Clock+ LVDS OUT

11 GND PWR

12 TMDS Data 0- LVDS OUT

13 TMDS Data 0+ LVDS OUT

14 GND PWR

15 TMDS Data 1- LVDS OUT

16 TMDS Data 1+ LVDS OUT

17 GND PWR

18 TMDS Data 2- LVDS OUT

19 TMDS Data 2+ LVDS OUT

20 GND PWR

Shield GND PWR

1 8

9 16

17 24

C1 C2

C3 C4

Front view

ADD2-DVI-Dual

KTD-00714-F Public User Manual Date: 2008-11-25 Page 9 of 9

Jumper Description (unsupported)

The Jumpers (only available on the ADD2-DVI-Dual-Internal) are used to configure one or both DVI outputs

for TMDS or PanelLink panels where DDC (EDID codes) are not integrated. By use of jumpers it is possible

to connect onboard EEPROM to the DDC channel and to select panel to be always connected. The panel

specific EDID code must be loaded to the relevant EEPROM.

Signal Name pin pin Signal Name

DDCCLKU7 1 2 DDCCLK1

DDCDATU7 3 4 DDCDAT1

ALWAYSON1 5 6 HOTPLUG1

DDCCLKU8 7 8 DDCCLK2

DDCDATU8 9 10 DDCDAT2

ALWAYSON2 11 12 HOTPLUG2

When mounted jumpers 1-2, 3-4 and 5-6 then EEPROM (U7) then DVI-SIL1 will be configured for

TMDS/PanelLink displays (no integrated DDC and HotPlug).

Similar when mounted jumper 7-8, 9-10 and 11-12 then EEPROM (U8) then DVI-SIL2 will be configured for

TMDS/PanelLink displays.

Installation Guide

Plug in the ADD2-DVI card to the PCIe-x16 slot (nearest CPU)

Optionally fix the 820952 ADD2-DVI-Dual directly to DVI cut out hole in the chassis or mount the included

DVI Full Height Bracket + two screws (bracket/screws are not included in the revision below 820952-R13).

Optionally fix the 820955 ADD2-DVI-Dual-Internal to bracket or chassis via the mounting hole.

Optionally connect 821524 (300mm cable) or 1022-2966 (150mm cable) to the ADD2-DVI card

Optionally mount the DVI connector adapters in the chassis

For the 986LCD-M, BIOS 986LCD18 or above and for the KT965, BIOS KT965009 or above:

Boot and enter BIOS

Select Chipset > North Bridge Configuration > Video Function Configuration >

Boot Type = [CRT+EFP] or [EFP] (if boot on DVI panel no.1 is requested)

SDVO = [DVI – D]

Select Exit menu.

Hint: Using also Secure CMOS = [Enabled] will make sure that Windows will not change Boot Type in BIOS.

Save Changes and Exit.

Boot into OS and load Intel Graphics Media Driver. For Windows install version 6.14.10.4859

(win2K_xp1431.exe) or newer.

Select output to Digital Monitor (DVI panel no.1) and optionally Digital Monitor 2 (DVI panel no.2).

Electrical Specification

Power consumption:

The +5V available on the DVI connectors can deliver minimum 55mA continuously and 1A peak. The output

is protected by thermal shutdown circuit.

3.3V 5W/2.5W max. (Dual/Single).

12V 1W max.

Operating temperature: 0-60ºC

This manual suits for next models

Table of contents

Other Kontron Computer Hardware manuals

Kontron

Kontron xBP-6E2P3 User manual

Kontron

Kontron SMARC-sAMX8X User manual

Kontron

Kontron 104 User manual

Kontron

Kontron KBox A-151-TGL User manual

Kontron

Kontron ETX-CD User manual

Kontron

Kontron AT8901 User manual

Kontron

Kontron CP6003-SA User manual

Kontron

Kontron microETXexpress-DC User manual

Kontron

Kontron COMh-sdID User manual

Kontron

Kontron MSP8020 Series User manual

Kontron

Kontron pITX-iMX8M User manual

Kontron

Kontron Kiss 2U User manual

Kontron

Kontron ETXexpress-WPM User manual

Kontron

Kontron ePCI-201 User manual

Kontron

Kontron CPCI-MXS Product manual

Kontron

Kontron USB-16REL User manual

Kontron

Kontron COM-HPC User manual

Kontron

Kontron cPCI-MXS64 Product manual

Kontron

Kontron COMe-bID7 User manual

Kontron

Kontron KBox F-420-WLU User manual

Kontron

Kontron MOPS/386A User manual

Kontron

Kontron COM Express Eval 10 User manual

Kontron

Kontron PCI-759 User manual

Kontron

Kontron CP6016 User manual

Popular Computer Hardware manuals by other brands

EMC2

EMC2 VNX Series Hardware Information Guide

Panasonic

Panasonic DV0PM20105 Operation manual

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 user manual

Gigabyte

Gigabyte B660M DS3H AX DDR4 user manual

Raidon

Raidon iT2300 Quick installation guide

National Instruments

National Instruments PXI-8186 user manual

Hauppauge

Hauppauge WinTV-HVR-2250 Quick installation guide

Manhattan

Manhattan 702843 user manual

Aphex

Aphex 230 instruction manual

AMD

AMD Phenom II Product data sheet

Intel

Intel NUC 12 Pro user guide

dbx

dbx Zone Pro 1260 user manual

Galaxy

Galaxy GHDX2-2430S-24F4D Installation and hardware reference manual

Intel

Intel AXXRMFBU4 Quick installation user's guide

ST X-NUCLEO-SAFEA1B How to use

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 installation manual

Advantech

Advantech ASMB-935 Series user manual

Jupiter

Jupiter RAM PACK instructions
