Kohler K-4744 Assembly instructions
Installation and Care Guide
Bidet Seat
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (e.j.
K-12345M)
Français, page“ Français-1”
Español, pagina “Español-1”
K-4744
1093479-2-A
IMPORTANT INFORMATION
SAVE THESE INSTRUCTIONS
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the
following:
DANGER: To reduce the risk of electrocution:
Do not place or store this appliance where it can fall or be pulled
into a bath or sink.
Do not place in or drop into water or other liquid.
Do not reach for a product that has fallen into water. Unplug
immediately.
WARNING: To reduce the risk of low-grade burns, electric
shock, fire or injury to persons:
Close supervision is necessary when this appliance is used by or
near the very young, the elderly, or invalids. Children should not
be permitted to use or touch this appliance. Do not leave children
unattended in any room where this product is installed. Adjust
the temperature of the toilet seat for the elderly, those who are
incapacitated, or persons with sensitive skin.
Use this appliance only for its intended purpose as described in
the manual. Do not use attachments not recommended by Kohler
Co.
Never operate this appliance if it has a damaged cord or plug, if
it is not working properly, if it has been dropped, damaged, or
dropped into water.
Install this product properly by following the installation
procedure.
Only authorized persons can install or repair the unit. Do not
attempt to service this appliance yourself, doing so could void the
warranty.
Keep the cord away from heated surfaces.
Never drop or insert any objects into any opening or hose.
Do not use outdoors or where aerosol spray products are being
used or where oxygen is administered.
Always follow the grounding instructions in this manual before
plugging in the unit.
1093479-2-A 2 Kohler Co.
Table of Contents
IMPORTANT INFORMATION ............................. 2
Tools and Materials .................................... 3
Before You Begin ...................................... 3
Wiring Requirements ................................... 6
Specifications ........................................ 6
Install an Electrical Outlet ................................ 9
Install the Mounting Plate ............................... 10
Install the Seat ....................................... 11
Connect the Water Supply .............................. 13
Install the Remote Holder ............................... 14
Installation/Operation Checkout .......................... 16
Care and Cleaning .................................... 16
One-Year Limited Warranty .............................. 17
One-Year Warranty ................................... 18
Test the Functions .................................... 20
Remote/Keypad Diagram ............................... 21
Operation .......................................... 22
Clean the Nozzle ..................................... 24
Remove the Seat ..................................... 25
Clean the Screen ..................................... 26
Drain the Seat ....................................... 27
Servicing Information .................................. 27
Troubleshooting ...................................... 27
Tools and Materials
Before You Begin
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded. Connect only to a dedicated
120 VAC, 60 Hz circuit protected by a minimum 15 Amp
Blade
Screwdriver
Adjustable
Wrench
Drill
Kohler Co. 3 1093479-2-A
Before You Begin (cont.)
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current
Device (RCD).
WARNING: Risk of electric shock or product damage. Do
not immerse or flush the product with water.
IMPORTANT! Risk of product damage. Do not plug in the seat
until all other installation steps have been completed.
IMPORTANT! Risk of product damage. Do not block the air
openings. Keep the air openings free of debris, such as lint and hair.
IMPORTANT! Risk of product damage. Do not install this seat in a
location where water might be splashed on the product.
IMPORTANT! Risk of product damage. Do not install this seat in a
location exposed to excessive moisture where condensation might
form on the product surface. Provide adequate ventilation when
bathing to avoid damage to the electronic components due to high
humidity levels.
IMPORTANT! Risk of product or property damage. Pushing or
pulling on the water connection may cause water leakage.
IMPORTANT! Risk of product damage. Do not apply excessive
force to the spray wands. Product may break.
IMPORTANT! Risk of product damage. In areas where water may
freeze in the pipes, make arrangements to keep the pipes warm.
Any water remaining in the seat may freeze during storage during
the winter. Allow the unit to warm to room temperature before
reinstalling or using.
IMPORTANT! Risk of product damage. Do not supply electrical
power to the unit until the plumbing installation work has been
completed; it could cause the product to malfunction.
NOTE: The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
Allow the unit to cool to room temperature before installation or
operation.
Observe all local plumbing and building codes.
Do not use an extension cord with the product.
1093479-2-A 4 Kohler Co.
Before You Begin (cont.)
Connect to a cold water supply with a pressure of 20-80 psi
(139-551 kPa).
Connect only to cold water supply line carrying water of drinking
quality.
Unplug the seat and drain the seat if the functions of the seat will
not be operated for an extended period of time.
All information in these instructions is based on the latest product
information available at the time of publication. Kohler Co.
reserves the right to make changes at any time without notice.
Kohler Co. 5 1093479-2-A
Wiring Requirements
Preferred Connection
This product is for use on a nominal 120 VAC circuit and has a
grounding plug that looks like the plug illustrated. Using a
higher voltage circuit is dangerous and may result in a fire or
other accident.
Temporary Connection
IMPORTANT! Unless the cover screw is grounded through the
house wiring, attaching the adaptor grounding screw tab to the
cover screw will NOT ground the unit. If there is any doubt
whether the cover screw is grounded, have it checked by a qualified
electrician or service professional.
A temporary connection with a two-prong adaptor may be made
where local codes permit, provided that the adaptor is grounded.
Specifications
Water supply pressure 20 psi (139 kPa) - 80 psi
(551 kPa)
Maximum electrical rating 120 VAC / 60 Hz / 1260
W
Power cord length 3.83’ (1.17 m)
Water heater rating 1200 W
Grounded Outlet
Seat
Cover Screw
Adapter
Grounded Outlet Box
Grounding Pin
Grounding
Screw Tab
Temporary ConnectionPreferred Connection
1093479-2-A 6 Kohler Co.
Specifications (cont.)
Cleaning Wand spray
flow Posterior flow,
plus aeration .145 gpm (.55 lpm)
Anterior flow,
plus aeration .145 gpm (.55 lpm)
Number of spray wands 2
Spray location adjustment 5 positions
Cleaning water temp Off / 95°F (35°C) / 99.5°F
(37.5°C) / 104°F (40°C)
Oscillation cleaning On/Off
Pulsate cleaning On/Off
Safety
devices In-line heater,
overheating
prevention
Water outlet thermal
cut-out, housing thermal
fuse, heating element
thermal cut-out, water
flow sensor
Back-flow
prevention Vacuum breaker
Comfort Heated seat Heater rating 50 watts
Temperature
adjustments Off / 95°F (35°C) / 99.5°F
(37.5°C) / 104°F (40°C)
Safety
adjustments Thermal fuse, heating
element thermal cut-out
Warm air
blower Fan air flow 7.8 cu ft/min (.22 cu
m/min)
Heater rating 250 Watts
Temperature
adjustment Off / 100°F (37.7°C) /
122°F (50°C) / 140°F
(60°C)
Safety devices Thermal fuse, heating
element thermal cut-out
Deodorize Deodorization
type Oxygen deodorizer
catalyzing filter
Fan air flow 7.8 cu ft/min (.22 cu
m/min)
Cover closing Slow-close
Seat closing Slow-close
Sanitary Self-cleaning nozzle Automatically performs
rinse cycle before and after
each use
Quick-release body Lever activated by push
button
Anti-microbial material Seat and nozzle parts
Kohler Co. 7 1093479-2-A
Specifications (cont.)
Other Power switch On/Off
Energy save On/Off
Safety/User sensor Touch type - switch
hidden in seat
Night lighted bowl 2 blue LED’s - Auto
On/Off
1093479-2-A 8 Kohler Co.

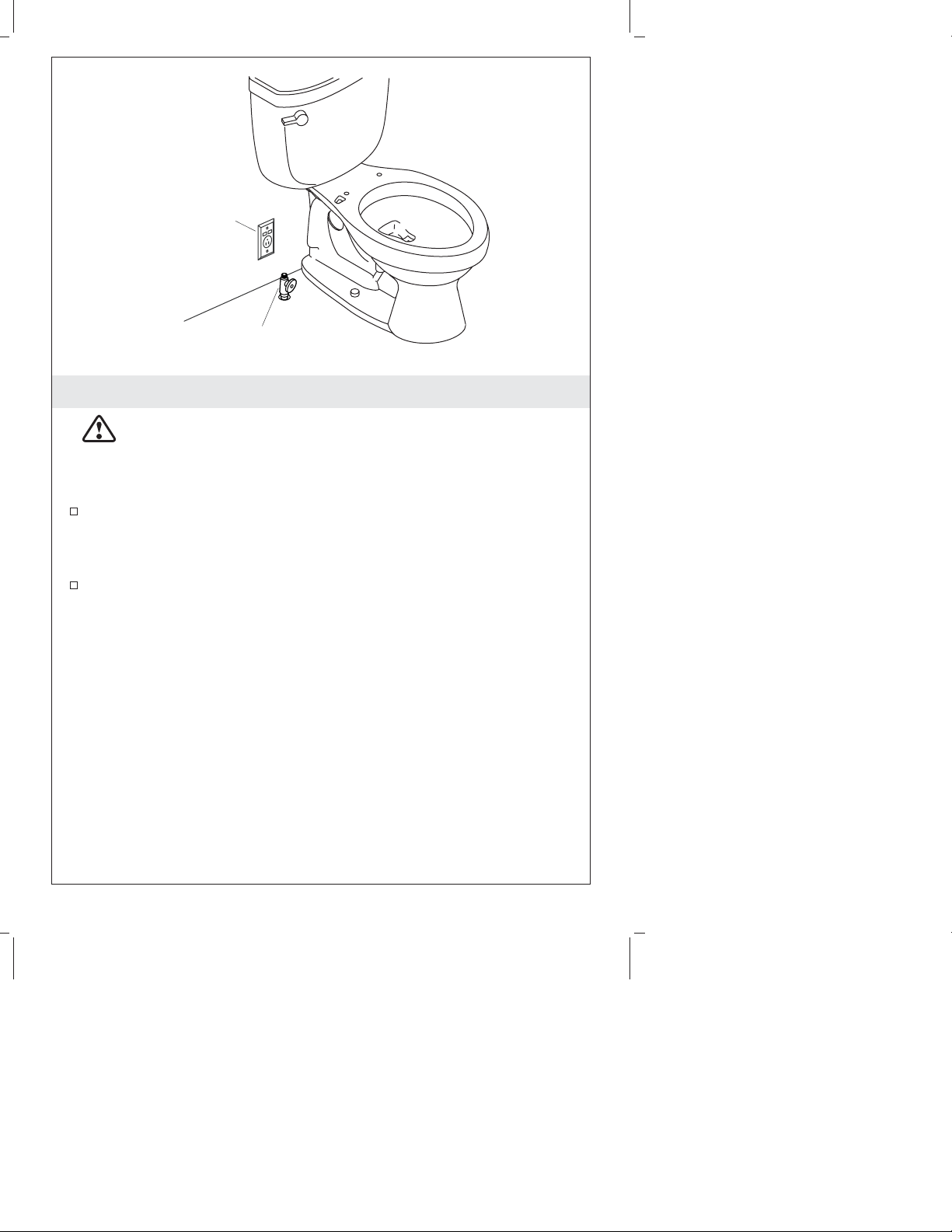

1. Install an Electrical Outlet
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded. Connect only to a dedicated
120 VAC, 60 Hz circuit protected by a minimum 15 Amp
Ground-Fault Circuit-Interrupter (GFCI) or Residual Current
Device (RCD).
Do not use an extension cord with the product.
NOTE: Follow local codes when determining the electrical outlet
location.
Route the electrical and install to a 120 V GFCI- or RCD-protected
receptacle. The electrical outlet should be located within 12″(30.5
cm) of the toilet to accommodate the length of the power cord.
Supply Stop
GFCI/RCD-Protected
Receptacle
Kohler Co. 9 1093479-2-A

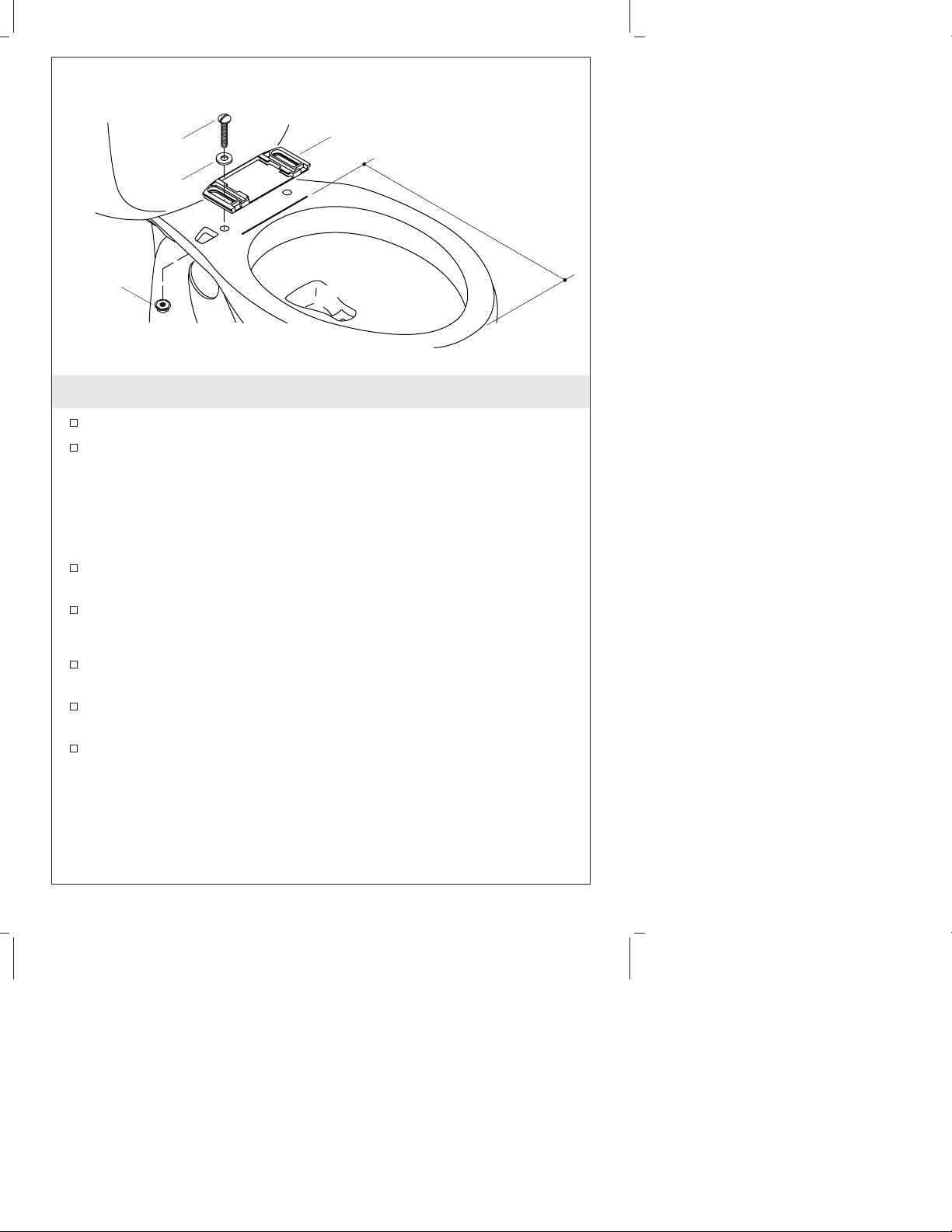

2. Install the Mounting Plate
Position the mounting plate over the toilet mounting holes.
Slide a washer onto each of the bolts.
NOTE: Some toilets come with threaded inserts pre-installed in the
mounting holes. For toilets with threaded inserts, the nut is not
required.
For Toilets with Threaded Inserts:
Insert a bolt through the mounting plate and position the washers
so they rest in the grooves of the mounting plates.
Loosely thread the bolts into the inserts. Do not overtighten.
For All Other Installations:
Insert a bolt through the mounting plate and the toilet mounting
holes.
Position the washers so they rest in the grooves of the mounting
plate.
Thread a nut onto each of the bolts. Handtighten the nut.
Mounting Plate
17-1/4"
(43.8 cm)
Bolt
Washer
Nut
1093479-2-A 10 Kohler Co.
Table of contents
Languages:
Other Kohler Toilet manuals
Kohler
Kohler Intelligent Toilet Assembly instructions
Kohler
Kohler Cimarron Comfort Height K-31588-0 User manual
Kohler
Kohler CABERNET WATER-GUARD K-3401 User manual
Kohler
Kohler K-3492 Assembly instructions
Kohler
Kohler K-3451 Assembly instructions
Kohler
Kohler C3-129 Assembly instructions
Kohler
Kohler K-3393 User manual
Kohler
Kohler K-20798T-S User manual
Kohler
Kohler K-11968 Assembly instructions
Kohler
Kohler K-3797 Assembly instructions
Kohler
Kohler REACH K-3856T-S User manual
Kohler
Kohler K-3519 User manual
Kohler
Kohler K-3754 Assembly instructions
Kohler
Kohler K-3901 Assembly instructions
Kohler
Kohler K-29918T-NSHC User manual
Kohler
Kohler Highline K-4405 User manual
Kohler
Kohler REACH K-18643T-SLJ User manual
Kohler
Kohler K-8298 User manual
Kohler
Kohler ESCALE K-24837T-S User manual
Kohler
Kohler Veil Comfort Height K-5401-0 Assembly instructions
Popular Toilet manuals by other brands
Toto
Toto Washlet TCF4911 Series installation guide
Grohe
Grohe Sensia ARENA user manual
Geberit
Geberit AQUACLEAN MERA CLASSIC user manual
Better Bathrooms
Better Bathrooms BUN/BeBa 27555/78725 user manual
American Standard
American Standard CONCEPT Cube TF-2704 installation manual
BIOLAN
BIOLAN ECO Instructions for installation, use and maintenance
Olympia
Olympia EPOQUE 69209 Installation and Maintenance
GSi
GSi TRACCIA 691711 installation instructions
DENCK
DENCK PURE-D user manual
Silent Venus
Silent Venus SVP600 Installation & maintenance
InBe
InBe IB/04.06050 installation instructions
Swiss Madison
Swiss Madison Carré SM-1T264 installation instructions
