Kohler K-3357 User manual
Installation Guide
One-Piece Top-Trip Toilets
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-3357 K-3360, K-14230
K-3612, K-14224
1021796-2-B
Tools and Materials
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few
minutes to review this manual before you start installation. If you
encounter any installation or performance problems, please don’t
hesitate to contact us. Our phone numbers and website are listed on
the back cover. Thanks again for choosing Kohler Company.
Before You Begin
CAUTION: Risk of personal injury or product damage. Handle
with care. Vitreous china can break or chip if the product is
handled carelessly.
IMPORTANT! Record the model number (from the label on the box)
in the Homeowners Guide for reference.
Observe all local plumbing and building codes.
Carefully inspect the new toilet for damage.
If the existing toilet does not have a supply shut-off valve below
the tank, install one before installing the new toilet.
Provide an adequate amount of clearance for the toilet’s lift rod.
Clearance values are measured from the floor to the top of the
fully extended rod.
•K-3360, K-3612, K-14224 and K-14230 require 28″(71.1 cm) of
clearance.
•K-3357 require 32-5/8″(82.9 cm) of clearance.
10" Adjustable
Wrench Supply
Shut-Off
Valve
Tape
Measure Pipe Wrench
Tubing Cutter Hacksaw
Level
Wax Seal
Putty
Knife
Plus:
• 5/16" T-Bolts w/ Nuts
and Washers
• Screwdriver
• Safety Glasses
• Sponge
1021796-2-B 2 Kohler Co.

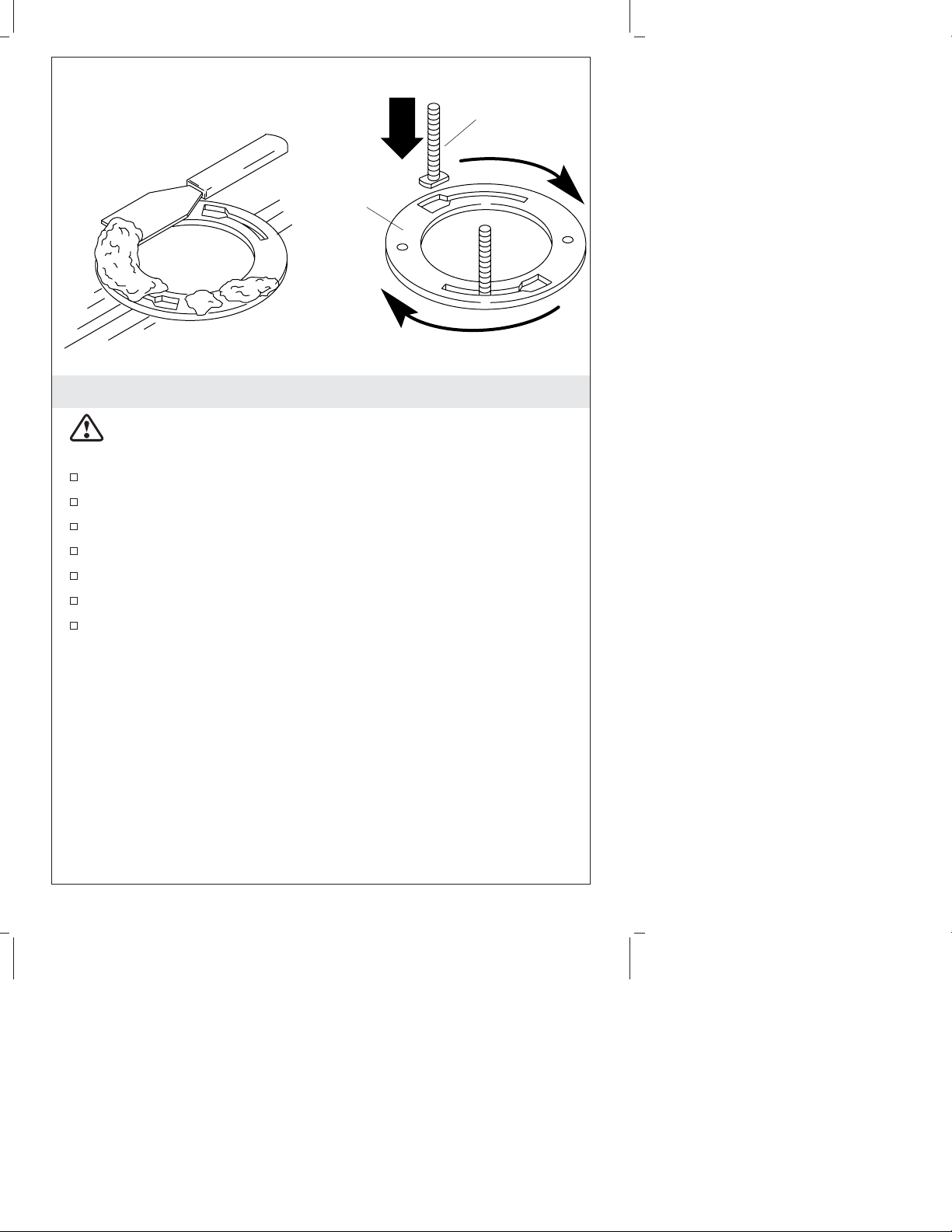

1. Remove the Existing Toilet
CAUTION: Risk of hazardous gases. If the new toilet is not
installed immediately, temporarily place a rag in the closet
flange.
Turn off the water supply.
Flush the toilet.
Sponge out all remaining water from the tank.
Disconnect the supply shut-off valve, if present.
Remove the old toilet.
Remove the old wax seal from the floor with a putty knife.
Replace the old T-bolts with the new 5/16″diameter T-bolts.
T-Bolt
Scrape off the old
wax seal.
Closet
Flange
Kohler Co. 3 1021796-2-B
2. Install the New Toilet
Install or relocate the supply and outlet as necessary to conform
to the roughing-in dimensions.
Install a supply shut-off valve.
Lay the toilet down onto a padded surface.
From the bottom of the toilet, firmly press a new wax seal around
the toilet outlet.
Remove the temporary rag (if used) from the toilet flange hole.
Align and lower the toilet over the flange and T-bolts.
IMPORTANT! Do not lift or rock the bowl after placement. If you
break the watertight seal, you must install a new wax seal.
Apply your full body weight around the toilet to set the seal.
Place the bolt cap bases over the T-bolts in the ″up″position as
marked.
Place the washers and nuts on the bolt cap bases and T-bolts.
IMPORTANT! Do not overtighten the nut. Overtightening may
cause breakage or chipping of vitreous china.
Carefully tighten the nuts.
IMPORTANT! Risk of product damage. Protect the vitreous china
from the saw blade when cutting off excess T-bolt length.
Bottom of Bowl
Wax Seal
Bolt Cap
Nut
Washer
Bolt Cap Base
T-Bolt
T-Bolt Closet Flange
1021796-2-B 4 Kohler Co.
Install the New Toilet (cont.)
Measure the length of the T-bolts from the top of the nuts. If the
bolts extend 1/4″(6 mm) or more, cut off the excess.
Attach the bolt caps.
Kohler Co. 5 1021796-2-B
3. Install the Lift Rod
Insert the lift rod into the hole in the center of the tank cover.
Hold the lift rod while placing the large washer and nut onto the
other end of the lift rod.
Align the bent horizontal portion of the rod so the holes point
toward the front of the tank.
Hand tighten the nut until snug, then wrench tighten 1/4-turn.
Carefully set the cover onto the tank.
Carefully lift the front of the tank cover just enough to gain
access to the flapper chain and lift rod.
Insert the flapper chain S-hook into the middle hole in the lift
rod.
Washer Nut
Tank Cover
Lift Rod Tank
Lift Rod
Tank
Flapper Chain
S-Hook
Tank Cover
1021796-2-B 6 Kohler Co.
4. Connect the Supply and Make Adjustments
Connect the supply shut-off valve to the toilet supply shank.
Open the supply shut-off valve slowly to check for leaks. If the
connections have been properly assembled, a slight tightening of
the nuts should stop leakage.
Install the toilet seat according to the packed instructions.
Adjustments
Adjust the tank to the marked waterline.
Rotate the threaded rod clockwise to raise the water level or
counterclockwise to lower the water level as needed.
Test flush the toilet several times, while checking all connections
for leaks, to ensure proper operation.
If the flapper ball does not seat properly when the lift rod is
lowered, provide more flapper chain by:
•Relocating the flapper chain S-hook to the bottom hole in the lift
rod.
•Repositioning the flapper chain S-hook on the flapper chain.
If the toilet does not flush when the lift rod is raised, remove
some of the slack in the flapper chain by:
•Relocating the flapper chain S-hook to the top hole in the lift rod.
•Repositioning the flapper chain S-hook on the flapper chain.
Ferrule
Supply
Shank Tubing
Compression
Washer
Compression
Nut
Supply
Shut-Off
Valve
Supply Shut-Off Valve
Connection
Coupling
Nut
Fill
Valve Nut
Seal
Washer
Waterline
Adjusting the Water Level
Kohler Co. 7 1021796-2-B
Connect the Supply and Make Adjustments (cont.)
Periodically check for leaks for several days following the
installation.
1021796-2-B 8 Kohler Co.
Guide d’installation
W.C. mono-pièces à levier de déclenchement
supérieur
Outils et matériels
Merci d’avoir choisi la compagnie Kohler
Nous apprécions votre engagement envers la qualité Kohler. Veuillez
prendre s’il vous plaît quelques minutes pour lire ce manuel avant de
commencer l’installation. Ne pas hésiter à nous contacter en cas de
problème d’installation ou de performance. Nos numéros de téléphone
et notre adresse du site internet sont au verso. Merci encore d’avoir
choisi la compagnie Kohler.
Avant de commencer
ATTENTION : Risque de blessure corporelle ou
d’endommagement du produit. Manipuler avec précaution. La
porcelaine vitrifiée peut se briser ou se fendre si le produit est
manipulé avec négligence.
IMPORTANT ! Enregistrer le numéro de modèle (de l’étiquette sur
la boîte) dans le guide du propriétaire pour référence.
Respecter tous les codes de plomberie et de bâtiment locaux.
Inspecter soigneusement le nouveaux WC de tout défaut.
Si le W.C. existant n’a pas de valve d’arrêt sous le réservoir, en
installer une avant d’installer le nouveau W.C.
Clé à molette
de 10"
Valve
d'arrêt de
l'alimentation Mètre
ruban
Clé à tuyau
Coupe-tuyauterie
Scie à
métaux
Niveau à bulle
Joint
en cire Couteau
à mastic
Plus:
• Tournevis
• Lunettes de protection
• Éponge
• Boulons en T avec écrous
5/16" et rondelles
Kohler Co. Français-1 1021796-2-B
Avant de commencer (cont.)
Prévoir un espace équivalant adéquat pour la tige de levage du
W.C. L’espace est mesuré du sol à la partie supérieure de la tige
de levage totalement étirée.
•K-3360, K-3612, K-14224 et K-14230 requièrent un espace de 28″
(71,1 cm).
•K-3357 nécessite un espace de 32-5/8″(82,9 cm).
1021796-2-B Français-2 Kohler Co.
