Kohler C3-500 Assembly instructions

Homeowners Guide

English page 2-21

中文页码22-41

한글 페이지 42-61

62-81

Smart Seat

清舒宝智能便盖

C3-500/K-31331T-0

C3-510/K-31332T-0

C3-520/K-31333T-0

C3-530/K-31334T-0

C3-500/K-31331T-XP-0

C3-510/K-29683T-XP-0

1338634-T01-E

Thank You For Choosing Kohler Company

Thank you for choosing a Kohler product. Kohler craftsmanship offers you a

rare combination of proven performance and graceful sophistication that will

satisfy you for years to come. The dependability and beauty of your Kohler

product will surpass your highest expectations. We are very proud of our

products here at Kohler and we know you will be too.

Please take a few minutes to study this Homeowners Guide. Pay special

attention to the care and cleaning instructions.

All information in this manual is based upon the latest product information

available at the time of publication. At Kohler, we constantly strive to improve

the quality of our products. We reserve the right to make changes in product

characteristics, packaging or availability at any time without notice.

1338634-T01-E

Kohler Co.

Warning

Note

●

□Risk of product damage. The product may be damaged if the nozzle is applied with

excessive force.

□The installation should be subject to the instructions before the power is connected.

□Risk of electric shock or product damage. Do not immerse the product into water.

□When an electrical product is used, especially when children are near, the following

basic safety precautions shall be followed:

Do not place or store this device where it can fall or be dropped into a bath or sink.

Do not place in or drop into water or other liquid.。

Do not touch any product dropped into the water, unplug immediately.

□Keep power cord far from heated surface.

□Prevent water splash on power plug.

1. CAUTIONS AND WARNINGS

Please read the cautions and warning carefully and observe accordingly.

Warning: any misuse from ignoring the content of this label may cause

serious injury or death.

Note: any misuse from ignoring the content of this label may cause personal

injury or product damage.

□

□Risk of product damage. The power shall not be connected before the work is

finished. Otherwise it may lead to product failure.

Danger-Reduce risk from electric shock:

□Do not operate this device if following occasions occurred: damaged cord or

plug; if it is not working properly or if it has been dropped into water.

□In case the power cord is damaged; to avoid danger, product should be replaced

by the manufacturer or the professionals from its maintenance department or

similar departments.

□Risk of product damage. Do not install at a place where it may be splashed by water.

□Risk of product damage. Do not install the product at a place with excessive

humidity, where moisture may condense at the surface of the product. Please

maintain that the usage environment is under adequate ventilation, so as to

prevent damage to electronic components.

□Risk of product damage or property loss. Water leakage may happen if the water

pipe connector is pulled or pressed with excessive force.

This product must be installed safely. Connect only to dedicated 220V~, 50Hz, 10A

circuit protected by Ground-Fault Circuit-Interrupters (GFCI’s) or Earth-Leakage

Circuit-Breakers (ELCB’s).

Kohler Co.

1338634-T01-E

●

□This device complies with the method described in the manual. Do not use

attachments not recommended by Kohler Co.

□Do not lean on cover when use this device to prevent product from damage.

□Following the installation procedure and install the product properly.。

□

Do not drop or insert any substance to pipeline or any opening holes.

□UV sterilization devices should be installed and maintained by qualified servicemen.

□Please use the water supply hose accompanying with new machine. The old hose

assembly shall not be used again.

Water hose and internal water leak from inside out.

When product is cracked or damaged

When abnormal sound or obvious odor appears.

Product smokes.

Abnormal product heating problem

Cautions and warning (cont.)

□Risk of product damage. The part of the pipe where water may be frozen should

be protected by thermal insulation. Any water left in the product may be frozen

during the winter season. Please keep the product in room temperature before

reinstallation or usage.

□The thermal protector may be out of order during storage or transportation in warm

climate which can lead to product failure. Please ensure the product cools to room

temperature before reinstallation or usage.

●

Prevent any exposed skin contact with heated seat too long to prevent low

temperature burning.

Children, elders or those with disabilities from their body, sensitivity or mental

disabilities should not use or get close to this product unless under close tutelage.

Children are forbidden to use or touch this product. Do not leave children alone in

a room with such product.

For those children and the elderly who are unable to adjust the temperature, they

should ask for help to adjust seat temp, water temp and wind temp of toilet cover

to proper gears.

This product shall be repaired by professionals only. The warranty will become

invalid if you try to repair this product by yourself.

When install the product in the room, a stop valve shall be installed in a close

proximity. For emergency circumstances, the water inlet valve shall be stopped

without using any tools; otherwise unexpected failure may cause the loss to the

customer.

□Do not use this product outdoor or in a place where a particle mist spray device is

used, neither at a place using oxygen supply.

□When user cut power supply off, if reactivation of power supply is required, please

wait until the end of “beep……” indication, and then turn on power supply again.

□Stop using product if any of the circumstances observed below. Shut power off and

stop water inlet valve immediately.

WARNING - To reduce the risk of low grade burns, electric shock, fire or

injury to persons

1338634-T01-E

Kohler Co.

2. Specification

Min water pressure 0.07Mpa (dynamic pressure)

Max water pressure 0.74Mpa

Water pressure

Rated voltage 220V~, 50Hz

Power cord length About 1.5m

Rated power* 1070W

Max instantaneous power About 1600W

Product outline dimension About 530mm x 454mm x 159mm

Product weight About 5.0kg

Inlet water temp 1-35℃

Operation Environment 1-40℃

Rear wash/kid wash YES, adjustable dial

Front wash YES, adjustable dial

Defecation wash YES, adjustable dial

Water flow (water pressure 0.2Mpa)

Max rear wash shall be no less than 500mL/min

Adjust clean water temp OFF, adjustable 5 dials (ambient temp, about 31-39°C)

Clean Cleaning time (max.) About 300s

Nozzle position adjustment 5 dials

Pulsate massage ON/OFF

Oscillate ON/OFF

Thermal fuse

Backflow prevention

Check valve

Temp adjustment OFF, adjustable 5 dials (ambient temp, about 31-39°C)

Safety device Thermal fuse

Cover Slow swing

Seat Slow swing

Comfort

Deodorizing function Yes

Temp adjustmen

t OFF, adjustable 5 dials (ambient temp, about 38-52°C)*

Dryer Safety device Thermal fuse

Nozzle self-clean Yes

Quick dismantle Push release button

Sanitation Antibacterial material Cover and seat

UV sanitize Yes

Water inlet filter For K-31333T-0/K-31334T-0

Other safety devices Circuit-Breakers

Control panel Located on side panel

Seating detection Located inside seat

Night light Yes

IOT function For K-31331T-XP-0/K-29683T-XP-0

Kid seat For K-31334T-0

* Power value testing condition: dynamic pressure 0.2Mpa, inlet water temp 15°C.

Measured 50mm around dryer outlet.*

Water overtemp

protection

Safety

device

Thermal

prevention

Other

function

Kohler Co.

1338634-T01-E

3. Keypad and Panel Diagram

Cover (antibacterial*)

Seat (antibacterial*)

BCFG

ADEHIJK

*Antibacterial: the seat and cover contains long term inorganic anti-bacteria material which will inhibit bacteria growth on

surface, this does not represent the mildew and other incidental effects. The antibacterial rate is more than 90%. (Perform

test in accordance with GB21551.2-2010 requirements. Testing lab: China household electrical appliances testing institute;

electromechanical products testing technology center of Shanghai Entry-Exit inspection and quarantine bureau.)

1338634-T01-E

Kohler Co.

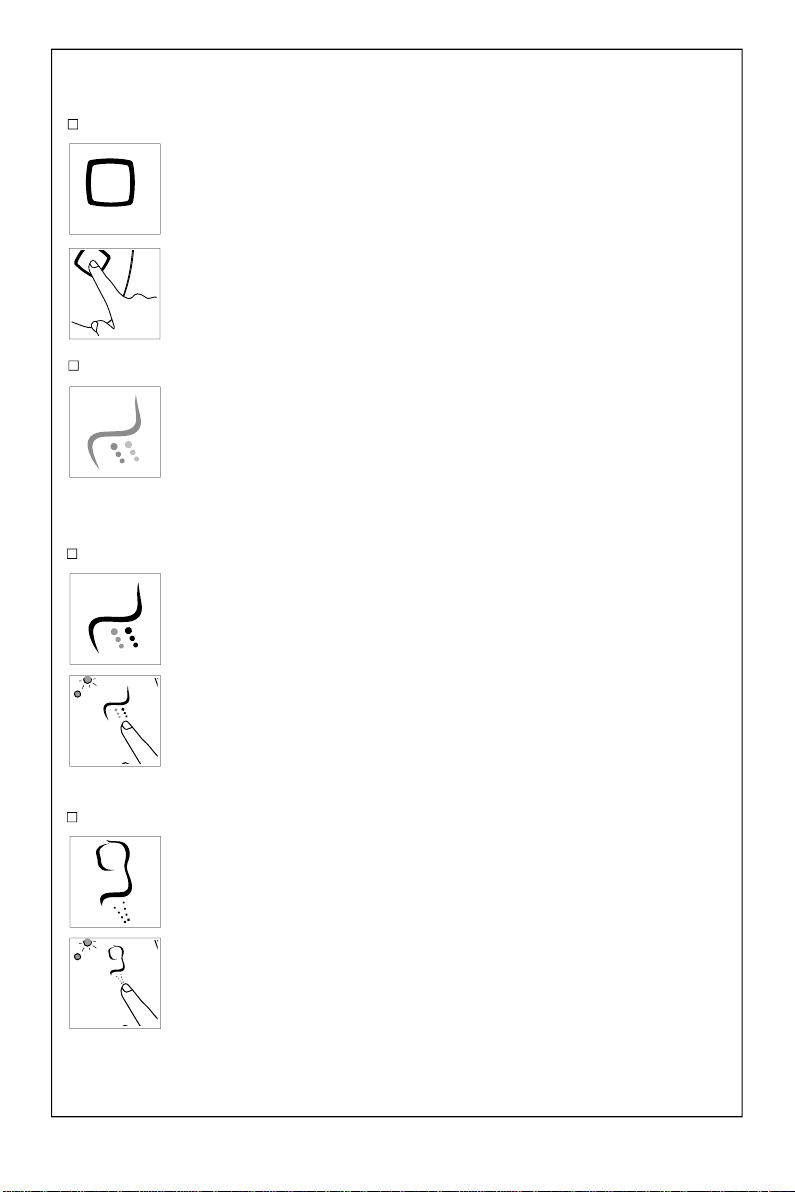

A – STOP

B – FRONT WASH

4. Side Panel Function Intruoduction

C – REAR WASH

D – KID WASH

Press this button to stop flush or dryer function when flush or dryer

function is activated.

When seated, auto activates deodorizer function. Press stop button

to deactivate deodorizer function. The deodorizer function will not be

activated before re-seated.

Hold and press stop button for 2s to close Bidets. Press any button

on side panel, or seated to light side panel up.

When seated, press front wash to activate front wash (female only),

and display current wash strength.

Press FRONT WASH button again to change wash strength when

front wash function is activated. The wash strength shall be changed

per min dial, min-mid dial, mid dial, mid-max dial, max dial, mid-max

dial circulation.

It will stop automatically after 5 minutes of continuous flushing.

When seated, press REAR WASH to activate rear wash and display

current wash strength.

The Bidet is equipped with wide oscillate function. If you want to use

wide oscillate function, please hold both REAR+POWER buttons for

2s on side panel, then activate rear wash oscillate mode.

Press REAR WASH button again to change wash strength when front

wash function is activated. The wash strength shall be changed per

min dial, min-mid dial, mid dial, mid-max dial, max dial, mid-max dial

circulation.

It will stop automatically after 5 minutes of continuous flushing.

When seated, press KID WASH button to activate kid wash and

display current wash strength. Press KID WASH button again to

change wash strength when front wash function is activated. The

wash strength shall be changed per min dial, min-mid dial, mid dial,

mid-max dial, max dial, mid-max dial circulation. It will stop

automatically after 5 minutes of continuous flushing.

When use kid seat provided by K-31334T-0 or unable to seat on the

Bidet due to other reasons, hold and press KID WASH button for 2s

to activate kid wash. Wash strength display and selection as above.

Press STOP to deactivate wash function under this circumstances, or

It will stop automatically after 5 minutes of continuous flushing. Activate

dryer function after stop wash for 2 min.

Note: K-31334T-0 product is better for kid wash function. Refer to kid

seat page for specific kid seat usage and notice.

Kohler Co.

1338634-T01-E

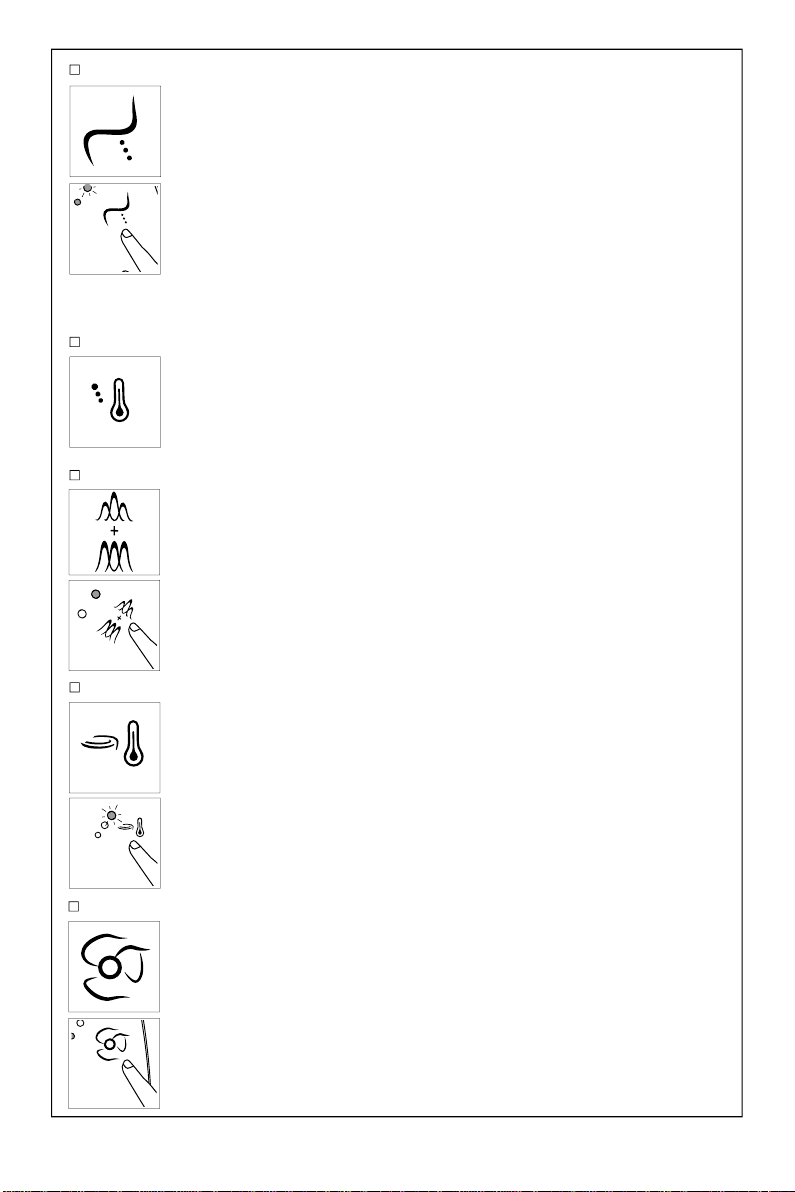

Indicating LED displays current dryer temp. Press DRYER button

again, dryer temp shall be circulated per MIN dial, MIN-MID dial, MID

dial, MID-MAX dial, MAX dial, MID-MAX dial sequence. It will auto

stop after 4 min consecutive work.

Press DEFECATION WASH button again to change wash strength

when front wash function is activated. The wash strength shall be

changed per min dial, mid dial, max dial circulation.

It will stop automatically after 5 minutes of continuous flushing.

Note: when above wash function is activated, dryer and deodorizer function will be

automatically stopped.

F – WATER TEMP

Press WATER TEMP button to set water temp for wash functions. Each

click shall be circulated per OFF, LOW dial, LOW-MID dial, MID dial,

MID-MAX dial, MAX dial, MID-MAX dial sequence. Setup water temp

and change over water temp parameter indicating light. If it is OFF, the

indicating light is not illuminated.

G – MASSAGE

Press MASSAGE button to activate MASSAGE (massage + oscillate)

in the flush state.

Each click shall be circulated per MASSAGE, OSCILLATE, MASSAGE

+ OSCILLATE, stop MASSAGE + OSCILLATE sequence and light

corresponding LED up. If MASSAGE + OSCILLATE is OFF, the

indicating light is not illuminated.

H – SEAT TEMP

Press SEAT TEMP button to set seat temperature. Each click shall be

circulated per OFF, MIN dial, MIN-MID dial, MID dial, MID-MAX dial,

MAX dial, MAX-MID dial sequence to set seat temp and change over

seat temp parameter indicating LED. If ring temp is OFF, the indicating

light is not illuminated.

E – DEFECATION WASH

When seated, press DEFECATIOND WASH to activate defecation

wash and display current wash strength.

I – DRYER

When seated, press DRYER to activate dryer function. Stop dryer

function immediately if wash function is in use.

1338634-T01-E

Kohler Co.

Bidet nozzle

Low-mid

small indicator

lights up and

medium

indicator flashes

Mid

small and

medium indicators

light up

simultaneously

Mid-high

small and

medium indicators

light up; large

indicator flashes

High

small, medium

and large

indicators light up

simultaneously

J -POSITION

Press wand POSITION button to activate wand move function in the

flush state; press POSITION button again to change wand position,

the position shall be circulated per MIN, MIN-MID, MID, MID-MAX,

MAX, MID-MAX distance sequence.

K -SANITIZE

Activate sanitize function for 45min UV sanitizing by press SANITIZE

button when unseated. Press STOP button or seat on the Bidet to

stop this function.

Auto UV sterilization function will be activated and start sterilizing

nozzle when unseated for a long time. The process shall be 45min.

No sterilization function shall be activated after this process in another

24hrs.

L -USERS

Change over or preset users: each click shall change over to different

users and retrieve default set.

Storage:select user, hold USERS button to save 4 wash states, dryer

parameter and seat temp parameter. One short beep indicates

successful storage.

Installation instructions

Low

small

indicator

lights up

UV radiation range

UV sterilization (refers to the ultraviolet sterilization generated by UV lamp): During UV working cycle, the bacteria on nozzle

surface will be eliminated by irradiation. The antibacterial rate is more than 99%. (Measured after one UV working cycle, it

was measured within 20mm×8mm irradiation area. Perform test in accordance with GB /T 23131 requirements, UV radiation

zone was shown in the diagram, UV working cycle activation mode refers to users guide. Testing lab: China household

electrical appliances testing institute.)

Kohler Co.

1338634-T01-E

Auto deodorizing function (ON/OFF)

Press and hold rear wash button for 2s to activate or deactivate deodorizing function.

Deactivate: long beep.

Activate: short beep.

Prolonged seating indication function (ON/OFF)

Press and hold MASSAGE button for 2s to activate or deactivate prolonged

seating indication function.

Deactivate: long beep.

Activate: short beep.

When seated, the buzz will generate a beep for indication every 15min, the

indication will be stopped by holding the STOP button or wait for a while.

Energy saving function (ON/OFF)

Press and hold seat temp for 2s to activate (short beep)/deactivate (long

beep) energy saving function. Seat temp LED flashing indicates energy

saving function is ON, seat temp LED stop flashing indicates energy saving

function is OFF. When seated, energy saving mode is cancelled. One week

after the activation, the seat performs an automatic detection in user’s

habitual routine. Starting from the second week, the seat automatically gets

itself into Energy Save mode when it is in idle, depending on the detected

user routine of the first week. During the third week, the seat bases its

judgment on the data collected during the previous week to decide when

it enters into Energy Save mode. It works the same for the following weeks.

Wand auto sanitize function (ON/OFF)

Press and hold SANITIZE button for 2s to activate or deactivate auto sanitize

function.

Deactivate: long beep.

Activate: short beep.

After a long idle period, Bidet will perform sanitize function by activating UV

sanitize function automatically. The duration is 45min, No sterilization function

shall be activated after this process in another 24hrs.

Power off Function (ON/OFF)

Press and hold STOP button for 2s to deactivate toilet. Press any key on side

key board or light side key board up when seated.

Night light function (ON/OFF)

Press and hold front wash button for 2s to activate or deactivate night light

function.

Deactivate: long beep, night light OFF.

Activate: short beep, night light is controlled by ambient light (night light ON when

ambient light is dark, vice versa).

Press and hold button Function Introduction

1338634-T01-E

Kohler Co.

This manual suits for next models

Table of contents

Languages:

Other Kohler Toilet manuals

Kohler

Kohler K-25044-SSL-47 User manual

Kohler

Kohler K-5401X Assembly instructions

Kohler

Kohler K-3519 Assembly instructions

Kohler

Kohler K-31333TW-0 User manual

Kohler

Kohler K-3656 Assembly instructions

Kohler

Kohler Inodoro K-3517 Assembly instructions

Kohler

Kohler REVE K-20766T-S User manual

Kohler

Kohler Wellworth K-4406-L User manual

Kohler

Kohler K-3654-7 Assembly instructions

Kohler

Kohler VEIL+ K-5401T-3-0 Assembly instructions

Kohler

Kohler REVIVAL User manual

Kohler

Kohler K-4026 Assembly instructions

Kohler

Kohler K-3900X-2 User manual

Kohler

Kohler K-5171K Assembly instructions

Kohler

Kohler K-3589 Assembly instructions

Kohler

Kohler KARAT K-2462X Assembly instructions

Kohler

Kohler K-3654 Assembly instructions

Kohler

Kohler Eir Comfort Height K-77795-0 User manual

Kohler

Kohler K-5401KR User manual

Kohler

Kohler K-3574 Assembly instructions

Kohler

Kohler K-22106T-S2 User manual

Kohler

Kohler K-3901 Assembly instructions

Kohler

Kohler REVE K-17183T User manual

Kohler

Kohler Reve Comfort Height K-3797-0 Assembly instructions

Popular Toilet manuals by other brands

Toto

Toto Washlet TCF4911 Series installation guide

Grohe

Grohe Sensia ARENA user manual

Geberit

Geberit AQUACLEAN MERA CLASSIC user manual

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 user manual

American Standard

American Standard CONCEPT Cube TF-2704 installation manual

BIOLAN

BIOLAN ECO Instructions for installation, use and maintenance

Thetford

Thetford C260 Series user manual

KELISS

KELISS T162A Series instruction manual

BIOLAN

BIOLAN GARDEN TOILET Instructions for installation, use and maintenance

washloo

washloo Prestige user manual

JABSCO

JABSCO 37010 Series quick start guide

Drive

Drive TSE 150 operating instructions

Olympia

Olympia EPOQUE 69209 Installation and Maintenance

GSi

GSi TRACCIA 691711 installation instructions

DENCK

DENCK PURE-D user manual

Silent Venus

Silent Venus SVP600 Installation & maintenance

InBe

InBe IB/04.06050 installation instructions

Swiss Madison

Swiss Madison Carré SM-1T264 installation instructions
