Kohler Memoirs K-1418-G User guide

Features

•Center drain.

•Integral lumbar support.

•Coordinates with other products in the Memoirs®collection.

•72" (1829 mm) x 42" (1067 mm) x 22" (559 mm)

Material

•Acrylic

Hydrotherapy

•122 BubbleMassage™airjets. 18 levels of massage intensity.

•Zones of Control feature allows you to target massage to back,

midsection, or feet.

•Automatic purge cycles remove residual water from air channels

after use.

•Built-in 300 W heater.

•Lighted keypad control.

Installation Codes/Standards

•Drop-in ASME A112.19.7/CSA B45.10

Recommended Accessories

K-1491 Bath/Whirlpool Pillow

CSA B45.5/IAPMO Z124

ASTM E162

ASTM E662

K-1601 Bath/Whirlpool Footstop UL 1795

K-1705 Whirlpool/BubbleMassage™Remote Control CSA C22.2 No. 218.2

K-7161-AF Bath Drain Greenguard UL 2818 - Gold

K-9498 3" Keypad Trim CARB P2

K-24916 Wireless Music Kit

KOHLER®One-Year Limited Warranty

See website for detailed warranty information.

Available Color/Finishes

Color tiles intended for reference only.

DescriptionCodeColor

White0

Biscuit96

Almond47

DuneNY

SandbarG9

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

8-2-2017 02:10

Memoirs®

6' BubbleMassage™Bath

K-1418-G

1-1/2" Bath Drain

Notes

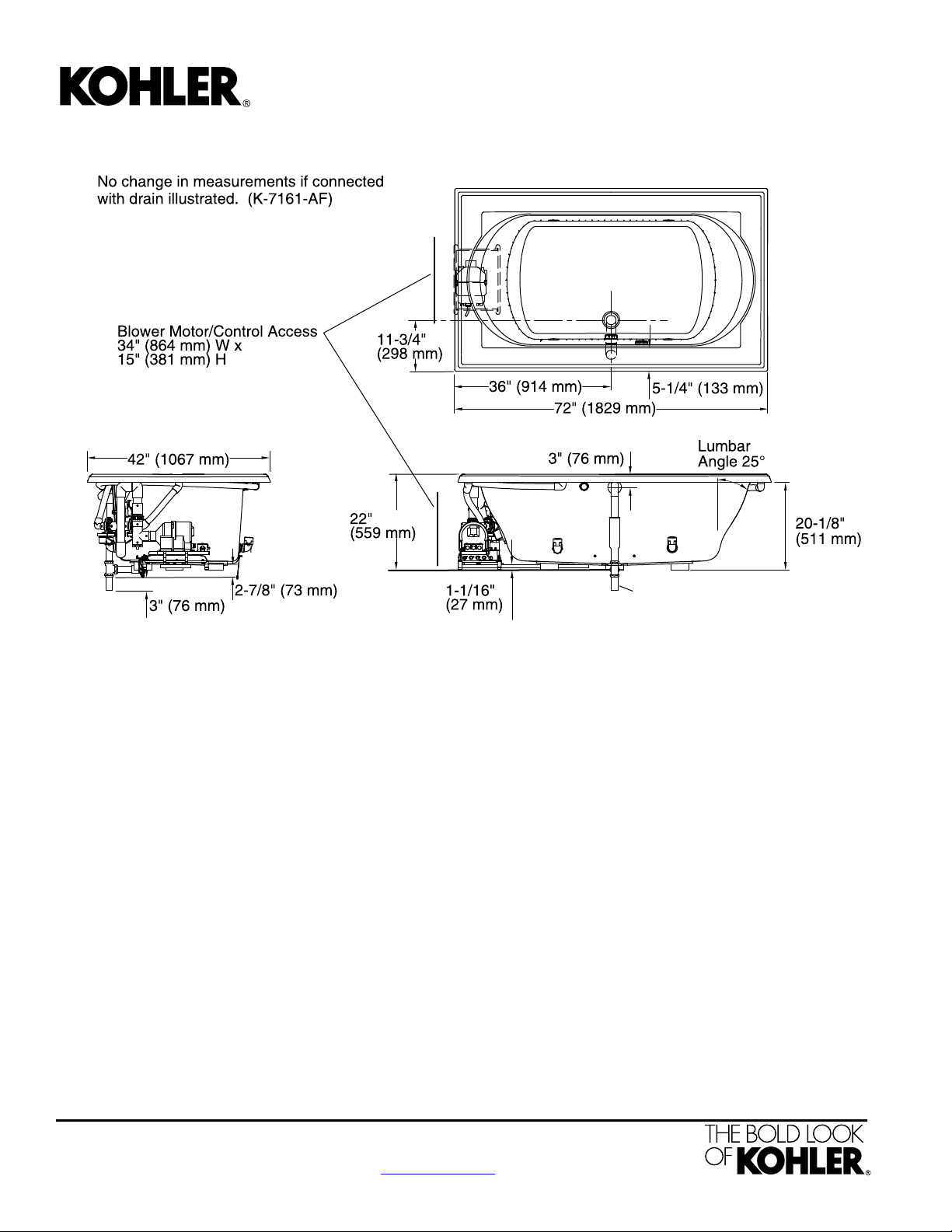

Required Electrical Service Measure your actual product for rough-in details.

One dedicated circuit required, protected with Class A

Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device

(RCD).

Install this product according to the installation

instructions.

The hot water supply should be 70% of the

capacity of the bath or greater. Installations will

vary.

240 V, 15 A, 50/60 HzBlower:

Technical Information

All product dimensions are nominal. If installing a rim-mount faucet, make sure there

is no interference with drain overflow before

Drop-inInstallation:

CenterDrain location: drilling any holes. Consult local and national

48" x 27" (1219 mm x 686 mm)Basin area, bottom: codes for minimum air gap requirements if

installing a spout on the faucet deck.

60" x 30" (1524 mm x 762 mm)Basin area, top:

150 lbs (68 kg)Weight: If relocating the blower motor, do not relocate or

alter the PVC tee or coiled flexible tubing

54 lbs/ft²(263.7 kg/m²)Minimum floor load:

connected to the blower. Follow the blower

16" (406 mm)Water depth:

relocation instructions exactly. Provide access

for servicing the blower.

94 gal (355.8 L)Water capacity:

Drop-in, 70-1/2" x 40-1/2" (1791 mm x

1029 mm)

Cutout:

Blower: 240 V, 5 A, 50/60 Hz, 300 WElectrical component

rating:

VariableBlower speed:

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

8-2-2017 02:10

Memoirs®

6' BubbleMassage™Bath

K-1418-G
